Use the SFP Module to:
Extend the distance of connected devices
Provide connectivity between switches
Quick Install Guide

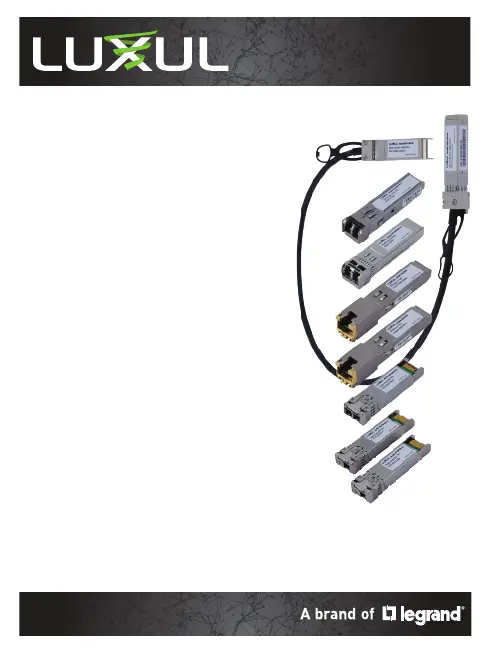

10G-CAB-05
Direct-Attach Cable 0.5m 10G Copper Passive
1G-MM-DX-LC
1G Multimode Fiber Duplex SFP Module
850nm VCSEL
10G-MM-DX-LC
10Gb Multimode Fiber Duplex SFP+ Module
850nm VCSEL
1G-RJ45
1000Base-T RJ-45 SFP Module
10G-RJ45
10GBase-T RJ-45 SFP+ Module
10G-SM-DX-LC
10Gb Single-mode Fiber Duplex SFP+ Module
1310nm DFB Laser
10G-SM-SX-LC
10Gb Single-mode Fiber Simplex SFP+ Module
1310nm/1270nm DFB Laser
4
w WARNING!: Grasp module by the sides to install or
remove from SFP ports. Do not use the cable.
w WARNING!: Pulling, bending, kinking, or twisting fiber
optic cable will cause damage to the cable.
w WARNING!: Put on an electrostatic discharge (ESD) wrist
strap and attach the clip end to a metal
surface (such as an equipment rack) to act
as ground during installation.
INSTALLATION
Remove the SFP Module from its protective packaging
Gently insert the SFP Module into the SFP port of the Luxul switch
until it clicks into place. The SFP Modules are keyed to prevent
incorrect insertion. A tab on the bottom of the SFP Module locks it
to the front panel of the switch
Remove the protective covering from the port connectors of the SFP
Module and store the covering for future use
The SFP Module is now ready to receive the compatible cable
n NOTE: SFP Modules are hot swappable.
n NOTE: When connecting to devices that will require a
SFP Module, the same module must be used on
both sides of the connection (EX. a 1G-RJ45 SFP
Module on one side of the connection requires
that a 1G-RJ45 is used on the other side of the
connection). The exception is the 10G-SM-SX-LC,
which comes as a pair of compatible modules—
one for each side of the connection.
SFP MODULES HARDWARE FEATURES
Module Type Cable Type Mode Interface
10G-CAB-05 Cable N/A N/A N/A
1G-RJ45
UTP/
STP
Cat.5e or
Cat.6/7
UTP/STP
N/A
RJ-45
10G-RJ45
Cat.6/7
UTP/ST
N/A
1G-MM-DX-LC
Optical
Fiber
Duplex Fiber Multi
LC
10G-MM-DX-LC Duplex Fiber Multi
10G-SM-DX-LC Duplex Fiber Single
10G-SM-SX-LC Simplex Fiber Single
Fo ld Fo ld
Quick Install Guide
Model Numbers: 1G-MM-DX-LC, 10G-MM-DX-LC, 1G-RJ45, 10G-RJ45, 10G-SM-DX-LC,
10G-SM-SX-LC, 10G-CAB-05-1
© 2018 Luxul. All Rights Reserved.
No part of this publication may be modified or adapted in any way, for any purposes,
without permission in writing from Luxul. The material in this manual is subject to
change without notice. Luxul reserves the right to make changes to any product
to improve reliability, function, or design. No license is granted, either expressly or
by implication or otherwise, under any Luxul intellectual property rights. An implied
license only exists for equipment, circuits, and subsystems contained in this or any
Luxul product.
DOCUMENT CONVENTIONS
The following alerts are used to indicate notable situations:
n NOTE: Tips, hints, or special requirements that
you should take note of.
c CAUTION: Care is required. Disregarding a caution can
result in data loss or equipment malfunction.
w WARNING!: Indicates a condition or procedure that
could result in personal injury or equipment
damage.
FCC COMPLIANCE
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received,
including interference that may cause undesired operation
CONTACT LUXUL
Sales
P: 801-822-5450 , Option 1
E: sales@luxul.com
Technical Support
P: 801-822-5450 , Option 2
E: support@luxul.com
WHAT THIS PRODUCT DOES:
These SFP Modules are designed for use with Luxul Ethernet switches
that have a corresponding SFP or SFP+ port. The modules can be used
to interconnect Luxul switches or provide an additional port for
connectivity to a networked device (computer, etc.). The modules allow
for connectivity over various media, bandwidths, and distances: UTP
copper or fiber optic cabling, short or long distances, 1 or 10 Gigabit.
