LCB2-3 INSTALLATION INSTRUCTIONS

TOOLS REQUIRED: 7/16 Wrench

CONTENTS OF KIT: An adjustable side burner mounting bracket

Side shelf mounting bracket with 7/16 fasteners

Decorative cover for the L27 and L36 models

The side burner support bracket comes preassembled for the L27 and L36

Lynx Grills, 7300 Flores St., Downey, CA 90242

Customer Care Ph.: 888-289-5969/ Fax: 562-299-6978/Service@lynxgrills.com

P/N 34912 8/14

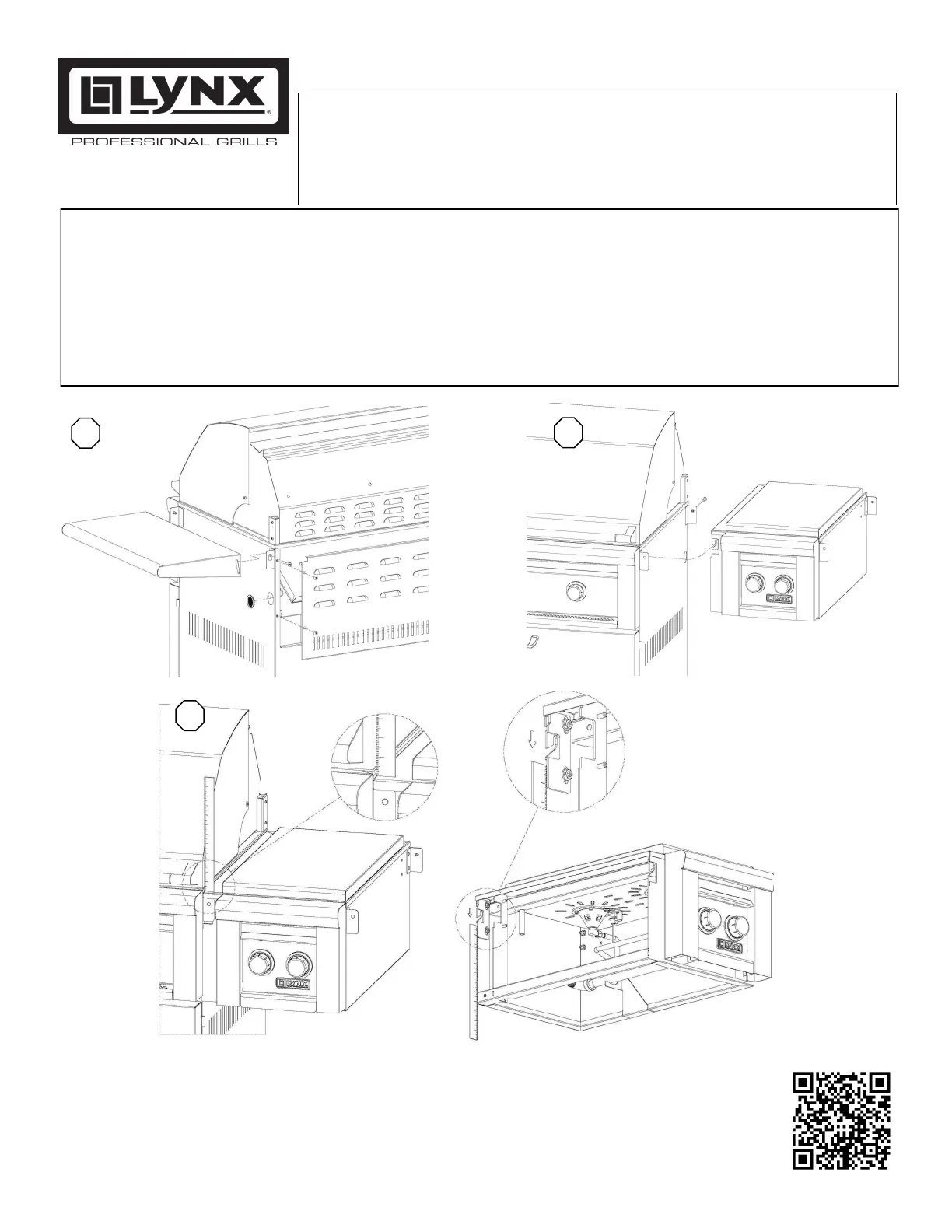

INSTRUCTIONS FOR MODELS L36 and L27:

1. Remove the right hand side shelf and the cabinet back panel (fig. 1)

2. Mount the LCB2-3 side burner to the supports (fig. 2)

3. If needed, any misalignment can be corrected by 1st measuring the amount of misalignment, 2nd loosening the

bracket support fasteners. 3rd raise or lower the bracket according to your measurements.

Tighten the fasteners. (fig 3)

4. Hang the side shelf removed in step 1 on the right side shelf support pins of the side burner (Fig. 6, pg. 2)

P/N 34912. 8/14

Rear View

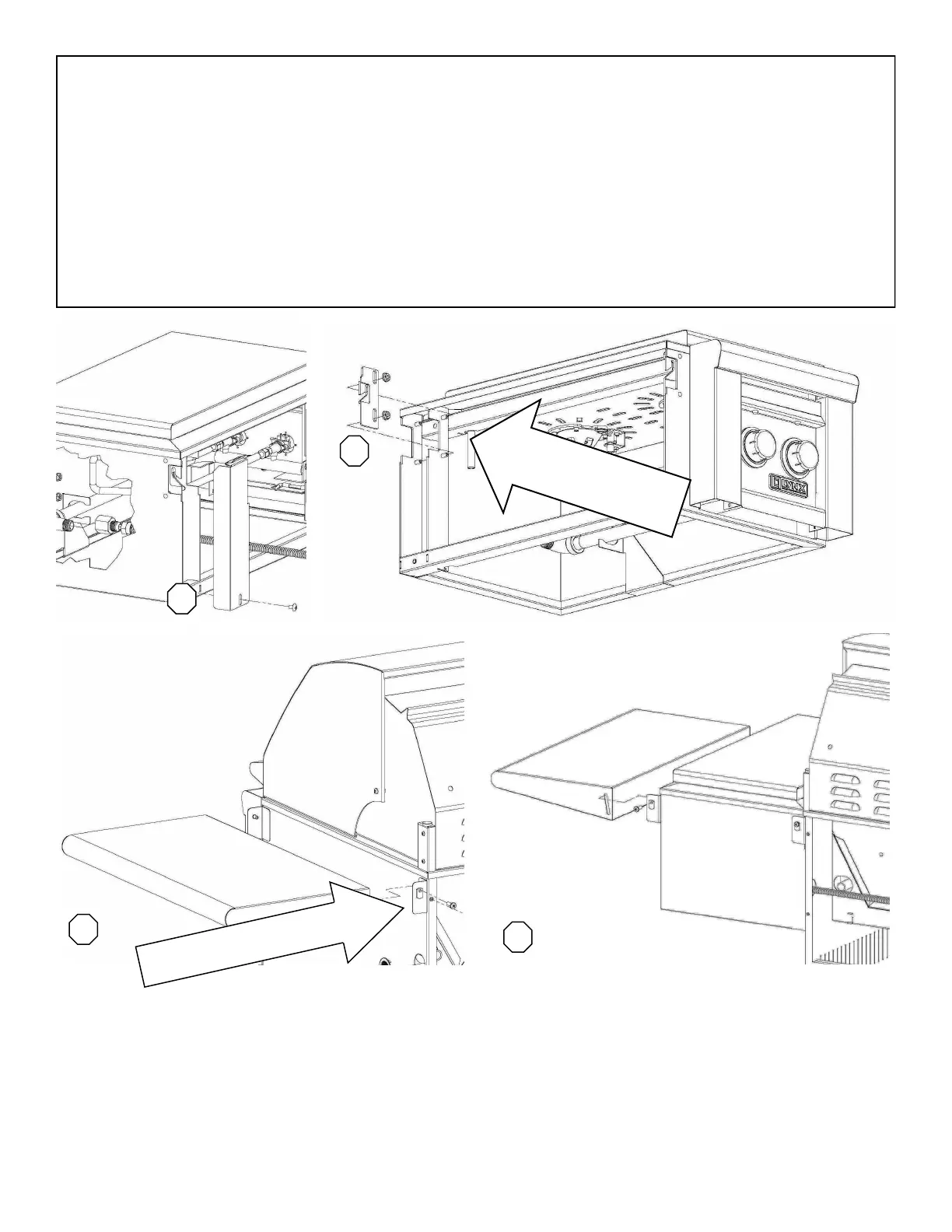

INSTRUCTIONS FOR MODELS L54, L42, L30:

1. Remove the right hand side shelf. See fig.1 on page 1

2. At the rear, remove the decorative cover (1) on the left hand side of the LCB2-3 by removing the Philips head screw

and sliding it out. This also gives access to the gas piping connections. (Fig. 2)

3. Locate the mounting bracket on the inner most bracket support (Fig 3). Remove the 7/16 fasteners holding it in

place Reinstall the mounting bracket on the rear most bracket support and secure it with the 7/16 fasteners

4. As in step 3 on page 1,correct any misalignment in the shelf

5. Move the shelf mounting bracket on the right hand side, to the outermost mounting holes using the 7/16 nuts, and

tighten. (Fig. 5)

6. Hang the side shelf removed in step 1, pg. 1 to the right side of side burner on the shelf mounting bracket pins

(Fig 6)

Remove the bracket from the inside

support and install it onto the outer

support

This bracket must be mounted in the outer

position
