ONE-YEAR LIMITED WARRANTY

This Magnus product is warranted to the original purchaser to be

free from defects in materials and workmanship under normal

consumer use for a period of one (1) year from the original

purchase date or thirty (30) days after replacement, whichever

occurs later. The warranty provider’s responsibility with respect

to this limited warranty shall be limited solely to repair or

replacement, at the provider’s discretion, of any product that

fails during normal use of this product in its intended manner

and in its intended environment. Inoperability of the product

or part(s) shall be determined by the warranty provider. If the

product has been discontinued, the warranty provider reserves

the right to replace it with a model of equivalent quality and

function.

This warranty does not cover damage or defect caused by misuse,

neglect, accident, alteration, abuse, improper installation or

maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY

PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR

ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED

TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE. This warranty provides

you with speciﬁc legal rights, and you may also have additional

rights that vary from state to state.

To obtain warranty coverage, contact the Magnus Customer

Service Department to obtain a return merchandise

authorization (“RMA”) number, and return the defective product

to Magnus along with the RMA number and proof of purchase.

Shipment of the defective product is at the purchaser’s own risk

and expense.

For more information or to arrange service, visit www

.magnustripods .com or call Customer Service at 212-594-

2353.

Product warranty provided by the Gradus Group.

www.gradusgroup.com

GG1

Gimbal Head

Owner’s

Manual

GH-M1

Thank you for choosing Magnus.

The Magnus GH-M1 gimbal-type tripod head is an

ideal accessory for wildlife or sports photography

because it ensures precise and fast camera aiming

with a heavy lens. The GH-M1 mounts onto most

tripods with a 3/8-inch threaded stud, and it’s

designed to balance a lens along its vertical and

horizontal axes. The sturdy curved aluminum main

arm supports up to 30 pounds, yet it balances the load

so that even a large lens feels weightless. Lenses that

are large or heavy enough to prevent quick moving

and aiming can be tilted or swiveled effortlessly

and remain securely in place once positioned. An

Arca-type quick-release plate is included for swift and

secure camera mounting and swapping.

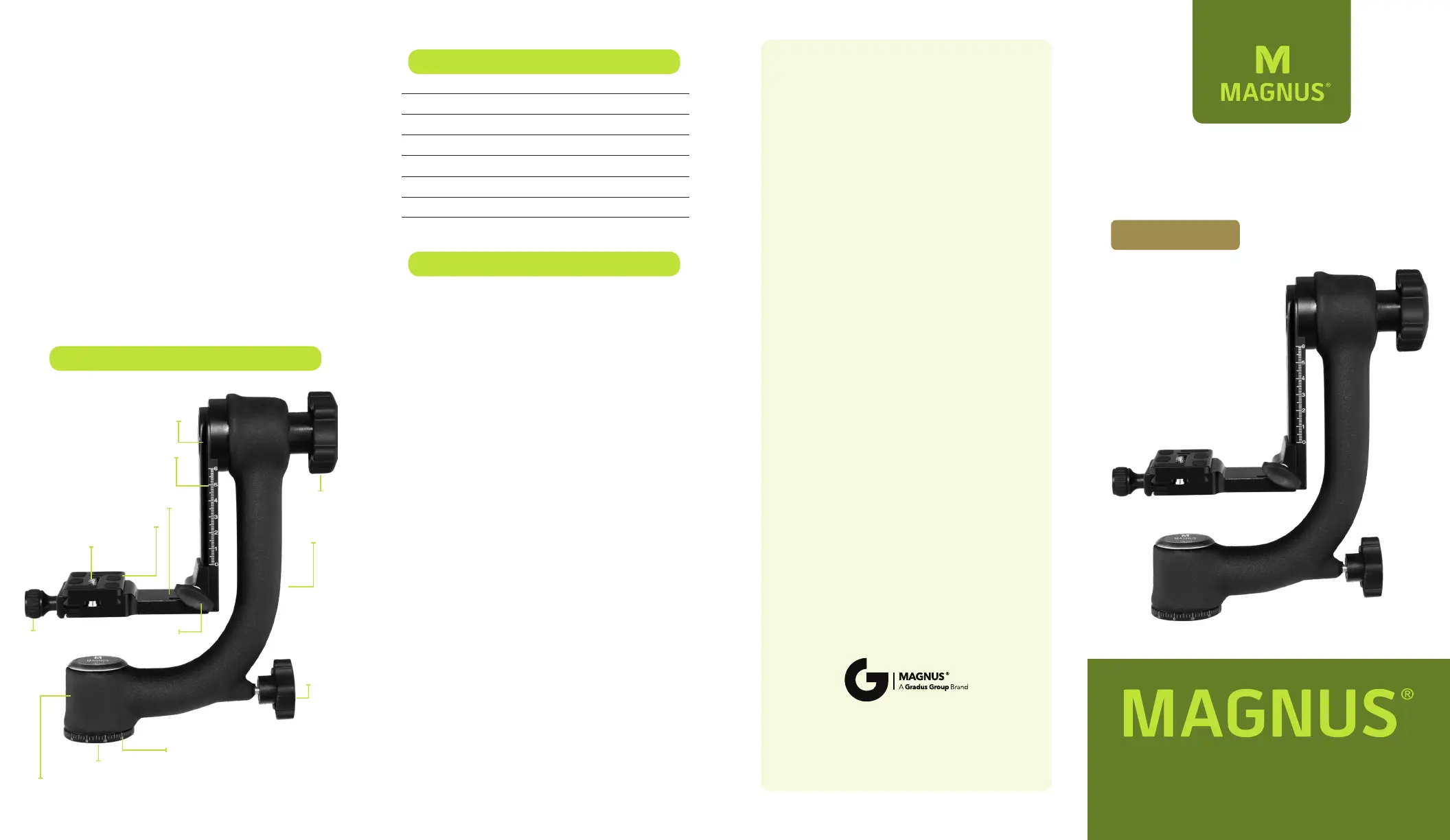

Key Features

Swinging

arm lock

Plate lock Platform locking knob

Pan degree scale

Height scale

Panning base

1/4-20 mounting screw

Swinging arm

Pan lock

Plate platform

Main arm

3/8-16 mounting socket

Quick-release (QR) plate

• Please read and follow these instructions, and keep this

manual in a safe place.

• Do not attempt to attach the base head to a tripod

while a camera attached.

• Remove the camera and lens from the head during

setup or transport.

• Do not exceed the head’s maximum load capacity of

30 pounds (13.6 kg).

• Ensure that all appropriate locks are engaged when

necessary.

• Keep out of reach of children.

• All images are for illustrative purposes only.

User Cautions

Speciﬁcations

Base Diameter: 1.9 in. (4.8 cm)

Base Pan Range: 360°

Maximum Load: 30 lb. (13.6 kg)

Width: 8.3 in. (21.1 cm)

Height: 8.3 in. (21.1 cm)

Weight: 2 lb. (0.92 kg)

Mounting the Gimbal to the Tripod

1 Tighten the pan lock until it’s secure.

2 Align the 3/8-16

mounting socket

with the tripod’s

3/8-16 post and

screw it onto the

tripod.

If your tripod has

set screws on the

platform, tighten them

to secure the GH-M1

to the tripod.

Important! Make sure the head is screwed on securely so

there are no gaps between the gimbal and the tripod.

Balancing a Lens

The correct balance is achieved when the lens and camera

can be tilted at any angle—up or down—and remain in

place. With the proper balance, the lens can move effortlessly

and stay pointed in any position without locking the swinging

arm. Carefully follow these steps:

Horizontal Balance

1 Tighten all locking knobs so the camera and lens won’t

accidentally move while mounted on the gimbal.

2 Loosen the plate lock, and adjust the horizontal balance

of the camera and lens. Tighten the plate lock until

secure.

3 Loosen the swinging arm lock, and tilt the lens up and

then down at a 45° angle. If the lens wants to return to

a center position, the camera and lens are horizontally

balanced.

4 Repeat steps 2 and 3 until your lens is balanced along its

horizontal axis.

Vertical Balance

1 Loosen the platform locking knob, and adjust the height

to vertically align the center of the lens with the axis of

the locking knob. Retighten the platform locking knob

after every adjustment.

Attaching the Quick-Release Plate to

the Lens

The Arca-type quick-release plate has a 1/4-inch

mounting screw that attaches to most lens collars. Use

a 3/8-16 bushing (not included) if your lens collar has a

3/8-16 socket.

Warning! Always hold your camera and lens while

following the attaching and balancing instructions.

1 Remove the quick-release plate by loosening the

plate lock and lifting it off the plate platform.

2 Attach the quick-release plate screw with the D-ring.

Tighten the screws with a coin, slotted screwdriver,

or hex key.

Mounting a Lens

1 Tighten the swinging arm lock, pan lock, and

platform locking knob. Make sure they are secure

before proceeding.

2 Loosen the plate lock, and place the quick-release

plate/lens assembly into the grooves of the plate

platform.

3 Make sure the quick-release plate is seated properly

in the plate platform, and tighten the plate lock until

secure.

Pro Tips

• It might take several attempts to balance your camera

and lens for the ﬁrst time. Be patient when following the

instructions above.

• For each setup, use masking tape or a grease pencil

to note the position of the height scale and the quick-

release plate. This will make balancing the camera and

lens much faster in the future.

• To maximize image sharpness, support the camera with

your right hand while resting your left hand on the front

the of the lens.

2 After each adjustment, test the balance by pointing the

lens up and down. If the lens and camera can be tilted

at any angle and remain in place, they are now vertically

balanced.
