Owner’s

Manual

Travel Tripod

TR-17L

Thank you for choosing Magnus.

ONE-YEAR LIMITED WARRANTY

This MAGNUS product is warranted to the original

purchaser to be free from defects in materials and

workmanship under normal consumer use for a

period of one (1) year from the original purchase

date or thirty (30) days after replacement,

whichever occurs later. The warranty provider’s

responsibility with respect to this limited warranty

shall be limited solely to repair or replacement, at

the provider’s discretion, of any product that fails

during normal use of this product in its intended

manner and in its intended environment.

Inoperability of the product or part(s) shall be

determined by the warranty provider. If the

product has been discontinued, the warranty

provider reserves the right to replace it with

a model of equivalent quality and function.

This warranty does not cover damage or defect

caused by misuse, neglect, accident, alteration,

abuse, improper installation or maintenance.

EXCEPT AS PROVIDED HEREIN, THE WARRANTY

PROVIDER MAKES NEITHER ANY EXPRESS

WARRANTIES NOR ANY IMPLIED WARRANTIES,

INCLUDING BUT NOT LIMITED TO ANY

IMPLIED WARRANTY OF MERCHANTABILITY

OR FITNESS FOR A PARTICULAR PURPOSE.

This warranty provides you with specific

legal rights, and you may also have

additional rights that vary from state to state.

To obtain warranty coverage, contact the

Magnus Customer Service Department to obtain

a return merchandise authorization (“RMA”)

number, and return the defective product to

Magnus along with the RMA number and proof

of purchase. Shipment of the defective product

is at the purchaser’s own risk and expense.

For more information or to arrange service, visit

www.magnustripods.com or call Customer

Service at 212-594-2353.

Product warranty provided by the Gradus Group.

www.gradusgroup.com

Magnus is a registered trademark of the Gradus Group.

GG1

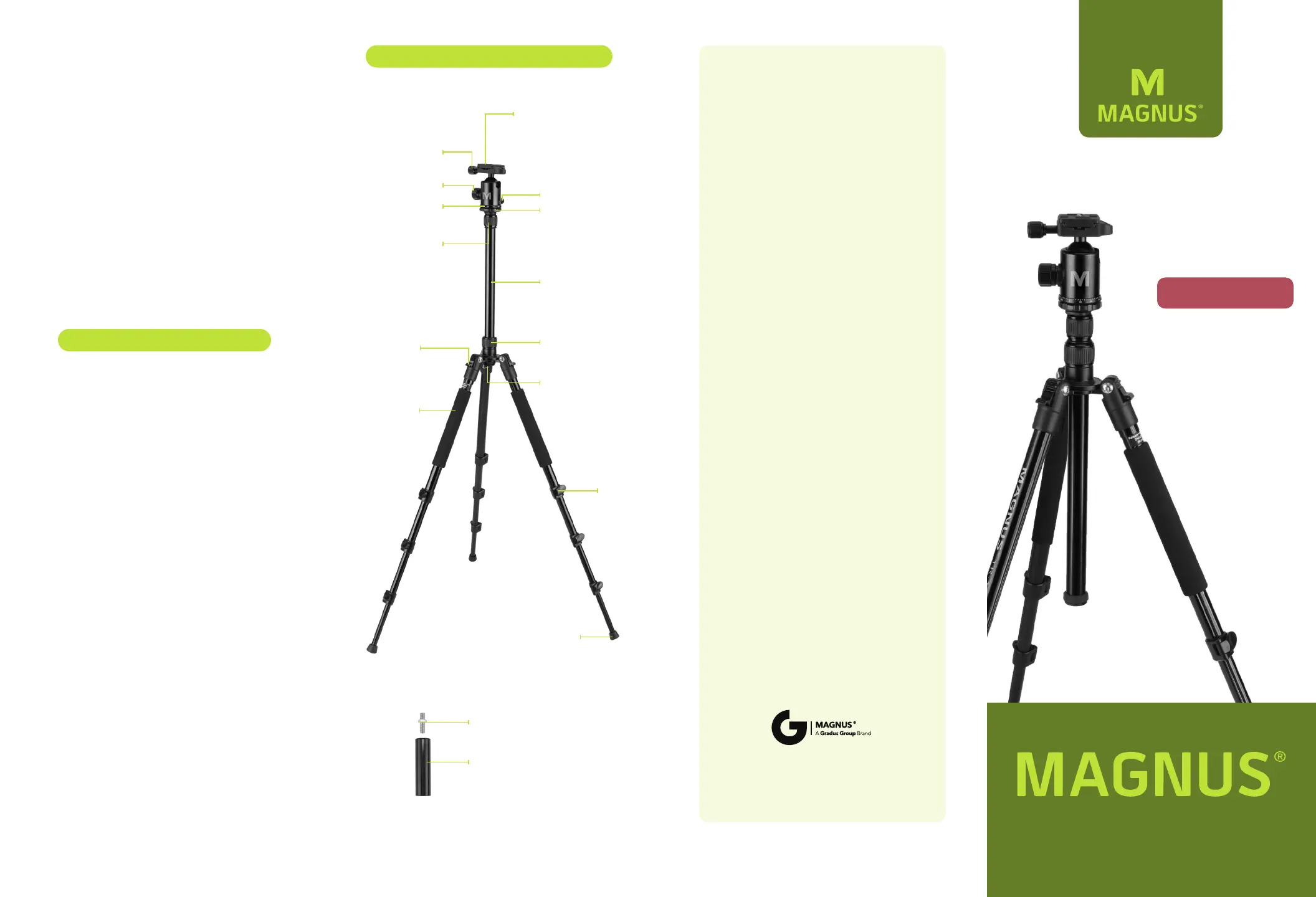

Travel Tripod Components

Pan locking knob

Mounting plate with

reversible mounting

screw

Two-section

center column

Center-column

twist lock

Center-column

locking collar

Removeable leg/

monopod

Pan degree scale

Ball locking knob

Leg angle locks

Counterweight

hook

Quick-release plate

Quick-release

locking knob

Flip locks

Rubber feet

Short center column

User Cautions

3/8-16 monopod mounting

stud and locking nut

The Magnus TR-17L travel tripod is a multifunction

lightweight travel companion for shooting on the go.

This tripod features a dual-action ballhead with pan

control for precise aim. An Arca-type quick-release plate

allows you to quickly and effortlessly mount or swap

your cameras.

For height adjustment up to 77 inches, the adjustable

two-section center column features twist locks for

smooth and precise positioning, and it’s reversible,

which enables close-to-the-ground shots.

A short center column is included for low-angle shots,

and one of the tripod legs unscrews and becomes a

monopod.

• Please read and follow these instructions,

and keep this manual in a safe place.

• Never set up or pull down a tripod

while a camera is mounted.

• Do not move the tripod or adjust the

legs while a camera is mounted.

• Do not exceed the maximum weight

capacity of the tripod.

• Never leave a camera unattended on the tripod.

• The camera should be securely fastened

to the quick-release mounting plate

before mounting onto the tripod.

• Never mount a camera to the tripod until

all tripod legs are locked and stabilized.

• Do not lift or move the tripod by the head.

• Keep hands clear of the inside of the

legs, to avoid trapping fingers.

• The safe operation of the tripod is

the responsibility of the user.

• All images are for illustrative purposes only.

To adjust the tilt, loosen the ball

locking knob, and change the

position of the camera.

For 90° portrait orientation, loosen

the ball locking knob, and place the

ballhead into the 90° notch.

For 360° panning, loosen the pan

locking knob, and rotate the base

of the ballhead. Use the degree

scale at the base of the head for

precise aiming, and tighten the

locking knob until secure.

1 Unscrew the counterweight

hook from the bottom of the

center column, and remove

the rubber cap. (Fig. A)

2 Loosen the center column

locking collar, and remove

the center column from the

tripod. (Fig. B)

3 Unscrew the designated leg

from the tripod. (Fig. C)

4 Screw the dual-sided 3/8-16

post and locking nut into

the monopod leg until

approximately half the post is

visible. (Fig. D)

5 Screw the center column onto

the monopod leg until it’s

tight. (Fig. E)

Adjust the monopod height

with the leg’s flip locks and the

center column’s twist lock. At full

extension, the monopod reaches a

height of 82.5 inches.

1 Unscrew the counterweight

hook from the bottom of the

center column, and remove

the rubber cap. (Fig. A)

2 Loosen the center column

locking collar, and remove

the center column from the

tripod. (Fig. B)

3 Insert the bottom of the

center column up through the

tripod.

4 Tighten the center-column

locking collar, and replace

the rubber cap and

counterweight hook.

3 Remove the mounting plate

assemblly from the center

column.

4 Insert the short center

column right side up or

upside down into the tripod,

and tighten the locking collar.

5 Attach the mounting plate

assembly to the center

column.

1 Loosen the quick-release

locking knob, and remove

the quick-release plate

from the ballhead.

2 Screw the quick-release

plate into the camera’s

tripod socket until snug.

Make sure the mounting screw’s

D-ring is off to the side of the screw.

3 Mount the camera/

quick-release plate

assembly to the ballhead

by placing the grooved

edges of the quick-release

plate into the matching

beveled sides of the ballhead.

4 Tighten the quick-release locking knob until the assembly is secure.

1 Remove the ballhead, then

loosen and remove the

mounting plate.

2 Reverse the screw so the 1/4-

20 end is up. Seat the locking

nut into the mounting plate’s

notch and screw it into the

center column.

3 Once the screw is at the

desired height, tighten the

mounting plate until secure.

1 Fold the legs out until the

angle locks click into place.

Make sure all the legs are

set to the same angle.

2 Open the flip locks, and

extend each leg to the

desired height. Relock each

leg.

Always extend the legs from the

top flip-locks first.

To adjust the leg angles, slightly

fold each leg down, and press the

leg angle lock. Move the leg to the

new angle, and release the lock.

Opening the Tripod Mounting the Quick-Release Plate to the Camera

Converting to a Monopod

Reversing the Mounting Screw

Operating the Ballhead

2 Adjust the center column

to the desired height, and

tighten the center-column

collar until secure.

3 For additional height, loosen

the center column’s twist lock

and adjust the height.

1 To raise or lower the center

column, loosen the center-

column locking collar by

turning it counterclockwise.

Adjusting the Center Column

Reversing the Center Column

Using the Short Center Column

1 Retract and lock each leg.

2 Raise the center column.

3 Slightly fold each leg down, and press the leg angle lock tab. Fold

each leg up until they’re all parallel to the center column

Folding the Tripod

The mounting plate comes with a reversible 3/8-16 and 1/4-20

mounting screw.

The 3/8-16 thread holds the ballhead. Reverse the screw to attach a

1/4-20 accessory like an LED light, microphone, or monitor directly onto

the tripod.

Important! Always support the camera with one hand when loosening

the ball locking knob.

Figure A

Figure C

Figure D

Figure E

Figure B

1 Unscrew the counterweight hook from the bottom of the center

column, and remove the rubber cap. (Fig. A)

2 Loosen the center-column locking collar, and lift the center column

from the tripod. (Fig. B)

6 Tighten the center-column locking collar, and replace the rubber cap

and counterweight hook.
