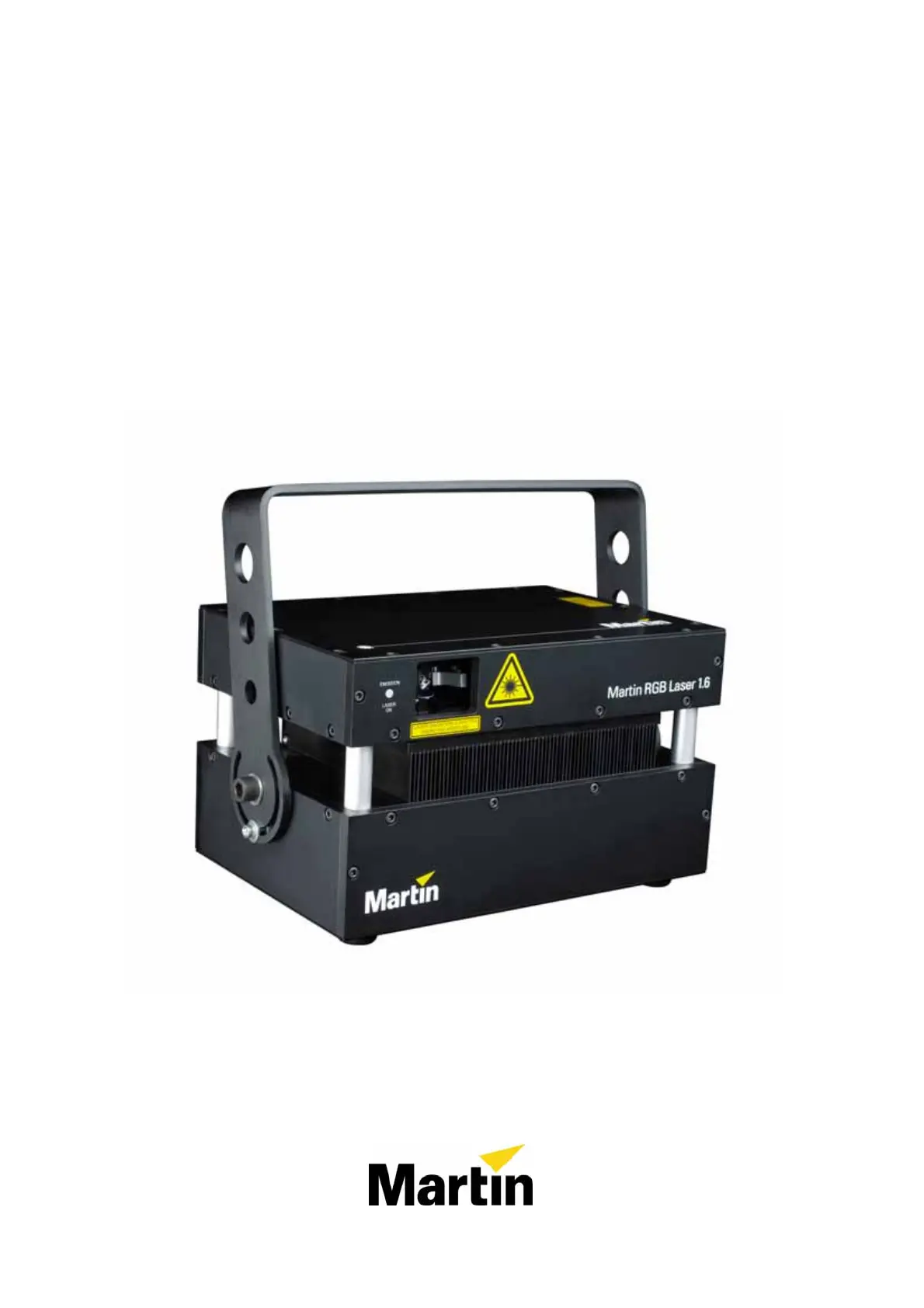

RGB laser 1.6
user manual
Dimensions
All dimensions are given in millimeters
290
290
290
290
290
204
20
20
20
204
4
4
4
178
17
17
17
178
8
8
8
326
326
326
326
326
260
260
260
260
260
© 2006-2009 Martin Professional A/S. Information subject to change without notice. Martin Professional A/S and all affiliated
companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other loss
occasioned by the use of, inability to use or reliance on the information contained in this manual. The Martin logo, the Martin name
and all other trademarks in this document pertaining to services or products by Martin Professional A/S or its affiliates and
subsidiaries are trademarks owned or licensed by Martin liates or subsidiaries. Professional A/S or its affi
P/N 35000189 Rev. C
Contents
Dimensions....................................................................................................................................2
Rear panels overview....................................................................................................................4
Safety Information .........................................................................................................................5
Introduction....................................................................................................................................7
Features .................................................................................................................................7
Special product information...........................................................................................................8
Storage temperature ..............................................................................................................8
Temperature stabilization at power on...................................................................................8
Internal memory .....................................................................................................................8
Installation .....................................................................................................................................9
Connecting to AC power ........................................................................................................9
Physical installation................................................................................................................9
Connecting to external devices ............................................................................................11
Operation.....................................................................................................................................13
Monitoring fixture status .......................................................................................................13
Using the control panel and display .....................................................................................14
Using the Martin RGB Laser Show Software.......................................................................17
DMX operation .....................................................................................................................27
ILDA operation .....................................................................................................................28
Service and Troubleshooting.......................................................................................................29
Cleaning ...............................................................................................................................29
Replacing fuses....................................................................................................................29
Firmware updates ................................................................................................................29
Martin RGB Laser 1.6 Specifications ..........................................................................................30
Appendix 1: DMX Protocol ..........................................................................................................35
Appendix 2: Warning Label Location and Identification..............................................................36
Rear panels overview
AB C D EF
G H I
J K L M N
A – Interlock safety cutout connector
B – USB signal indicator
C – DMX signal indicator
D – DMX out
E – DMX in
F – 6-pin XLR connector for link to PC via
USB adapter cable
G – Display
H – ILDA in
I – Power input IEC connector
J – Control buttons
K – Keyswitch
L – ILDA out
M – Power on/off switch
N – Main fuseholder
Martin Laser RGB 1.6 User Manual 5
Safety Information
DANGER! CLASS 4 LASER PRODUCT
General
DANGER! This product is for professional use only! It presents risks of lethal or severe injury
due to laser radiation, fire and heat, electric shock, skin hazards and falls.
Read this manual before installing or powering the fixture, follow the safety precautions listed below and
observe all warnings in this manual and on the fixture. If you have any questions about how to operate
the fixture safely, please contact your Martin supplier or call the Martin 24-hour service hotline.
Refer all service not described in this manual to a Martin service technician.
Laser safety
This product is a Class 4 laser with more than 1000 mW visible output. This laser system presents a
hazard from direct or specular reflections, but may also produce hazardous diffuse reflections and may
present significant eye and skin hazards as well as fire hazards.
Warning! Only Laser Safety Officers who are officially certified by a regulatory body or
authorized training organization are allowed to use class 4 lasers in public. The Laser
Safety Officer is responsible for all aspects of use of this laser, including ensuring that
all locally applicable safety laws and regulations are observed.
Laser Safety is regulated by different authorities in each country:
• In Canada, the Radiation Protection Bureau (RPB)
• In the United States of America, the Center for Devices and Radiological Health [CDRH]
• In Europe, the European Norm-organization CENELEC
Refer to these institutions for detailed information about the safety regulations that apply in your country
before operating this laser. Note that if safety practices required by locally applicable law or regulations
differ from those outlined in this manual, t must be respected. he stricter requirement
Caution – use of controls or adjustments or performance of procedures other than those specied
herein may result in hazardous radiation exposure.
Protecting yourself and others from electric shock and injury
• Disconnect the fixture from AC power before removing or installing a fuse or any part, and when not
in use.
• Always ground (earth) the fixture electrically.
• Use only a source of AC power that complies with local building and electrical codes and has both
overload and ground-fault (earth fault) protection.
• Do not expose the fixture to rain or moisture.
6 Martin Laser RGB 1.6 User Manual
• Do not use the fixture if ambient temperature is above 40° C (104° F) or below 5° C (41° F), if relative
humidity exceeds 90%, or if condensation is forming.
• If the fixture, power cable or power plug is visibly damaged in any way, cut power, disconnect it and
do not operate it until it has been repaired by Martin Service.
• Use only the power cable supplied with the fixture. Replacement power cables are available from
Martin.
• If the output window is not in perfect condition, for example if there are visible cracks or scratches,
disconnect the fixture from power and do not operate it until the output window has been replaced by
Martin Service.
• Do not operate the fixture if any covers are open, missing or damaged in any way.
• Protect your eyes with laser safety goggles that give protection from the laser output as defined in the
Specifications section of this user manual when working on or near the fixture.
• Do not look directly into the output window or laser beam.
• Keep fingers and objects out of the holes in the mounting bracket, as there is a risk of cutting or
shearing if the fixture moves or is adjusted in the bracket.
• Keep fingers and other objects out of the cooling fans.
Protecting yourself and others from burns and fire
• Ensure that people and objects cannot come closer than 2 meters (7 feet) to the fixture within a zone
of 80° x 80° around the output window.
• Keep the fixture well out of reach of the public.
• Keep the output window minimum 3 meters (10 feet) above the level of any floor that is accessible to
the public.
• Do not illuminate any surface within 2 meters (7 feet) of the fixture
• Keep combustible materials (for example fabric, wood, paper) at least 1 meter (40 inches) away from
the fixture.
• Keep flammable materials well away from the fixture.
• Maintain a minimum free space of 30 centimeters (12 inches) around the fixture.
• Do not attempt to bypass thermal protection mechanisms or fuses.
• Replace defective fuses with ones of the specified type and rating only.
Protecting yourself and others from injury due to falls
• When suspending the fixture above ground level, check that the structure can hold at least 10 times
the weight of all installed devices.
• Check that all external covers and rigging hardware are securely fastened and use an approved
means of secondary attachment such as a safety cable.
• Block access below the work area whenever installing, servicing or removing the fixture.
Martin products are supplied in compliance with Directive 2002/96/EC of the European
Parliament and of the Council of the European Union on WEEE (Waste Electrical and
Electronic Equipment), as amended by Directive 2003/108/EC, where applicable.
Help preserve the environment! Ensure that this product is recycled at the end of its life.
Your supplier can give details of local arrangements for the disposal of Martin products
Martin Laser RGB 1.6 User Manual 7
Introduction
Thank you for selecting the Martin RGB Laser 1.6™. This laser fixture is designed to give full access to
laser light effects and projections using a regular lighting desk with DMX output or an advanced laser
controller.
The RGB Laser 1.6 is supplied with a library of standard beam and graphic effects stored in internal
memory and controllable by DMX. A PC software package supplied with the fixture allows effects to be
taken from a library or created, edited and stored in internal memory. Effects editing is intuitive and user-
friendly, with parameters, image and text editing in a familiar Windows environment. Effects can be
projected in real time by the RGB Laser 1.6 while they are edited.
The RGB Laser 1.6 also has a standard ILDA analog connection, and can be controlled using any ILDA-
compatible laser control device.
A range of fail-safe systems shut down the laser if the operator attempts to project a beam that is static
and concentrated enough to cause injury.
Features
• Direct RGB color mixing through analog modulation
• White-light laser with balanced cool white
• Adjustable white balance
• Onboard show playback system with 432 cues available
• Library of 288 cues supplied pre-installed
• Real-time effect programming, editing and viewing
• USB 2.0 PC interface
• DMX controllable
• Stand-alone demo mode with 256 cues available
• Stand-alone (autostart) mode
• Can be operated with any ILDA compatible controller
• Fail-safe laser radiation protection systems
• Temperature stabilized
• Dust-free sealed optics
• Rugged, compact design
• Auto-sensing power supply: 100-240 VAC, 50/60Hz
• Wide ambient temperature range from 5° C (41° F) non-condensing to 40° C (104° F)
• Rated diode life of 10 000 hours (at 80% output), giving minimal service cost and downtime
Martin Laser RGB 1.6 User Manual 9
Installation
Warning! Read ‘Safety Information’ on page 5 before installing the Martin RGB Laser 1.6.
Connecting to AC power
Warning! Local AC power must have both overload and ground fault (earth leakage) protection.
The RGB laser 1.6 power supply is fully auto-sensing and the fixture can be connected to AC power at
any nominal voltage from 100 - 240 VAC at 50 or 60 Hz.
Installing a power plug
Warning! For protection from dangerous electric shock, the xture must be grounded (earthed).
Consult a qualied electrician if you have any doubts about proper installation.
The RGB Laser 1.6 is supplied with three IEC-type power cables: one with a Schuko (Euro) plug, one
with a US plug, and one with no plug.
If neither of the first two power cables matches your local power outlets, fit the third cable with a suitable
grounding-type (earthed) power plug, following the plug manufacturer’s instructions. Connect the yellow
and green wire to ground (earth), the brown wire to live, and the blue wire to neutral. The table below
shows some pin identification schemes.
Wire Pin Marking Screw color
brown live “L” yellow or brass
blue neutral “N” silver
yellow/green ground green
Physical installation
The RGB laser 1.6 may be suspended at any angle from a suitable support such as a truss, placed on a
horizontal surface resting on its rubber feet, or fastened to a surface.
DANGER! Ensure that people and objects cannot come closer than 2 meters (7 feet) to the fixture
within a zone of 80° x 80° around the output window.
The RGB laser 1.6 must be positioned well out of reach of the public. The output
window must be kept minimum 3 meters (10 feet) above the level of any floor that is
accessible to the public.
Do not illuminate any surface within 2 meters (7 feet) of the fixture. Locate the fixture
at least 1 meter (4 feet) from any combustible materials (wood, fabric, paper, etc.) and
well away from any flammable materials. Leave 30 centimeters (12 inches) minimum
free space around the fixture.
10 Martin Laser RGB 1.6 User Manual
Suspending from a support
Warning! Block access below the work area and work from a stable platform when installing,
servicing or removing the machine.
Use a secure secondary attachment such as a safety wire that can hold at least 10
times the weight of the machine.
Keep fingers and other objects out of the holes in the mounting brackets.
Rigging clamps, omega brackets, fasteners and safety wires are available as accessories from your
Martin supplier.
To suspend the fixture from a support:
1. Ensure that any structure used to support the machine can support at least 10 times the total weight
of all installed fixtures, clamps, cables, auxiliary equipment, etc.
2. Ensure that all rigging clamps and fasteners are undamaged and can support at least 10 times the
machine’s weight.
3. Bolt a rigging clamp to the fixture’s flying bracket using a grade 8.8 (minimum) M12 bolt and lock nut,
or as recommended by the clamp manufacturer, through the 13 mm hole in the center of the
mounting bracket.
4. Loop a safety wire that can hold at least 10 times
the weight of the machine through/over the support
and around one of the four corner pillars that
connect the fixture’s upper and lower modules. Do
not simply loop the safety wire around the flying
bracket, as this will leave the fixture unsecured.
5. See illustration on right. Keep fingers and other
objects out of the holes in the mounting bracket.
Loosen the swivel lock Allen screws approximately
one full turn, tilt the fixture to the desired angle and
retighten the screws.
6. Ensure that fixture, rigging hardware and safety
attachment are secure and that the output window
is minimum 3 meters (10 ft.) above any publicly accessible floor before applying power.
Placing on a horizontal surface
The RGB laser 1.6 can be placed or permanently installed on a level horizontal surface resting on its
rubber feet.
To install the fixture on a horizontal surface:
1. Ensure that the surface is level, stable and capable of supporting at least ten times the weight of the
machine.
2. Secure the machine so that it cannot slide, fall, or tilt, even if vibration from audio equipment or
another source is present.
3. Eliminate any risk of loss of alignment or contact by members of the public.
Martin Laser RGB 1.6 User Manual 11
Connecting to external devices
Connecting to a PC
The RGB Laser 1.6 can be connected to a PC running the Martin RGB Laser Show software via the 6-pin
XLR socket on the upper rear panel. Use the 6-pin XLR to USB adapter cable supplied with the fixture.
Note how connecting to a PC affects demo mode:
• If a PC is connected first and the RGB Laser 1.6 is then powered on, demo mode will be disabled
until the fixture is powered off and then on again with no PC connected.
• If a PC is connected after the RGB Laser 1.6 has been powered on, demo mode will be disabled until
the PC is disconnected again – in this case there is no need to power the fixture off and on to enable
demo mode.
Connecting to a DMX data link
The RGB Laser 1.6 DMX data connections are XLR type, wired with pin 1 to ground, pin 2 to signal -
(cold), and pin 3 to signal + (hot). This is the standard configuration for DMX devices.
To connect to the DMX data link:
1. Power all devices off.
2. Run a data cable from the DMX output of the DMX controller or the previous fixture on the data link to
the RGB Laser 1.6’s DMX IN socket
3. Either:
• run a data cable from the DMX OUT socket of the RGB Laser 1.6 to the IN socket of the next
fixture, or
• terminate the DMX link by inserting a 5-pin XLR male termination plug into the data output of the
last fixture. A termination plug is simply an XLR connector with a 120 Ohm, 0.25 W resistor
soldered across pins 2 and 3.
Connecting to an ILDA analog control device
The RGB laser 1.6 has a symmetrical ILDA standard 25-pin Sub-D input connector and a 1:1 wired 25-pin
Sub-D output (throughput) connector for connection to an ILDA control link.
ILDA analog Sub-D connector pinout
The pinout and maximum voltages for the ILDA standard Sub-D connectors are as follows:
Pin Signal
1 X + (horizontal) + 5.0 V
2 Y + (vertical) + 5.0 V
4 Interlock A
5 Red + + 2.5 V
6 Green + + 2.5 V
7 Blue + + 2.5 V
13 Shutter + 5.0 V
14 X - (horizontal) - 5.0 V
12 Martin Laser RGB 1.6 User Manual
15 Y - (vertical) - 5.0 V
17 Interlock B
18 Red - - 2.5 V
19 Green - - 2.5 V
20 Blue - - 2.5 V
25 Ground
Produkt Specifikationer
| Mærke: | Martin |
| Kategori: | Ikke kategoriseret |
| Model: | RGB Laser 1 6 |
Har du brug for hjælp?
Hvis du har brug for hjælp til Martin RGB Laser 1 6 stil et spørgsmål nedenfor, og andre brugere vil svare dig
Ikke kategoriseret Martin Manualer
25 September 2024
25 September 2024
24 September 2024
24 September 2024
23 September 2024
23 September 2024
23 September 2024
3 September 2024
3 September 2024
29 August 2024
Ikke kategoriseret Manualer
- Ikke kategoriseret Therm-a-Rest
- Ikke kategoriseret Oehlbach
- Ikke kategoriseret Laser
- Ikke kategoriseret Habitat
- Ikke kategoriseret GoClever
- Ikke kategoriseret Melnor
- Ikke kategoriseret Marbo Sport
- Ikke kategoriseret IFi Audio
- Ikke kategoriseret Eissound
- Ikke kategoriseret Coline
- Ikke kategoriseret HomeCraft
- Ikke kategoriseret RectorSeal
- Ikke kategoriseret JK Audio
- Ikke kategoriseret Econ Connect
- Ikke kategoriseret LittleHippo
Nyeste Ikke kategoriseret Manualer
31 Maj 2025
31 Maj 2025
31 Maj 2025
31 Maj 2025
31 Maj 2025
31 Maj 2025
31 Maj 2025
31 Maj 2025
31 Maj 2025
31 Maj 2025
