McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 www.mcintoshlabs.com

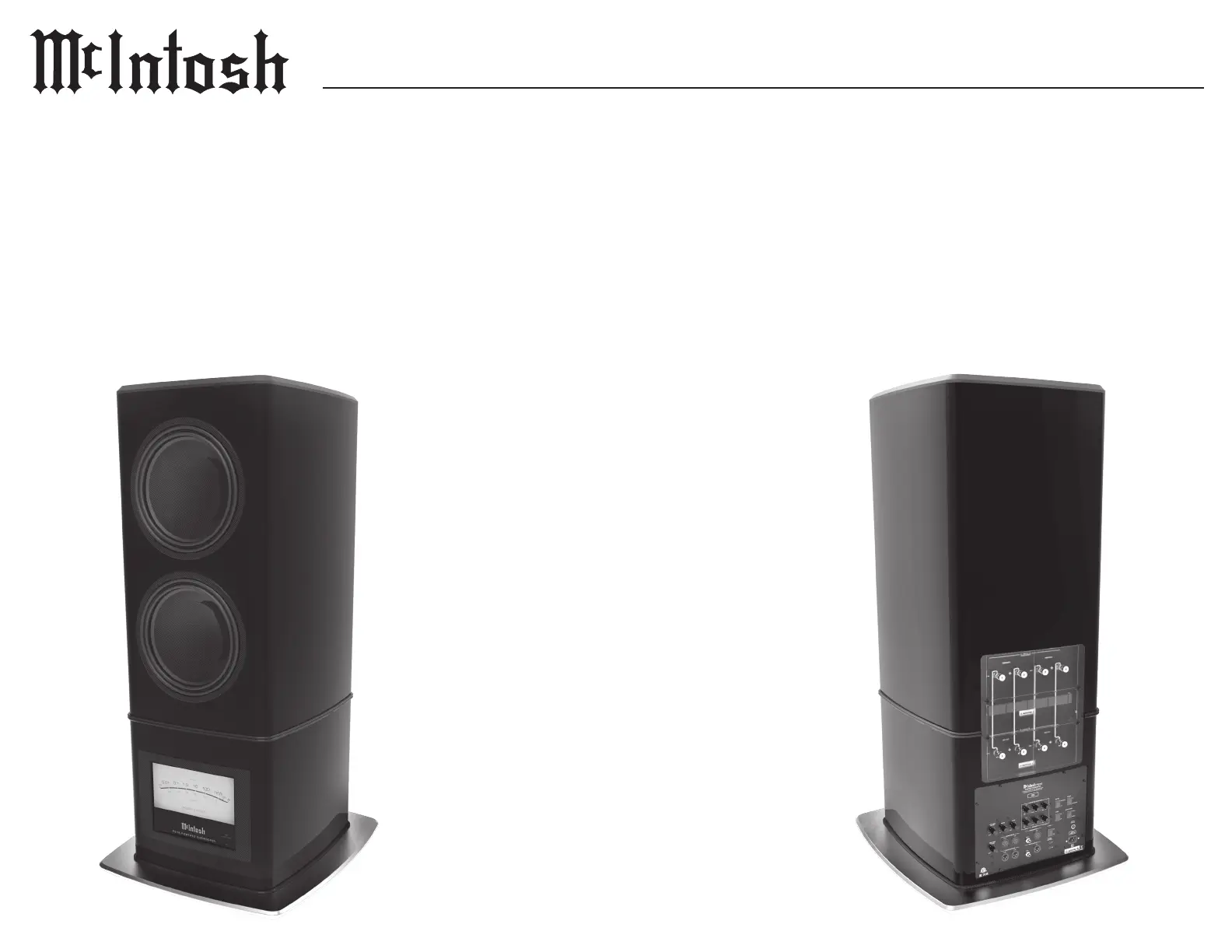

P S1KP S1K

POWERED SUBWOOFER

OWNER’S MANUAL

Thank You from all of us at McIntosh

You have invested in a precision instrument that

will provide you with many years of enjoyment.

Please take a few moments to familiarize yourself

with the features and instructions to get the

maximum performance from your equipment.

If you need further technical assistance, please

contact your dealer who may be more familiar with

your particular setup including other brands. You

can also contact McIntosh with additional questions

or in the unlikely event of needing service.

McIntosh Laboratory, Inc.

2 Chambers Street

Binghamton, New York 13903

Technical Assistance (607) 723-3512

Fax (607) 724-0549

Customer Service (607) 723-3515

Fax (607) 723-1917

Email support@mcintoshlabs.com

www.mcintoshlabs.com

Please Take A Moment

For future reference, you can write down your

serial number and purchase information here.

We can identify your purchase from this informa-

tion if the occasion should arise:

Serial Number: __________________________

Purchase Date: ___________________________

Dealer Name: ___________________________

Table of Contents

Thank You from all of us at McIntosh .. .. .. .. 2

Introduction.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 2

Important Information .. .. .. .. .. .. .. .. .. .. 3

Packing and Unpacking the PS1K.. .. .. .. .. .. 3

Performance Features.. .. .. .. .. .. .. .. .. .. .. 4

Front View Features .. .. .. .. .. .. .. .. .. .. .. 5

Connector Information .. .. .. .. .. .. .. .. .. .. 5

XLR Connectors. .. .. .. .. .. .. .. .. .. .. .. .. 5

Power Control Connectors.. .. .. .. .. .. .. .. .. 5

RCA Connectors. .. .. .. .. .. .. .. .. .. .. .. .. 5

Dimensions .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 6

Installation .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 6

Locating the PS1K .. .. .. .. .. .. .. .. .. .. .. .. 6

Signal Flow Block Diagram .. .. .. .. .. .. .. .. 7

Rear Panel .. .. .. .. .. .. .. .. .. .. .. .. .. .. 8-9

How to Connect .. .. .. .. .. .. .. .. .. .. .. .. ..10

Connection Diagram: Subwoofer/LFE .. .. .. ..10

Home Theater Connection.. .. .. .. .. .. .. .. ..10

Home Music System Connection .. .. .. .. .. ..10

Connection Diagram: Chain .. .. .. .. .. .. .. ..11

Connection Diagram: Two Channels . .. .. 12-13

Home Music System Connection .. .. .. .. .. ..12

Specifications .. .. .. .. .. .. .. .. .. .. .. .. .. ..14

General Specifications .. .. .. .. .. .. .. .. .. ..14

Packing Instructions .. .. .. .. .. .. .. .. .. .. ..15

Part List .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..15

Introduction

The McIntosh PS1K Powered Subwoofer is designed

for Home Theater and Music Reproduction. It has

two 13 inch LD/HP woofers, each powered by its

own 500 watt amplier, plus built-in High and Low

Pass Filters and two Parametric Equalizer Filters for

subwoofer room correction.

The PS1K Powered Subwoofer complements the

capabilities and the remarkably low distortion of

McIntosh Power Ampliers and loudspeaker systems.

Each component in the PS1K has been carefully

designed for durability, eciency, and above all, low

distortion. The McIntosh PS1K Powered Subwoofer

will reproduce music accurately and function as an

excellent Powered Subwoofer.

Safety First

Please read the safety instructions included in a

separate document called Important Additional

Operation Information Guide.

Safety Cover

The PS1K is factory equipped with a clear safety

cover on the rear surface. Do not remove this cover

for any reason, and never make any other electrical

connection to the terminals inside.
