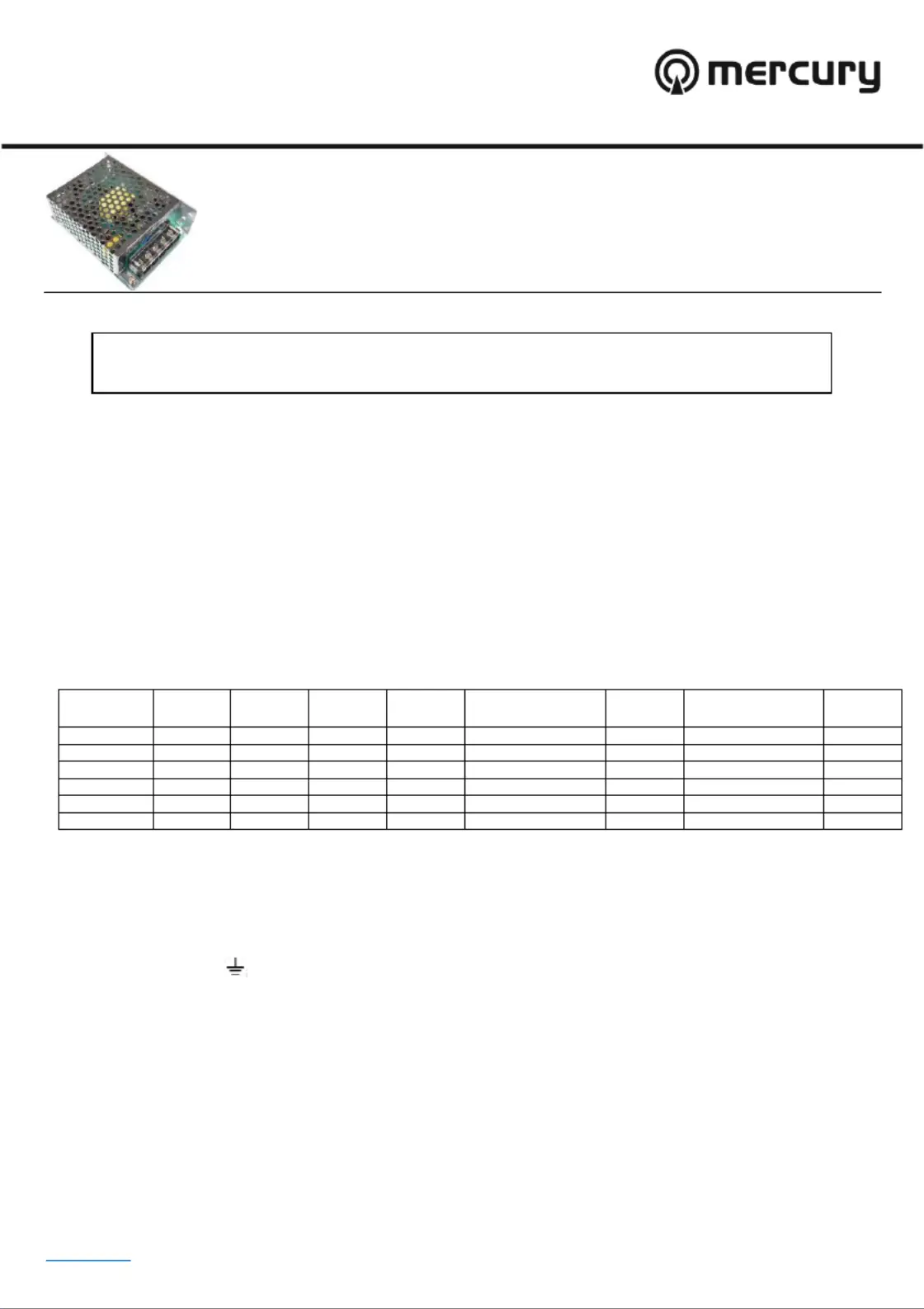

13.8Vdc Switch Mode Power Supplies

User Manual

Series of 13.8Vdc switching power supplies. Ideal use for radio equipment, security systems, alarm systems, access

control systems, 12Vdc LED Lighting systems and central monitoring systems. For indoor use only.

Features:

• Short circuit protection.

• Overload protection.

• Auto reset.

• Easy installation, screw terminals.

• Fan cooling for higher power models.

• Higher power models with 2 or outputs to facilitate easier wiring of multiple devices. 3

Specifications:

Item R ef

Output

Voltage

Output

Current

Max.

Power

Rating

Power

Supply

Outputs

Dimensions

Weight

650.755UK

13.8V

3.6A

49.68W

IP20

240Vac/1.3A, 50Hz

110 x 35 x 80mm

0.22kg

650.756UK

13.8V

5.4A

74.52W

IP20

240Vac/1.3A, 50Hz

110 x 35 x 80mm

0.22kg

650.759 UK

13.8V

15A

207W

IP20

240Vac/2.5A, 50Hz

200 x 38 x 100mm

0.54kg

650.7 61UK

13.8V

25A

345W

IP20

240Vac/4A, 50Hz

220 x 50 x 115mm

0.85kg

650.7 62UK

13.8V

30A

414W

IP20

240Vac/4A, 50Hz

220 x 50 x 115mm

0.85kg

650.764 UK

13.8V

43.5A

600.3W

IP20

240Vac/6A, 50Hz

240 x 65 x 125mm

1.15kg

Key Markings:

1. AC input connections: “live” and “neutral”, the markings are displayed as “L”, “N”.

2. DC output connections “positive” and “negative”, the markings are displayed as “+V”, “-V”.

3. The markings of multi- DC output voltage are “+V1”, “+V2”, “+V3”, “+V4” “ V1”, “ V2”, “ V3”, “ V4”. - - - -

4. The common interface marking for multiple outputs is “COM”.

5. The earth symbol is

6. Green LED indicator indicates power on.

7. Adjust voltage marking is displayed as “+V ADJ”. Voltage adjustment range is 10% (12.42V-15.18V).

Before Power On:

1. Please check the input and output wires are wired correctly: live, neutral, earth wire for AC; positive, negative DC.

2. Check whether the current rating of connecting cables is large enough.

3. Please check the connection of screws are secure.

4. Please check the earth wire is firmly connected for safety.

5. When using large electrical equipment, please consider installing an AC filter.

6. Full load working temperature is -10~40℃. Above this temperature will reduce the output power, i.e at 70℃ the

output power will not exceed 50%. Below - 10℃, the unit will not power on.

Please read through this manual thoroughly before use, any damage

cause by misuse of product will not be covered by warranty.d

www.avsl.com

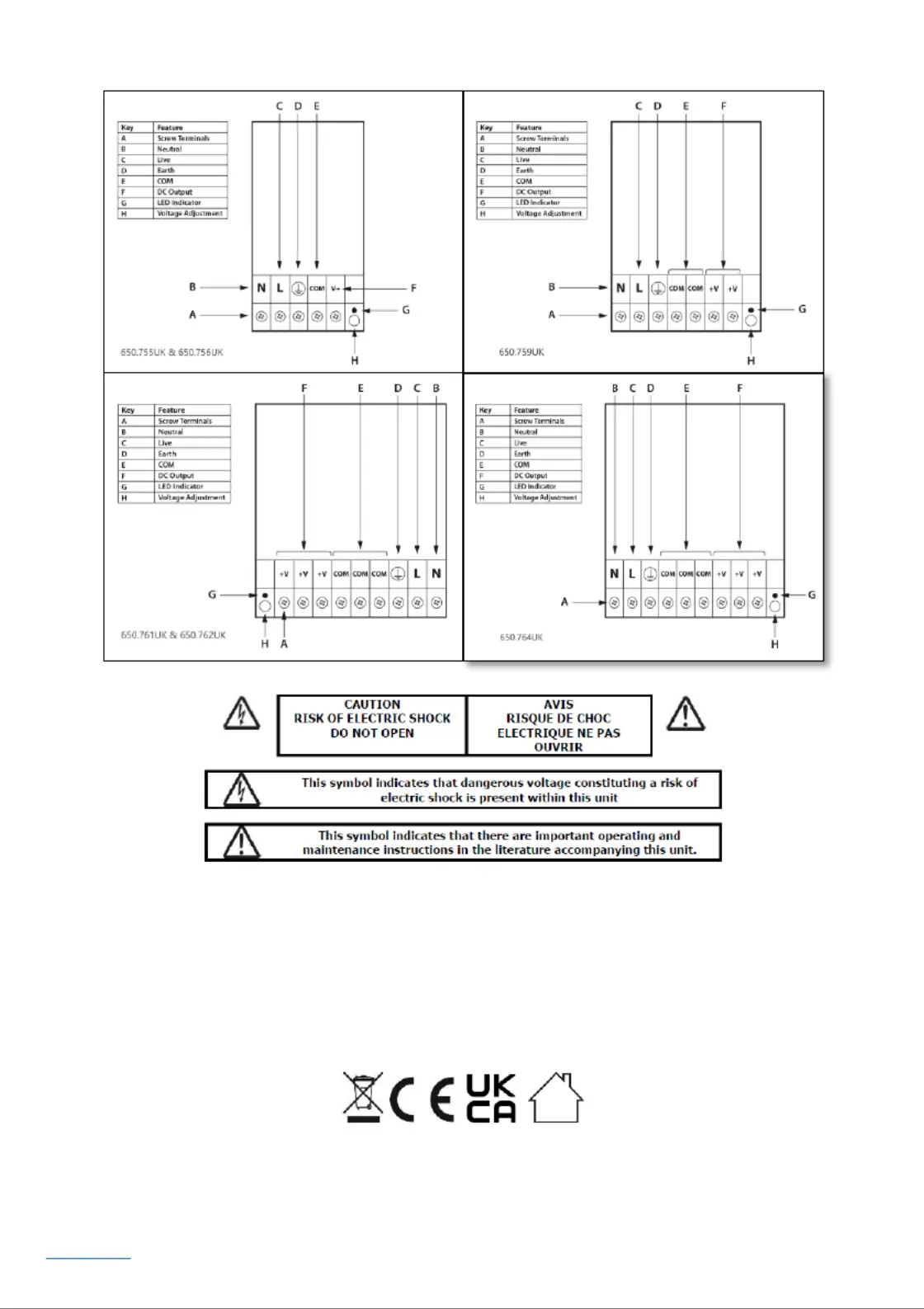

Wiring Diagrams:

Warnings:

1. For indoor use ONLY

2. This unit MUST be earthed.

3. Risk of electric shock: do not open, this device contains no user serviceable parts.

4. Do not cover the ventilation holes.

5. Do not install land operate the device in extreme heat, moisture, or dusty environments.

6. Unplug the power supply when not in use.

7. The appliance is not for use by children and children should be supervised when around this unit.

8. This appliance is for use by professional electrical installers only.

This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end

of its useful life. The goods must be disposed of according to your local council guidelines.

Errors and omissions excepted.
