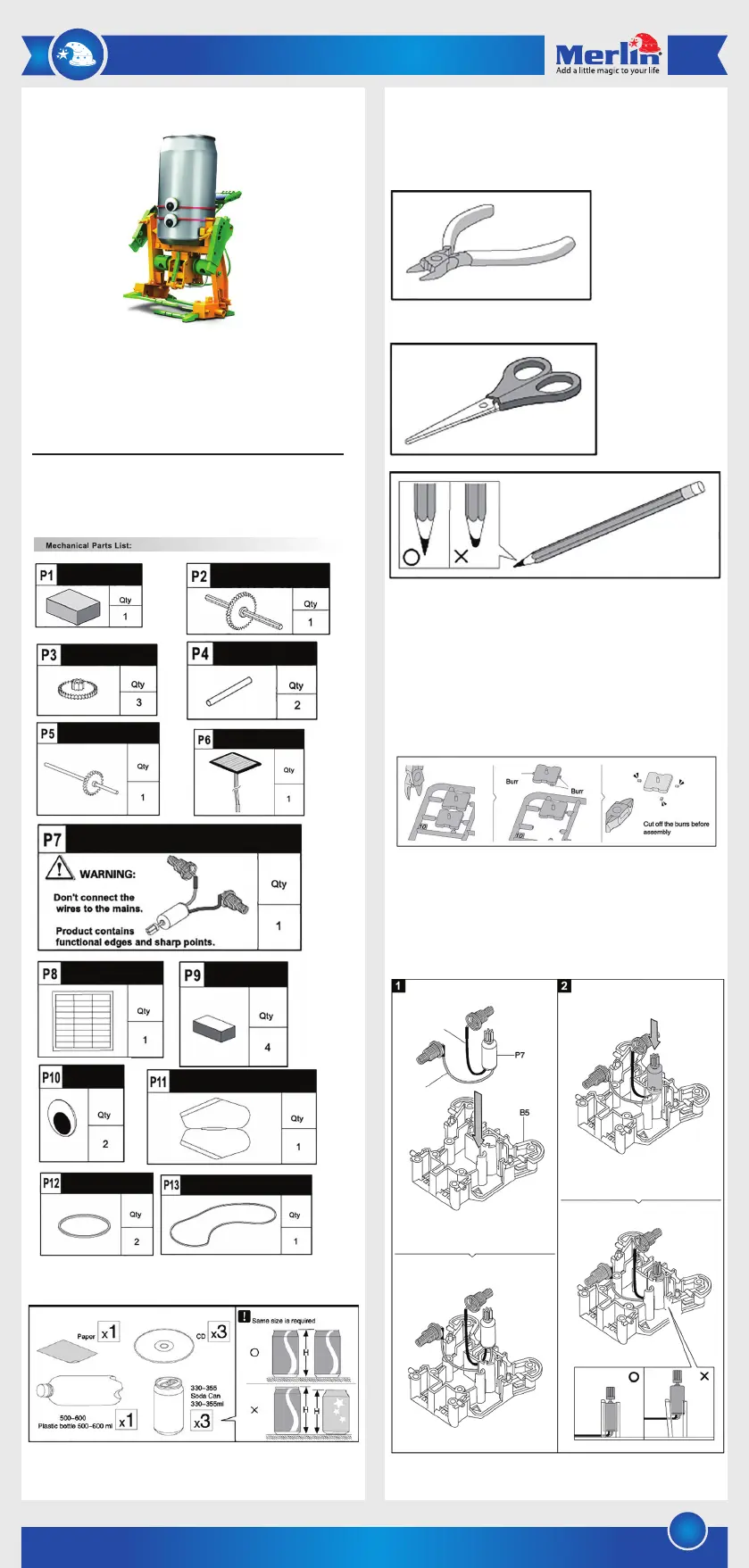

Side 1/13

Tools you may need:

Diagonal Cutter

Scissors

Pencil

Instructions:

For the assembly of all the different toys in this product two items

need to be assembled first. The Gearbox and the Solar Module.

Hint: Use a small side cutter to remove the individual pieces from

the main plastic assembly. Also remember to cut off the burr to

make a smoother edge.

1). Gearbox:

The gearbox drives the different toys.

a) Start by fitting the motor in its slot as per figure

1 and 2. Be careful to not put the motor in skew it can

damage the plastic parts.

6-in-1 DIY Educational Solar Toy Kit

Thank you for purchasing this Merlin Product. Please read the

instruction manual carefully before using the product.

The documentation provided will allow you to fully enjoy all the

features this unit has to offer.

Please save this manual for future reference.

The following items are enclosed in the box. Please note that this

product contains small plastic items that can easy be swallowed

by children. Adult supervision is recommended when having

children assemble this product.

Aditional recycled items required for assembly

of different toys:

Colored Box

Gear ( Orange )

Gear with Shaft ( Purple )

Motor with Connectors

Adhesive Tape

Eyes

Rubber Band Rubber Belt

Wing

Black Push

Red

Sponge

Solar Panel

Round Shaft

Gear with Shaft ( Green )

b) Now place the black and red terminals in their

positions and route the wires.

c) Slide the gears into their places as show in figure

4, 5. Lock them in place by putting on the lid like

shown in fig 6.

d) Add the two side covers to complete the gearbox.

The final product should look like figure 8.

2) Solar Module:

The Solar module provides power to the gearbox and makes the

toy come alive.

a) Place the adhesive pads (P8) on plastic module

(A16) and then place the solar cell (P6) onto it. Be

careful to feed the wires through the gap provided.

Remove the protective film that covers the solar cell.

b) The final step in the assembling the solar module is

removing the ends off of the wires from the solar

module. The wires are already partially stripped but

left in place for safety. While holding the wire and

the stripped piece twist the stripped piece and

gently pull it off. It should come off easily. Remove

both pieces of stripped ends.

3) Merging of the Solar and Gearbox Modules:

Now that the Gearbox and Solar Modules are completed

we can put them together and start making some of the

toys.

a) It is very important to orientate the gearbox module

before starting this process. In the lower right corner of

the gearbox is a directional arrow pointing to the right.

Have this arrow on your righthand side when performing

this.

b) Observe the (+) and (-) symbols of the gearbox

module. Line up the green wire to the (-) terminal and

the white wire to the (+) terminal of the gearbox module.

c) Bend over the spring terminal on the gearbox module

and insert the wires (remember to observe the correct

colors) through them to protrude out the other side.

Release the spring terminal gently. The wires from the

solar module should be securely in place to form a good

connection. If they are loose repeat the process until

they are firmly in place. Ensure that the wires don’t

touch as this will cause a short circuit and the motor will

not turn.

Black

Red

Top View

Solar Module Assembly

White

Green Side View

Completed

Side View
