Metra. The World’s Best Kits.

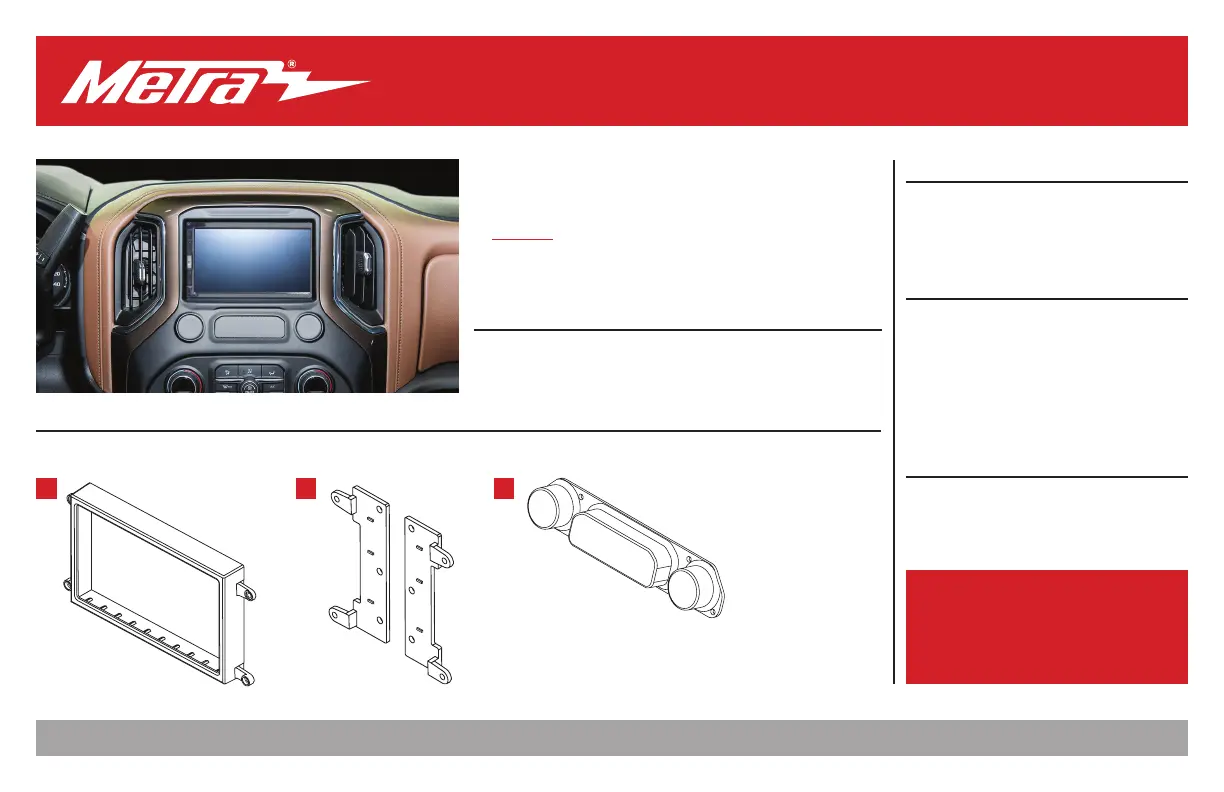

INSTALLATION INSTRUCTIONS

107-GM4B

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

Patent Pending

KIT FEATURES

• Designed speciﬁcally for the Pioneer DMH-C2550NEX and

DMH-C2500NEX radios

• Painted scratch resistant matte black to match the factory ﬁnish

KIT COMPONENTS

•A) Display screen housing • B) Display screen brackets • C) Blank-out panel

A B C

Chevrolet Silverado 1500

(†)

GMC Sierra 1500 (

†

) 2019-Up

Chevrolet Silverado2500/3500

(†)

, GMC Sierra 2500/3500 (

†

) 2020-Up

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle speciﬁc applications

(†) Models with a 2 knob 8-inch screen radio, RPO code IOS or IOT.

The RPO code can be found in the Vehicle Certiﬁcation Label located on the inside of the driver’s door opening.

A mobile device with a QR scanner must be used to decipher the code.

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32” socket wrench • T-15 Torx screwdriver

TABLE OF CONTENTS

Dash Disassembly ................................................2-4

Kit Preparation......................................................... 5

Kit Assembly ............................................................ 6

WIRING & ANTENNA CONNECTIONS

Wiring Harness: AXTC-LN30 (‡) (sold separately)

Antenna Adapter: 40-EU55 (sold separately)

RGB Extension Cable: Pioneer part # CD-RGB150E

(not sold by Metra)

(‡) Non-ampliﬁed models only

MetraOnline.com

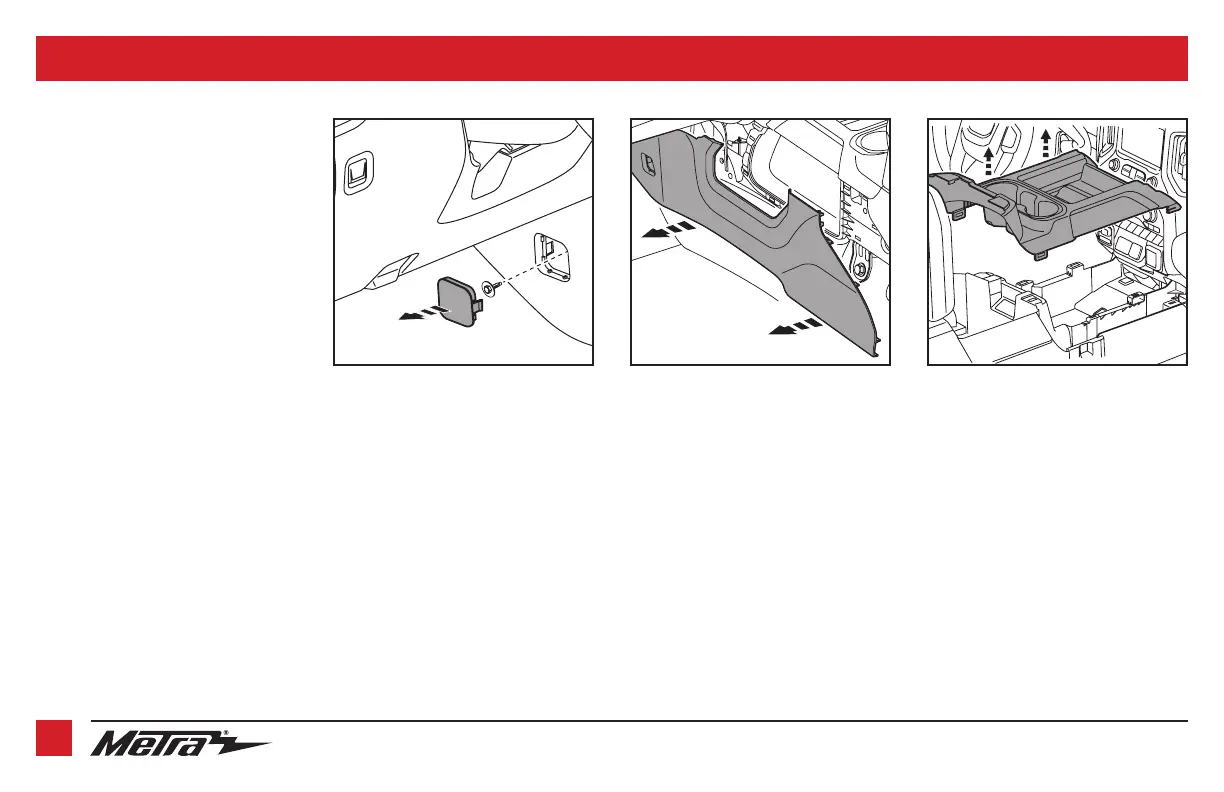

DASH DISASSEMBLY

For models with a full center console:

1. Unclip the screw cover from the driver’s

side of the center console, then remove

(1) 9/32” screw exposed. (Figure A)

2. Starting from the rear, unclip and

remove the center console trim panel

from each side of the center console.

(Figure B)

3. Starting from the rear, unclip and

remove the cup holder panel. (Figure C)

Continued on the next page
