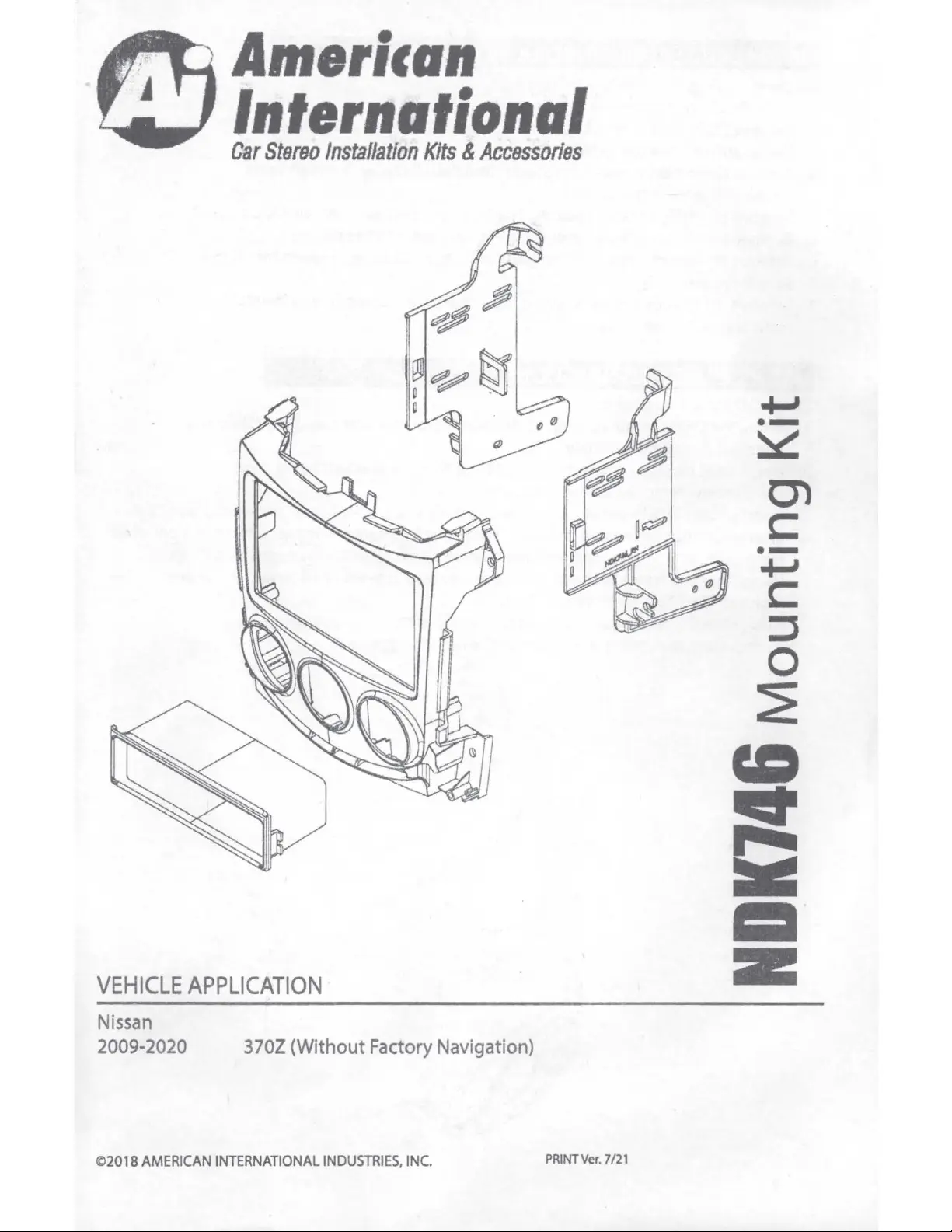

Side 1/4
American
International
Car
Stereo
Installation
Kits
&
Accsssorles
VEHICLE
APPLICATION
Nissan
2009-2020 3702 (Without Factory Navigation)
<02018
AMERICAN
INTERNATIONAL
INDUSTRIES,
INC.
PRINT
Ver
.
7/21
+-'
·-
~
Cl
C:

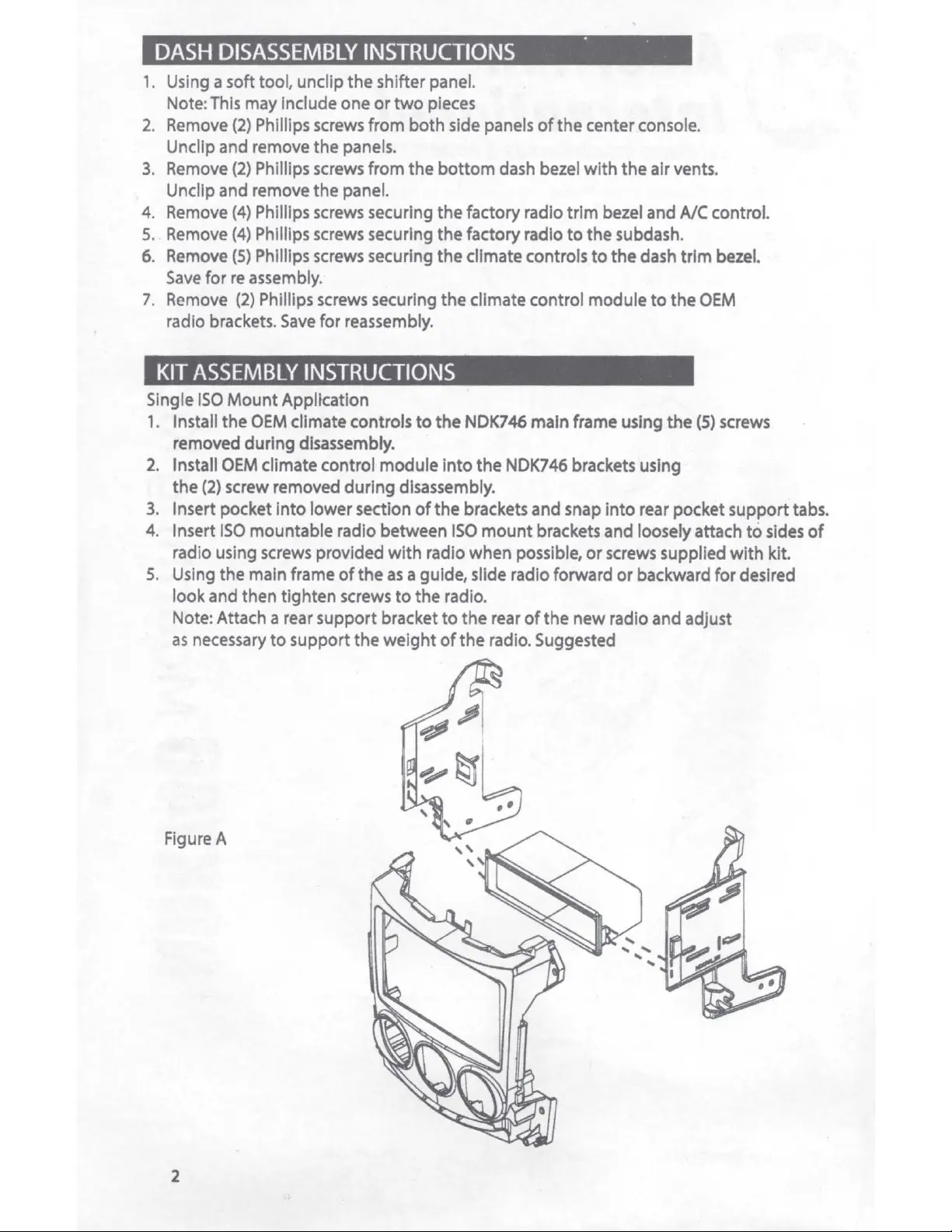

DASH
DISASSEMBLY
INSTRUCTIONS
1.
Using
a soft tool, unclip the shifter
panel.
Note:
This
may
include
one
or two
pieces
2.
Remove
(2)
Phillips
screws
from both
side
panels
of
the center
console.
Uncllp
and
remove
the
panels.
3.
Remove
(2)
Phillips
screws
from the bottom
dash
bezel
with the air
vents.
Unclip
and
remove
the
panel.
4.
Remove
(4)
Phillips
screws
securing the factory radio trim
bezel
and
A/C
control.
s.
Remove
(4)
Phillips
screws
securing the factory radio to the
subdash.
6.
Remove
(5)
Phillips
screws
securing the climate controls to the
dash
trim
bezel.
Save
for
re
assembly.
7.
Remove
(2)
Phillips
screws
securing the climate control module to the
OEM
radio
brackets.
Save
for
reassembly.
KIT
ASSEMBLY
INSTRUCTIONS
Single
ISO
Mount Application
1.
Install the
OEM
climate controls
to
the
NDK746
main
frame
using the
(5)
screws
removed
during
disassembly.
2.
Install
OEM
climate control module into the
NDK746
brackets
using
the
(2)
screw
removed
during
disassembly.
3.
Insert pocket into lower section
of
the
brackets
and
snap
into
rear
pocket support
tabs.
4.
Insert
ISO
mountable radio between
ISO
mount
brackets
and
loosely attach
to
sides
of
radio
using
screws
provided with radio when
possible,
or
screws
supplied with kit.
5.
Using
the
main
frame
of
the
as
a guide,
slide
radio forward or backward for
desired
look
and
then tighten
screws
to the
radio.
Note:
Attach a
rear
support bracket to the
rear
of
the new radio
and
adjust
as
necessary
to support the weight
of
the
radio.
Suggested
Figure
A
2
