Receiver Wiring Adaptor

120 70-5006

Revision 12/01/14

STEP 1 -- MATCH & CONNECT WIRES

*120705006*

IMPORTANT

Before starting, compare items on your invoice with items

received. Thoroughly check packing materials. If an item

is missing, please call Crutchfield at 1-888-955-6000.

Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your

new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.

If your receiver does not have a dimmer or illumination wire, tape off the Orange/White or Orange wire.

Individually tape off any unused wires.

Make final wiring connections following instructions on page 3.

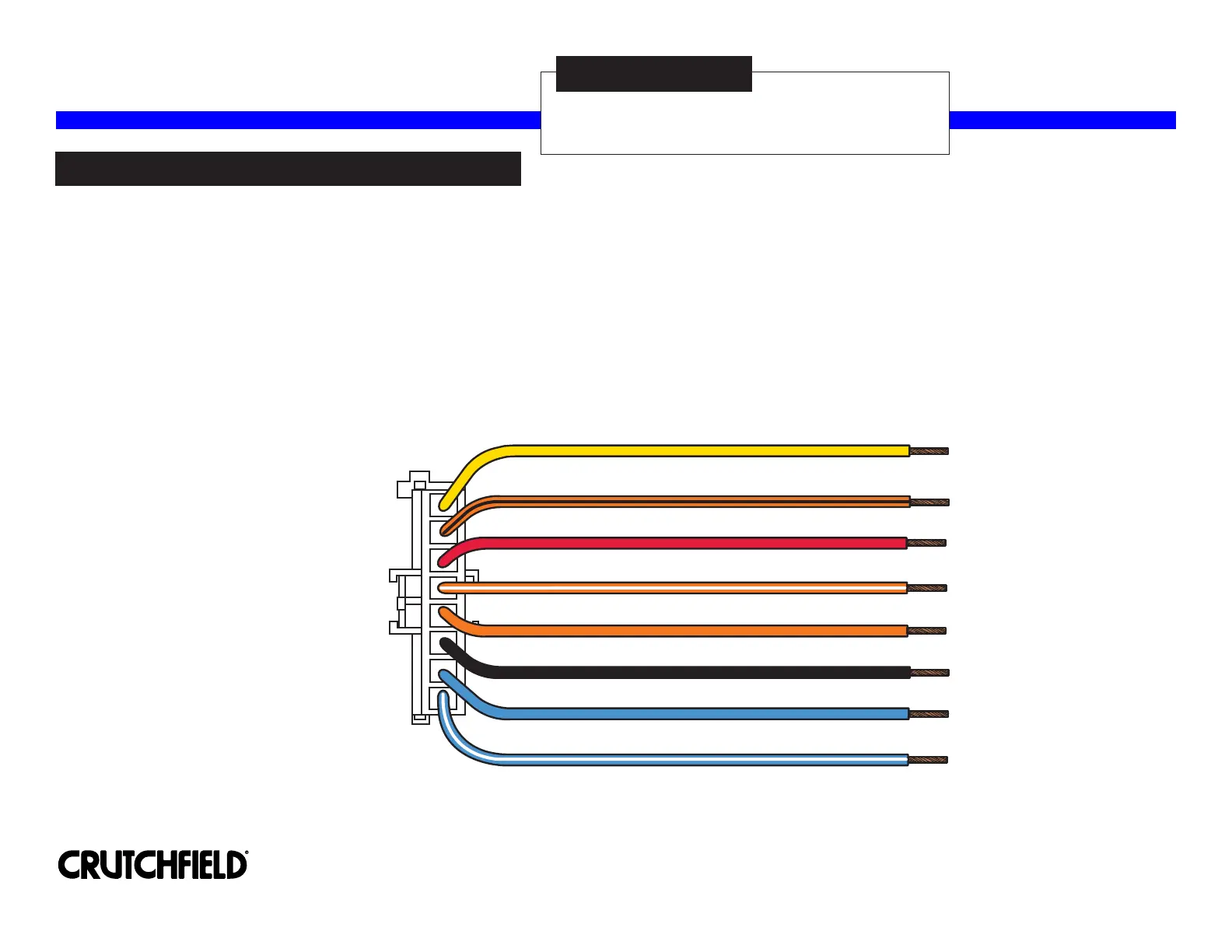

Yellow - 12 Volts Constant Power

Orange/Black - (not used - tape off)

Blue - Power Antenna

Black - Chassis Ground

Power

Harness Orange - Illumination

Blue/White - Amplifier Turn-On

Orange/White - Dimmer

Red - 12 Volts Switched Power

Receiver Wiring Adaptor (Speaker Harnesses)

120 70-5006

Two speaker adaptors are included. Select the one that

fits your application.

Match, connect wires and install harnesses following

step 1 on the previous page. Make final connections

following instructions on page 3.

Notes:

When connecting the amplifier bypass harness, be

sure that any harnesses not used are taped off with

electrical tape and properly secured.

In some cases, Ford's front speaker negative leads

are reversed. To test, plug in the wiring harness.

Touch the positive and negative leads of the left

speaker to a "C" or "D" cell battery (11/2 volts).

If you hear a "pop", your vehicle is wired normally.

If you don't hear a "pop", connect the front speaker

leads in reverse (left front speaker negative

becomes right front speaker negative).

Use this harness if the vehicle is not equipped with an ampliﬁer.

Use this harness if the vehicle has a factory-equipped ampliﬁer.

Page 2

Green - Left Rear Speaker Positive

White/Black - Left Front Speaker Negative

Green/Black - Left Rear Speaker Negative

Violet/Black - Right Rear Speaker Negative

White - Left Front Speaker Positive

Violet - Right Rear Speaker Positive

Gray/Black - Right Front Speaker Negative

Gray - Right Front Speaker Positive

Violet/Black - Right Rear Speaker Negative

White/Black - Left Front Speaker Negative

Green - Left Rear Speaker Positive

Gray - Right Front Speaker Positive

White - Left Front Speaker Positive

Green/Black - Left Rear Speaker Negative

Gray/Black - Right Front Speaker Negative

Violet - Right Rear Speaker Positive
