Side 1/3

Receiver Wiring Adaptor

120 70-7306

Revision 09/14/17

STEP 1 -- MATCH & CONNECT WIRES

*120707306*

IMPORTANT

Before starting, compare items on your invoice with items

received. Thoroughly check packing materials. If an item

is missing, please call

Crutchfield at 1-888-955-6000.

Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your

new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.

Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to the illumination wire in this harness

by function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.

Individually tape off any unused wires.

Make final wiring connections following instructions on page 3.

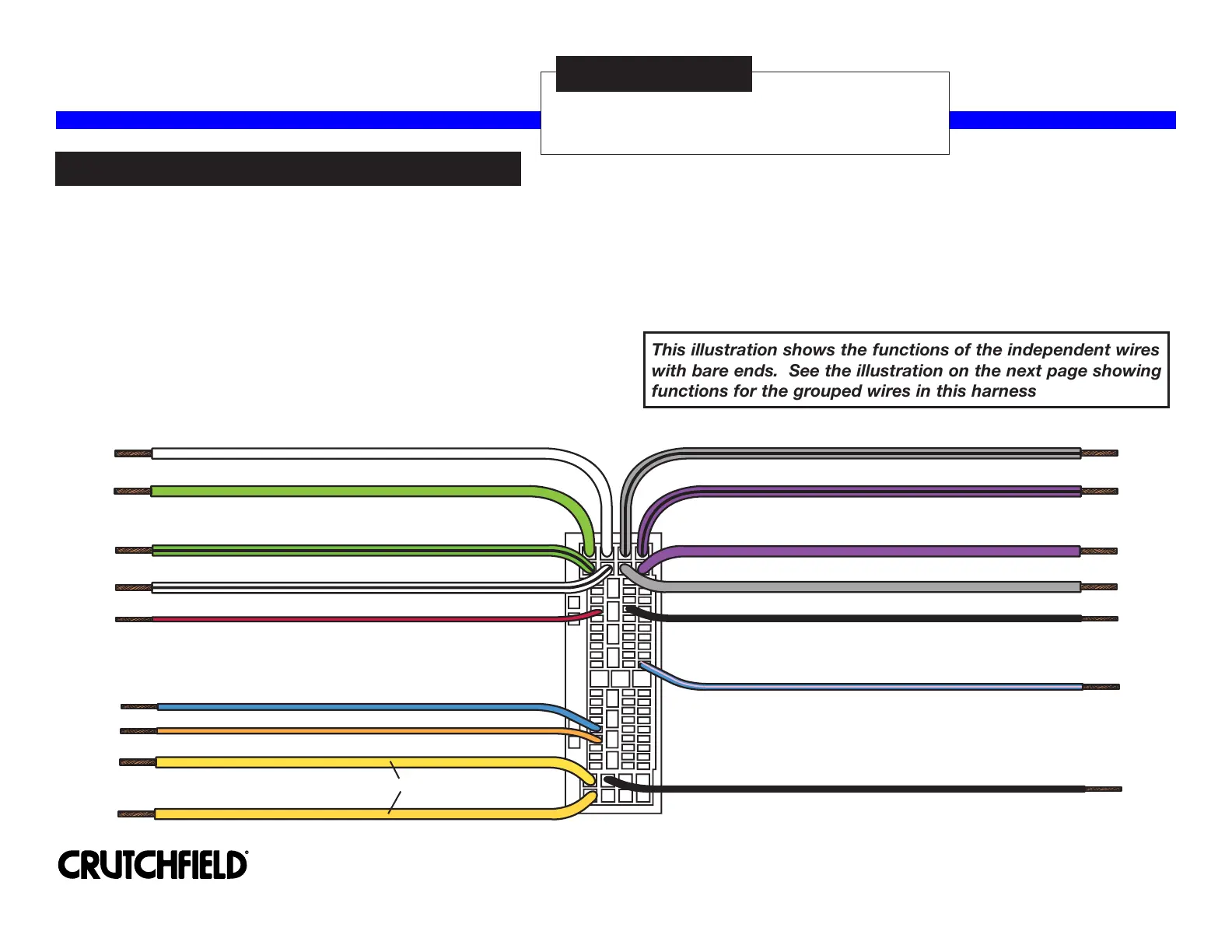

This illustration shows the functions of the independent wires

with bare ends. See the illustration on the next page showing

functions for the grouped wires in this harness.

Gray/Black - Right Front Speaker Negative

Orange - Illumination

Yellow - 12 Volts Constant Power

White - Left Front Speaker Positive

Blue - Power Antenna

Violet - Right Rear Speaker Positive

Green/Black - Left Rear Speaker Negative

Violet/Black - Right Rear Speaker Negative

Green - Left Rear Speaker Positive

Gray- Right Front Speaker Positive

White/Black - Left Front Speaker Negative

Black - Camera Ground

Black - Connect with Ground wire of receiver and

Ground wire shown on the next page.

Red - 6 Volts Camera Power

Yellow - 12 Volts Constant Power

Connect both to receiver.

Blue/Pink - Vehicle Speed Sensor

Receiver Wiring Adaptor

120 70-7306

Page 2

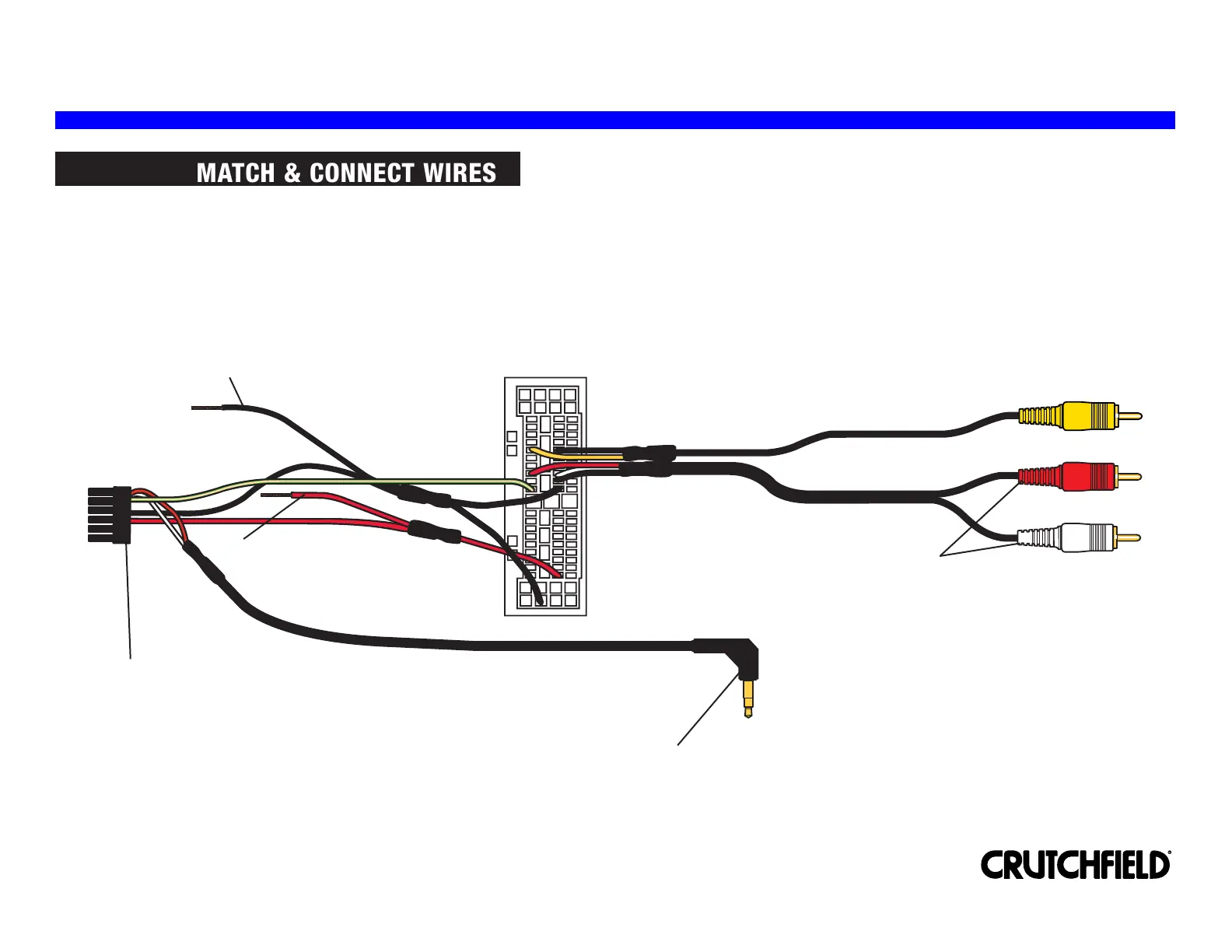

STEP 1 -- MATCH & CONNECT WIRES

Red - 12 Volts Accessory Power

AUX Input (if equipped or optional)

If factory-equipped with backup camera,

connect to the reverse camera input of the

aftermarket receiver.

Connect to Steering Wheel

Control Port on receiver

Connect with Ground Wire at the

bottom of the illustration on the

previous page.

White - AUX In Left

Red - AUX In Right

Connect to the 120ASWC1, disregarding

the harness that came with the ASWC1.

It will not be used in this installation.

Use the 3.5mm 2-wire adaptor included in the 120ASWC1 for

JVC and Kenwood with the Blue/Yellow steering wheel control

input wire. Connect the Brown wire on the adaptor to the

Blue/Yellow wire.

An adaptor may be required if the

receiver's AUX Input requires a

3.5mm male connector.
