IMPORTANT

Installation Kit

120 92-3005P

Before starting, compare items on your invoice with items

received. Carefully check through packaging material.

If an item is missing, please call:

Crutchfield

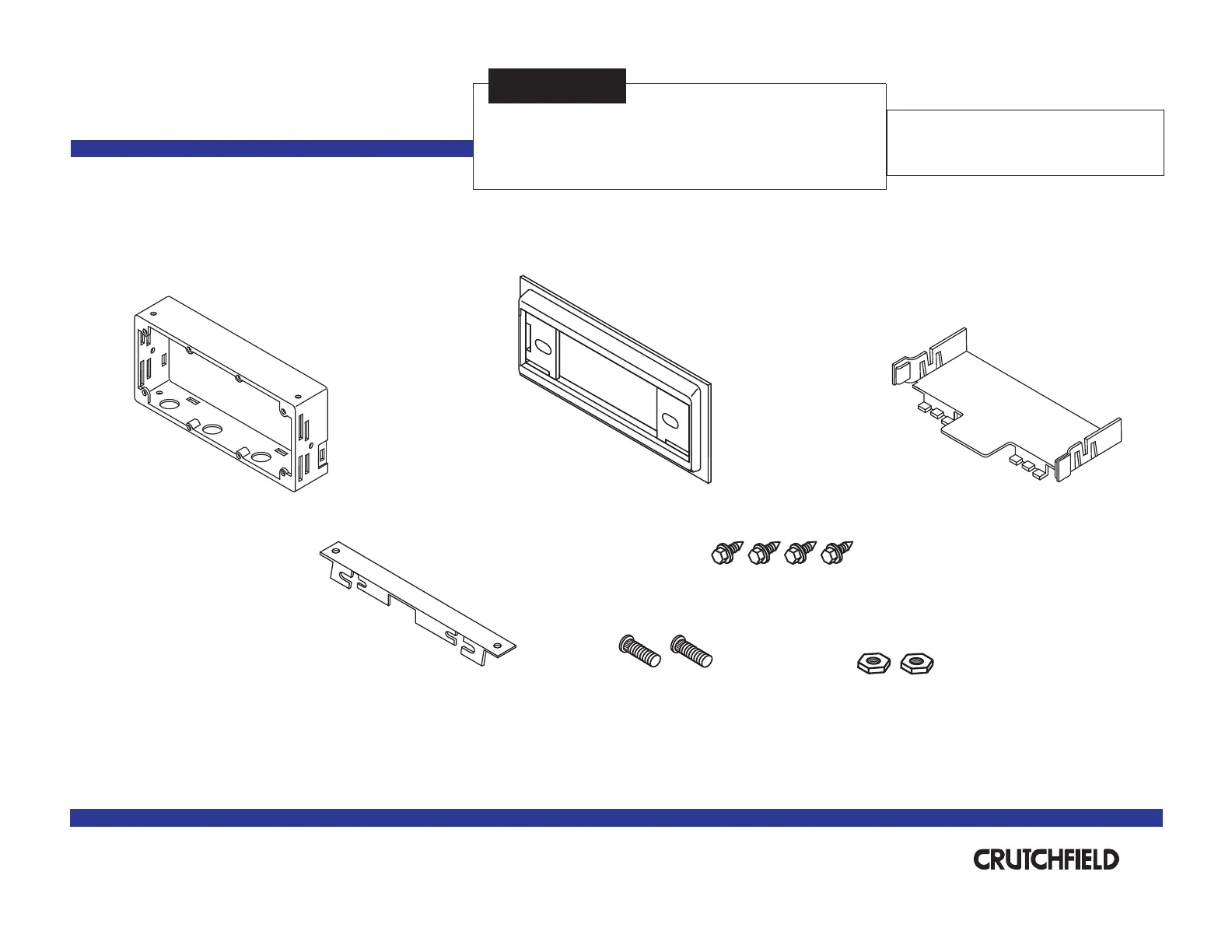

Parts Supplied:

Kit Frame

Support Tray

Chevrolet

Revision 09/18/03

Kit assembly instructions are on the following pages.

Page 1 of 3

®

Copyright 2003 Crutchfield Corporation

*120923005P*

Mounting Bracket

(2) Studs (2) 3/8” Nuts

(4) 1/4” Hex Screws

Trimplate

at 1-888-955-6000

FIGURE 2

Shaft Supports

Installation Kit

120 92-3005P

Chevrolet

1. Press posts on trimplate into holes on kit frame to snap

parts together and secure from the rear with hex screws

(Figure 1).

2. Use a utility knife to cut out in trimplate to shaft supports

create a DIN opening (Figure 2).

3. Push clips on into slots on rear of kit frame to support tray

secure (Figure 1).

4. Use pliers to break off all tabs on mounting bracket that are

shown as shaded (Figure 3). The tabs labeled should be “B”

the only tabs remaining.

5. Secure mounting bracket to bottom of kit frame with

studs nutsand supplied (Figure 1).

6. Remove DIN sleeve from receiver and slide into opening in

trimplate. Secure sleeve to trimplate by bending the

securing tabs (Figure 4).

7. Slide receiver into sleeve/kit assembly.

DIN Receiver Assembly

2

®

Copyright 2003 Crutchfield Corporation

FIGURE 4

Securing Tabs

DIN Sleeve

Bend tabs after sleeve

is inside assembly.

FIGURE 1 Trimplate

Kit Frame

Support Tray

Mounting Bracket

Stud

Nut

Hex Screws

FIGURE 3

Tools Required

Utility

Knife

▲

Small Flat Blade

Screwdriver

3/8” & 1/4””

Sockets

Pliers

Mounting Bracket

Break off shaded tabs

“B” Tabs
