APPLICATIONS
METRA. The World’s best kits.
™
metraonline.com1-800-221-0932
© COPYRIGHT 2004-2013 METRA ELECTRONICS CORPORATION
REV. 2/20/2014 INST95-7510
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
INSTALLATION INSTRUCTIONS FOR PART 95-7510

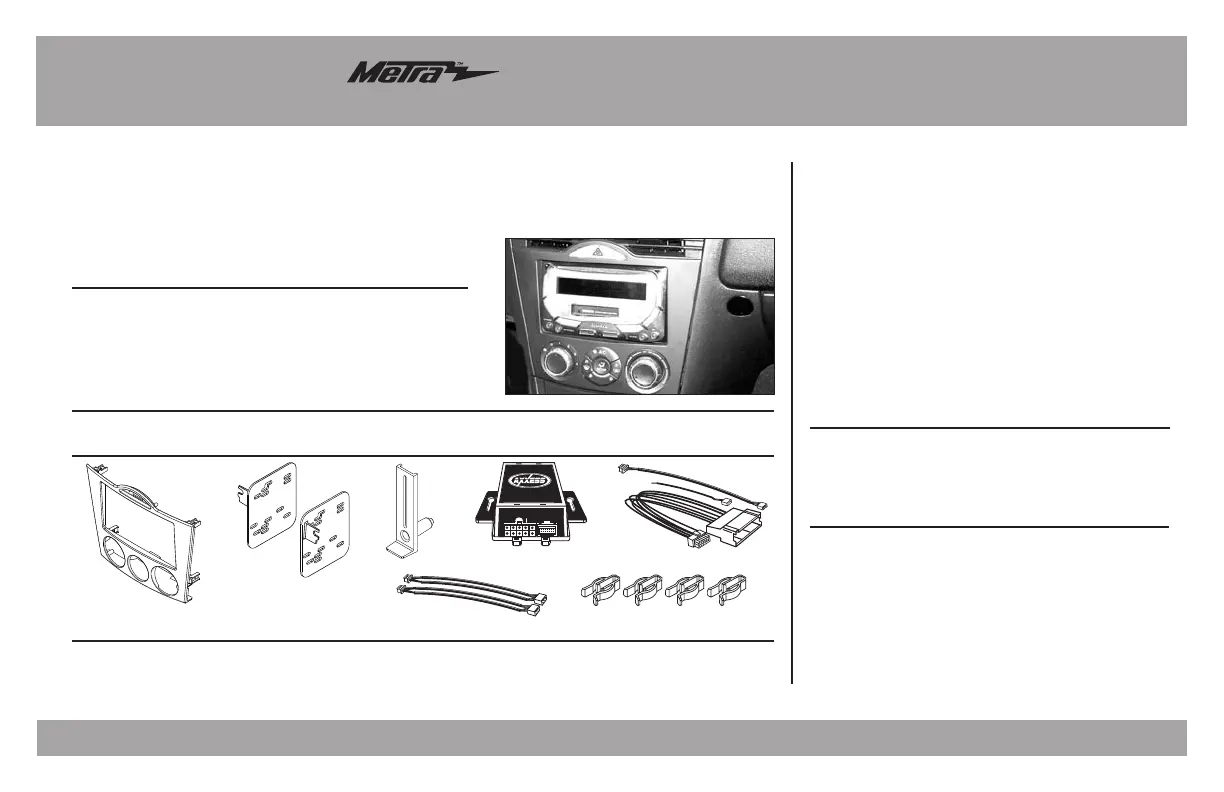

• Double DIN radio provision
• Stacked ISO radio provision
• Two finishes available: 95-7510 = Black,
95-7510HG = Gloss Black
• A) Radio/Climate control housing • B) Radio brackets • C) Rear support • D) Interface
• E) Wiring harnesses • F) (2) Climate control extension harnesses • G) (4) Plastic panel clips
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • Harness included
Antenna Adapter: • Not required
• Panel removal tool • Phillips screwdriver
• Socket set • Small flat blade screwdriver
• Cutting tool
TOOLS REQUIRED
Mazda RX-8 2004-2008
95-7510, 95-7510HG
A
B C D E
Dash Disassembly
– Mazda RX-8 2004-2008 ....................................2-3
Kit Assembly
– Double DIN and stacked ISO radio provisions ....... 4
– Interface installation ..........................................5-6
F G
Table of Contents
95-7510

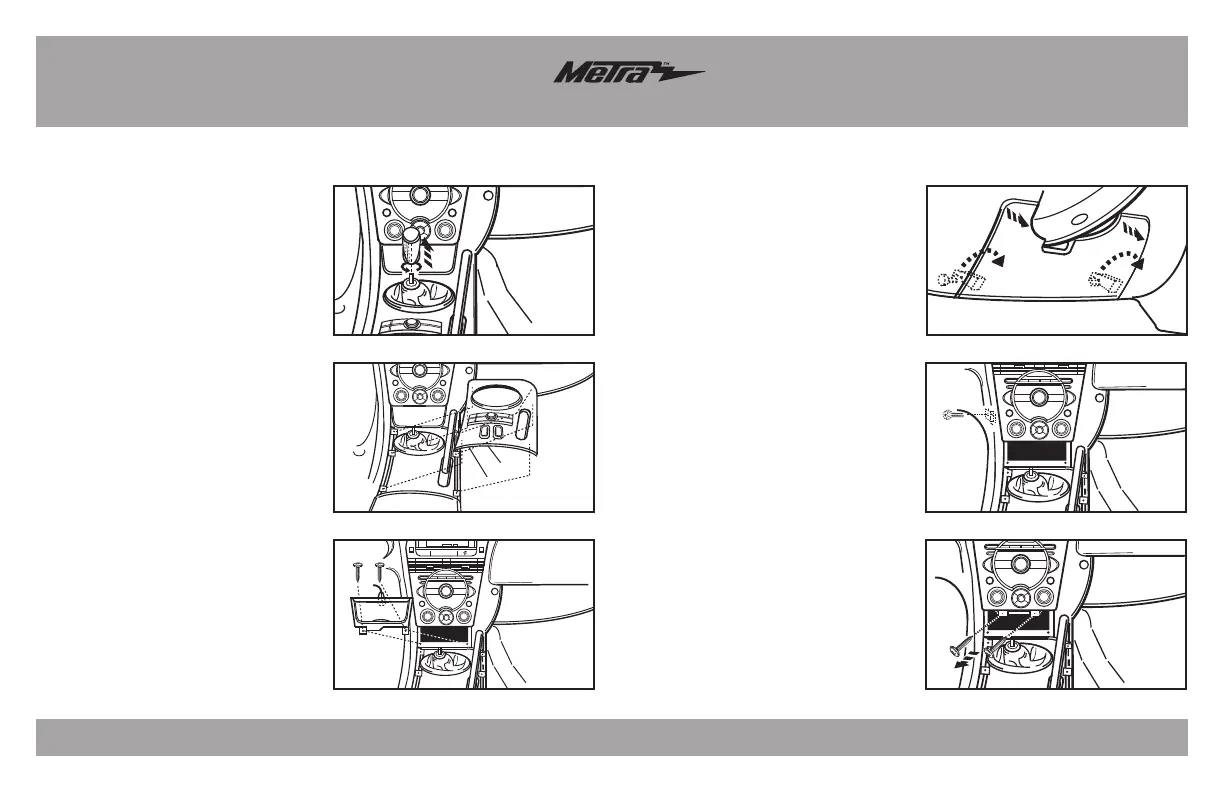

1. Unscrew the shift knob counter
clockwise to remove. (Figure A)
2. Unclip and remove the shifter trim
panel. (Figure B)
3. Remove (2) Phillips screws from
the bottom of the ashtray assembly
then unclip and remove the
assembly. (Figure C)
4. Unclip and remove the knee panel
on the driver’s side under the
steering column (Figure D) then
remove (1) 10 mm bolt from the
side of the radio bracket. (Figure E)
Dash Disassembly
FM1 877
AC
FM1 877
AC
FM1 877
AC
FM1 877
AC
FM1 877
AC
(Figure A) (Figure D)
(Figure B) (Figure E)
(Figure C) (Figure F)
2
5. Remove (2) Phillips screws from
the bottom of the radio/climate
control panel. (Figure F)
6. Unsnap radio/climate control panel
including radio chassis. Unplug and
remove panel and chassis.
(Figure G)
7. Remove (3) Phillips screws
securing the factory display
harness to the radio chassis.
Unplug and remove display
harness. (Retain display harness
for re-use during kit assembly.)
(Figure H)
