FORD CAN DATA BUS INTERFACE

1-800-221-0932

www.axxessinterface.com

AFDI-THX-01

INSTALLATION INSTRUCTIONS

1-800-221-0932

www.axxessinterface.com

AFDI-THX-01 AFDI-THX-01

INTERFACE COMPONENTS

• AFDI-THX-01 interface

• 14 way radio side harness with rca’s

• 12 way to 24 and 16 way vehicle side harness

• 8 way harness with rca’s

Rev. 03/11/10 INSTAFDI-THX-01

READ IMPORTANT WARNING ON PAGE 2

BEFORE ATTEMPTING ANY INSTALLATION

The AFDI-THX-01 is designed to retain the THX audio sys-

tem in the applications listed when replacing the OEM

radio with an aftermarket one. Instead of using a turn on

wire in the OEM harness, the OEM radio uses CAN data to

turn the amplifier on and off. The CAN data also tells the

OEM radio when the vehicle is on and off. Because of this,

these vehicles do not have a traditional 12 volt accessory

wire in the OEM harness. By reading the CAN data the

AFDI-THX-01 will know when the vehicle is on and off and

will provide a 12 volt 10 amp accessory output to be used

by the aftermarket radio.

Another feature of the AFDI-THX-01 is if the vehicle has

the overhead video system the AFDI-THX-01 will keep that

option active and allow the audio from that overhead to be

played through the aftermarket radio; however the radio

you install must have an auxiliary input to hear the audio

from the overhead. Also if the vehicle has the 3.5mm aux

jack the AFDI-THX-01 will retain that feature by providing

a RCA output.

If you are installing a radio that has navigation built in, the

AFDI-THX-01 will provide the necessary navigation out-

puts like VSS (Speed Sense), Parking Brake, and Reverse.

This will save installation time so the installer does not

have to search through the vehicle to get these wires.

NOWLEDGE IS

OWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

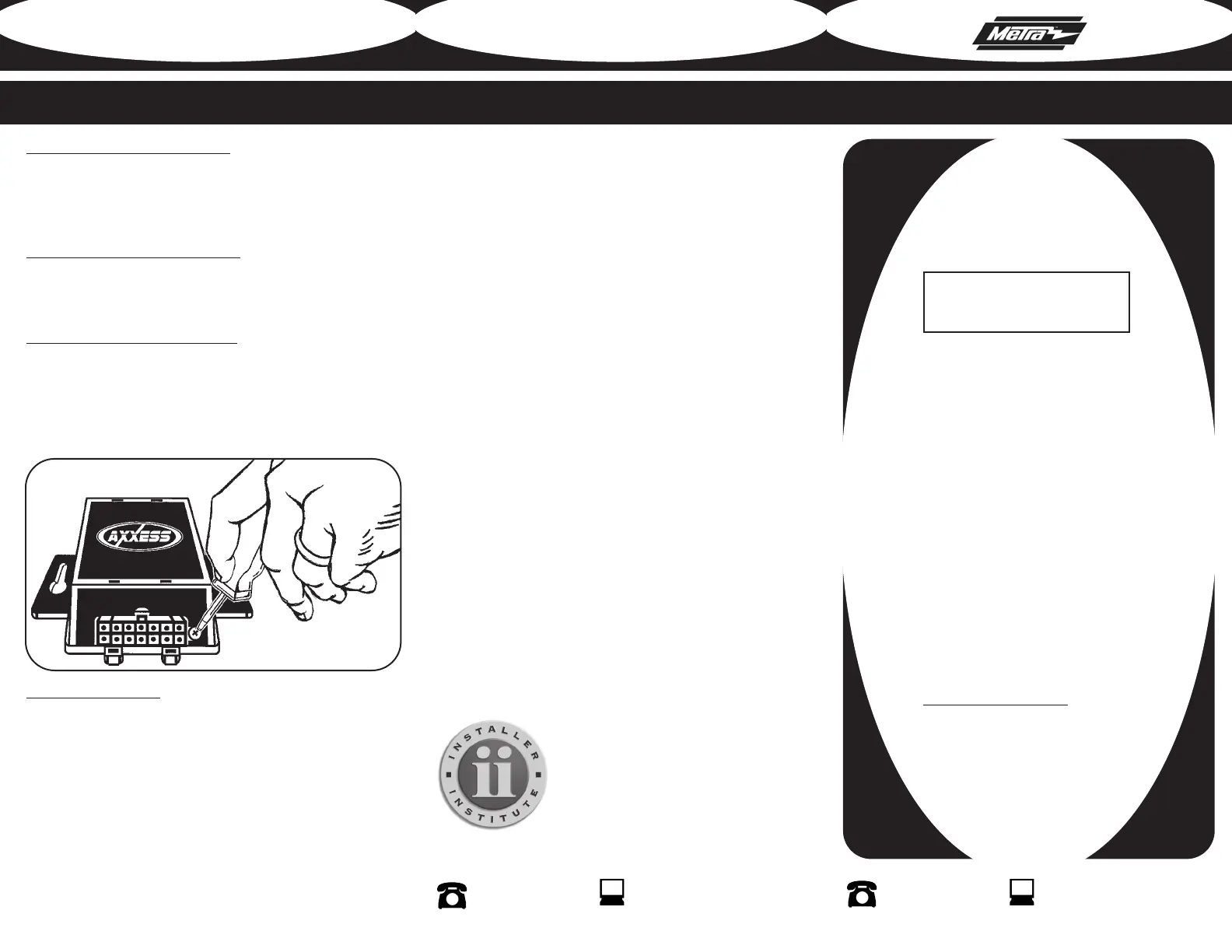

AUDIO LEVEL CONTROL

If the audio level of the sound system is too low or high, you can adjust the input

level to the amplifier. To do this, follow these steps:

1. Locate the potentiometer next to the 14 way Molex connector on the end of

the AFDI-THX-01.

2. Using a small flat head screwdriver turn the potentiometer clockwise to

increase the input level.

3. Turn the potentiometer counterclockwise to lower the input level.

With audio only AUX in “Dual” play mode:

The audio of the auxiliary input (located on the side of the overhead console) will

play through the wireless headphones and the wired headphones (if used) and not

through the audio system. The rear speakers are muted to make listening through

the headphones easier.

With video/audio AUX in

“Single play mode:

The audio of the auxiliary input (located on the side of the overhead console) will

play through the audio system via the RSE rca jacks in AFDI-THX-01 harness. The

video will play on the overhead screen.

With video/audio AUX in

“Dual” play mode:

The audio of the auxiliary input (located on the side of the overhead console) will

play through the wireless headphones and the wired headphones (if used) and not

through the audio system. The rear speakers are muted to make listening through

the headphones
