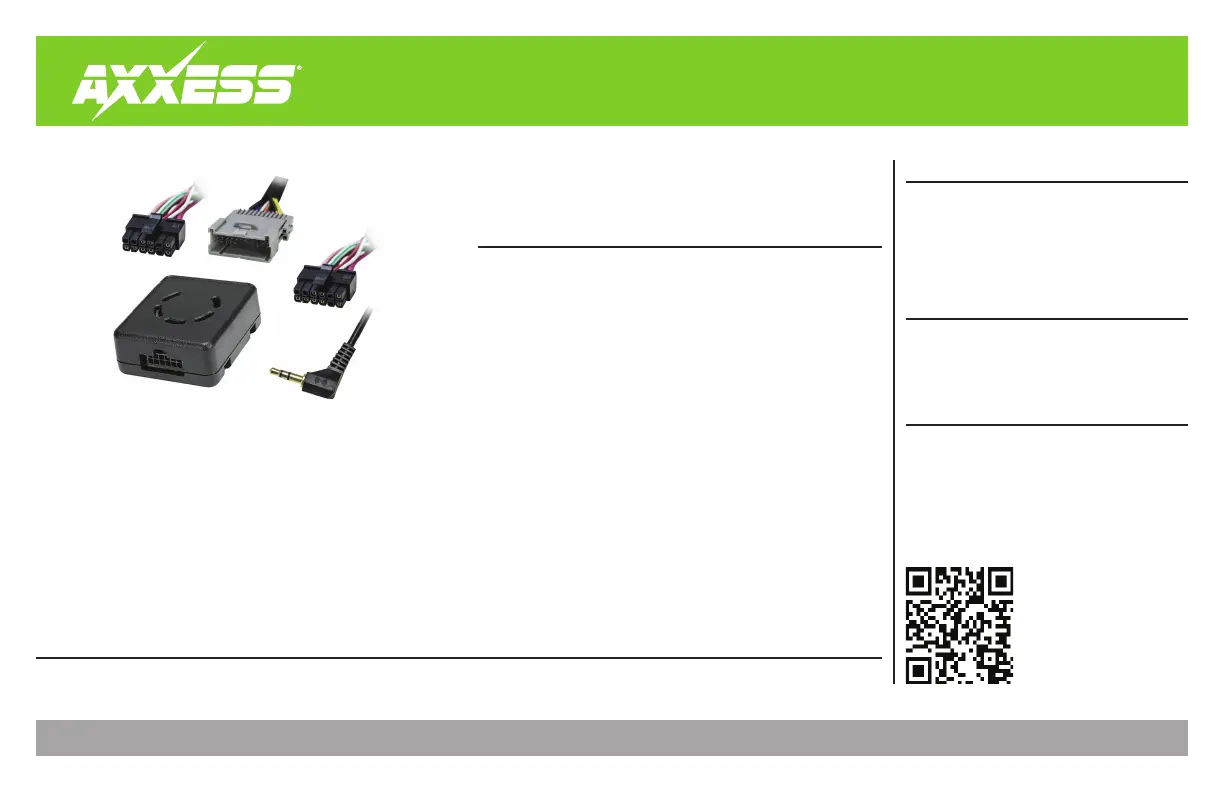

AX-GMCL2

I N S T A L L A T I O N I N S T R U C T I O N S

Product Info

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties

TABLE OF CONTENTS

Connections .........................................................2-3

Installation .............................................................3

Programming .........................................................3

GM Data Interface 2000-2013

APPLICATIONS

See inside front cover

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (retained accessory power)

•

Provides illumination, parking brake, reverse, and speed sense outputs

• Retains chimes through an onboard speaker

• Pre-wired ASWC-1 harness (ASWC-1 sold separately)

• Designed for non-ampliﬁed models, analog ampliﬁed models,

or when bypassing a factory ampliﬁer

• Retains balance and fade

• Micro-B USB updatable

• AX-GMCL2 interface

• AX-GMCL2 harness

APPLICATIONS CONNECTIONS

From the AX-GMCL2 harness to the aftermarket radio, connect the:

• wire to the ground wire.Black

• Yellow wire to the battery wire.

• wire to the accessory wire.Red

• Blue/White wire to the amp turn-on wire.

• Orange wire to the illumination wire (if applicable).

There are (2) illumination wires. If the wire on the 24-pin harness is populated Note: Orange

on the factory side, use that wire instead.

• Tape off and disregard the Orange/White wire, it will not be used in this application.

• wire to the front right positive speaker output.Gray

• Gray/Black wire to the front right negative speaker output.

• White wire to the front left positive speaker output.

• White/Black wire to the front left negative speaker output.

• Green wire to the rear left positive speaker output.

• Green/Black wire to the rear left negative speaker output.

• wire to the rear right positive speaker output.Purple

• wire to the rear right negative speaker output.Purple/Black

The following (3) wires are only for multimedia/navigation radios that require these wires.

• wire to the VSS/speed sense wire.Blue/Pink

• Green/Purple wire to the reverse wire.

• Light Green wire to the parking brake wire.

BUICK

Century 2004-2005

LaCrosse 2005-2009

Rainier * 2004-2007

Regal 2004

Rendezvous 2002-2007

Terraza 2005-2007

CADILLAC

Escalade, Escalade ESV & EXT †

2003-2006

CHEVROLET

Avalanche ** 2003-2006

Cavalier 2000-2005

Colorado 2004-2012

Corvette 2005-2013

Express 2003-2007

Impala 2000-2005

Kodiak C4500-C8500 2003-2009

Malibu 2001-2003

Malibu Classic 2004-2005

Monte Carlo 2000-2005

CHEVROLET (CONT)

Silverado ** 2003-2006

Silverado Classic ** 2007

SSR * 2003-2006

Suburban ** 2003-2006

Tahoe ** 2003-2006

Trailblazer * 2002-2006

Trailblazer 2007-2009

Uplander 2005-2008

GMC

Canyon 2004-2012

Envoy * 2002-2006

Envoy 2007-2009

Savana 2003-2007

Sierra ** 2003-2006

Sierra Classic ** 2007

TopKick C4500-C8500 2005-2009

Yukon / Yukon XL ** 2003-2006

HUMMER

H2 † 2003-2007

H3/H3t 2006-2010

ISUZU

Ascender 2003-2008

H-Series 2003-2008

I-Series 2006-2008

OLDSMOBILE

Alero 2001-2004

Bravada 2002-2004

Intrigue 2002

PONTIAC

Aztec 2001-2005

Grand Am 2001-2005

Grand Prix 2004-2008

Montana SV6 2005-2006

Sunﬁre 2000-2005

SAAB

9-7x 2005-2009

SATURN

Relay 2005-2007

* These vehicles have a digital ampliﬁer option. Please reference the “Service Parts Identiﬁcation” sticker

located in the glove box for the RPO code UQA. If UQA is present, then the vehicle is equipped with a digital

ampliﬁer. Either use the AX-GMCL2-SWC interface, or bypass the ampliﬁer.

** These vehicles have a digital ampliﬁer option. Please reference the “Service Parts Identiﬁcation” sticker

located in the glove box for the RPO code Y91. If Y91 is present, then the vehicle is equipped with a digital

ampliﬁer. Either use the AX-GMCL2-SWC interface, or bypass the ampliﬁer.

†

These vehicles are standard for a digital ampliﬁer. Either use the AX-GMCL2-SWC interface, or bypass the amp
