GM ONSTAR LAN DATA BUS INTERFACE
©Copyright 2004-2010 Metra Electronics Corporation
1-800-221-0932
www.metraonline.com
GMOS-LAN-02
INSTALLATION INSTRUCTIONS
©Copyright 2004-2010 Metra Electronics Corporation
1-800-221-0932
www.metraonline.com
1
* IMPORTANT WARNING
MUST BE CAREFULLY FOLLOWED. THE INSTRUCTIONS ARE WORDED
IN SUCH A MANNER TO ASSUME THAT THE INSTALLER IS CAPABLE
OF COMPLETING THESE TYPE OF ELECTRONIC INSTALLATIONS. IF YOU
ARE UNCLEAR AS TO WHAT YOU ARE INSTRUCTED TO DO OR BELIEVE
THAT YOU DO NOT UNDERSTAND THE INSTRUCTIONS SO AS TO
PROPERLY AND SAFELY COMPLETE THE INSTA
LLATION YOU SHOULD
CONSULT A TECHNICIAN WHO DOES HAVE THIS KNOWLEDGE AND
UNDERSTANDING. FAILURE TO FOLLOW THESE INSTRUCTIONS
CAREFULLY AND TO INSTALL THE INTERFACE AS DESCRIBED COULD
CAUSE HARM TO THE VEHICLE OR TO SAFETY SYSTEMS ON THE
VEHICLE. INTERFERENCE WITH CERTAIN SAFETY SYSTEMS COULD
CAUSE HARM TO PERSONS AS WELL. IF YOU HAVE ANY QUESTIONS
IN THIS REGARD PLEASE CALL THE HELP LINE OR THE METRA AT
1-800-221-0932 FOR ASSISTANCE.
GMOS-LAN-02 GMOS-LAN-02
INSTGMOS-LAN-02
REV. 12/1/10
INTERFACE COMPONENTS
• GMOS-LAN-02 Interface
• 10 pin harness with rca’s
• 16 pin to 30 pin GM harness
For amplified sound systems only
* READ IMPORTANT WARNING ON PAGE 1
BEFORE ATTEMPTING ANY INSTALLATION
The GMOS-LAN-02 is designed to retain the amplified
sound systems, retain Onstar, and retain the warning
chimes that are normally lost when the OEM radio is
removed. It also provides a 12 volt accessory output for
proper aftermarket radio operation.THE GMOS-LAN-02
also PROVIDES a MUTE, PARKING BRAKE, VSS OR
SPEED SENSE, AND A REVERSE OUTPUT TO MAKE
INSTALLING AN AFTERMARKET NAVIGATIONAL RADIO
SIMPLER AND
LESS TIME CONSUMING.
Buick
• Enclave 2007-11
• Lucerne 2006-10
Cadillac
• DTS 2006-10
• SRX 2007-09
Chevrolet
• Avalanche 2007-10
• Equinox 2007-09
• Express 2008-10
• Impala 2006-10
• Monte Carlo 2006-07
• Silverado (new body) 2007-11
• Suburban 2007-10
• Tahoe 2007-11
• Traverse 2009-11
GMC
• Acadia 2007-11
• Savanna 2008-10
• Sierra (New body) 2007-11
• Yukon / XL 2007-10
Hummer
• H2 2008-09 (Must have RPO code UQA)
Pontiac
• Torrent 2007-09
• Vibe 2009
Saturn
• Outlook 2007-09
• Vue 2008-09
Suzuki
• XL-7 2007-09
APPLICATIONS
3
GMOS-LAN-02
4
WIRING CONNECTIONS
*Important: Before beginning any of the following, disconnect the negative
battery terminal to prevent an accidental short circuit.
1. From the 14 pin harness:
Connect the wire to the ignition/accessory wire of the aftermarket radio.Red
Connect the wire to the amp turn on wire of the aftermarket radio.Blue/White
Connect the rca to the left front rca output of the aftermarket radio.White
Connect the rca to the right front rca output of the aftermarket radio.Gray
Connect the rca to the left rear rca output of the aftermarket radio.Green
Connect the rca to the right rear rca output of the aftermarket Purple
radio.
Connect the wire to the mute wire of the aftermarket radio. If the Brown
aftermarket radio does not have a Mute wire, tape up the wire.Brown
The following wires on the 14 pin harness are for the aftermarket radios
that have navigation built in:
Connect the wire to the parking brake wire of the aftermarket navigationGreen
radio.
Connect the wire to the VSS or speed sense wire of the aftermarket Blue/Pink
navigation radio.
Connect the wire to the reverse wire of the aftermarket naviga-Green/Purple
tion radio.
2. From the 16 pin harness:
Connect the Yellow wire to the 12 volt constant/battery wire of the
aftermarket radio.
Connect the wire to the ground wire of the aftermarket radio.Black
Connect the wire to the illumination wire of the aftermarket radio.Orange
If no illumination wire is present, tape up the wire.Orange
The Black/Yellow wire will be discussed later in this manual.
3. From the 30 pin harness:
The wire has no function at this time. Please tape up to prevent any Brown
short circuit.
• Cutting Tool • Tape Crimping Tool Connectors (I.E. butt-connectors, bell
caps, ECT…)
TOOLS REQUIRED FOR INSTALLATION
INSTALLING THE GMOS-LAN-02
1. With all the connections completed, plug the 14 and 16 pin harnesses into
the GMOS-LAN-02.
2. Reconnect the negative battery terminal.
3. Plug the 30 pin GM harness into the vehicle side harness, and plug the
aftermarket radio harness into the aftermarket radio.
4. Cycle the key by turning the ignition on then back off, then back on again to
test the radio.
TESTING THE GMOS-LAN-02
Turn the ignition on, and then turn the aftermarket radio on. Push the Onstar
button, the radio should turn off and you should hear Onstar. Push the Onstar cancel
button and the radio should come back on.
2
CHIME VOLUME ADJUSTMENT

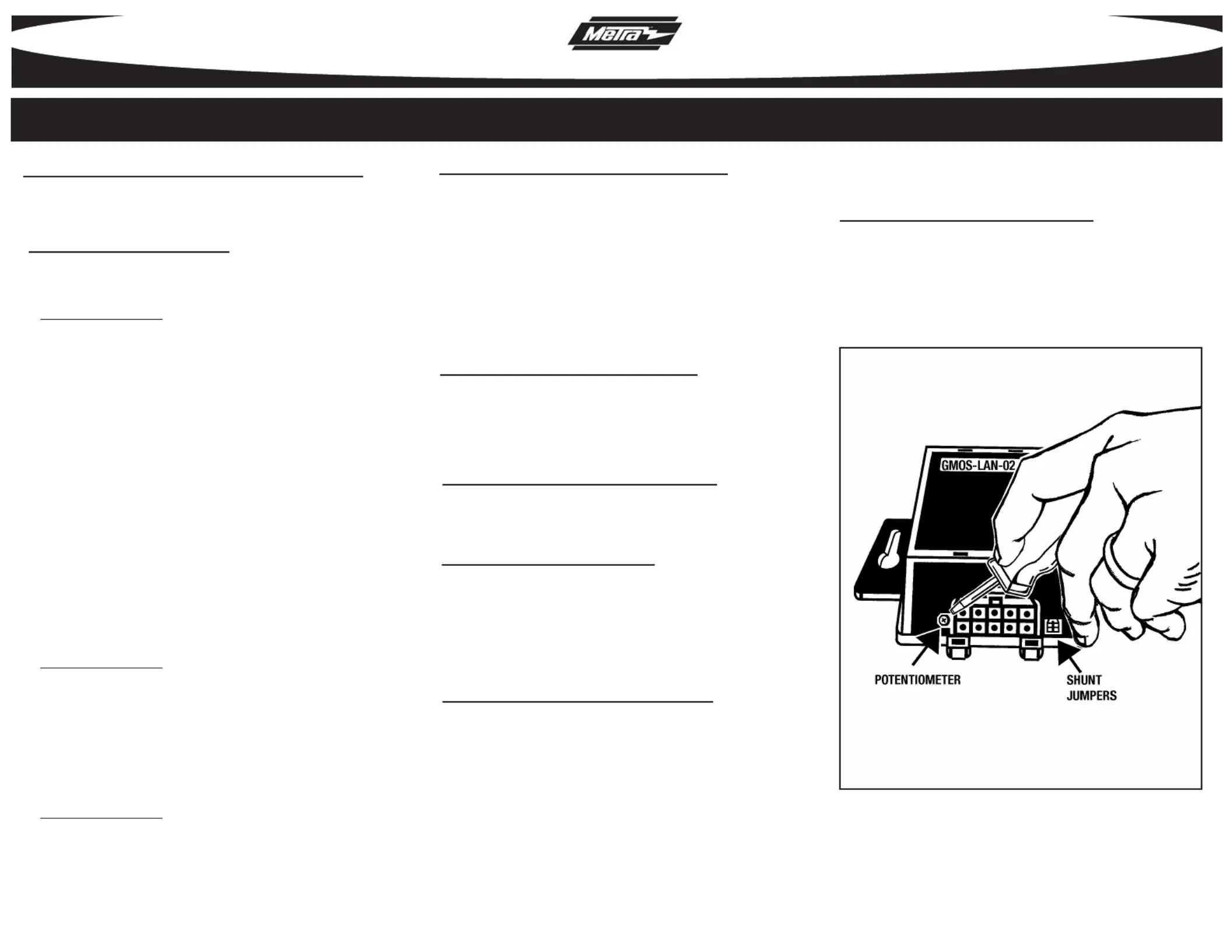

If the chime is too loud, remove the bottom shunt jumper that is next to the 10
pin harness side of the interface (See diagram). This will lower the chime volume.
AUDIBLE TURN SIGNAL
When the factory radio is removed the audible turn signal indicator is lost. The
GMOS-LAN-02 will emulate the audible turn signal heard through the left front
speaker. If the turn signal if too loud remove the top shunt jumper that is next to
the 10 pin harness side of the interface (See diagram). This will lower the audi-
ble turn signal.
ONSTAR LEVEL ADJUSTMENT
To adjust the Onstar volume level find the Black/Yellow wire on the 16 pin har-
ness. Push the blue Onstar button, while the voice is speaking tap the
Black/Yellow wire to ground. There are 31 volume settings for Onstar; once the
31st setting is reached and the Black/Yellow wire is tapped to ground it will
automatically go back to the first volume setting. Once the volume is set it will
stay at that volume u
ntil the Black/Yellow wire is tapped to ground again. If the
user would like to adjust the Onstar volume without having to get to the GMOS-
LAN-02 interface, a 10K potentiometer from Radio Shack (part # 271-1715 or
271-interface, either one will work) can be wired in. Connect one side of the
potentiometer to the Black/Yellow wire and connect the other side to ground.
Mount the potentiometer in a convenient location that is easy to reach.
AUDIO LEVEL ADJUSTMENT
If the audio level is too distorted or way too low under normal listening levels,
to correct this there is a potentiometer on the 10 pin side of the interface.
Using a small screwdriver turn the potentiometer counterclockwise to lower
the input signal, and turn the potentiometer clockwise to raise the input signal.
Note: The chime and turn signal volume will adjust with the audio input.
