GM CLASS II DATA BUS INTERFACE

1-800-221-0932

www.axxessinterface.com

INTERFACE COMPONENTS

• Interface

LC-GMRC-01

INSTALLATION

INSTRUCTIONS

* READ IMPORTANT WARNING ON PAGE 1

BEFORE ATTEMPTING ANY INSTALLATION

1-800-221-0932

www.axxessinterface.com

* IMPORTANT WARNING

THIS PRODUCT INCLUDES INSTRUCTIONS FOR INSTALLATION WHICH

MUST BE CAREFULLY FOLLOWED. THE INSTRUCTIONS ARE WORDED

IN SUCH A MANNER TO ASSUME THAT THE INSTALLER IS CAPABLE

OF COMPLETING THESE TYPE OF ELECTRONIC INSTALLATIONS.

IF YOU ARE UNCLEAR AS TO WHAT YOU ARE INSTRUCTED TO DO OR

BELIEVE THAT YOU DO NOT UNDERSTAND THE INSTRUCTIONS SO AS TO

PROPERLY AND SAFELY COMPLETE THE INSTALLATION YOU SHOULD

CONSULT A TECHNICIAN WHO DOES HAVE THIS KNOWLEDGE AND

UNDERSTANDING. FAILURE TO FOLLOW THESE INSTRUCTIONS

CAREFULLY AND TO INSTALL THE INTERFACE AS DESCRIBED COULD

CAUSE HARM TO THE VEHICLE OR TO SAFETY SYSTEMS ON THE

VEHICLE. INTERFERENCE WITH CERTAIN SAFETY SYSTEMS COULD

CAUSE HARM TO PERSONS AS WELL. IF YOU HAVE ANY QUESTIONS

IN THIS REGARD PLEASE CALL THE HELP LINE OR THE METRA AT

1-800-221-0932 FOR ASSISTANCE.

LC-GMRC-01 LC-GMRC-01

The LC-GMRC-01 is designed to be used in non-ampli-

fied GM vehicles or in vehicles that the OEM amplifier

has been bypassed; Onstar is not retained in either

case. The LC-GMRC-01 retains all the factory warning

chimes that would be lost when the OEM radio is

removed. It will also provide a 3 amp 12 volt switched

accessory for proper radio operation, and retain the

R.A.P. (Retained Accessory Power) feature if equipped.

• Harness

SEE INSIDE FOR

APPLICATIONS

Rev. 03-10-10 INSTLC-GMRC-01

LC-GMRC-01

INSTALLING THE LC-GMRC-01

1. With all connections completed reconnect the negative battery terminal.

2. Plug the LC-GMRC-01 into the vehicle and into the radio.

3. Cycle the key by turning the ignition on then back off, then on again.

TESTING THE LC-GMRC-01

1. Turn the radio on and test for proper balance and fader operation.

2. Close the doors then turn the key off. The radio should stay on until the

driver’s door is open.

NOTE: If the radio you are installing requires more then 3 amps on the accessory

wire, or you are adding another accessory to the wire (hardwire radar detector,

etc…) then a relay will be needed to supply the additional current.

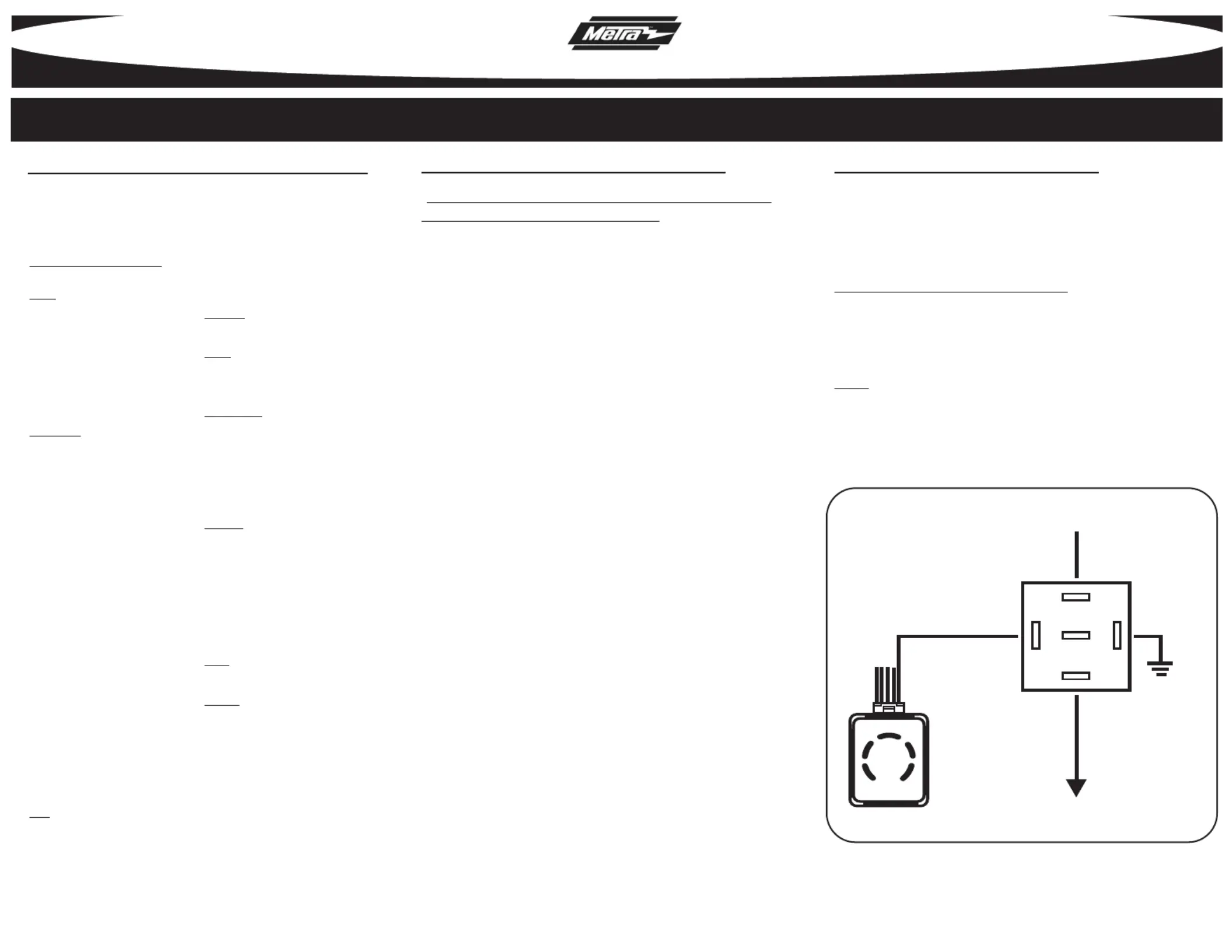

See the diagram below to properly add a relay:

TOOLS REQUIRED FOR INSTALLATION

• Cutting Tool • Tape • Crimping Tool

• Connectors (ie: butt-connectors, bell caps, etc.)

WIRE CONNECTIONS TO BE MADE

* Important: Before beginning an of the follo disconnect the negay wing, tive

battery terminal to prevent accidental short circuit.

1. Connect the Yellow wire to the radios constant/memory wire.

2. Connect the the Red wire to the radios accessory wire.

3. Connect the Black wire to the radios ground wire.

4. Connect the Blue/White wire to the radios amp or antenna turn on.

5. Connect the Orange wire to the radios illumination wire. If the radio does

not have an illumina

tion wire just tape up the Orange wire.

6. Connect the Orange/White wire to the radios dimmer wire. If the radio does

not ha

ve a dimmer wire just tape up the Orange/White wire.

7. Connect the White wire to the radios left front (+) speaker wire.

8. Connect the White/Black wire to the radios left front (-) speaker wire.

9. Connect the Gray wire to the radios right front (+) speaker wire.

10. Connect the Gray/Black wire to the radios right front (-) speaker wire.

11. Connect the Green wire to the radios left rear (+) speaker wire.

12. Connect the Green/Black wire to the radios left rear (-) speaker wire.

13. Connect the Purple wire to the radios right rear (+) speaker wire.

14. Connect the Purple/Black wire to the radios right rear (-) speaker wire.

BUICK

• ALLURE 2005-09

• CENTURY 2004-05

• LACROSSE 2005-09

• RAINIER 2004-07

• RENDEZVOUS 2002-07

• TERRAZA 2005-08

CHEVROLET

• AVALANCHE 2003-06

• CAVALIER 2000-05

• COLORADO 2004-10

• EXPRESS 2003-07

• IMPALA 2000-05

• MALIBU 2001-03

• MALIBU CLASSIC 2004-05

• MONTE CARLO 2000-05

• SILVERADO PICKUP

CLASSIC 2007

• SILVERADO PICKUP

(All Models) 2003-06

• SSR 2003-06

• SUBURBAN 2003-06

• TAHOE 2003-2006

• TRAILBLAZER 2002-09

• UPLANDER 2005-08

• VENTURE VAN 2000-05

GMC

• CANYON 2004-10

• ENVOY 2002-09

• SAVANNA FULL SIZE VAN

2003-07

• SIERRA CLASSIC 2007

• SIERRA 2003-2006

• YUKON/ YUKON XL 2003-06

HUMMER

• H3 2006-09

ISUZU

• ASCENDER 2003-08

• I SERIES PICKUPS 2006-08

OLDSMOBILE

• ALERO 2001-04

• BRAVADA 2002-05

• INTRIGUE 2002

• SILHOUETTE

2000-04

PONTIAC

• AZTEC 2001-05

* GRAND AM 2001-05

• GRAND PRIX 2004-08

• MONTANA SV6 (CANADA) 2005-08

• MONTANA 2000-05

• SUNFIRE 2000-05

SAAB

• 9-7X 2005-09

SATURN

• RELAY 2005-07

2 3 4

APPLICATIONS

12v esso fromAcc ry

LC-GM 01 RedRC-

To Radio

SPDT Relay

+12v Ba Fusedttery

85 86

87a
