HDMI2.0 HDBaseT Extender 100m
Over One Cat5e/6/7 Cable
Quick Installation Guide
Ver. 1.0
All brand names and trademarks are properties of
their respective owners
2
INTRODUCTION:
FEATURES:
3 4
SPECIFICATIONS:
● Supports the HDMI 2.0 specification over a single Cat.6/7 cable up to 70m/328ft
● Fully compliant with HDMI 1.4, and compatible with HDMI 2.0 (4K2K@60Hz with
RGB 4:4:4 ).
● Supports pass-through of HD audio formats: LPCM2/5.1/7.1 CH, Dolby Digital,
DTS, Dolby TrueHD, DTS-HD Master Audio and more.
● HDBaseT 5Play™ convergence: High-Definition (HD) Video and Audio, 100BaseT
Ethernet, 12V POC, and Control (Bi-directional IR/ RS-232 pass-through)
● HDMI with 3D & 4K@60Hz (YUV 4:2:0) support, DVI 1.0 compatible
● HDCP 2.2 compliant
● Supports pass-through of HD audio formats: LPCM 2.0/5.1/7.1, Bitstream, and HD
Bitstream
● Supports optical audio sampling rates up to 48kHz
● Supports external analog and digital audio extension including support for ARC
(Audio Return Channel)
● Supports RS-232 baud rates from 110~115200bps
This HDMI 2.0 Transmitter and Receiver set can send 4K2K@60Hz(YUV 4:4:4). video
and audio over a single Cat.5e/6/7 cable up to 70m, with Ethernet, RS-232 and IR
ports. Consequently HDBaseT is positioned to become the leading physical layer
Technology for last-leg wired connectivity between HD multimedia stream
sources(set-top-boxes, DVDs and PCs) and HD display monitors(Flat-panel LCD or
plasma HDTVs).
The integrated 12V POC support provides power to the receiver or transmitter from
thetransmitter or receiver , eliminating the need for a separate power supply for the
Receiver
● Blu-ray, DVD players and recorders
● Digital set-top-boxes (STBs)
● A/V receivers
● Game consoles
● PCs
● HDMI repeaters, splitters and switches
● DTVs, LCDs and plasma displays
● Rear and front projectors
HDMI version............................................ HDMI 2.0
HDCP version........................................... HDCP 2.2
Video Bandwidth....................................... 18G
HDMI resolution supported....................... 1920*1080@60Hz
1920*10803D@24Hz
1080P@120Hz
4K2K@30Hz
4K2K@60Hz(4:2:0)
4K2K@50/60Hz(4:4:4)
HDMI connector ....................................... Type A ,19 pin, Female
Operation temperaure .............................. 0 50℃～ ℃
Relative humidity....................................... 0 95%(no condensation)～
Power Supply............................................ DC 12V 2A
APPLICATIONS:
①HDBaseT OUT: Connect to the Receiver unit with a single CAT5e/6/7 cable for
transmission of all data signals includes power.
② IR OUT:Connect to the IR Blaster to transmit IR signals to devices within direct
line-of-sight of the IR Blaster.
③ IR IN:Connect to the IR Extender to extend the IR control range of remotely
located device. Ensure that the remote being used is within direct line-of-sight of the
IR Extender.
④ HDBaseT Active LED:This LED will flicker per second when device power on.
⑤ HDBaseT Link LED: This LED will illuminate when HDBaseT link is established
between transmitter and receiver.
⑥ DC 12V: Plug the 12V DC power supply into the unit and connect the adaptor to an
AC outlet.
① HDBaseT IN: Connect to the Receiver unit with a single CAT5e/6/7 cable for
transmission of all data signals includes power.
② IR OUT:Connect to the IR Blaster to transmit IR signals to devices within direct
line-of-sight of the IR Blaster.
③ IR IN:Connect to the IR Extender to extend the IR control range of remotely
located device. Ensure that the remote being used is within direct line-of-sight of the
IR Extender.
④ HDBaseT Active LED:This LED will flicker per second when device power on.
⑤ HDBaseT Link LED:This LED will illuminate when HDBaseT link is established
between transmitter and receiver.
⑥ DC 12V:Plug the 12V DC power supply into the unit and connect the adaptor to an
AC outlet.
① HDMI IN: Connects to HDMI source equipment such as a DVD or Blu-ray player.
② RS232:Connect to a PC or Laptop via RS232 terminal to D-Sub 9-pin cable for the
transmission of RS-232 commands.
③LAN:Connect to an Ethernet supporting device or to your local network as
appropriate.
① HDMI OUT: Connects to HDMI source equipment such as a DVD or Blu-ray player.
② RS232:Connect to a PC or Laptop via RS232 terminal to D-Sub 9-pin cable for the
transmission of RS-232 commands.
③LAN:Connect to an Ethernet supporting device or to your local network as
appropriate.

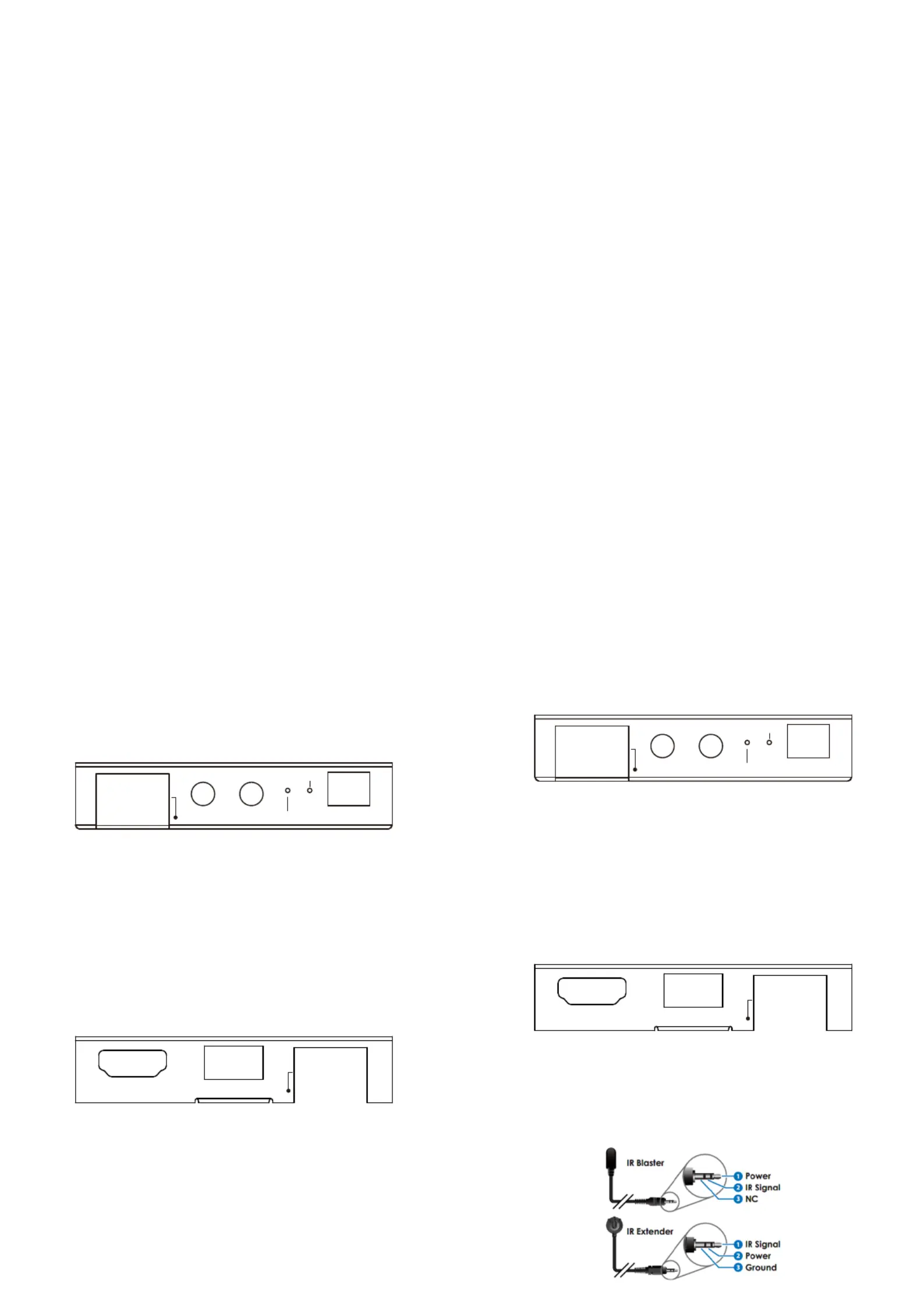

PRODUCT OVERVIEW: Receiver:
IR Cable Pin Assignment:
Transmitter:
LinkIR InIR Out
HDBaseT Out Active 12V/DC
LinkIR InIR Out
HDBaseT In Active 12V/DC
LANHDMI In RS232
LANHDMI Out RS232
