PL360
PL360 Host Controller
Introduction
The PL360 is a multi-protocol modem for the Power Line Communication (PLC) device, implementing a very flexible
architecture and allowing the implementation of standard and customized PLC solutions. It has been conceived to be
bundled with an external Microchip MCU, which downloads the corresponding PLC firmware and controls the
operation of the PL360 device.
The purpose of the PL360 Host Controller is to provide the external microcontroller a way to control the PL360 device
and offer upper layers an easy way to get access to PLC communication.
As an example of the PLC system, the figure below shows the system architecture for G3 protocol based on a PL360
device being controlled by a SAM4C MCU.

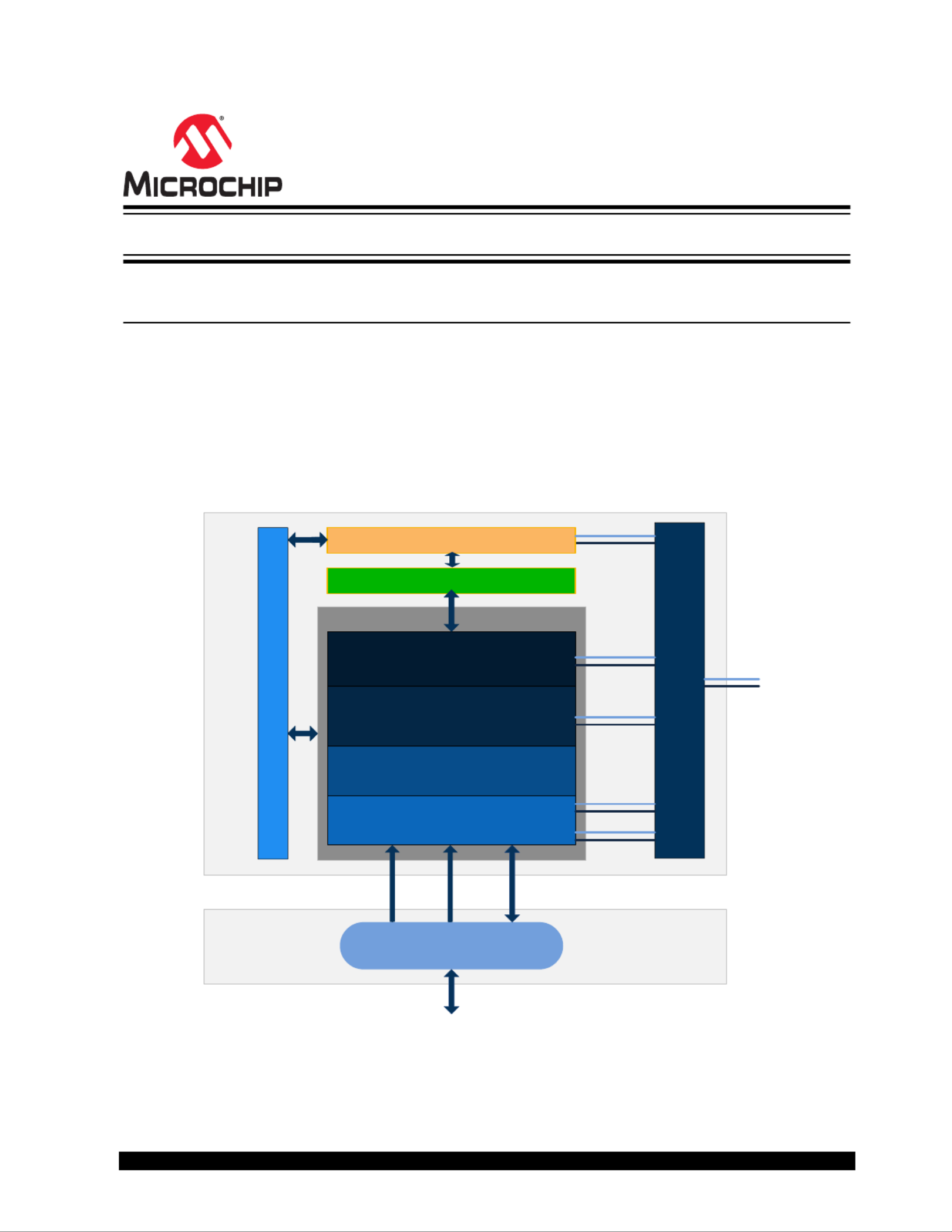

Figure 1. G3 System Architecture
Embedded USI
G3-PLC Stack
PHY + PLC Transceiver
SAM4C
( ITU-T G.9903 )
( IEEE 802.15.4 )
( IETF RFC 4944 )
Adaptation Layer
MAC Layer
PAL Layer
sniffer_if
phy_if
mac_if
adp_if
app_if
Host Controller
PLC
USER APPLICATION
PL360
SPI
PLATFORM
IPv6 STACK
Detect
Interrupt
Carrier
The aim of this document is to clarify and detail the user interface of the PL360 Host Controller.
© 2020 Microchip Technology Inc. User Guide DS50002738E-page 1
