Handled multi-functional oscilloscope
Users Manual

2
Version information
Version Date comment
1.0 2013.05

3
Micsig. Warranty support is available if product is purchased through a Micsig authorized
sales outlet or Buyer has paid the applicable international price. Micsig reserves the right to
invoice Buyer for importation costs of repair/replacement parts when product purchased in
one country is submitted for repair in another country.
Micsig’s warranty obligation is limited, at Micsig’s opinion, to refund of the purchase
price, free of charge repair, or replacement of a defective product, which is returned to a
Micsig authorized service center within the warranty period.
To obtain warranty service, contact your nearest Micsig authorized service center or
sent the product, with a description of the difficulty, postage and insurance prepaid (FOB
destination), to the nearest Micsig authorized service center. Micsig assumes no risk for
damage in transit. Following warranty repair, the product will be returned to buyer,
transportation prepaid (FOB destination). If Micsig determines that the failure was caused
by misuse, alteration, accident or abnormal condition of operating or handling, Micsig will
provide an estimate of repair costs and obtain authorization before commencing the work.
Following repair, the product will be returned to the buyer transportation prepaid, the buyer
will be billed for the repair, and return transportation charges (FOB Shipping Point).

4
This warranty is Buyer's sole and exclusive remedy and is in lieu of all other warranties,
express or implied, including but not limited to any implied warranty of merchantability or
fitness for a particular purpose. Micsig shall not be liable for any special, indirect, incidental
or consequential damages or losses, including loss of data, whether arising from breach of
warranty or scaled on contract, tort, reliance or any other theory.
Since some countries or states do not allow limitation of the term of an implied warranty,
or exclusion or limitation of incidental or consequential damages, the limitations and
exclusions of this warranty may not apply to every buyer. If any provision of this warranty is
held invalid or unenforceable by a court of competent jurisdiction, such holding will not
affect the validity or enforceability of any other provision

5
Preface
Dear customers,
Hello! Firstly thanks for buying Micsig instrument and for your proper use of this
instrument, please read this manual before using it and particularly pay attention to "safety
information".
If you have finished readout this manual, Micsig recommend you keep this manual for
future reference.

1
Content
CONTENT
CONTENT ................................................................................................................................................... 1
CHAPTER ONE SAFETY INFORMATION.................................................................................. 1
1.1SAFETY INFORMATION.............................................................................................................................. .2
1.2SAFETY TERMS& SYMBOLS ....................................................................................................................... 3
CHAPTER TWO OSCILLOSCOPE QUICK START GUIDE ................................................. 6
2.1 GENERAL INSPECTION .............................................................................................................................. 8
2.2 KNOW THE EQUIPMENT PART NAME ........................................................................................................... 9
2.3 USE BRACKET ....................................................................................................................................... .12
2.4 INSTALL & REPLACE BATTERY ................................................................................................................ 13
2.5 KNOW BUTTONS &THEIR FUNCTIONS ...................................................................................................... 17
2.6 TURN ON&OFF ....................................................................................................................................... 22
2.7TURN ON THE OSCILLOSCOPE................................................................................................................... 22
2.8 PRELIMINARY KNOW OSCILLOSCOPE USERS' INTERFACE ........................................................................... 23
2.9 KNOW TOUCHE SCREEN .......................................................................................................................... 28

2
Content
2.10 FUNCTION CHECK................................................................................................................................. 31
2.11 PROBE COMPENSATION ......................................................................................................................... 33
CHAPTER THREE USE OSCILLOSCOPE ................................................................................ 39
3.1 CHANNEL SELECTION ............................................................................................................................. 42
3.2 SET CHANNEL COUPLING MODE............................................................................................................... 43
3.3 SET CHANNEL SAMPLING MODE .............................................................................................................. 46
3.4 BANDWIDTH SELECTION ......................................................................................................................... 50
3.5 USE DELAY ............................................................................................................................................ 51
3.6 SET CHANNEL POLARITY ......................................................................................................................... 53
3.7 SET CHANNEL ATTENUATION COEFFICIENT ............................................................................................... 55
3.8 AUTO-CALIBRATION ............................................................................................................................... 57
3.9 SET AUTOMATIC-MEASUREMENT TYPE..................................................................................................... 57
3.10SET STORAGE/RECOVERY MENU ............................................................................................................. 64
3.10.1 Store ............................................................................................................................................ 64
3.10.2 Restore ........................................................................................................................................ 67
3.10.3 Store depth................................................................................................................................... 68
3.10.4 Dynamic record ........................................................................................................................... 69
3.10.5 Recovery settings ......................................................................................................................... 74

5
Content
CHAPTER SIX USE MULTIMETER........................................................................................... 198
6.1 MULTIMETER SAFETY INFORMATION ..................................................................................................... 198
6.2 TURN ON MULTIMETER ......................................................................................................................... 199
6.3 MULTIMETER BUTTONS& THEIR FUNCTIONS .......................................................................................... 199
6.4 USE MULTIMETER ................................................................................................................................. 204
CHAPTER SEVEN USE RECORD INSTRUMENT ............................................................... 207
7.1 OPEN RECORD INSTRUMENT.................................................................................................................. 209
7.2 RECORD .............................................................................................................................................. 209
7.2.1 Multimeter record ........................................................................................................................ 210
7.2.2 Oscilloscope measurement record ................................................................................................ 217
7.2.3 Oscilloscope waveform record ..................................................................................................... 221
7.2.4 Store set ....................................................................................................................................... 225
7.3 PLAYBACK ........................................................................................................................................... 226
7.3.1 Multimeter playback .................................................................................................................... 226
7.3.2 Oscilloscope measurement recorded playback .............................................................................. 239
7.3.3 Oscilloscope waveform playback ................................................................................................. 232
7.3.4 The last record playback .............................................................................................................. 234

Chapter One Safety Information
Read First

4
Safety information
indicated conditions are fully understood and met.
Caution denotes a hazard. It calls attention to a procedure, which, if not correctly performed or
adhered to, might result in damage or destruction of the instrument. User should not proceed beyond a caution
notice, until the indicated conditions are fully understood and met.
Danger means while you are in violation of the provisions of this tag may immediately cause damage to you

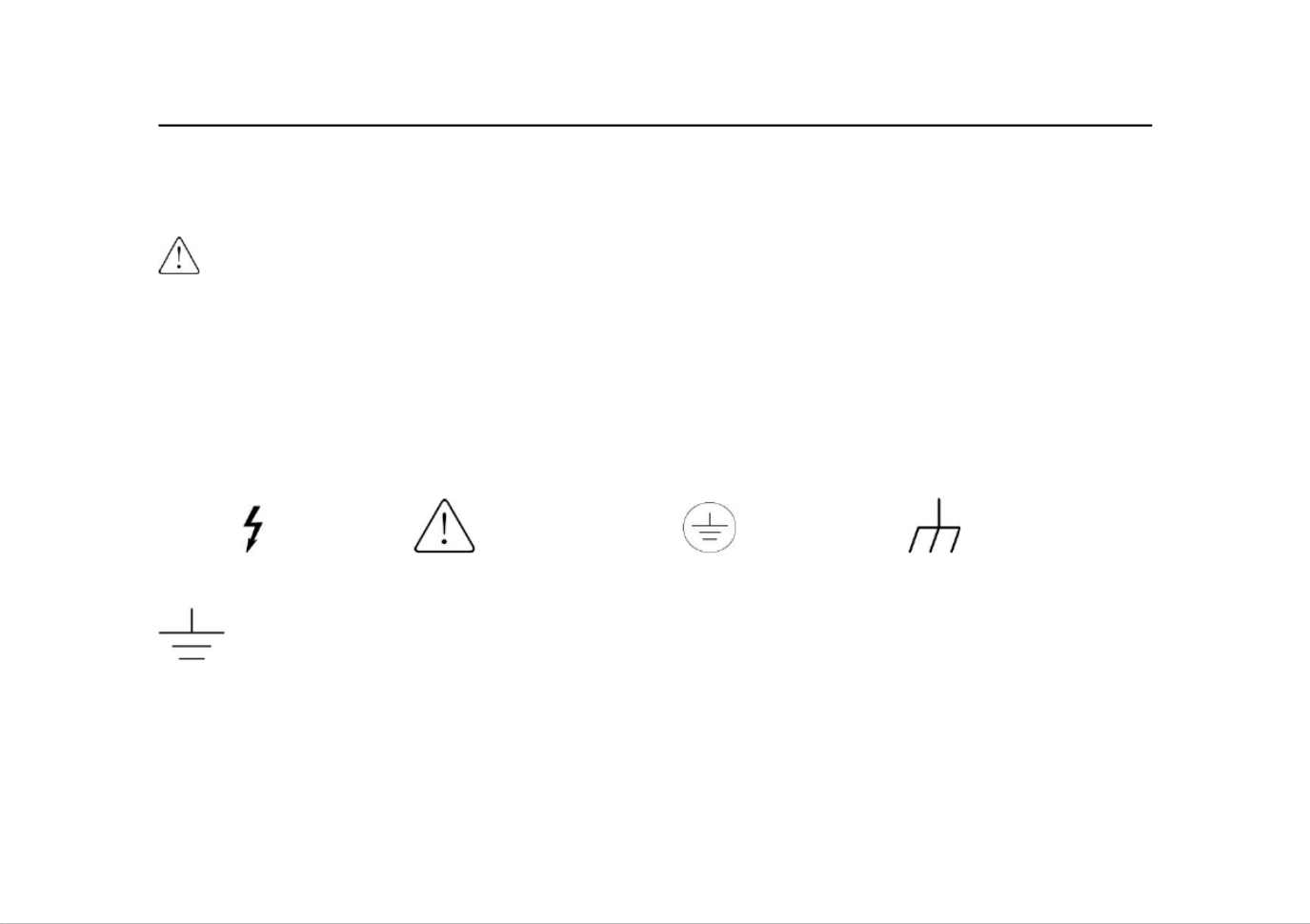

Symbols on products
Hazardous voltage Refer to the manual Protective earth terminal Chassis ground
Test ground
Please read the following safety information to avoid personal injury and prevent
products or damage related products. In order to avoid the possibility of danger so this
product can only be used in the specified manner.

Chapter Two Oscilloscope Quick Start Guide

8
General check
2.1General check
When you receive your product container, check the instrument according to the
following procedure.
1. Check if there exists damage caused by transport.
If the container appears damage, please keep it, until the whole instrument and
accessories pass through electronic performance and mechanical test.
2. check the accessories
Each oscilloscope container has a shipping list. You can refer it to check if the
attachment is complete. If the attachment is missing or damaged, please contact our
agent or local office of Micsig.
3. Entire instrument check
If situation happens like, broken of appearance of the oscilloscope, or failure to pass
the performance taste, please contact our agent or local office which responsible for
this business. If the instrument damaged by transport, please refer to the packing case

11
Introduce the names of instrument’s parts
cursor and to quick adjust the brightness of oscilloscope waveform, the intensity of (graticule,
afterglow) and the trigger hold-off time. The usage of the wheel is shown in the following
chapters.

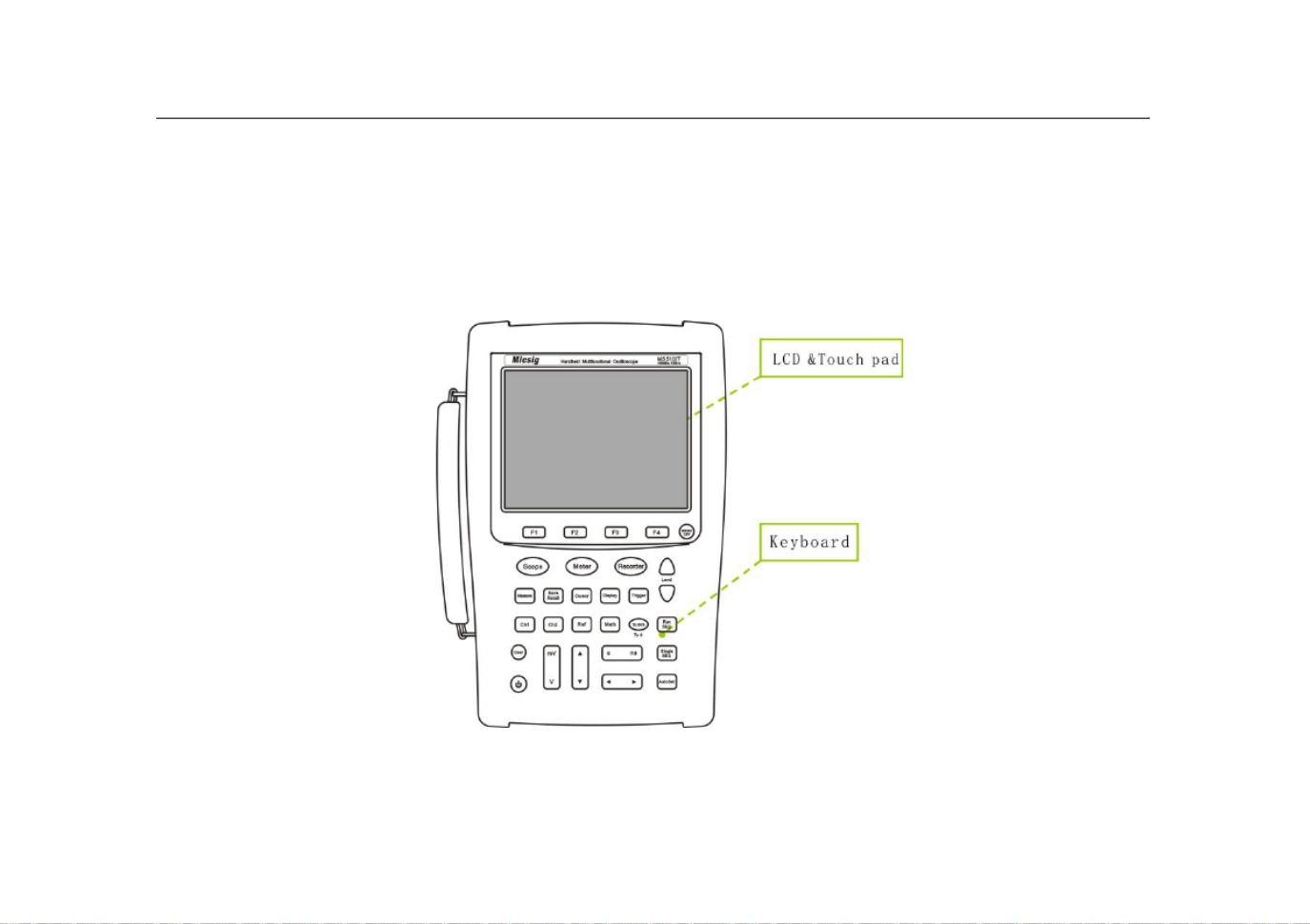

Front panel includes the keyboard, LCD and touch panel. Refer to picture 2-4
Picture 2-4 front panel

12
Use bracket
2.3 Use bracket

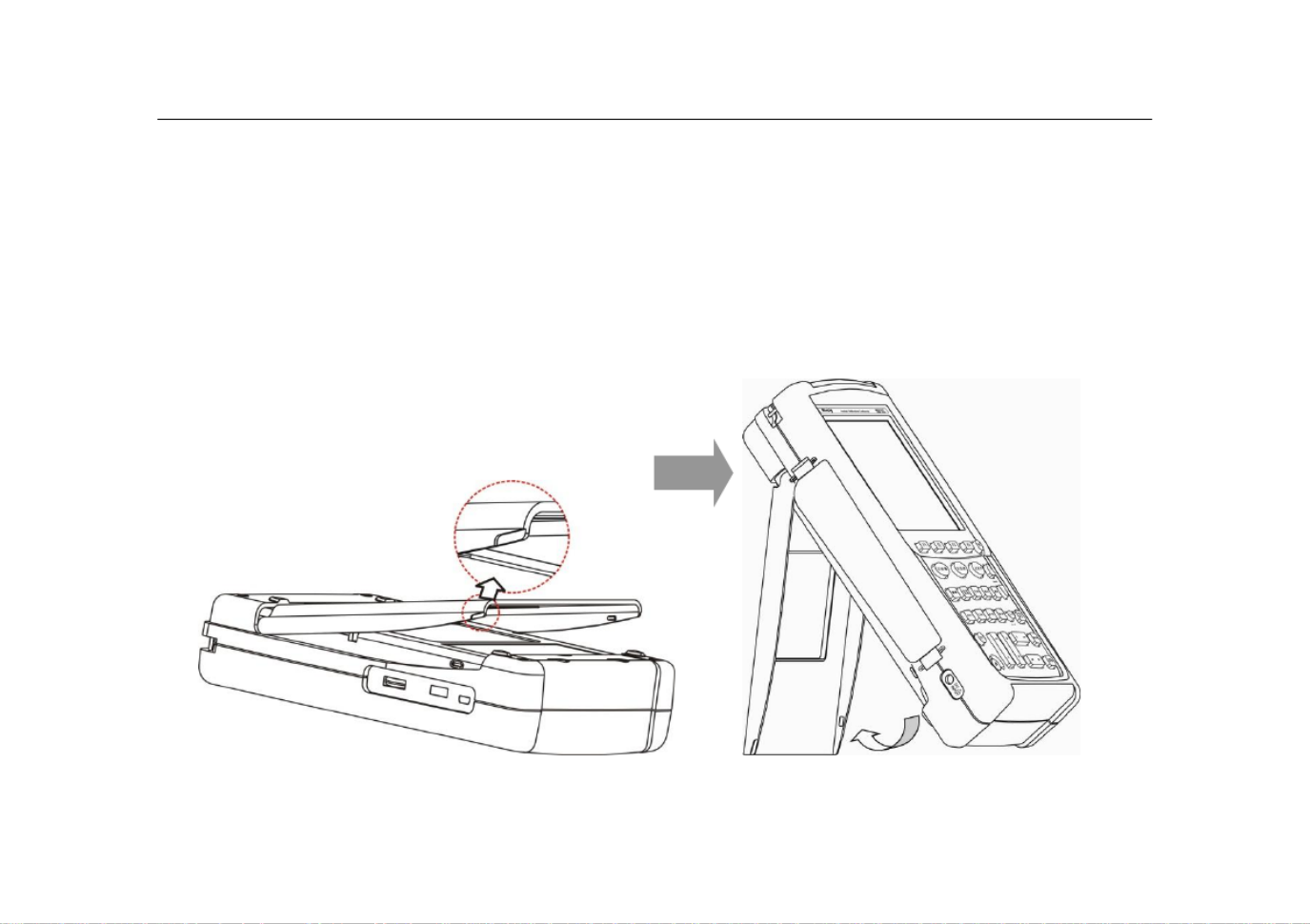

First flat front panel on the desktop and then use your both index fingers to dig it out
from stern notch on either side of the bracket with little upward force. Shown as picture2-5,
(circle zone indicts bracket stern north)
Picture2-5 open bracket

19
Know the buttons and their functions

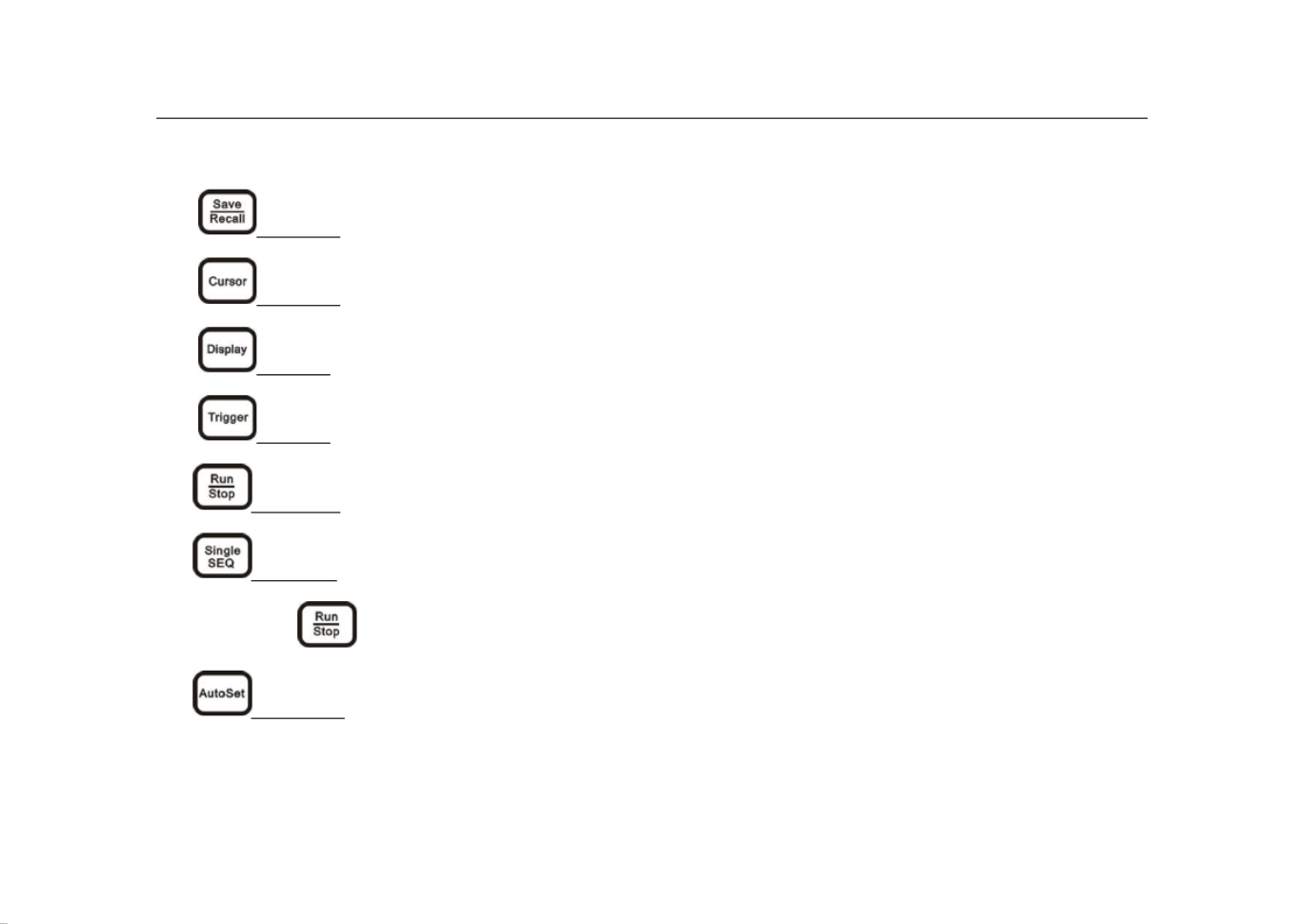

Function button can turn on store& recall menu
Turn on cursor menu
Function button can open display menu
Function button can turn on trigger menu
Stop or restart the waveform capture, or lock screen in multimeter mode
Function button trigger and capture one single waveform then sop, press
button to escape this mode
Function button, which can automatically adjust the vertical scale, vertical
position and horizontal time base, making the waveform display as the best
effect.

21
Know the buttons and their functions

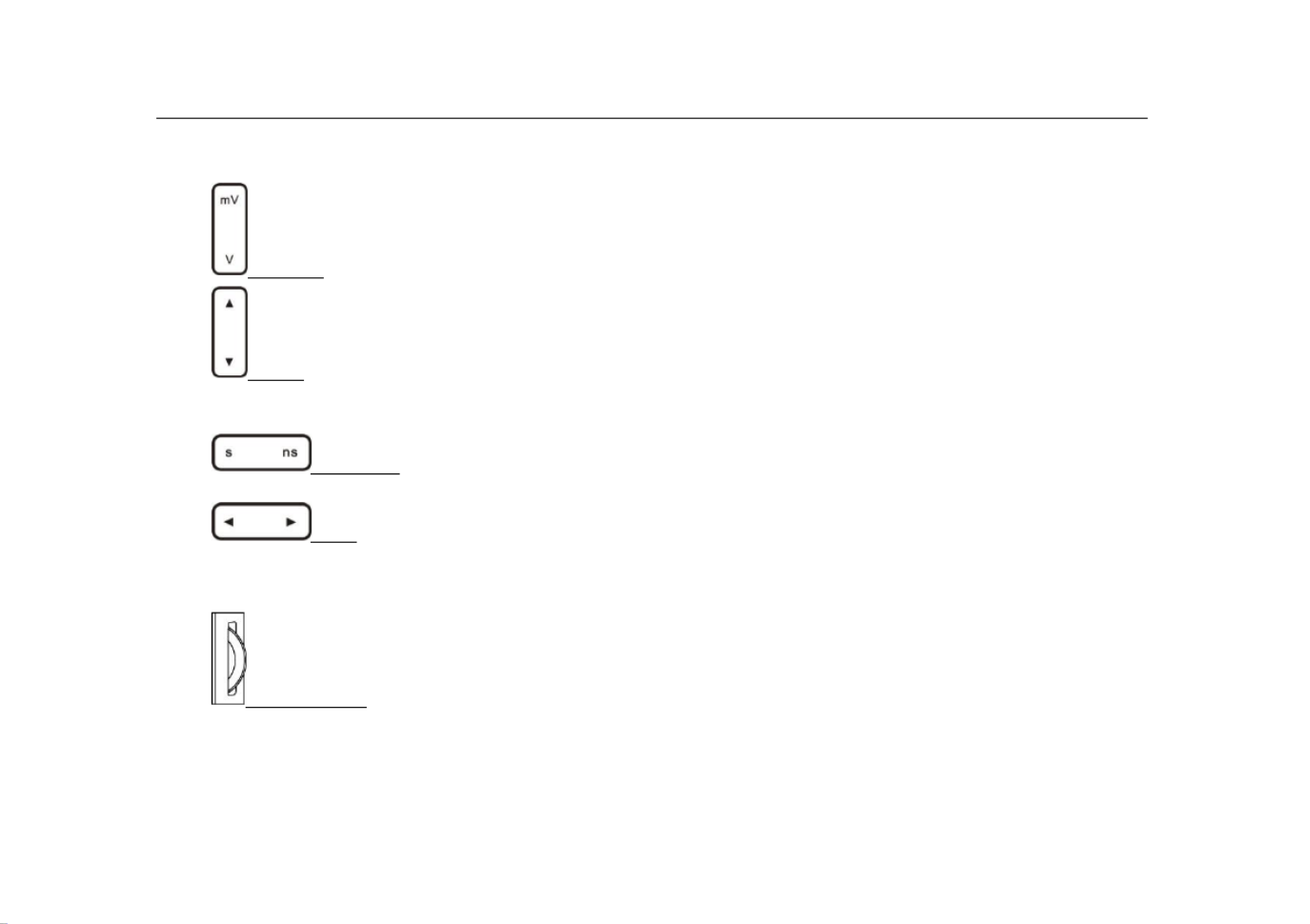

Function button; adjust the vertical scale of the selected channel
Function button, vertical position adjustment button, move the vertical position
of the selected waveform
Function button, adjust the horizontal scale (horizontal time base)
Function button, horizontal position adjustment, waveform horizontal
movement
Wheel, quick adjust the trigger level, the cursor, or move waveform, or
used in parameter setting

23
General knowledge of users’ interface
2.8 General knowledge of users’ interface
This section does a simple introduction and description to oscilloscope users’ interface.
After reading this section, you can familiar with the oscilloscope display interface in a short
time. For the specific settings and adjustments, users can refer Chapter Three. The screen
items shown in the following picture may not appear on the same screen simultaneously, the
users’ interface is shown in figure 2-8.

24
General knowledge of users’ interface

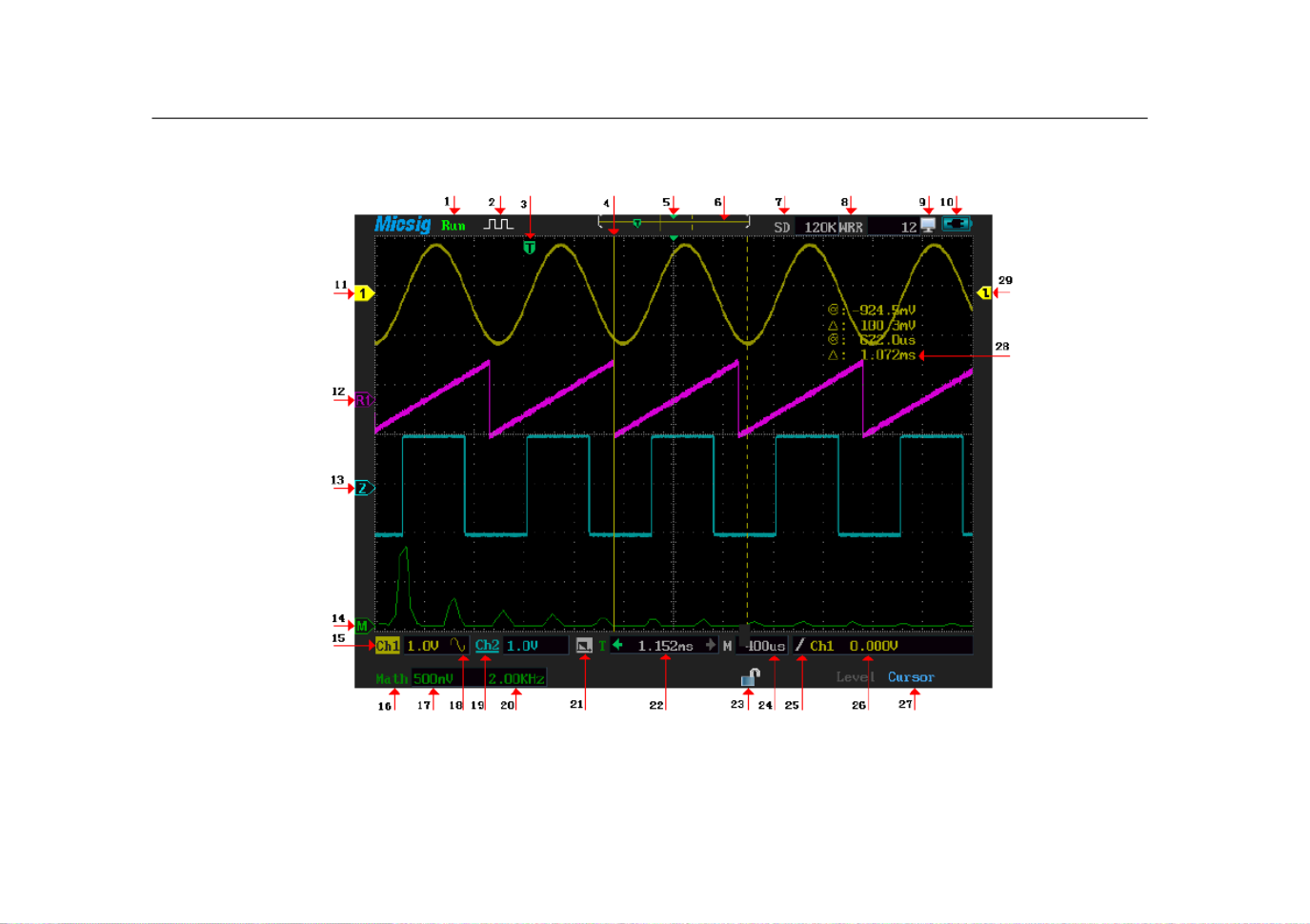

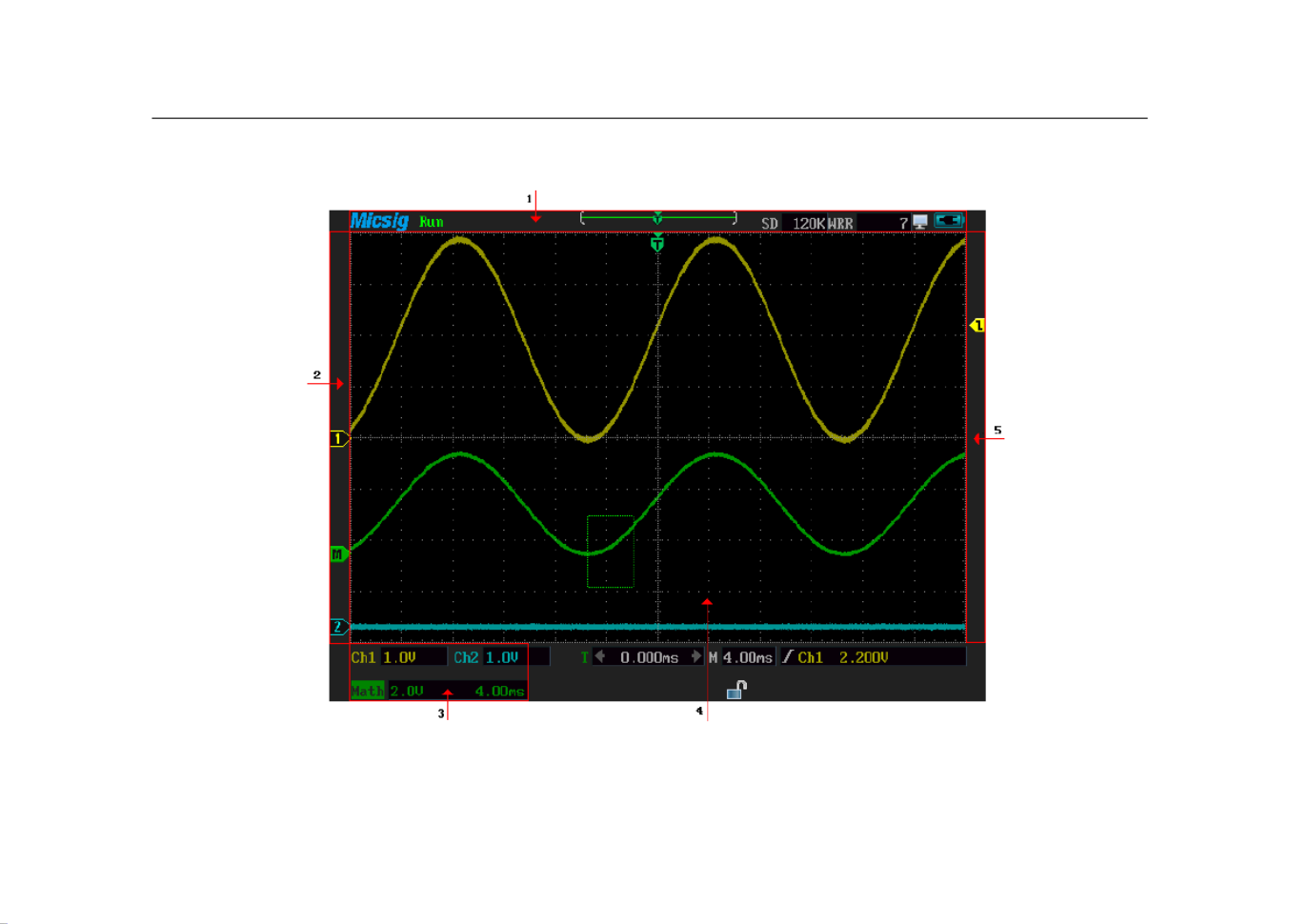

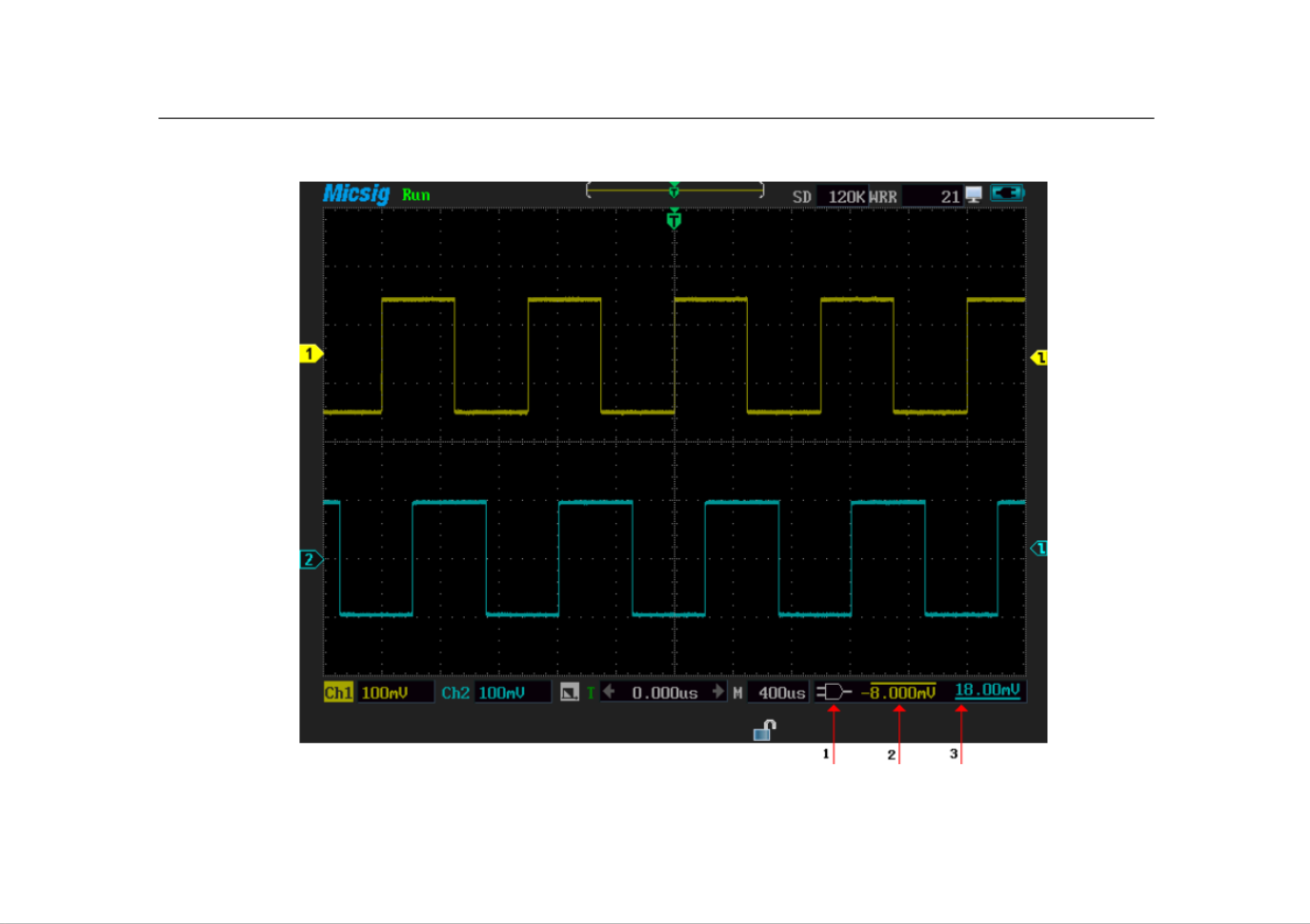

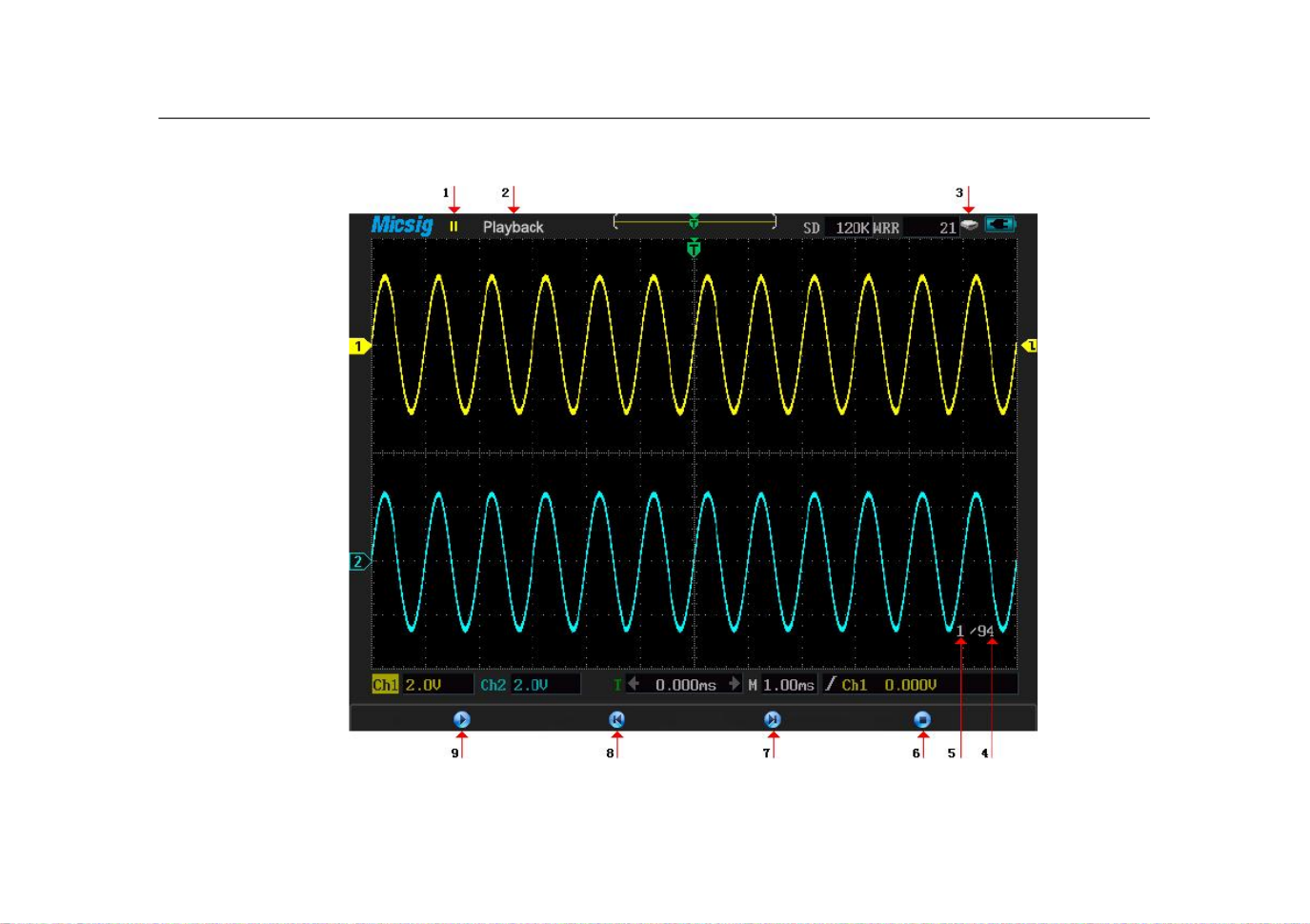

Picture 2-8 users’ interface

25
General knowledge of users’ interface
Users’ interface:
1. There are five kinds of wave capturing mode indicator
Auto: in auto mode, according the input signal to automatically adjust the vertical scale, the
horizontal time scale, and the trigger mode to make the waveform displays as the best.
Run: sampling waveform data
Stop: stop sampling waveform data
Waiting trigger: a transient state just before trigger event occur
Rolling: sampling waveform data when scroll the touch screen
2. The probe calibration related square wave output indicator
3. The trigger position icon indicates the waveform trigger position
4. The cursor can be divided into vertical cursor and horizontal cursor, used for measuring
cursor
5. The extension position icon, the center point of the time base zooming out
6. Waveform position indicator, indicate the position of waveform on current screen between
the total sampling data.
7. Memory Depth, the display value 120K at the right side, which means the current channel
memory depth.
8. Refresh rate, actual wfrms/s at the left side

29
Understand touch screen
2. Five operating areas on the touch screen
Frames of the waveform display divide the touch screen into five areas, only the function
menu turned off, can operate these areas. See figure 2-10.
Touchable area description:
1. Horizontal drag area: From the upper waveform window to screen, top. You can move
waveform horizontally in this area.
2. Vertical drag and the current channel selection area: where the waveform displays from
the left frame to the right frame. Press the channel icon switch to the current channel,
vertical drag only applies to the current channel.
3. Current channel switch area: press the frame corner at Ch1, Ch2, Math, or Ref and users
can switch one of them to the current channel.
4. Waveform zoom area: the whole waveform display area can be used as waveform zoom
in/out area.
5. Trigger level and drag the cursor area: the area between waveform window's right edge
and screen’s right edge where users can move the trigger level or drag the cursor.

30
Understand touch screen
Picture2-10 touch area

33

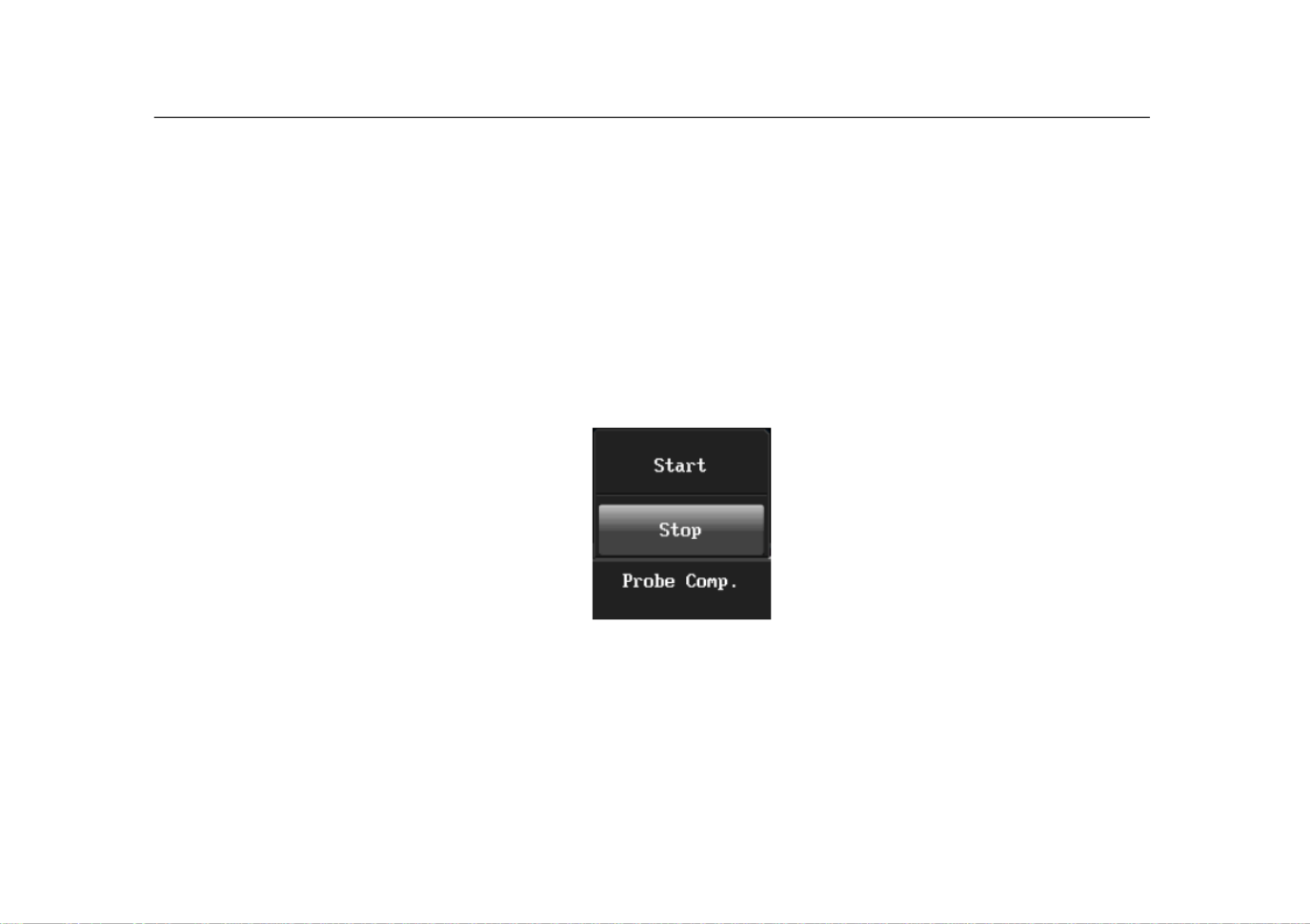

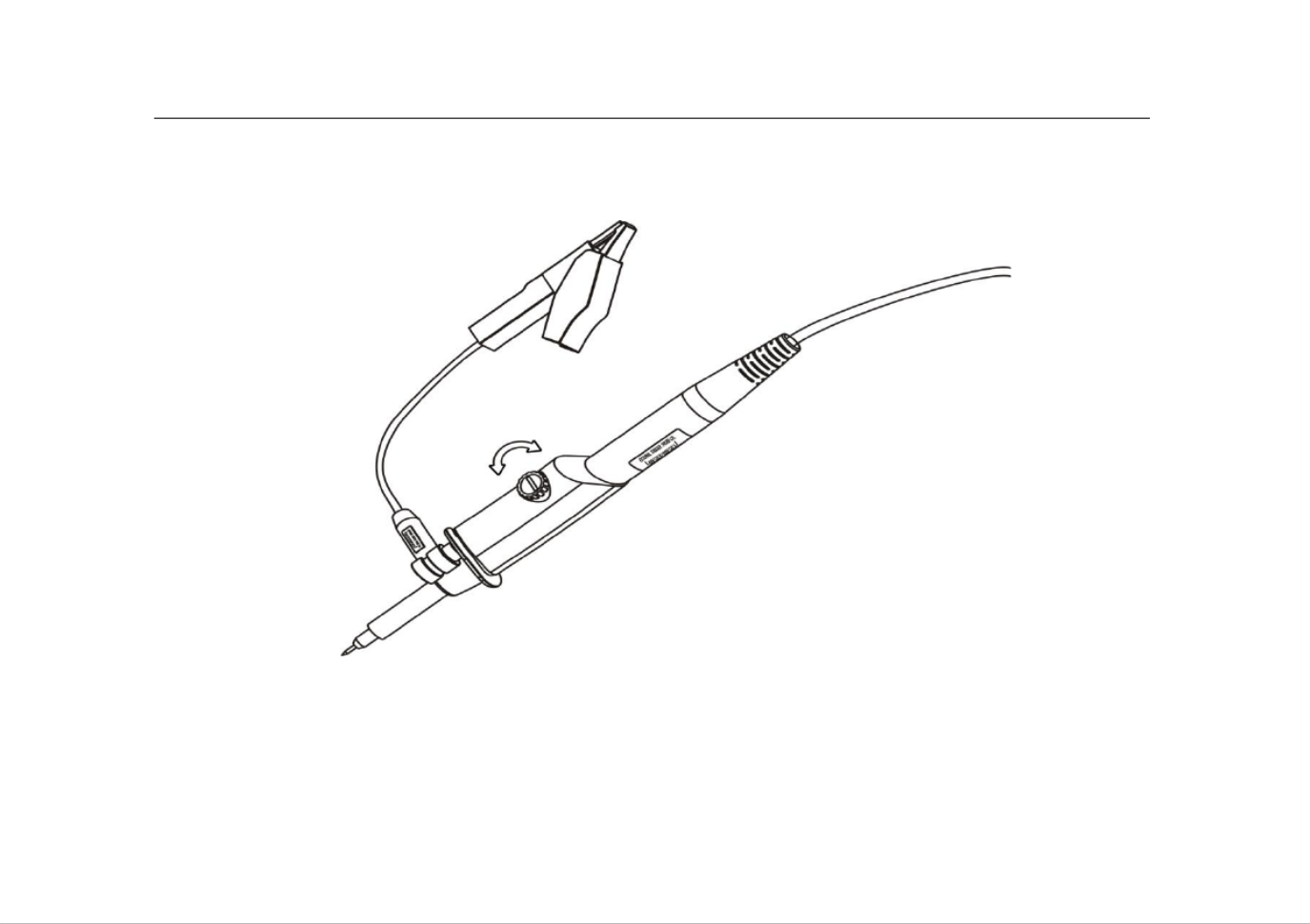

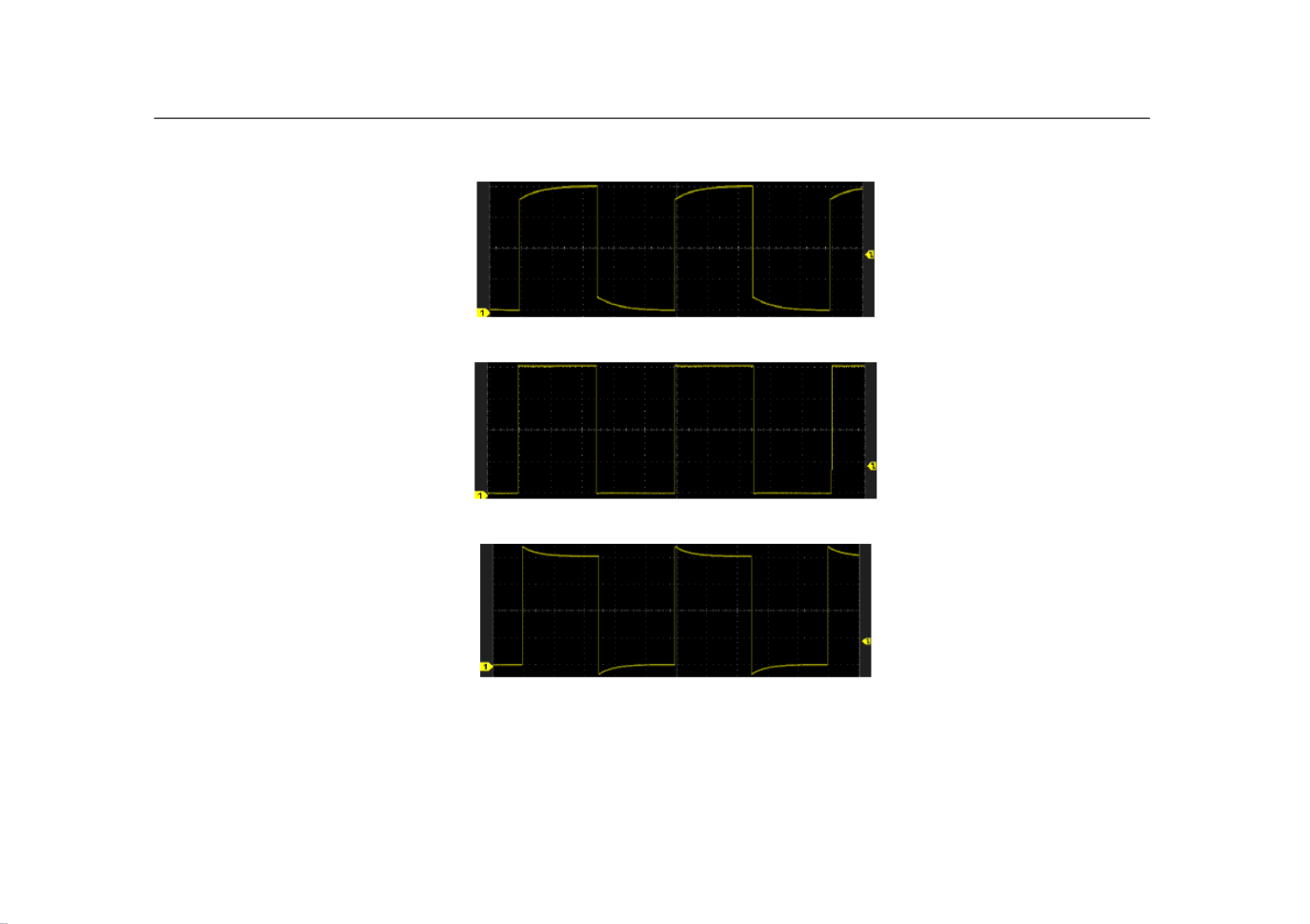

Probe compensation

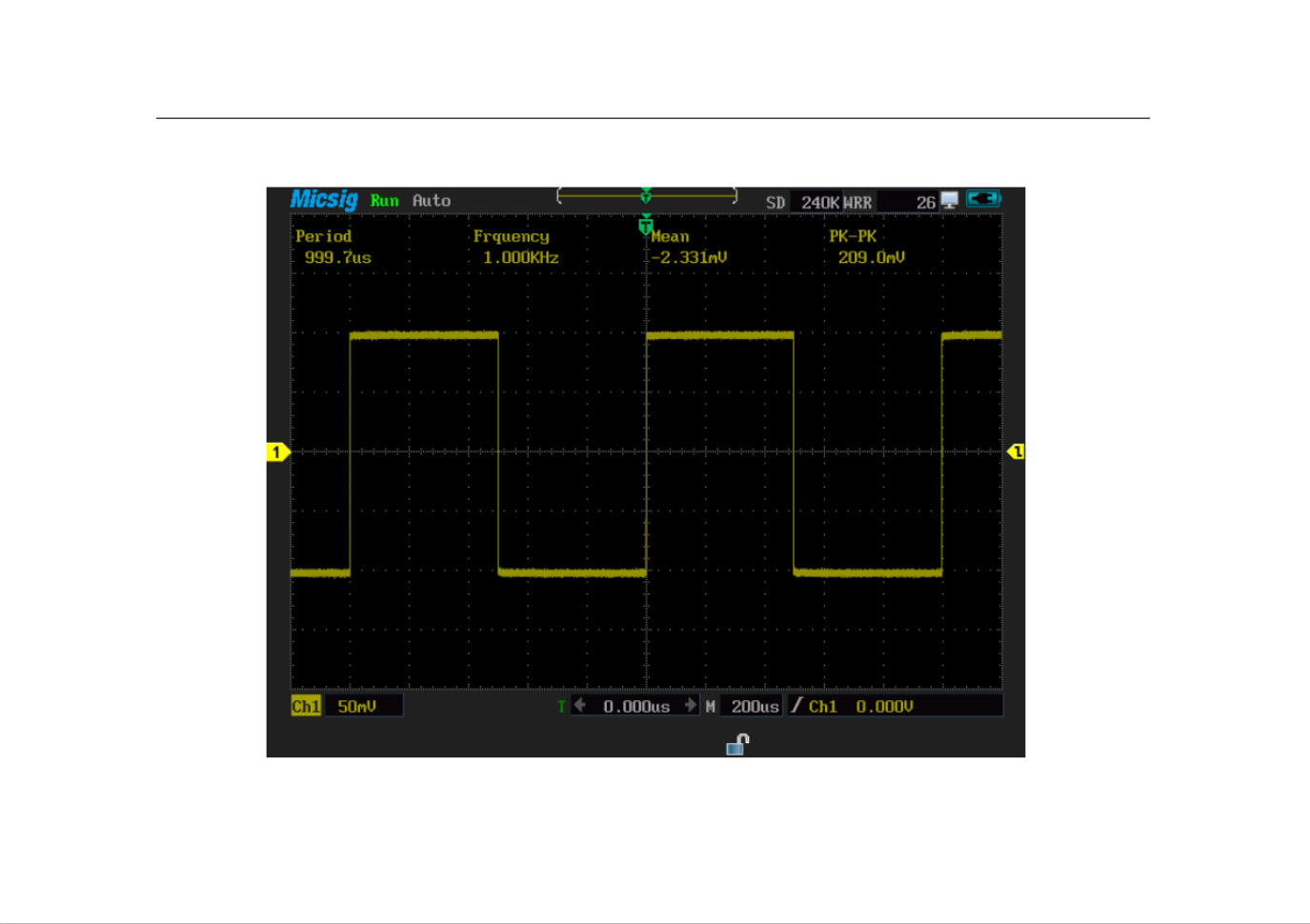

2.11 Probe compensation
Before connecting to any channels, users should make a probe compensation to insure
the probe match to the input channel. The probe without compensation will lead to larger
errors or mistakes, and probe compensation optimizes the signal path and makes the
measurement more precise. If the temperature is 10 degree or above, this progress must be
done to insure the accuracy of the measurement. See picture2-12
Picture 2-12 probe compensation menu
Procedures of probe compensation as follow

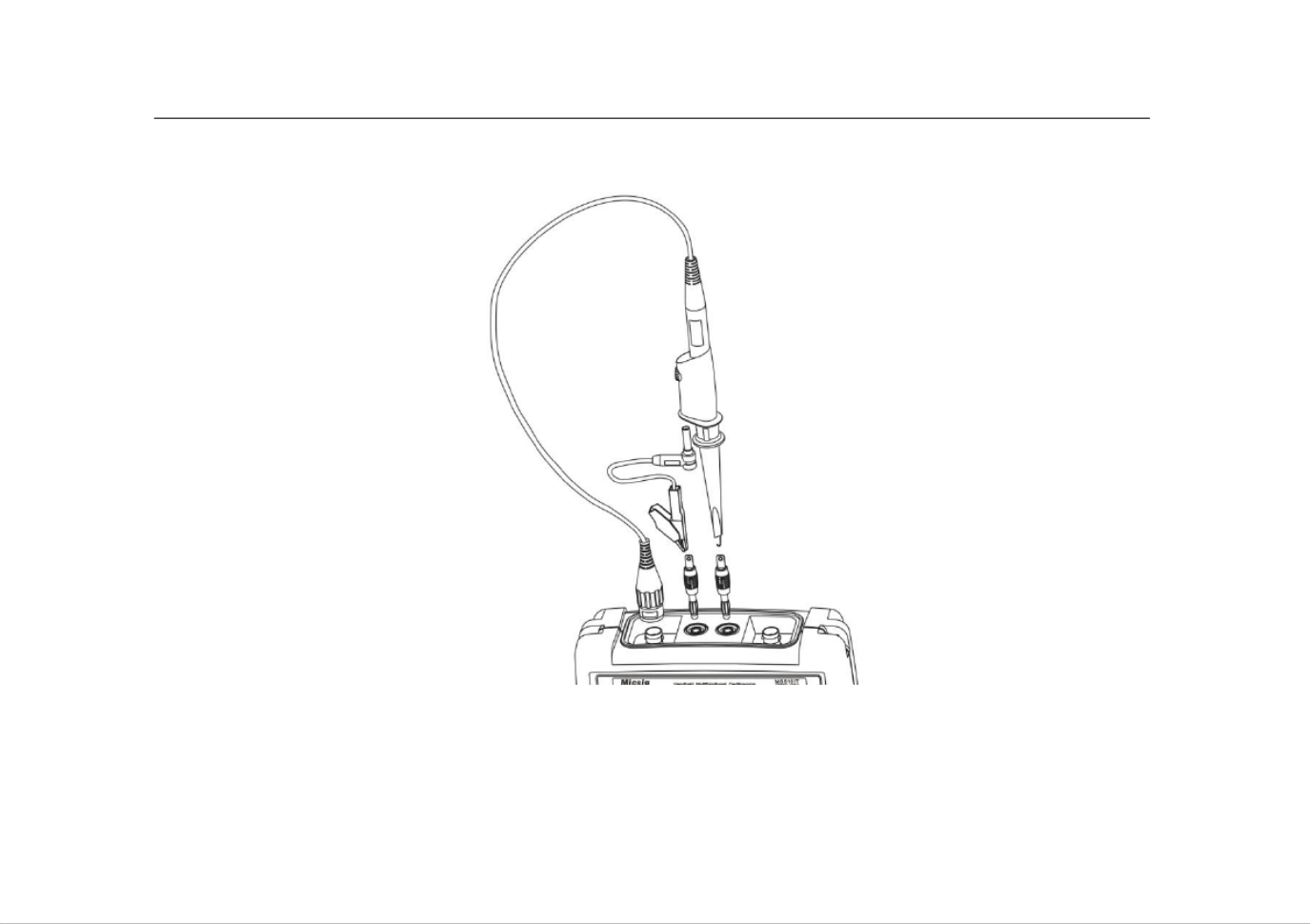

1) Connect the oscilloscope probe to Ch1. If you are using a hook head, users should
ensure the good connection with the probe.

35
Probe compensation
Picture 2-14 probe compensation connection

36
Probe compensation
Picture2-15undercompensation
Picture2-16 properly compensation
Picture2-17 overcompensation
If the waveform on the screen is shown as under -compensation or over-compensation,
please adjust the probe, until the waveform shown as correct-compensation.

37
Probe compensation
Picture 2-18 probe adjustment

Chapter Three Use Oscilloscope

42
Channel selection
3.1 Channel selection
Current channel: oscilloscope can display multiple waveforms simultaneously, but there is
only one waveform can display on the top, which is called the current channel. The current
channel arrow is solid, otherwise the arrow is hollow, and the differences are shown in figure
3-1.

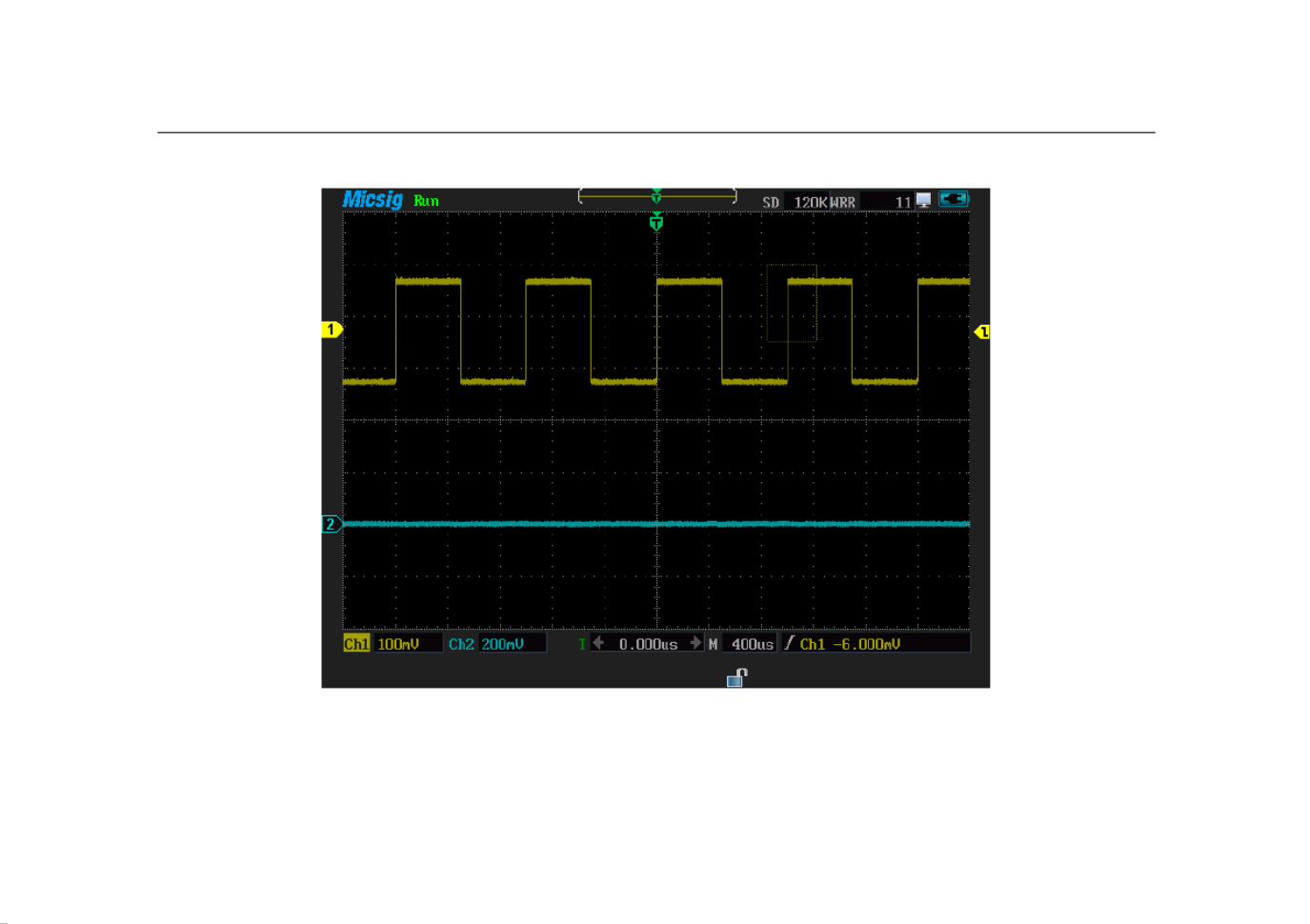

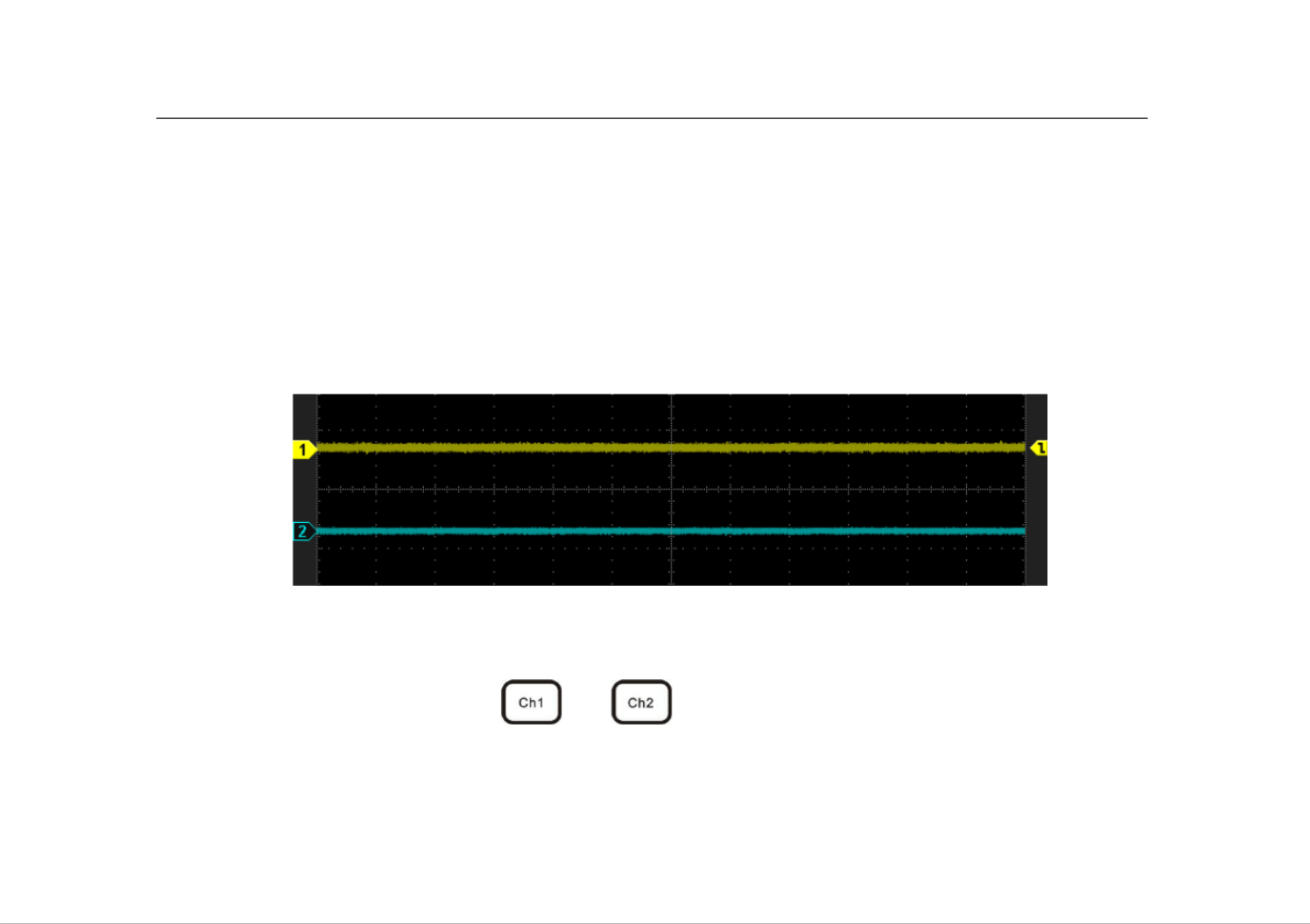

Picture 3-1 the current channel in yellow and the non-current channel in blue
Use buttons: the two buttons and , corresponding to Ch1 and Ch2 at the front
panel
Press on these two buttons can achieve the following three functions, respectively

44
S
et channel coupling mode
should switch to the current channel first, then press or to switch directly, no
need to exit the main menu

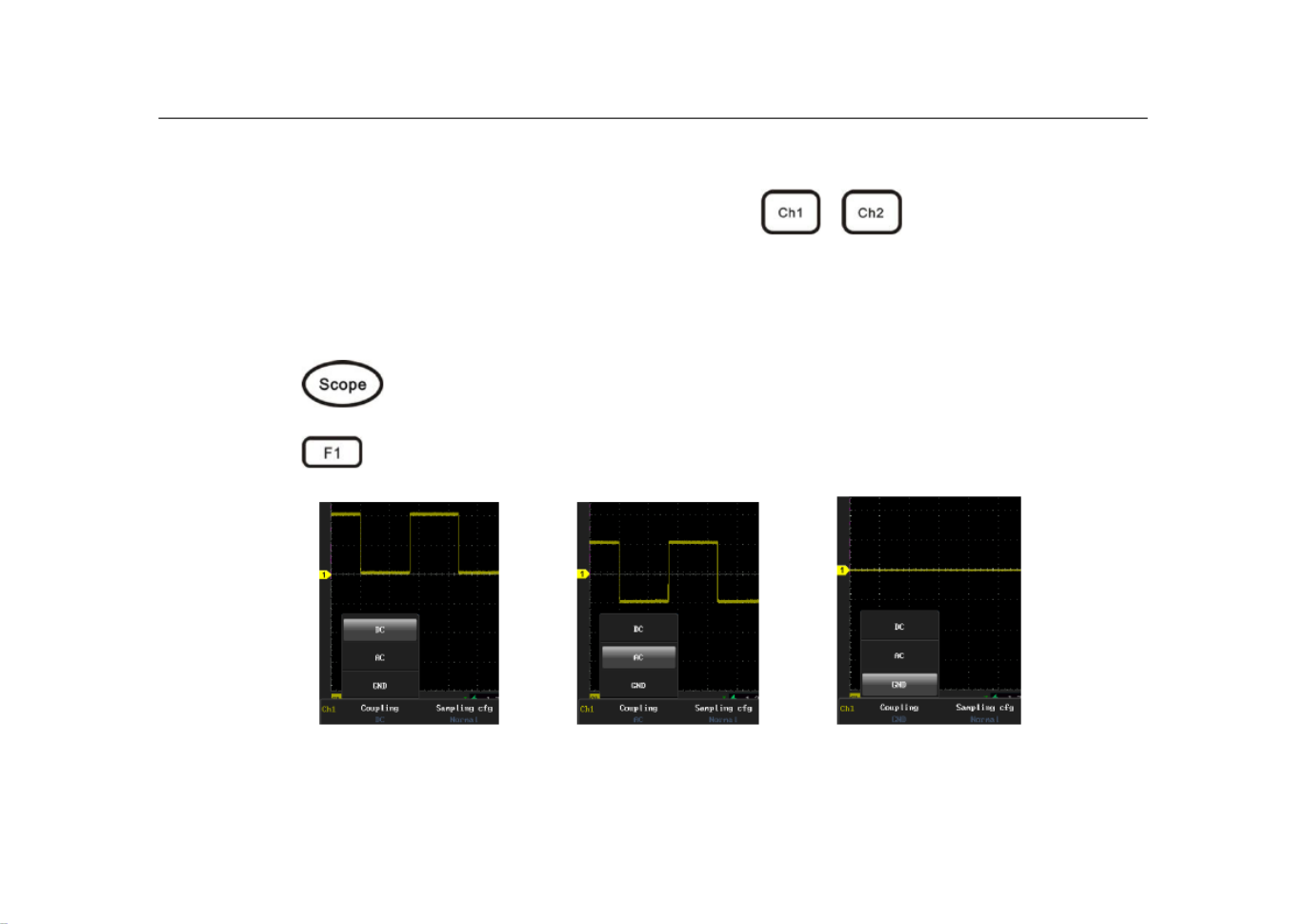

1)Ch1 connects to the DC bias of square wave signal; please follow these steps to set the
DC coupling sample
2) Press to enter main menu set

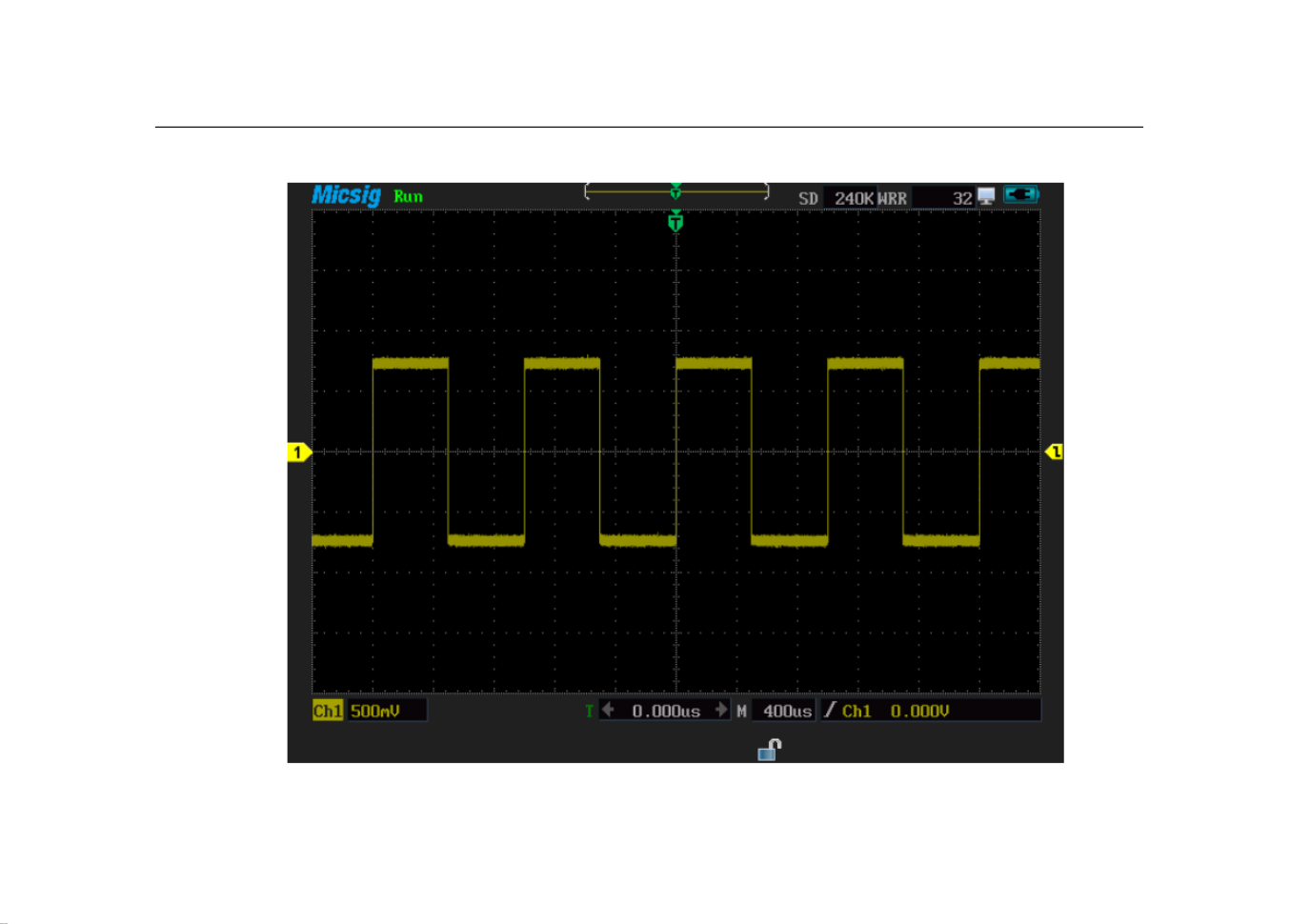

3) Press to set the coupling mode as DC, waveform is shown in figure 3 -2 DC.
DC AC GND
Picture3-2 coupling

46
S
et channel sampling mode
3.3 Set channel sampling mode
Press and to export sampling cfg menu, then press and you can
choose the sampling config (user can operate the steps on touch screen).The sampling config

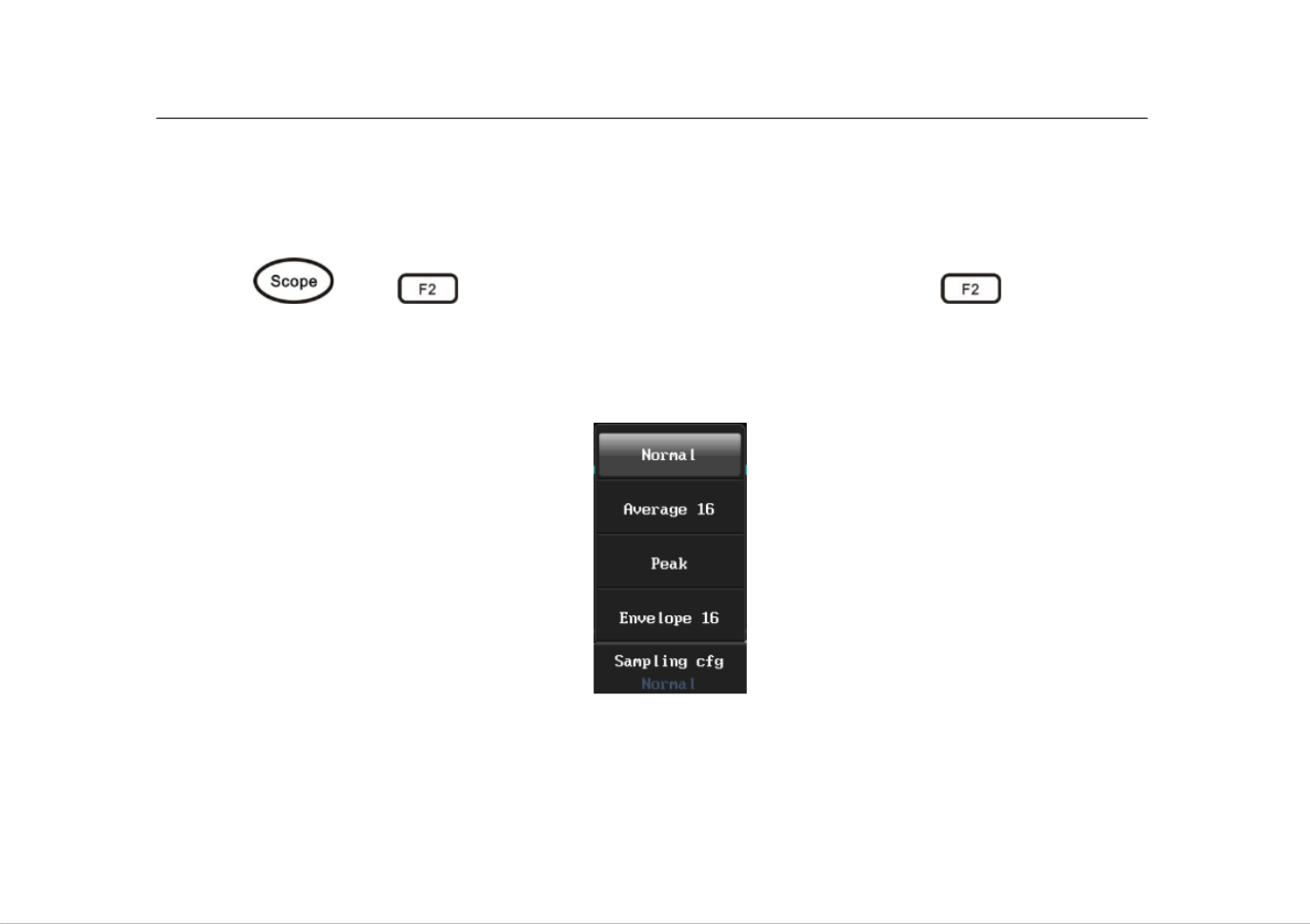

menu is shown in picture 3-4.
Picture3-4 sampling config menu
Systems can support four kind of sampling configs
1. Normal scope samples signal through equivalent time intervals to build waveform,

47
S
et channel sampling mode
The default setting is normal. Waveform is shown in picture3-5.

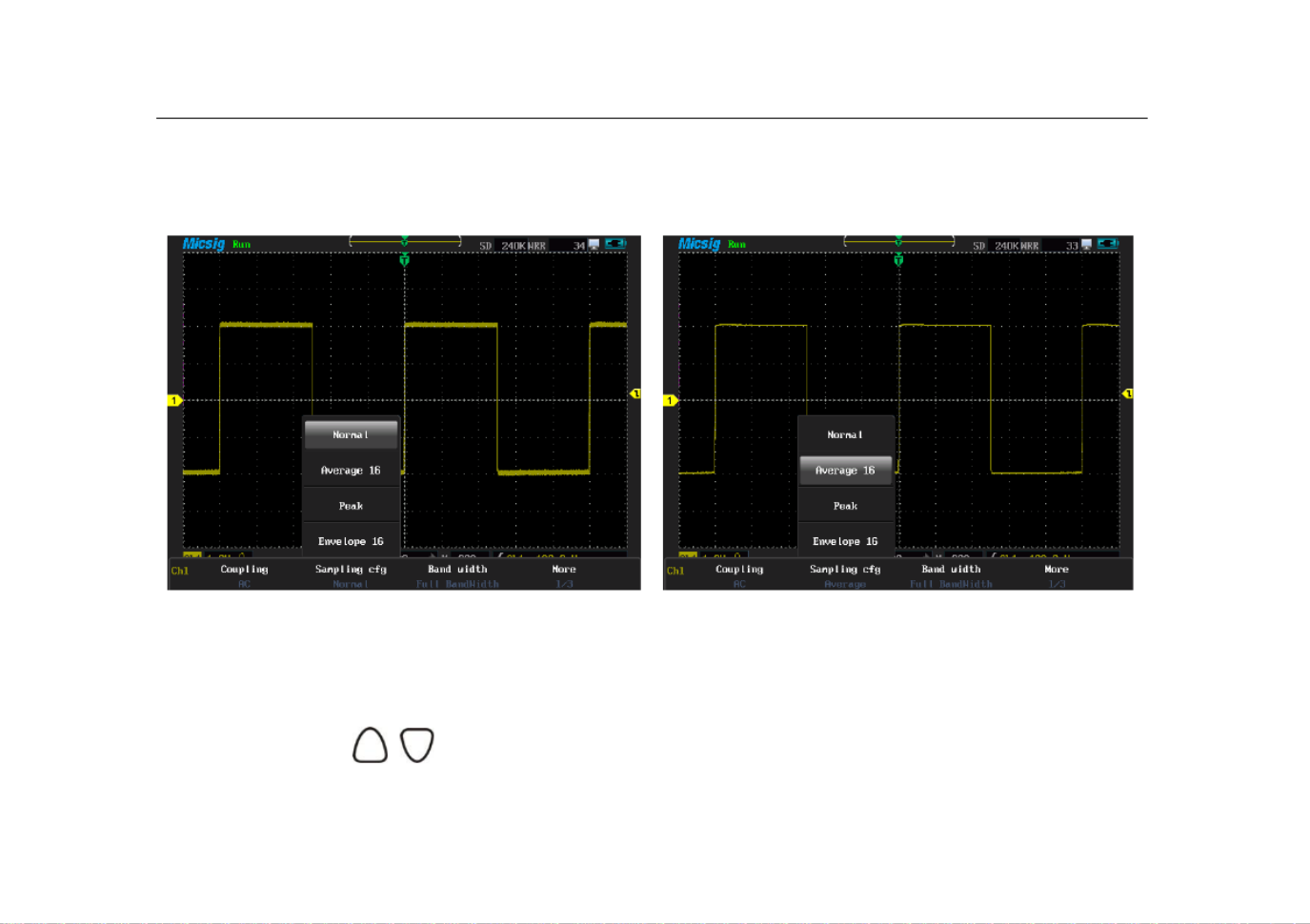

Picture 3-5 normal sampling config picture3-6 average 16 sampling config
2. Average: waveform does average processing from multiple sampling. You can use the
average functions to reject random or uncorrelated noise in the waveform without loss of
bandwidth. Press or roll the wheel to set the waveform average number, selectable
average number is 2, 4, 8, 16, 32, 64, 128, 256, and the waveform is shown in figure 3-6.

49
S
et channel sampling mode
Press or roll the wheel to set the number of waveform rejection, which can be set to
2, 4, 8, 16, 32, 64, 128, 256, or infinite, waveform is shown in figure 3-8.

50
Bandwidth selection
3.4 Bandwidth selection
Press and to set the required bandwidth limit , the 20MHz bandwidth can
only keep low frequency component under 20MHz, and high frequency component above
20MHz can attenuation effectively. The difference between full bandwidth and 20MHz can

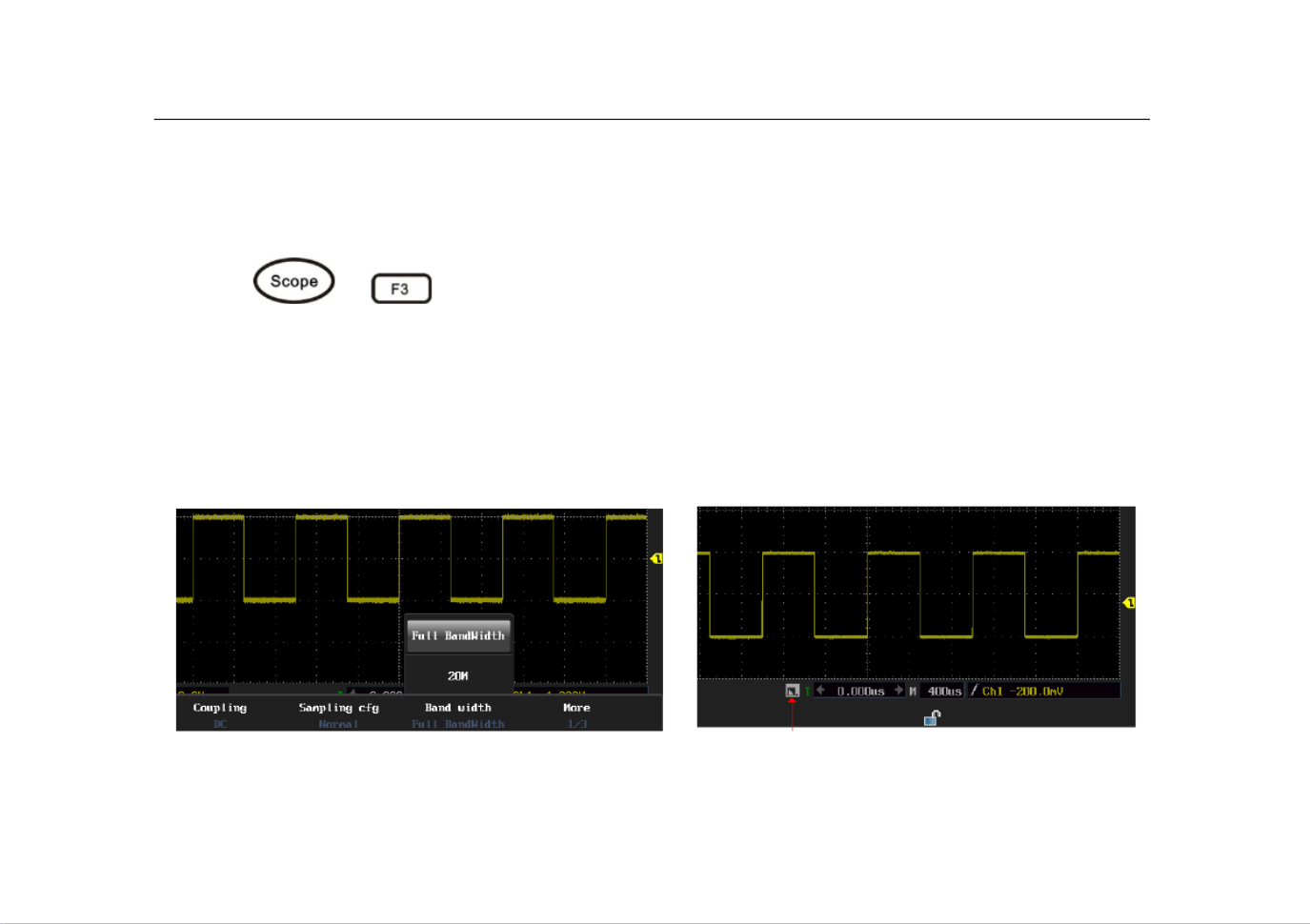

be expressed by waveform. Full bandwidth is shown in picture 3-9; 20MHz bandwidth is
shown in picture 3-10.
Picture 3-9 Full Bandwidth picture 3-10 20 MHz Bandwidth
In picture 3-10, the arrow point indicates bandwidth(20MHz).

Use delay
51
3.5 Use delay
You can begin to capture the waveform for some time after the trigger point has been
detected. When delay is on, the trigger can be removed from the screen, and the horizontal
extension point locates in the middle of the screen, and adjusts the horizontal time scale can
observe more details of the waveform.
Sometimes the measured value is not stable while measuring pulse width. This is called
pulse width jitter. In this case, turn on delay function and extend the time base; and delay
sampling after rising trigger to observe the falling waveform jitter. For example,
1) Press then then to choose delay on
2) Move the waveform to the left, making the falling edge of waveform in the middle of
the screen, as shown in figure 3-11,

Use delay
52

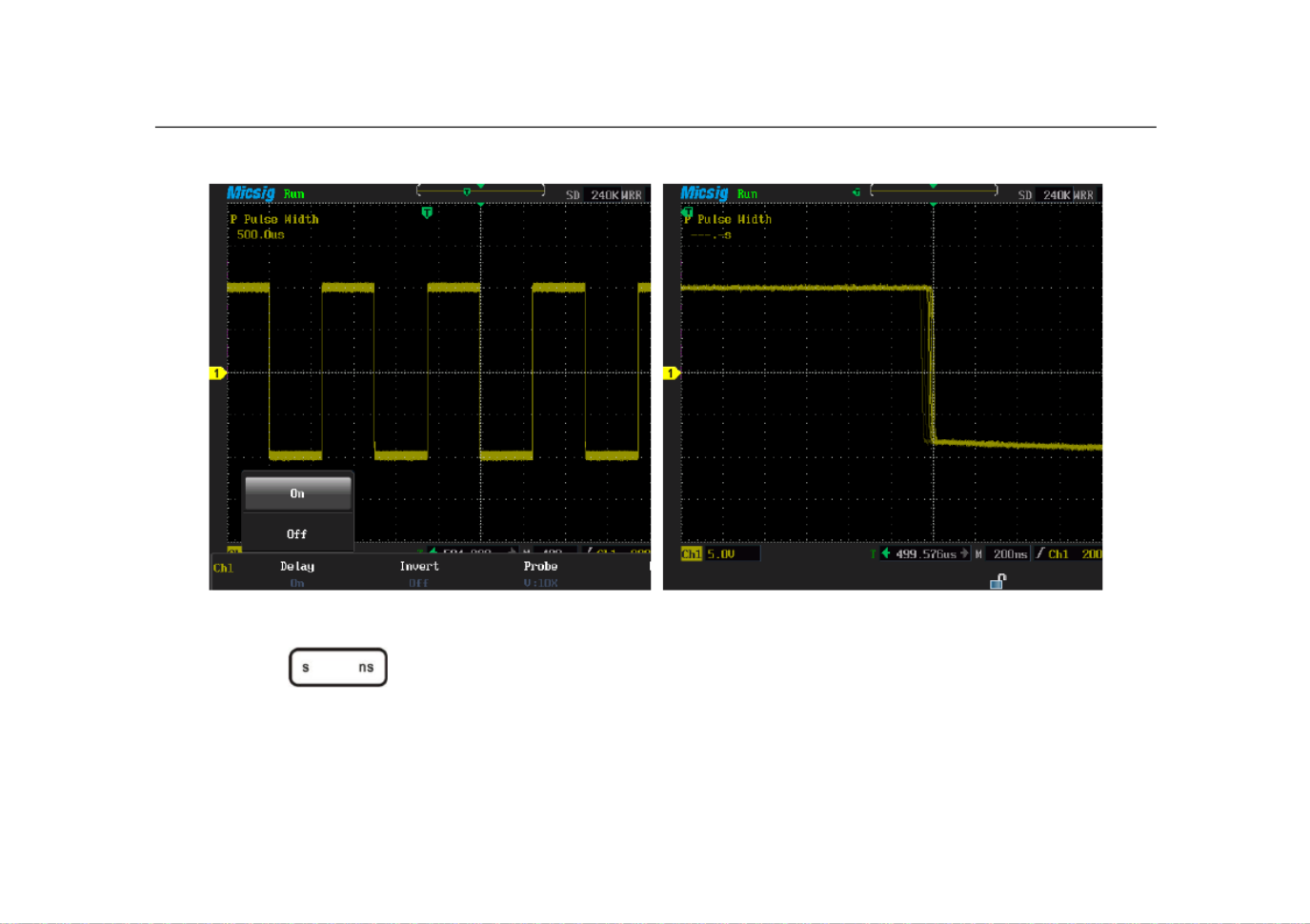

Picture 3-11 on delay menu picture 3-12 delay state
3) Press to enlarge waveform until it jitters significantly, observe the jitter
effect shown as 3-12
Turn on the delay, the trigger readout under the bottom of the screen is time value; when
delay is off, the trigger readout is a percentage, the most left side screen is 0%, the most

Use delay
53
right side is 100%; two kind of displays as shown in figure 3-13, 3-14.

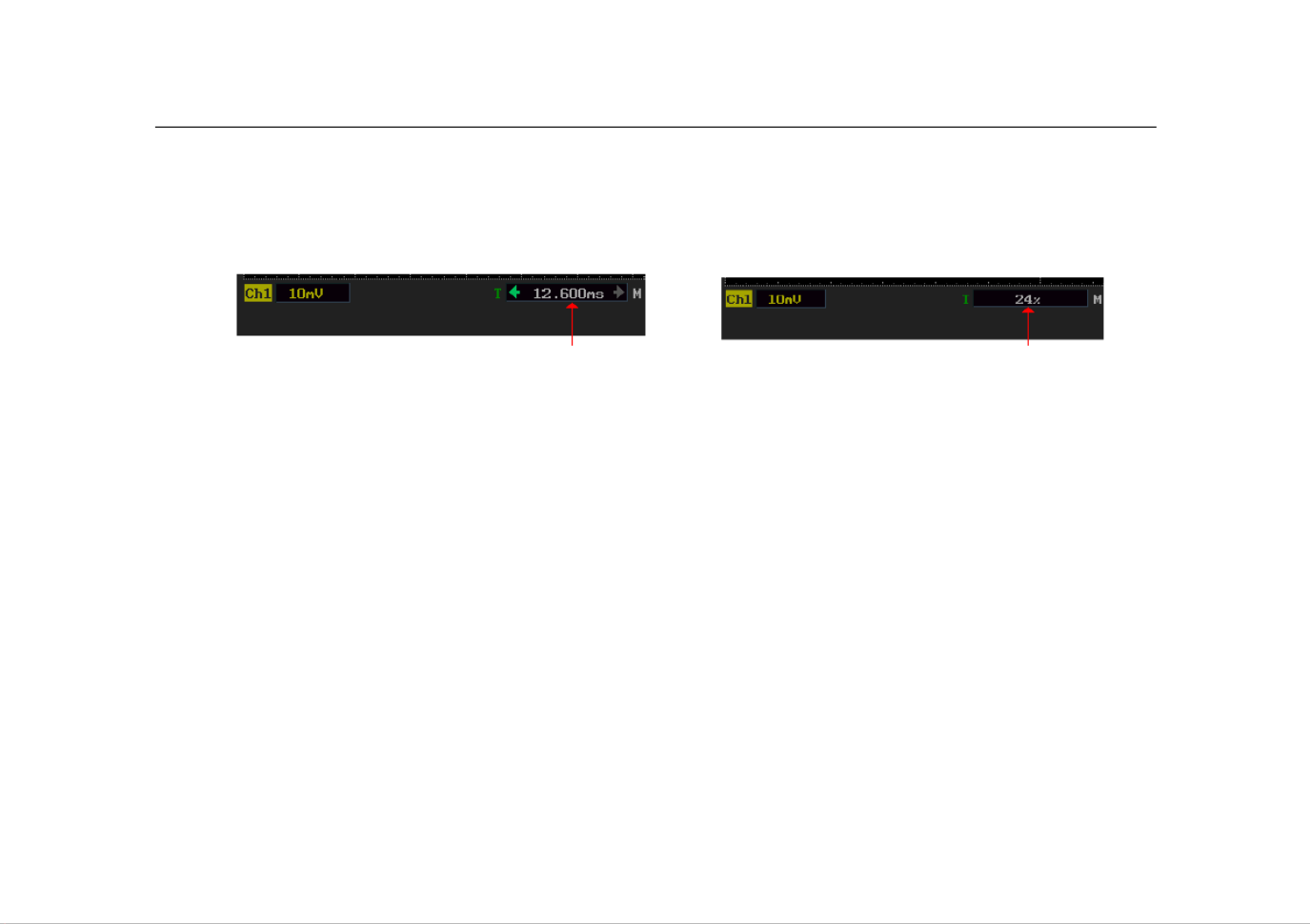

Picture3-13 delay on and the trigger position picture3-14 delay off and trigger position
Note: when the delay on, adjust the time scale, and zoom the waveform on the center point of
the screen. When Delay off, adjust the time scale, and zoom the waveform on the trigger
position
3.6 Set channel polarity
The waveform polarity is relative to the zero level (ground), if the actual signal is positive
however in the instrument is negative, which called negative polarity or phase invert. By
setting the Ch1 and Ch2 channel’s polarity users can make the two channels work
respectively in a phase invert or normal state. Follow the examples to set channel polarity.
Ch1 and Ch2 connect to the same rectangular pulse signal simultaneously and make the

Set channel a
ttenuation factor
55
3.7 Set channel attenuation ratio
To coincide with actual use probe attenuation radio, it is necessary to adjust channel
attenuation factor under the channel menu. Such as probe attenuation radio of 1:1,
corresponding to the input channel attenuation factor set as 1 x.
When probe attenuation factor is changed, users need to enter this menu to set the
corresponding attenuation factor, only the set matches, can display waveform’s amplitude
rightly. Probe attenuation radios and attenuation factors are shown in the table below,
Press then then and to open channel attenuation factor
Probe attenuation radio Attenuation radio menu
1:1 1X
10:1 10X
100:1 100X

Set channel a
ttenuation factor
56
menu, and set the current channel factor, if need to set another channel, no need to exit,
users can switch the current channel to do so, as shown in picture3-16.
Picture 3-16 probe attenuation factor menu

58
S
et auto measurement type
measurement type, must set the measured channel as current channel. The instrument can
display four measurements simultaneously. Types and specifications are shown in the table,
serial type instructions
1 Period
The time required to complete the first cycle in a waveform or gated region; period is the reciprocal of
frequency and is measured in seconds.
2 Rate Reciprocal period time
3 Rise time
the time required for the leading edge of the first pulse in the waveform or gated region to rise from the
low reference value(default=10%)to the high reference value(default=90%)of the final value
4 Fall time
the time required for the falling edge of the first pulse in the waveform or gated region to rise from the
low reference value(default=90%)to the high reference value(default=10%)of the final value
5 P duty cycle
the ratio of the positive pulse width to the signal period expressed as a percentage. the duty cycle is
measured on the first cycle in the waveform or gated region
6 N duty cycle
the ratio of the negative pulse width to the signal period expressed as a percentage. the duty cycle is
measured on the first cycle in the waveform or gated region

59
Set automatic measurement type
7 Delay the time between the mid reference(default 50%) amplitude point of two different waveforms
8 P pulse width
the distance between the mid reference(default 50%)amplitude points of a positive pulse. the
measurement is made on the first pulse in the waveform or gated region
9 N pulse width
the distance between the mid reference(default 50%)amplitude points of a negative pulse. the
measurement is made on the first pulse in the waveform or gated region
10 Burst width
the duration of a burst(a series of transient events) and is measured over the entire waveform or gated
region
11 P overshoot
this is measured over the entire waveform or gated region and is expressed as
P overshoot = [(max– high)/amplitude] x 100%
12 N overshoot
this is measured over the entire waveform or gated region and is expressed as
N overshoot = [(low- mini)/amplitude] x 100%
13 phase
the amount of time that one waveform leads or lags another waveform, expressed in degrees where
360° comprises one waveform cycle.
14 peak-peak the absolute difference between the max. and min. amplitude in the entire waveform or gated region
15 amplitude the high value less the low value measured over the entire waveform or gated region

60
Set automatic measurement type
16 high
the value is used as 100% whenever high reference, mid reference, or low reference values are needed,
such as in fall time or rise time measurements. it can be calculated using either the min/max or histogram
method. the min/max method used the maximum value found. the histogram method used the most
common value found above the midpoint. this value is measured over the entire waveform or gated
region
17 low
the value is used as 0% whenever high reference, mid reference, or low reference values are needed, such
as in fall time or rise time measurements. it can be calculated using either the min/max or histogram
method. the min/max method used the maximum value found. the histogram method used the most
common value found above the midpoint. this value is measured over the entire waveform or gated
region
18 max typically the most positive peak voltage. max is measured over the entire waveform or gated region
19 mini typically the most negative peak voltage. min is measured over the entire waveform or gated region
20 Mean the arithmetic mean over the entire waveform or gated region
21 Cycle mean the arithmetic mean over the first cycle in the waveform or the first cycle in the gated region

63
S
et auto measurement type

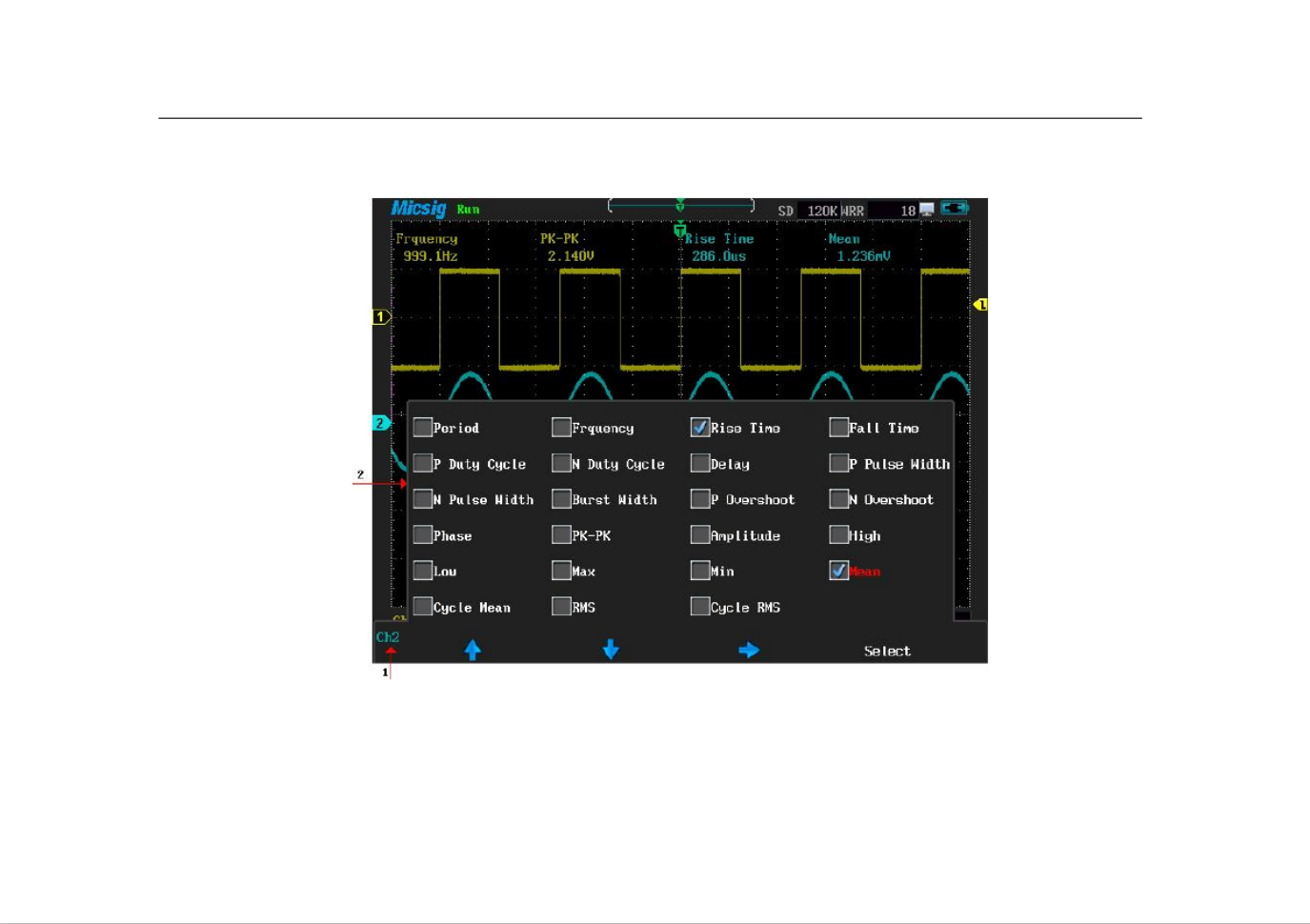

Picture 3-17 measurement types

64
Set store/restore menu
Introductions of measurement types on the screen: 1 current channel
2measurement types menu
3.10 Store/ restore menu
On this menu, users can do operations like, save/recall waveform, and adjust the
memory depth, dynamic waveform record/playback, save/recall settings, and screen snapshot
3.10.1 Save
Press and to enter the save waveform menu, to save Ch1/Ch2/math
waveform as reference waveform, marked in color purple. Date and time under the To Ref
R*means this memory has already saved waveforms, blank means no waveform saved.
Picture3-18
Picture 3-18 the reference waveform

66
Set store/restore menu

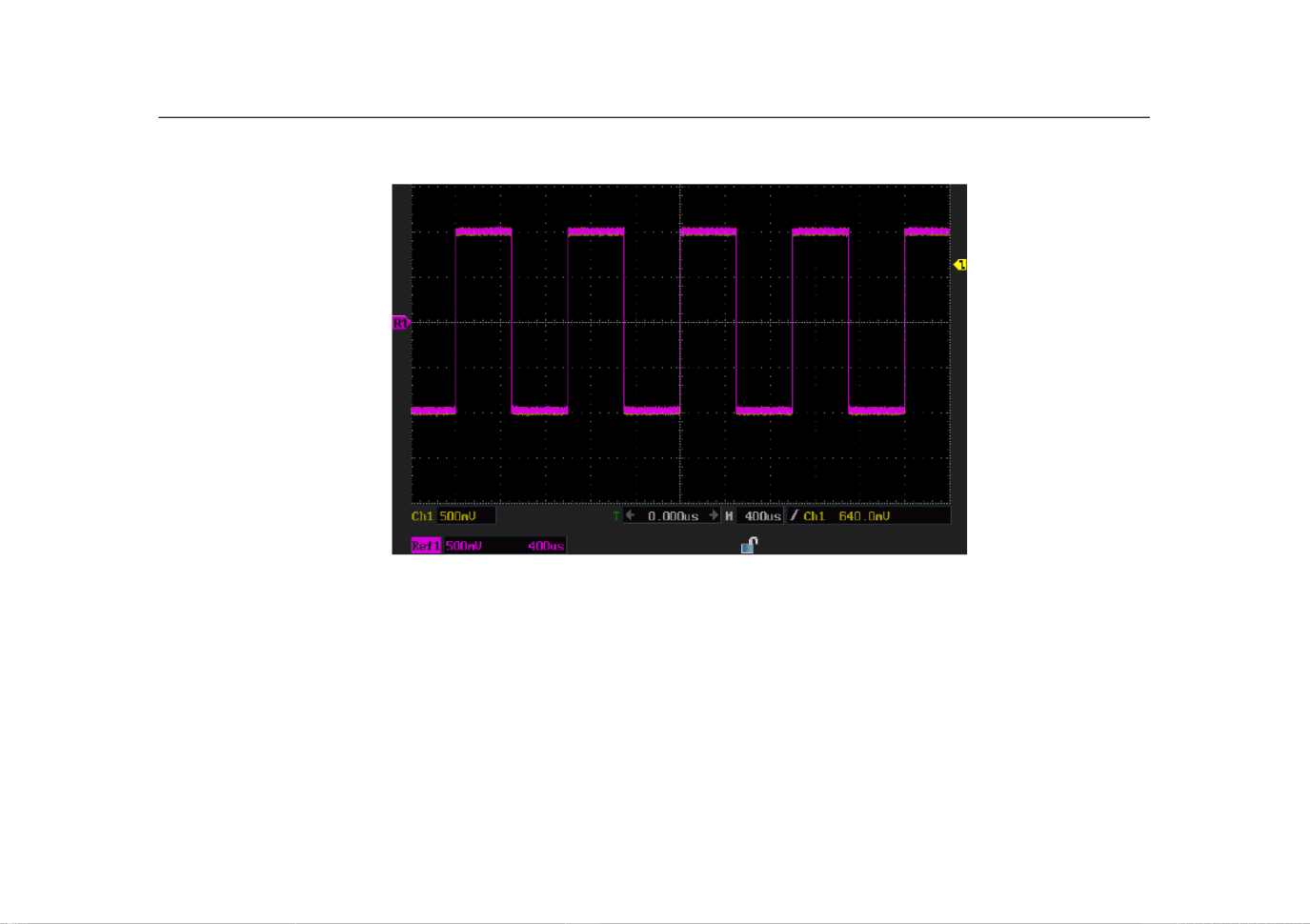

Picture 3-19 stored waveform to R1

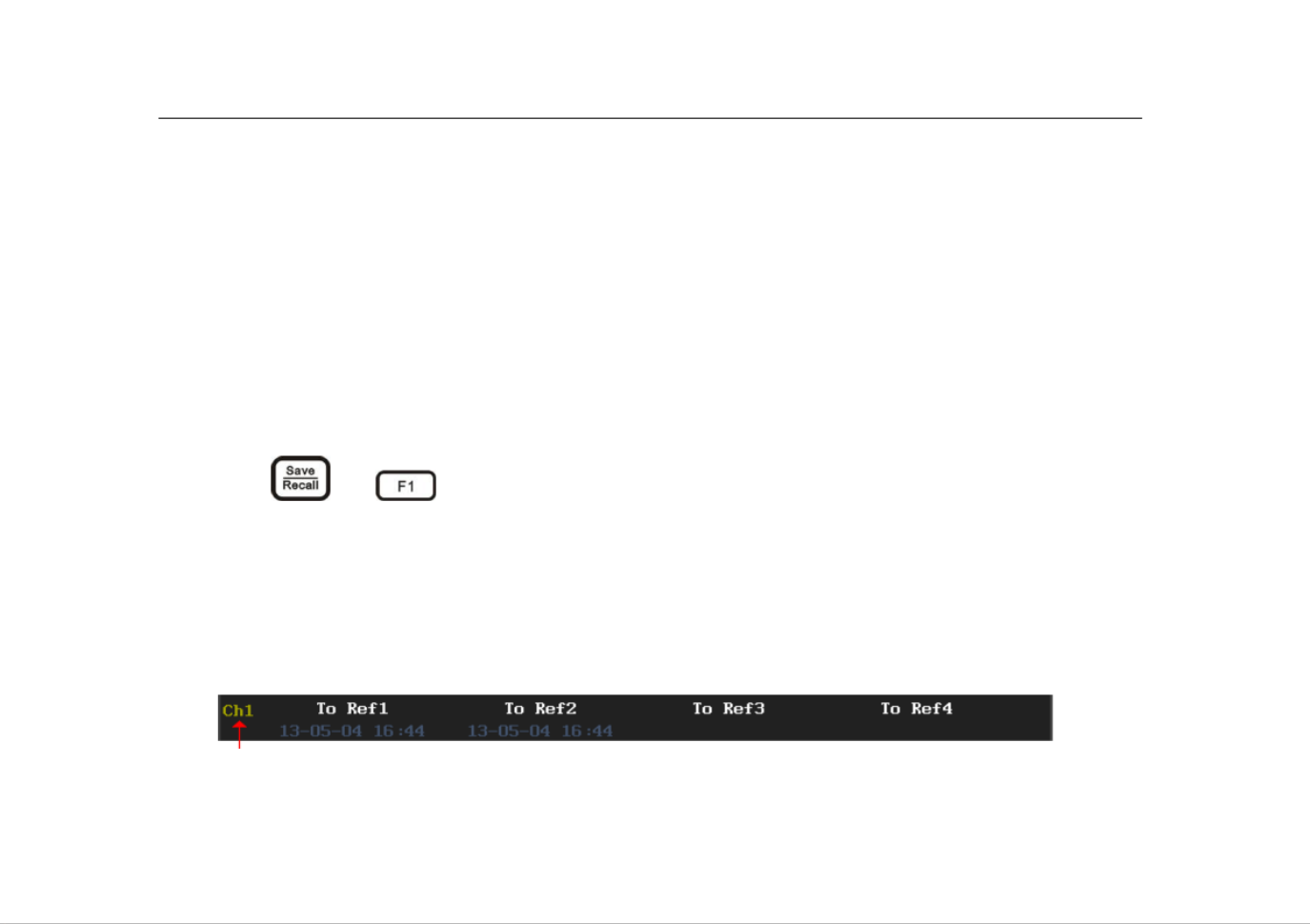

It can save four reference waveforms (R1/R2/ R3/ R4) at most. If continue save into the
same position, the original waveform will be covered.

68
Set store/restore menu

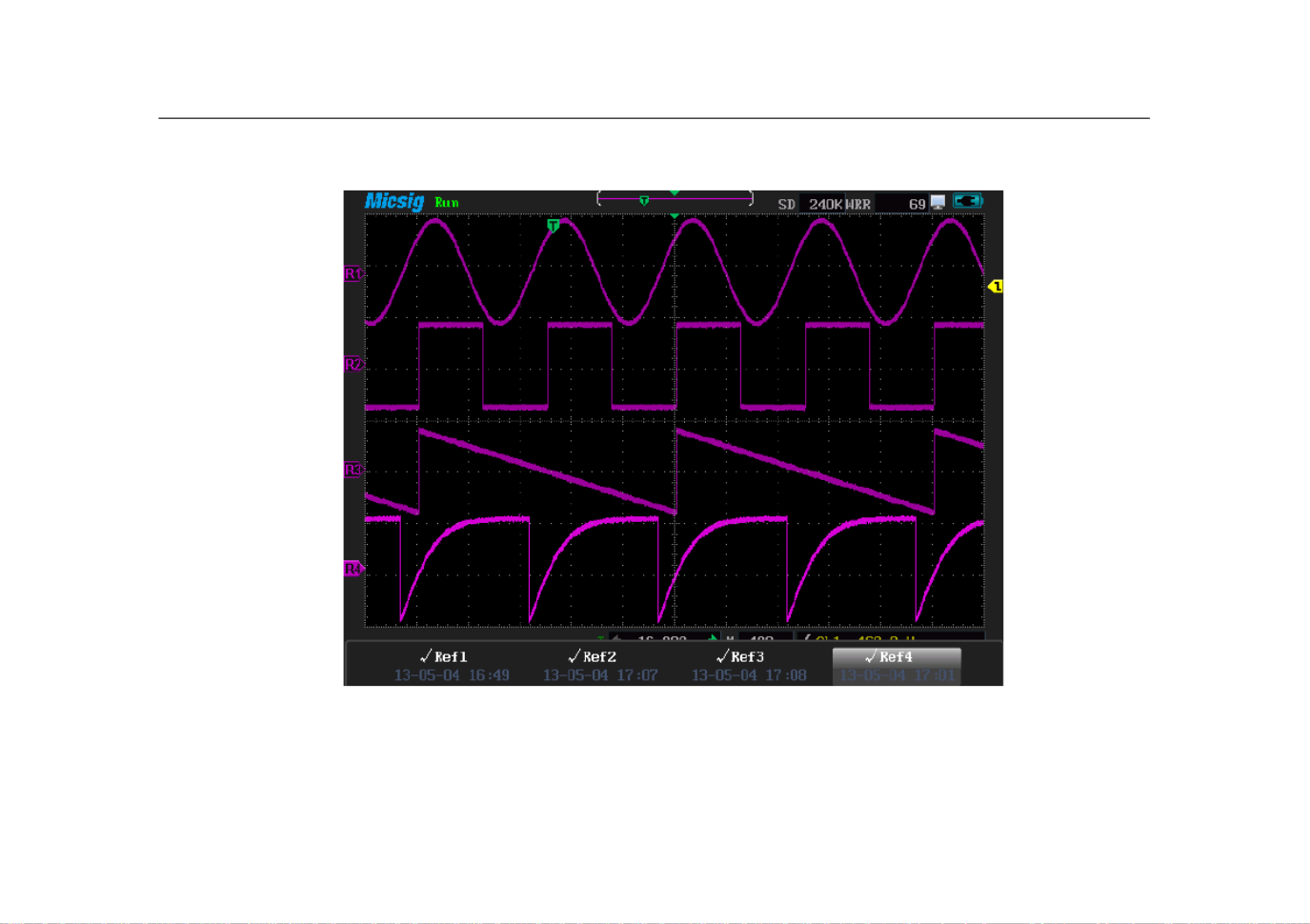

Picture 3-20 restore waveform
3.10.3Memory depth
Memory depth means the oscilloscope’s capacity of storing sample points. For

72
Set store/restore menu
Picture 3-22 waveform data playback

81
S
et display menu

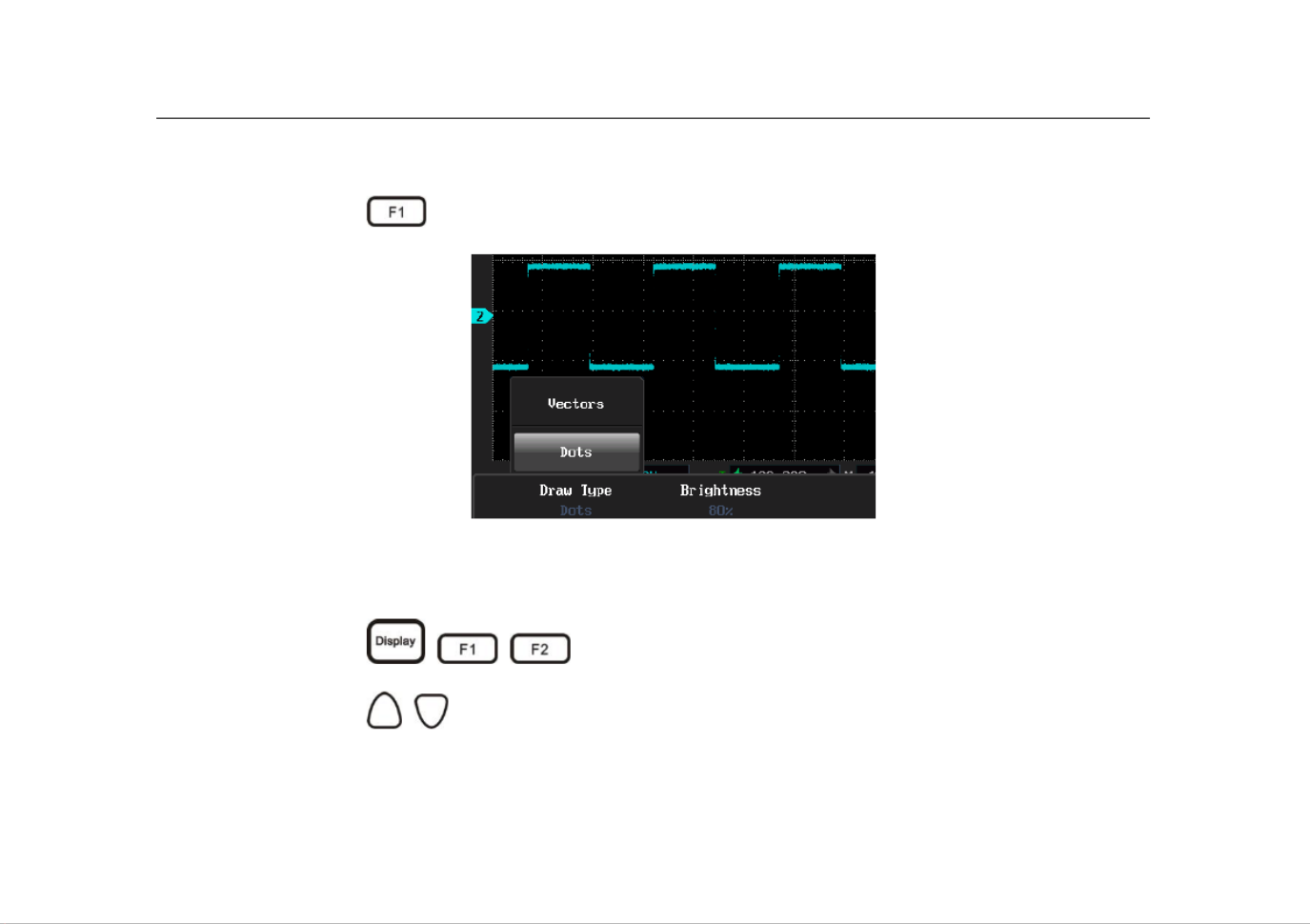

4) Press to choose skeleton pattern as Dots. See picture 3-27.
Picture 3-27 point display
b) Following the below steps to set waveform brightness
1) Press to choose brightness set
2) Press or roll the wheel to adjust the waveform brightness.
3.12.2 Graticule set
To set the graticule type and intensity, the type includes full, grid, cross hair and frame.

82
S
et display menu

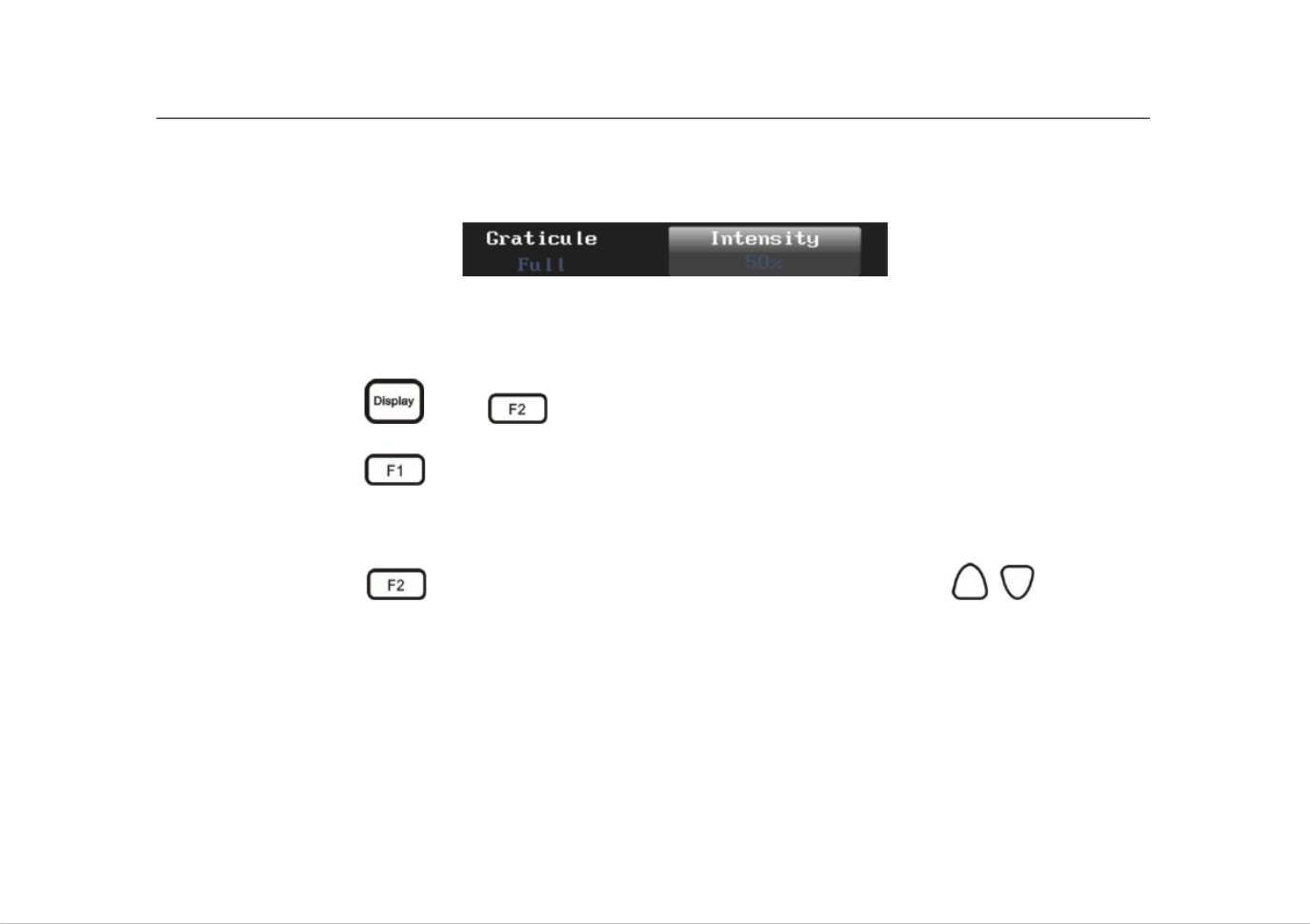

Graticule set menu as shown in picture 3-28
Picture 3-28 graticule set menu
Following the below steps to set graticule
1) press and to enter “graticule” setting
2) press to set graticule type, view picture3-29 and the frame type shows
the border
3) Press and select the graticule intensity and then press or roll the
wheel to adjust graticule intensity.

86
S
et display menu

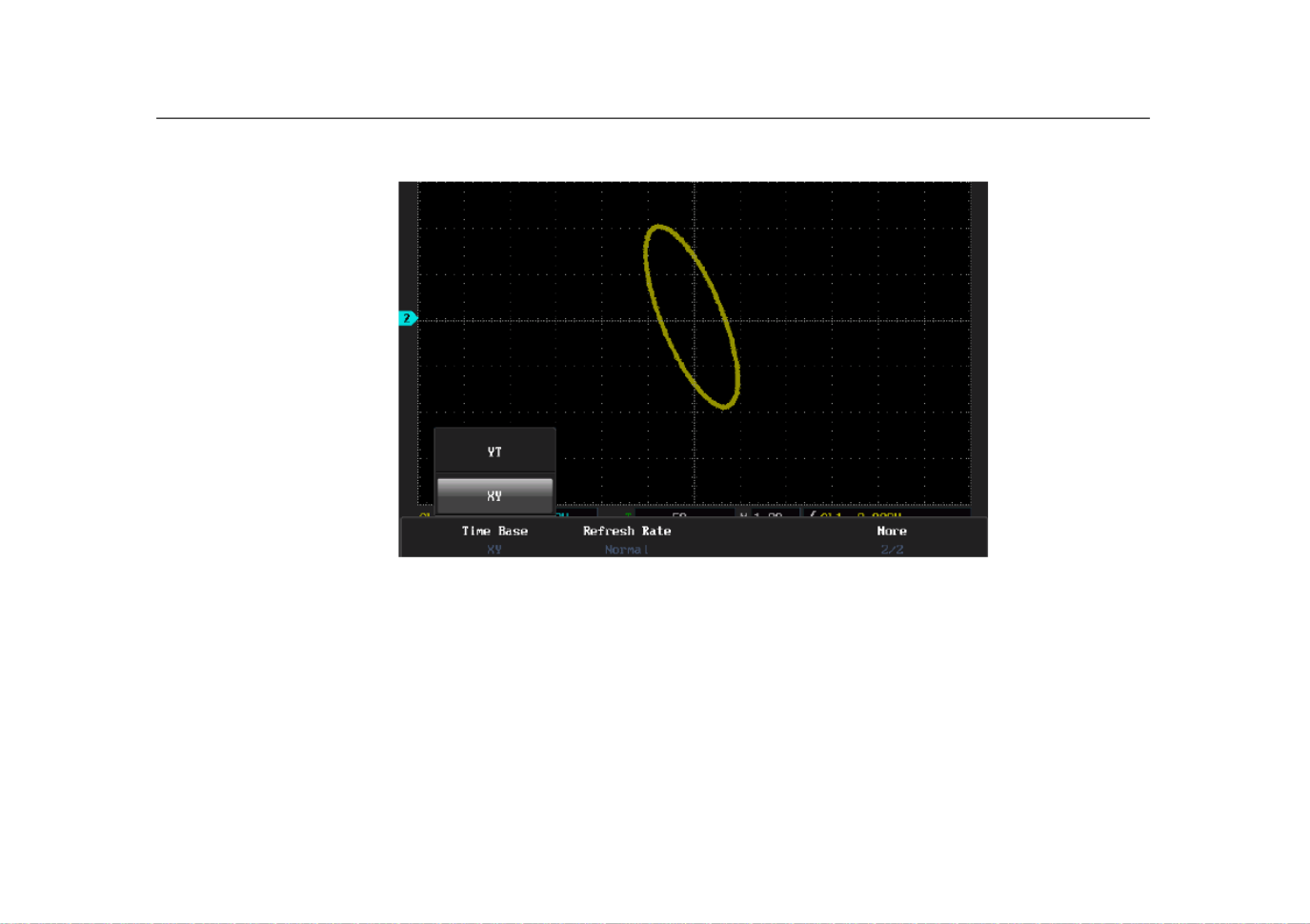

Picture 3-32 XY timescale
3.12.5 Adjusting refresh rate
High refresh rate of the oscilloscope will provide more signal character, and can greatly
increase the probability of the oscilloscope to capture instantaneous abnormality, such as jitter,
stunt pulse, low frequency disturbance and instantaneous error.
Please follow the steps for setting refresh rate

98
Set trigger menu
shown in picture3-37.

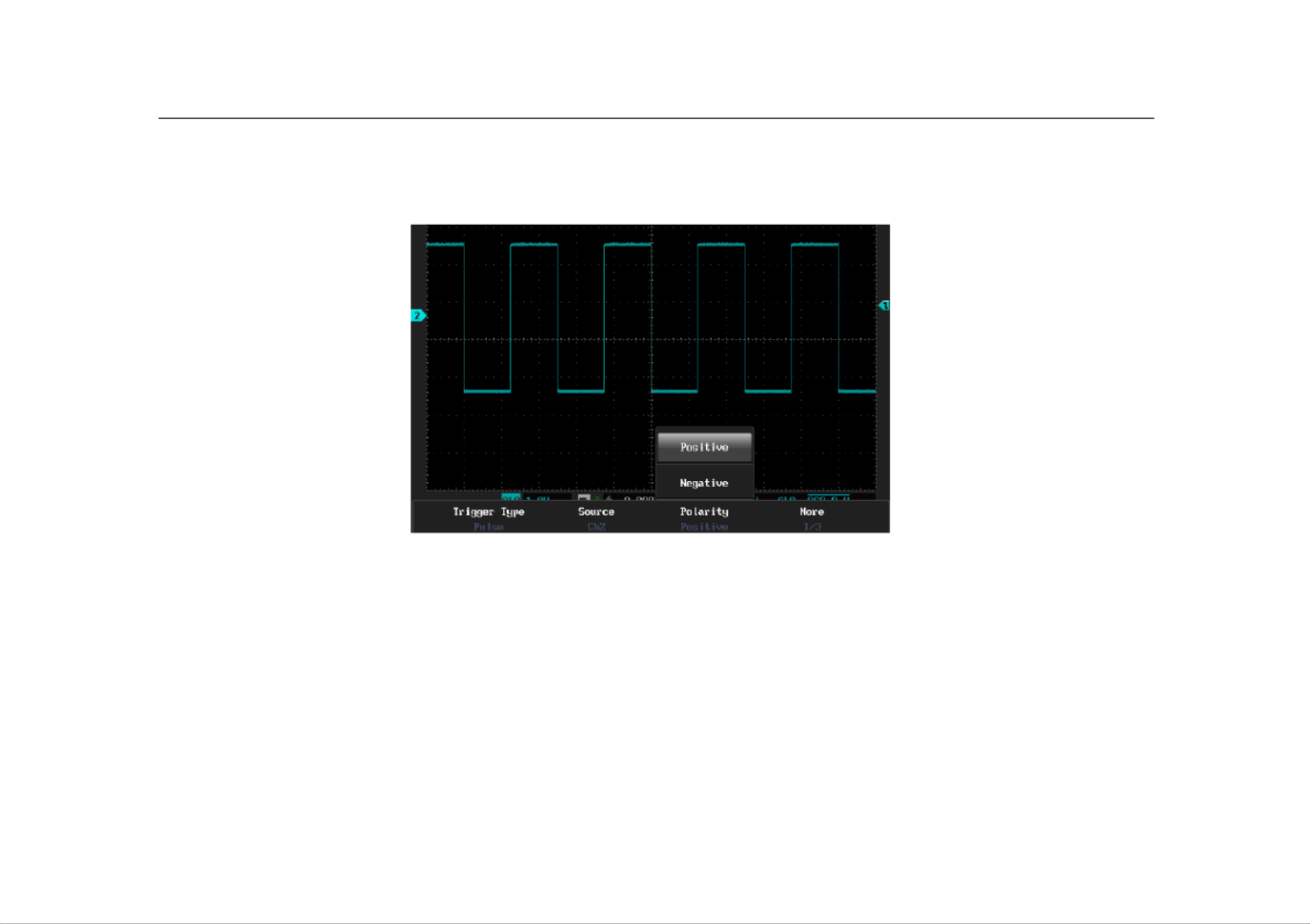

Picture 3-37 positive polarity pulse width trigger
3.13.3 Logic trigger
According to the given trigger level, firstly convert the two channels’ sample values
into logic value. If reaching the trigger condition, then trigger happens. Logic trigger menu’s
descriptions are shown in the table.

101
Set trigger menu
adjust rejection time. Trigger logic waveform is shown in picture 3-38.
1, Logic trigger operation mode
2, Ch1 logic trigger level, the readout under the upper line means CH1logic as
high.
3, Ch2 logic trigger level, the readout above the underline means CH2 logic as
low.

102
Set trigger menu
Picture 3-38 logic trigger

106
Set trigger menu
Picture 3-39 standard PAL odd fields trigger

109
Use vertical and
horizontal button
the time scale is 100 ms).

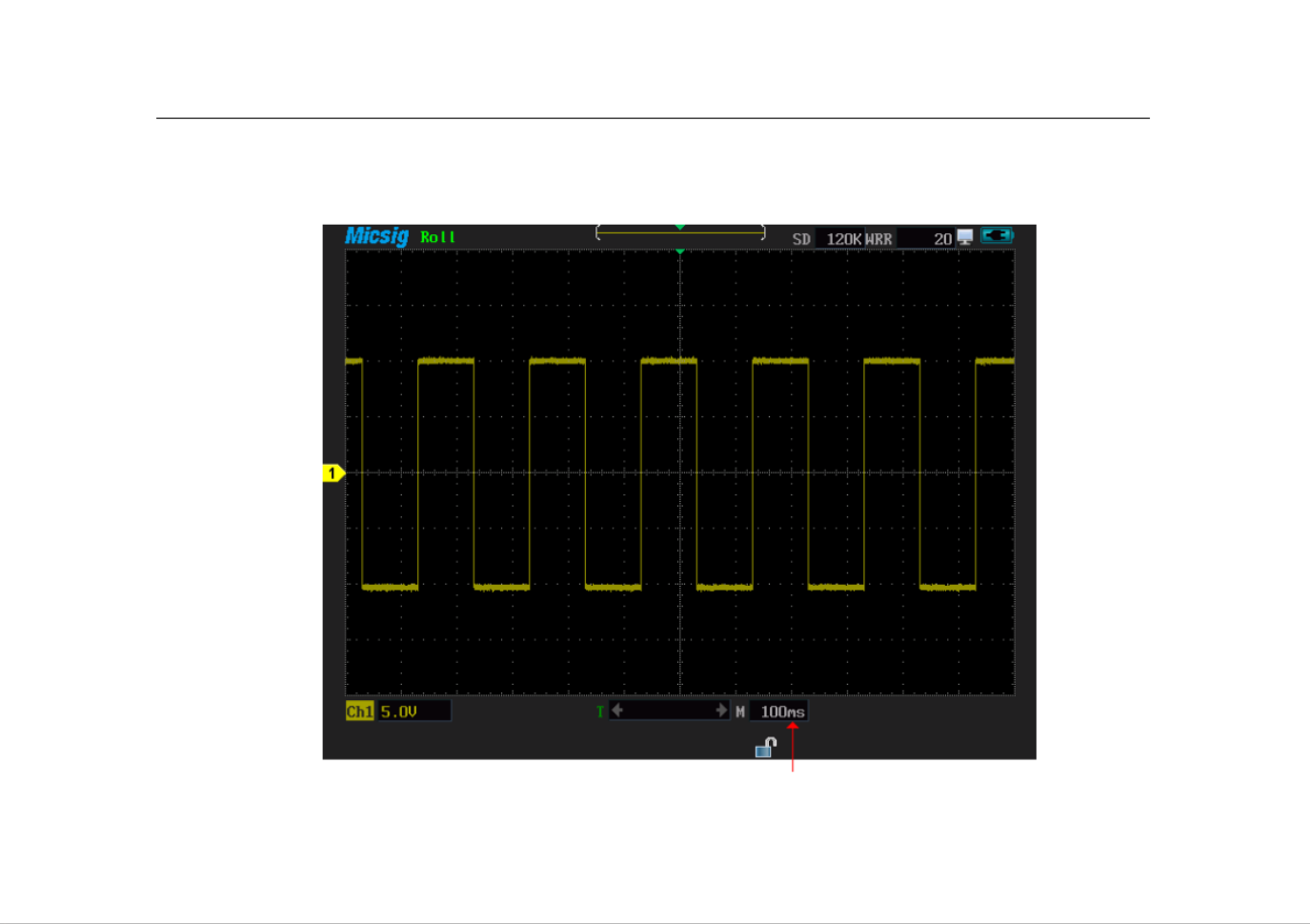

Picture 3-40 roll mode

115
Use math menu

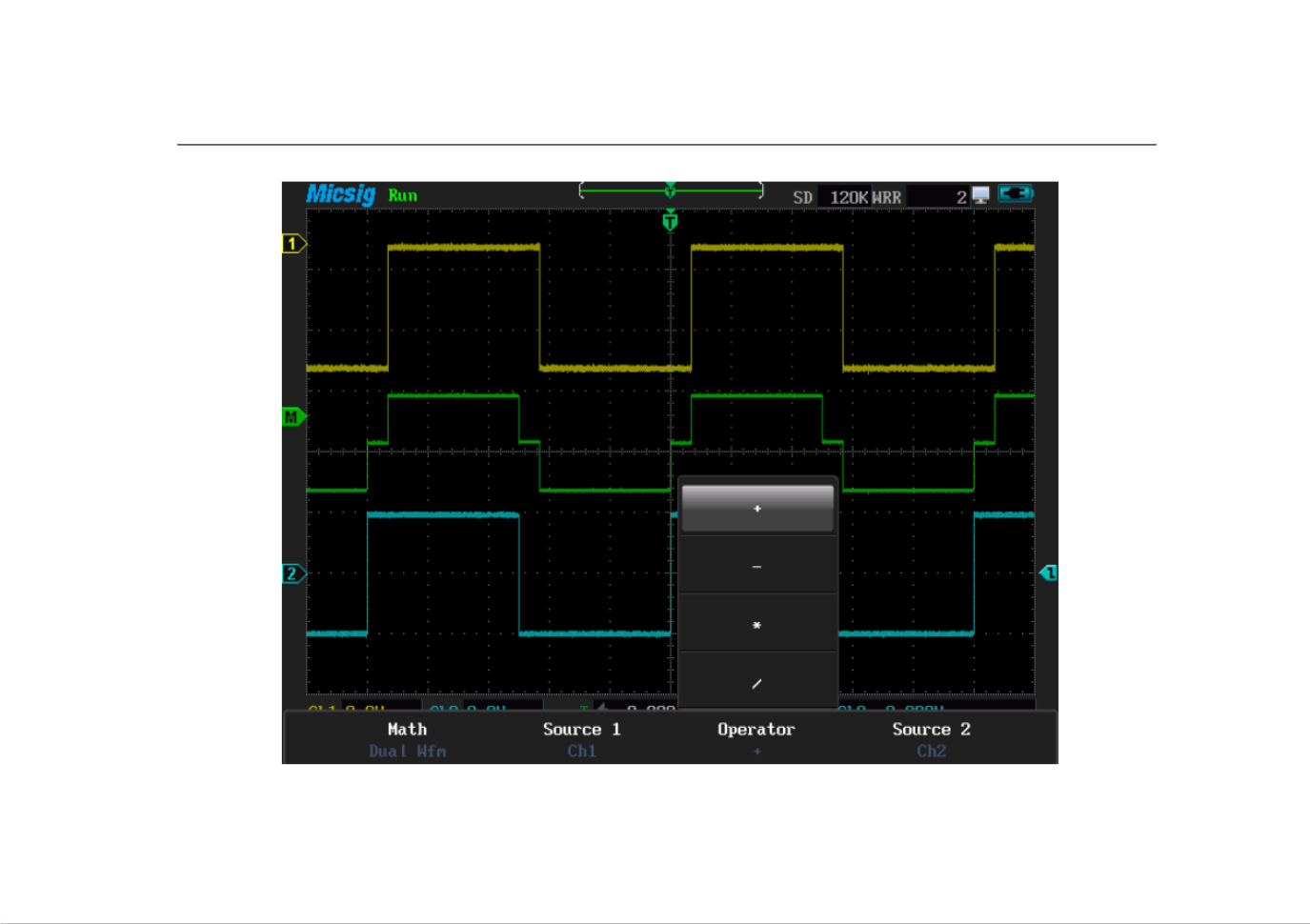

Picture 3-42 Ch1+Ch2 math function

Run/stop button and single sequence
120
3.18 Reference channel
Press to open and close reference waveform, and set the reference waveform as
the current waveform. After restoring the reference waveform can zoom, move or measure
etc.

Use 50% shortcut
123
Picture 3-49 after using 50% shortcut

Use touch screen zoom waveform
Picture3 -50 magnify selection area

Use touch screen zoom waveform
126
Picture 3-51 magnified waveform

Use touch screen zoom waveform
127
Chapter Four Serial Bus Trigger& Decode

149
LIN bus trigger and decode

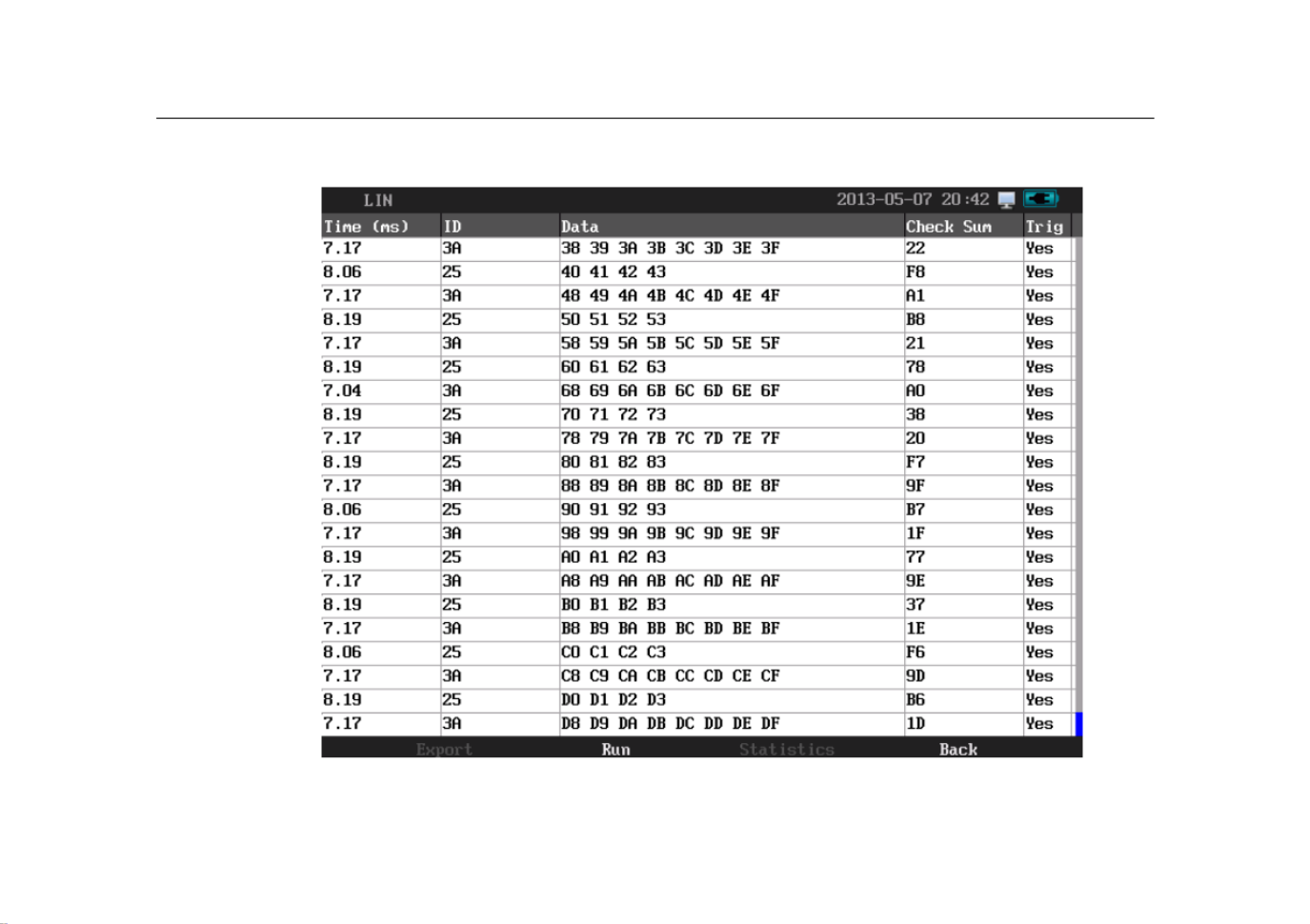

Picture 4-10 LIN text interface

152
CAN bus trigger and decode

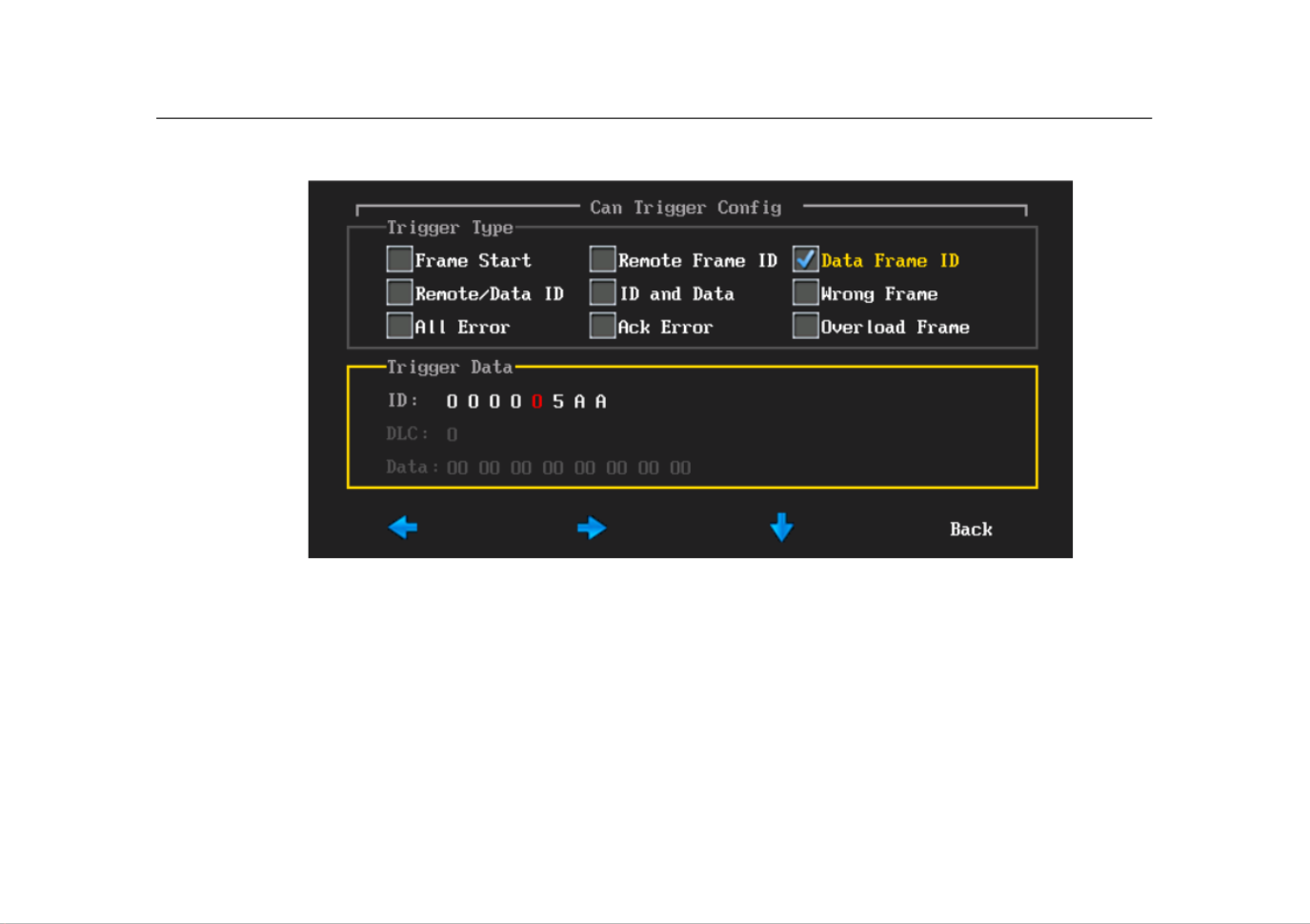

Picture 4-12 configuration trigger type menu
Description of trigger mode menu
a) frame start— trigger at the start of the frame
b) Remote frame ID — setting the ID matches the remote frame trigger. After
selecting the remote frame ID, and then set the ID value at the bottom of the
trigger data area.

157
CAN bus trigger and decode

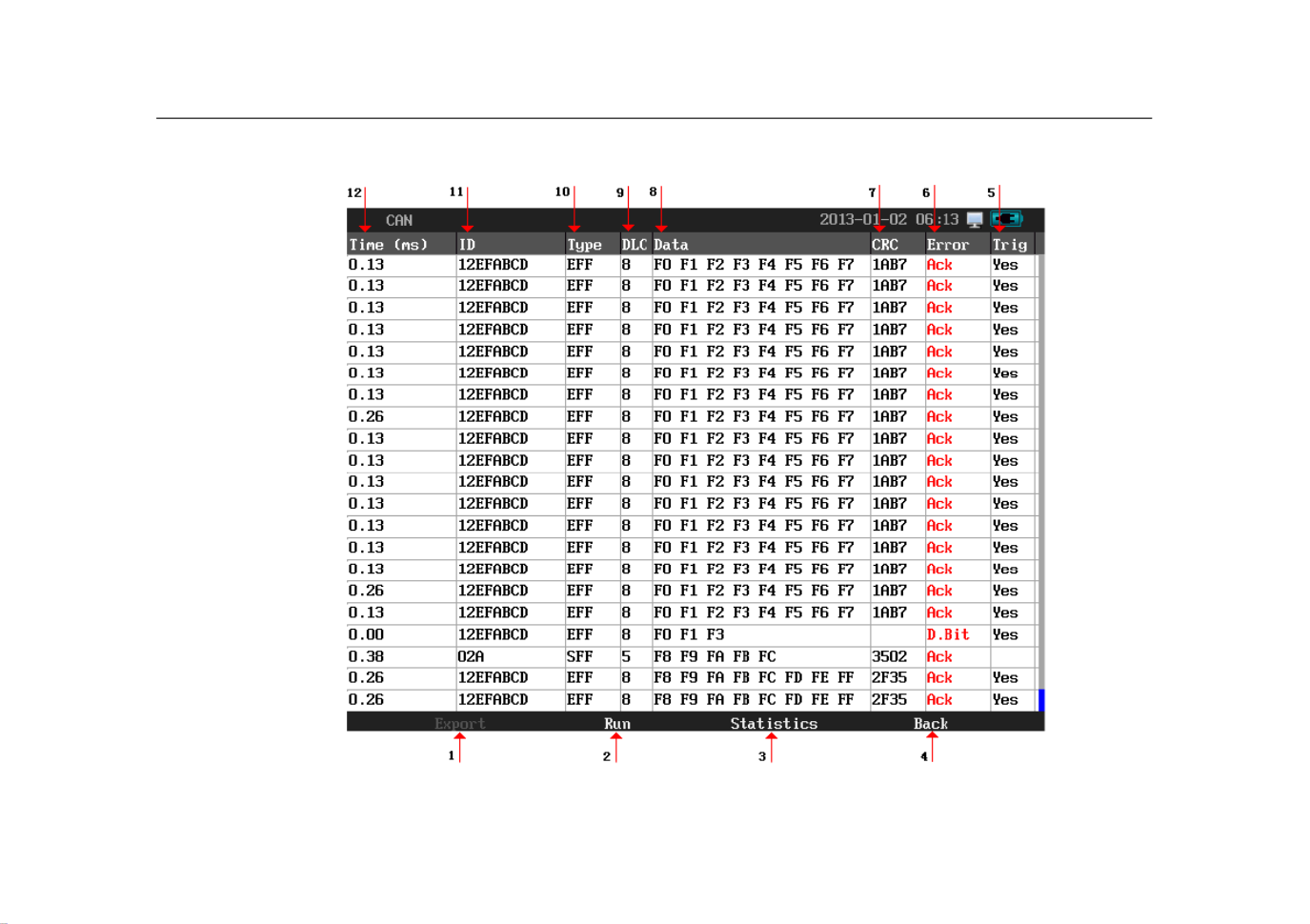

Picture 4-14 CAN text interface

159
CAN bus trigger and decode
is 29 bit
12,Time: means the time interval between the last
frames to current frame.

160
CAN bus trigger and decode

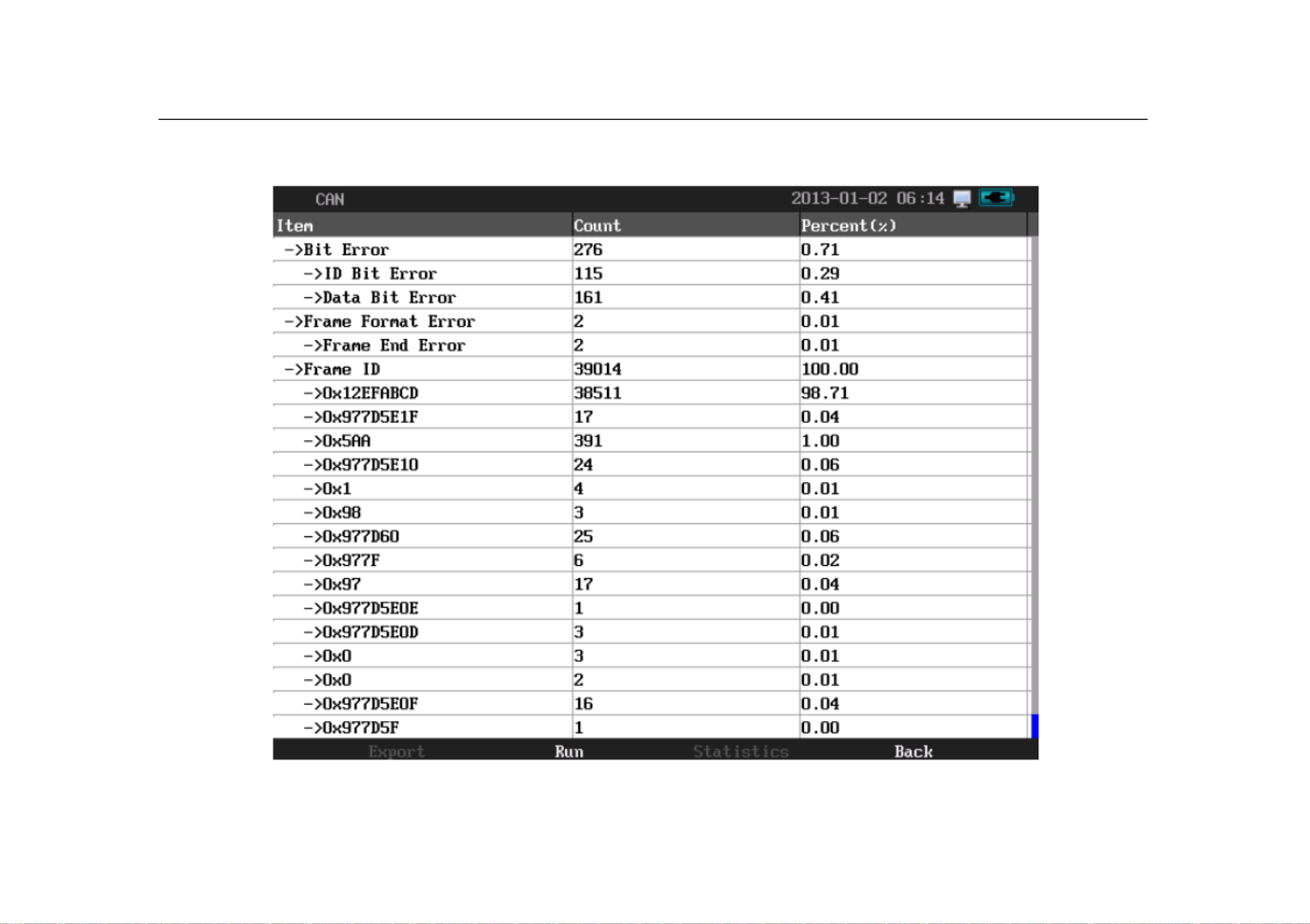

Picture 4-15 CAN decode statistics

165
SPI bus trigger and decode

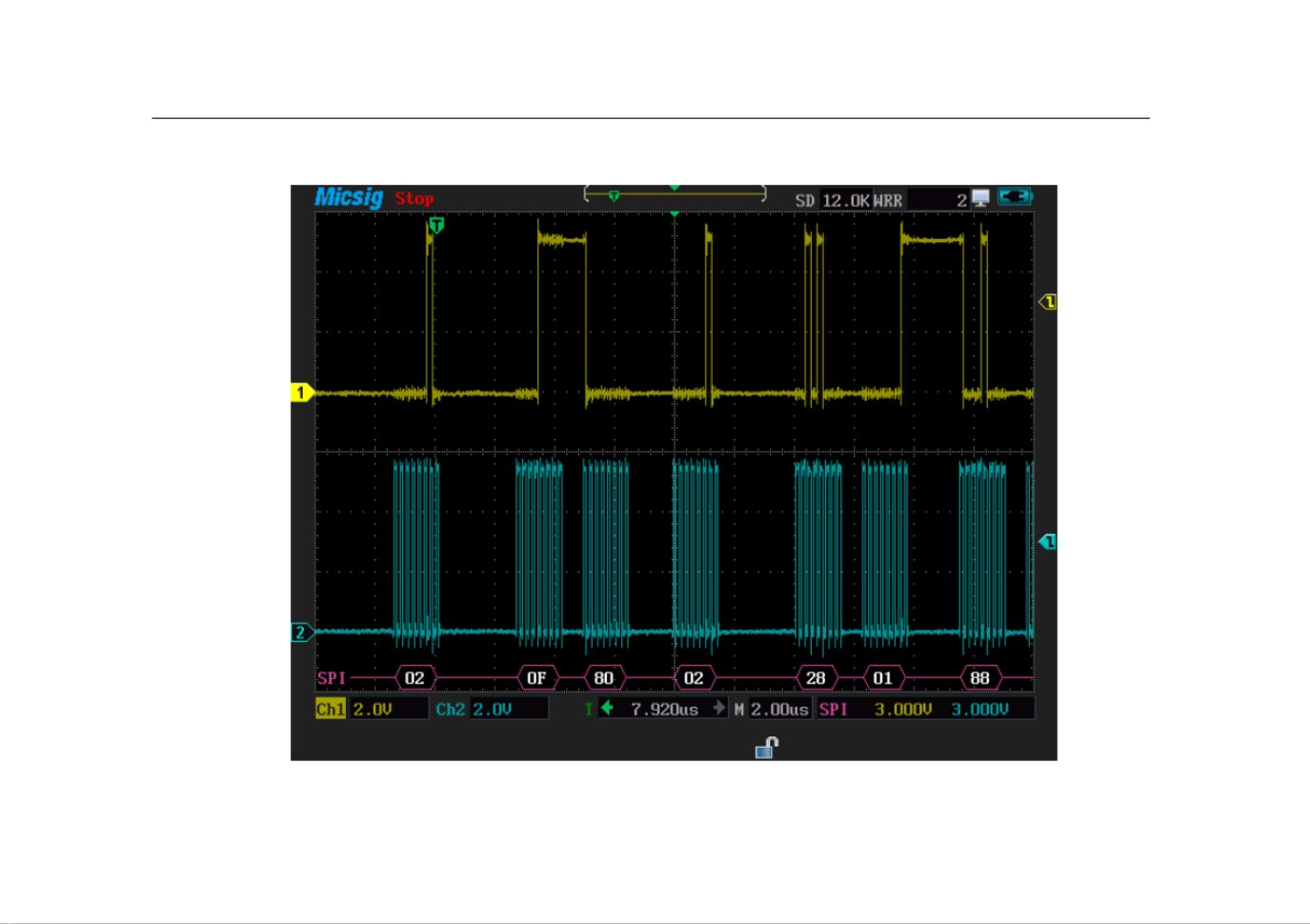

Picture 4-18 SPI trigger graphic interface

167
SPI bus trigger and decode

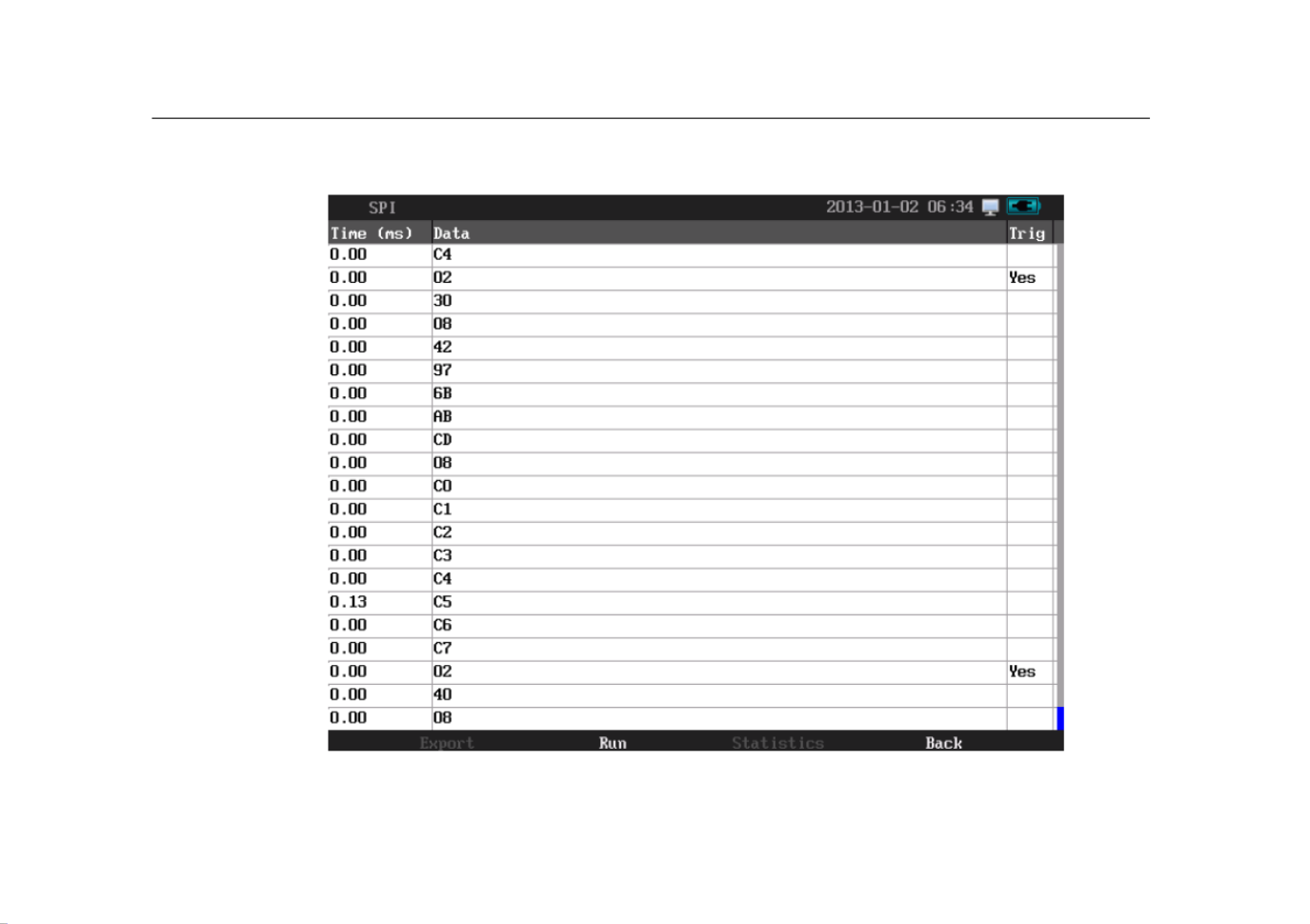

Picture 4-19 SPI text interface

Chapter Five Applied Examples

182
M
easure simple signal
Picture 5-1 auto-measure

184
M
easure simple signal
7) Press to move cursor to the second waveform attenuation after the
second peak; the pulse peak is 9.593 V, decay period is 3.160 us, as shown in
picture5-2.

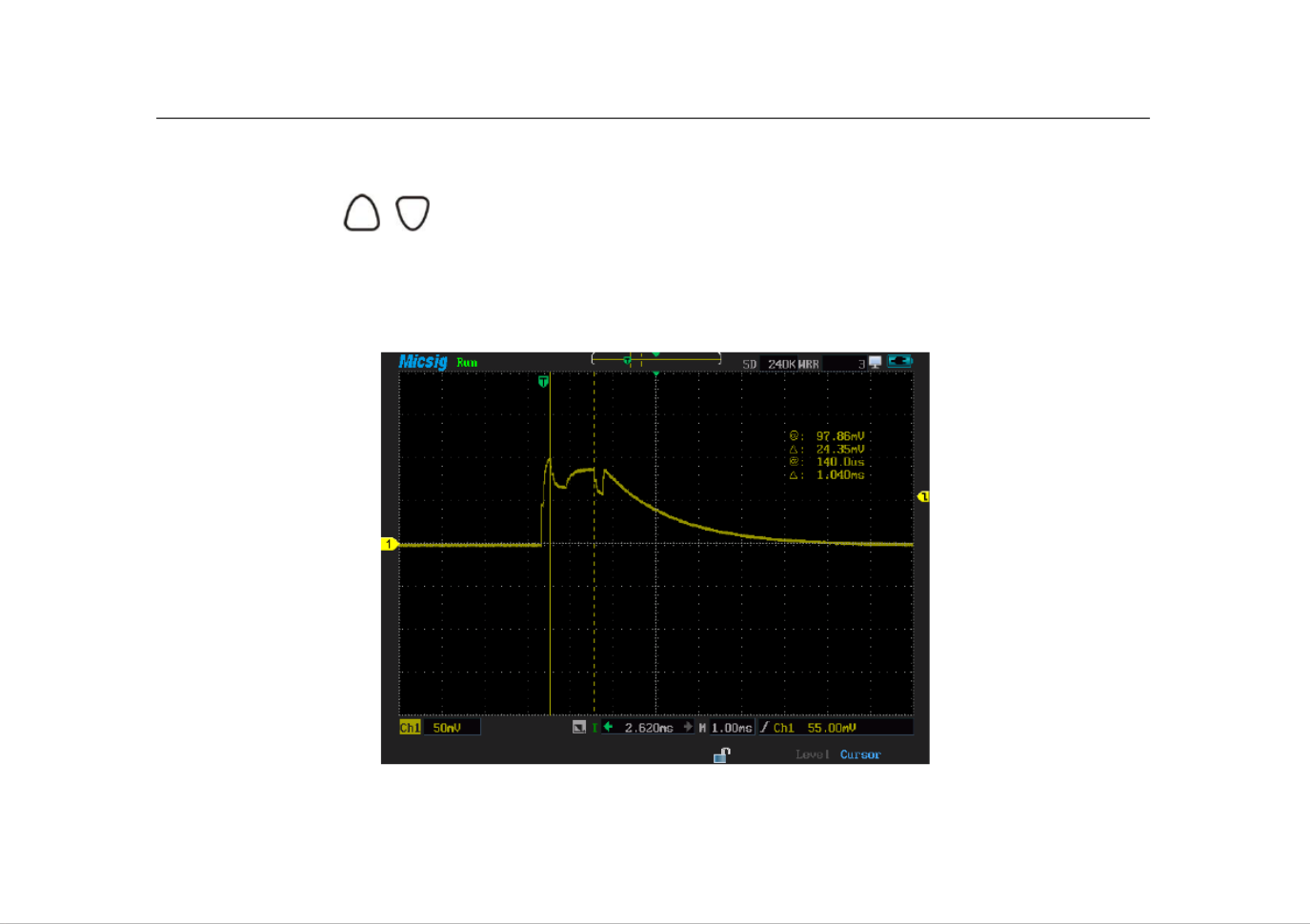

Picture5-2 cursor measure

185
Capture single pulse signal
5.2 Capture single pulse signal
Capturing the pulse, burr and non-periodic signal are the advantage of digital oscilloscope.
If you capture a single signal, require some knowledge of signal and then you can correctly
set trigger level and trigger. For instance, pulse is a TTL level logic signal, trigger level
should be set to 2v, and the trigger mode is set as rising trigger. If you are not sure about the
signal, you can identify the trigger level and trigger through the automatic mode.
Capturing single pulse signal should follow these steps.
1) connect Ch1 to signal
2) successively press , then select sampling mode as peak
3) press to open the trigger menu
4) press to select the trigger type as the edge trigger
5) Press to select signal source as Ch1
Produkt Specifikationer
Mærke: | Micsig |
Kategori: | Ikke kategoriseret |
Model: | MS310IT |
Har du brug for hjælp?
Hvis du har brug for hjælp til Micsig MS310IT stil et spørgsmål nedenfor, og andre brugere vil svare dig
Ikke kategoriseret Micsig Manualer
24 August 2024
24 August 2024
24 August 2024
24 August 2024
24 August 2024
Ikke kategoriseret Manualer
- Topcom
- MSolutions
- BIOS Medical
- Befaco
- SMC
- CAME-TV
- AOC
- Russell Hobbs
- Duromax
- Louis Tellier
- I3-Technologies
- Minix
- Proline
- Coxreels
- Girmi
Nyeste Ikke kategoriseret Manualer
6 August 2025
6 August 2025
6 August 2025
6 August 2025
6 August 2025
6 August 2025
6 August 2025
6 August 2025
6 August 2025
6 August 2025
