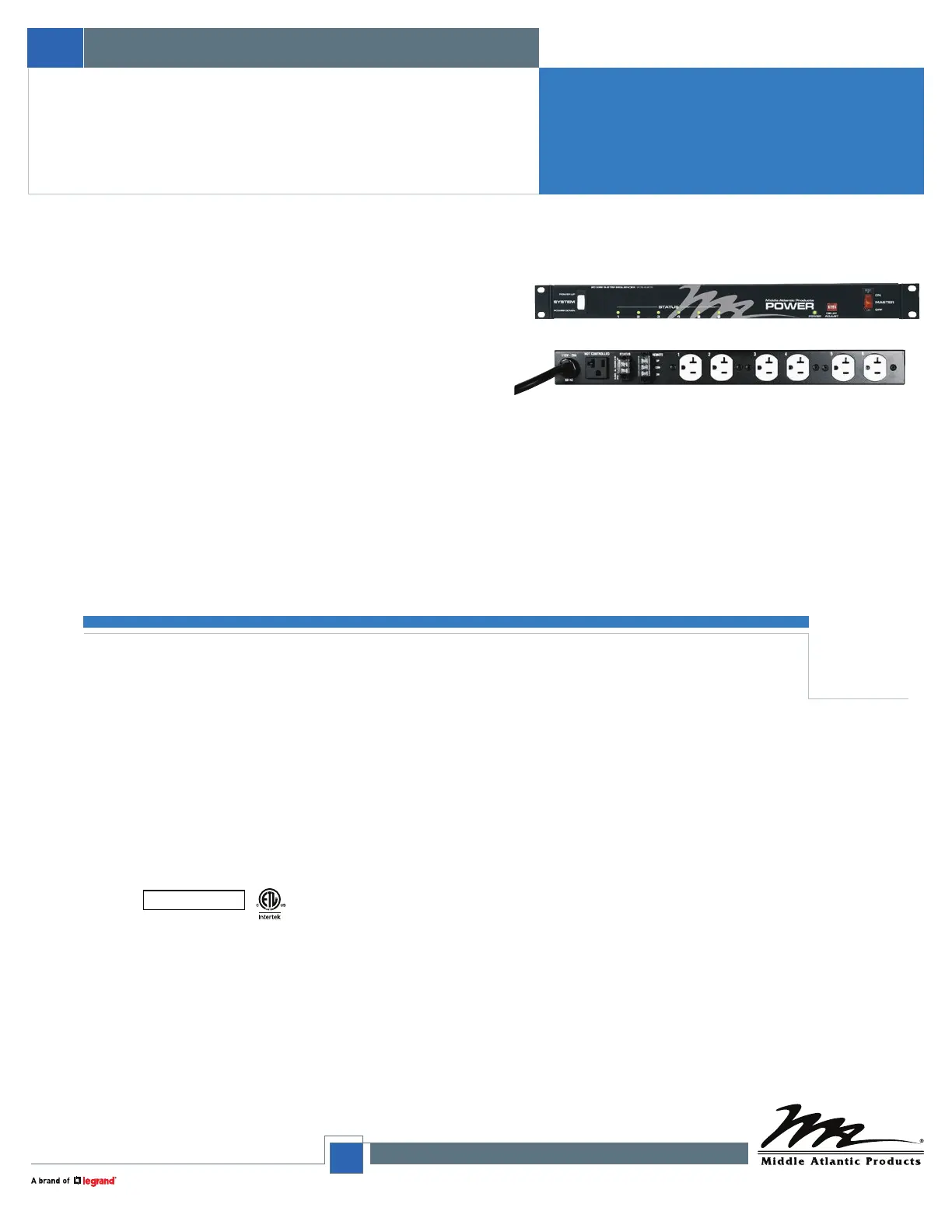

PDS Series
rackmount power sequencer
rackmount power sequencer provides
sequenced 15 amp (single or dual circuit)
and 20 amp (single circuit) power
features:
• Provides 6-step sequencing to six rear outlets
• Single or dual circuit models available
• Adjustable start delay times
• Adjustable sequence intervals
• System may be activated locally via front panel,
or remotely via rear terminal block
• Up to three units may be chained together via simple
parallel wiring, providing 18 sequence steps
• UL Listed in the US and Canada
EIA compliant 19” rackmount power sequencer shall be Middle Atlantic Products model # PDS-__(refer to chart)R and shall be
constructed of 16-gauge steel finished in durable black powder coat. Power sequencer shall operate on 120 volt AC/60Hz power
and shall terminate with (1,2) 9’ 3 wire SignalSafe™power cord(s) with NEMA 5-__(15,20)P plug(s)(refer to chart). Rear, dry
contact closure shall provide status indicat
ion to compatible customer supplied monitoring device. Contacts shall be closed when all
channels are on; contacts shall be open when all channels are closed. Power sequencer shall feature __ circuits (refer to chart). Power
sequencer shall feature (15,20) amp circuitry for six rear-mounted NEMA 5-__(15,20)R receptacles and a (15,20) amp front-mounted
circuit breaker(s) and master switch. Additional rear outlet sha
ll be unswitched and uncontrolled. Power Sequencer shall be ETL listed
to UL standard 1419, UL 60950-1 and UL 60065 in the US; CSA standard 60950-1, and CSA C22.2 No. 60065 in Canada. Power
sequencer shall be manufactured by an ISO 9001 and 14001 registered company. Power sequencer shall be warrantied to be free from
defects in material or workmanship under normal use and conditions for a period of 3 years.
Customizable specification clips available at middleatlantic.com
specifications:
PDS-620R
EIA/ TI A COM PLIANT
middleatlantic.com | middleatlantic.ca
what great systems are built on.
™
2
Part #
# of Circuit
Breakers
Outlet
Type
Cord
Termination
PDS-615R one 15 amp NEMA 5-15R
one
NEMA 5-15P
PDS-620R one 20 amp NEMA 5-20R
one NEMA
5-20P
PDS-2X315R two 15 amp NEMA 5-15R
two NEMA
5-15P
all dimensions in inches unless otherwise noted [all dimensions in brackets are in millimeters]
PDS Series

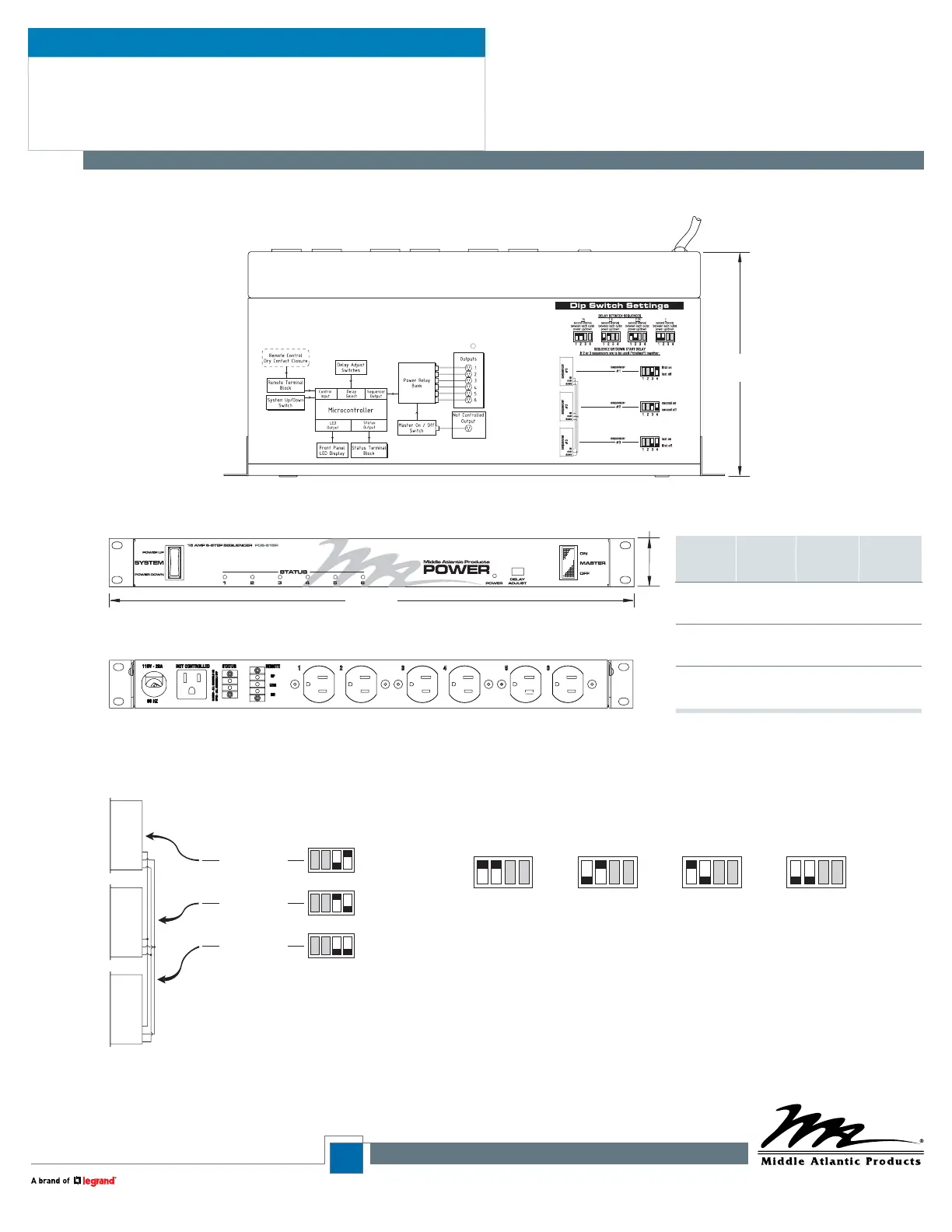

basic dimensions
PDS-615R shown
top view
front view
rear view
dip switch settings
8.75
[222]
1.75
[44]
sequencer #1
first on
last off
second on
second off
last on
first off
1234
1234 1234 1 234 1 234
1234
1234
sequencer #1
sequencer #2
sequencer #3
up
com
down
sequencer #2
up
com
down
sequencer #3
up
com
down
19.0 [482]
Maximum Derated Load (North America) for 15R Models: 12 Amps for 20R Models: 16 Amps
SEQUENCE UP/DOWN START DELAY
If 2 or 3 sequencers are to be used (“ chained”) together:
DELAY BETWEEN SEQUENCES
.75
second interval
between each outlet
power up/down
1.5
second interval
between each outlet
power up/down
2.25
second interval
between each outlet
power up/down
7
second interval
between each outlet
power up/down
1. Wire all rear terminal blocks in parallel.
2. Front System Power UP/DOWN switch is wired in parallel with rear remote terminal block.
When wired together as shown, pressing front System Power UP/DOWN switch on ANY
sequencer will initiate system sequencing.
3. If remote Power UP/DOWN is required, wire dry contacts in parallel.
4. Initiating system sequencing remotely: Sequencing can be initiated by either momentary
dry contact or maintained dry contact. Use of a maintained dry contact for system power
up will re-initiate sequence after power is restored from a power outage. When using
maintained (non-momentary) dry contact for remotely controlling system sequencing,
the front System Power UP/DOWN switches will be over-ridden.
NOTE: A flashing power (green) LED indicates system sequencing has begun.
