Side 1/2

WIRING INSTRUCTION

REVISED BULLETIN DATE

SERVICE PARTS LIST

MILWAUKEE ELECTRIC TOOL CORPORATION

13135 W. LISBON RD., BROOKFIELD, WI 53005

Drwg. 4

BULLETIN NO.

54-16-5180

CATALOG NO.

Mar. 2008

DYMODRILL with INTERNAL CLUTCH

SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS

865A or 865B 58-01-0930

4005 STARTING

SERIAL NO.

EXAMPLE:

Component Parts (Small #)

Are Included When Ordering

The Assembly (Large #).

00 0

1 42-04-0600 Water Hose Adapter (1)

2 45-80-0060 Shut Off Valve (1)

3 06-57-1050 Retaining Nut (1)

4 45-88-1140 Thrust Washer (2)

5 43-06-0160 Clutch Disc-Outer (3)

6 43-06-0150 Clutch Disc-Inner (5)

7 43-76-0051 Water Swivel Hsg Incl 06-83-2430 Scr (1)

8 40-50-2150 Disc Spring (4)

9 45-06-0635 Seal (2)

10 45-88-8565 Washer (1)

13 38-50-6020 Spindle (1)

16 34-80-3800 Retaining Ring (1)

17 02-20-2515 Ball Bearing (1)

18 06-82-9202 1/4-20 x 4-1/4" Taptite T-30 (4)

19 28-14-1870 Gear Case Assy., Incl 06-65-1535 Pin (1)

20 45-36-1520 Spindle Spacer (1)

21 32-75-3440 Spindle Gear (1)

22 02-50-4830 Needle Bearing (1)

23 02-04-1205 Ball Bearing (4)

24 36-66-3751 Pinion Shaft Assy. (1)

25 06-42-1600 Woodruff Key (1)

26 32-40-1581 Intermediate Gear (1)

27 40-50-6300 Shifting Spring (2)

28 44-70-0100 Shifting Plunger (2)

29 32-60-2011 Pinion Gear (1)

30 45-88-0520 Thrust Bearing Washer (1)

31 02-80-1800 Thrust Bearing (1)

32 32-10-0060 Clutch Gear Assembly (1)

33 06-42-2000 Woodruff Key (1)

34 36-14-0061 Clutch Shaft (1)

35 45-88-0530 Thrust Bearing Washer (1)

36 02-80-5000 Thrust Bearing (1)

37 32-10-0051 Clutch Gear Assembly (1)

38 45-88-0510 Thrust Bearing Washer (2)

39 02-80-1200 Thrust Bearing (1)

40 45-98-0090 Shifting Yoke (1)

41 14-13-0210 Diaphragm Assy., Incl 06-65-1155 Pin (1)

42 30-15-0272 Shift Cam (1)

43 43-44-0580 Foam Gasket (2)

44 06-65-0840 1/8 x 3/4" Groove Pin (1)

45 25-60-0056 Shifting Knob (1)

46 02-04-1229 Ball Bearing (1)

47 16-70-0320 120 V Armature (1)

48 22-84-0790 Fan (1)

49 42-14-0291 Bafﬂ e (1)

50 02-04-1041 Ball Bearing (1)

51 06-82-9152 10-24 x 2-3/4" Pan Hd. Sem. T-25 (2)

52 18-70-0290 120 V. Field (1)

53 23-16-1410 Motor Insulator (1)

54 22-20-0680 Brush Tube (2)

55 22-18-0702 Carbon Brush Assembly (2)

56 06-82-8835 8-32 x 5/16" Pan Hd. Sem.T-20 (2)

57 22-56-0470 Terminal Block (1)

58 22-38-0140 Wire Trap (1)

59 31-17-0200 Cord Clamp (1)

60 06-82-7326 8-16 x 1" Pan Hd. Plastite T-20 (2)

61 22-64-0300 Cord Set (1)

62 06-72-1720 Service Rivet (2)

63 12-99-1875 Service Nameplate (1)

64 22-32-0350 Brush Cover (2)

65 06-82-5316 8-32 x 1/2" Pan Hd. Slt. Taptite T-20 (2)

66 28-50-6363 Motor Housing (1)

67 06-82-5266 4-40 x 1/4" Pan Hd. TaptiteT-10 (2)

68 12-98-2100 Instruction Plate (1)

69 06-95-5200 8-32 x 5/16" Slotted Hex Hd. Screw (1)

70 45-36-0225 Gear Spacer (1)

49-96-4700 1-3/8" Open End Wrench (1)

45-88-0800 Water Hose Washer (For Fig. No. 1) (1)

61-10-0660 Retaining Nut Spanner Tool (1)

61-30-0061 Water Seal Jig (1)

FOR MOUNTING DRILL MOTOR USE:

06-75-3090 1/4-20 x 7/8" Socket Hd. Screw (4)

06-97-4050 1/4" Split Ring Lock Washer (4)

FIG. LUBRICATION

19 18 Oz. Type "J" Grease, No. 49-08-4220

FIG. PART NO. DESCRIPTION OF PART NO. REQ. FIG. PART NO. DESCRIPTION OF PART NO. REQ.



SEE THE REVERSE SIDE

FOR THE SERVICING

OF THE INTERNAL

CLUTCH MECHANISM

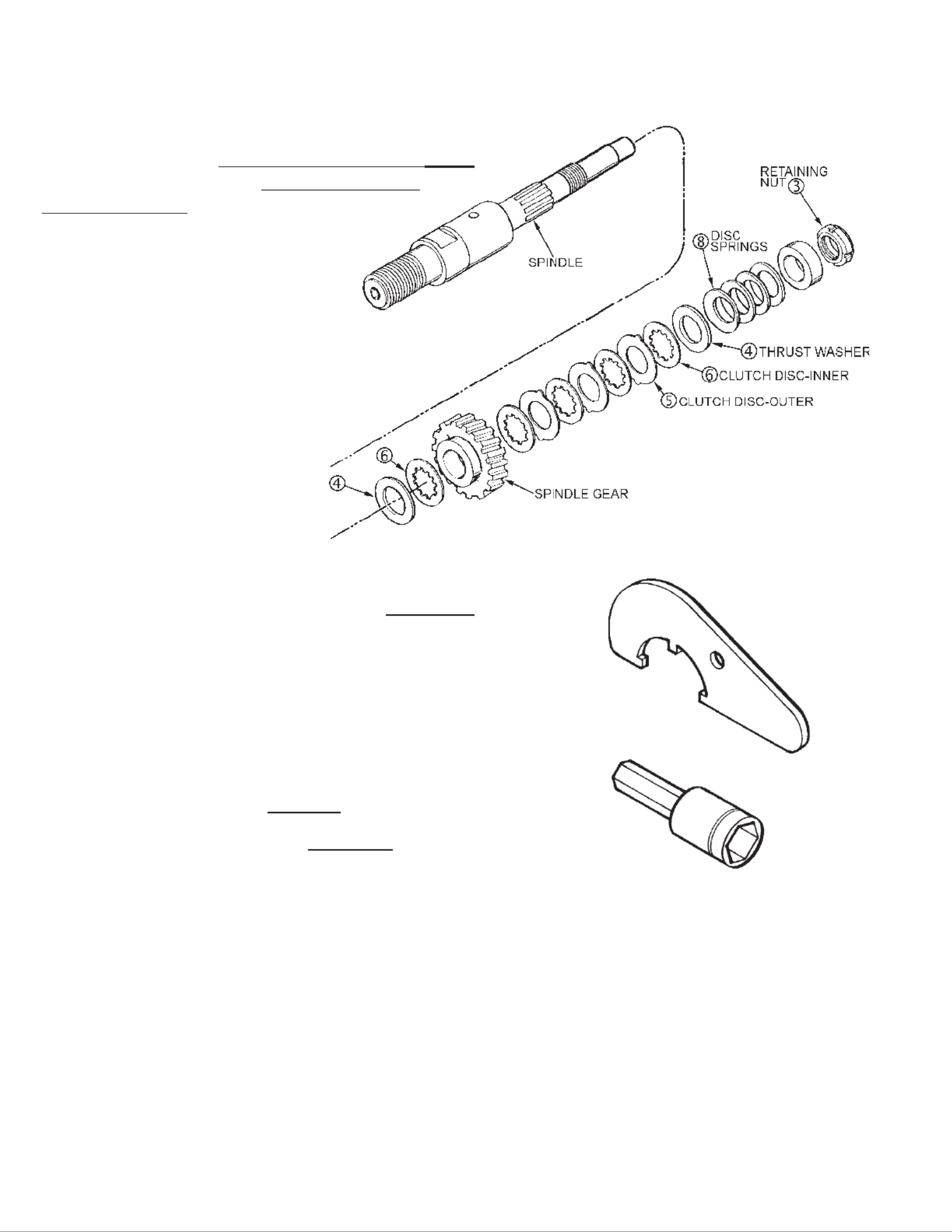

Servicing the Clutch Mechanism-

Torque Value for the Clutch Mechanism Retaining Nut (ﬁ g. no. 3).

Grease / Lubrication — when assembling the internal clutch component parts:

the Clutch Discs (ﬁ g. nos. 5 and 6), Thrust Washers (ﬁ g. no. 4) and

Disc Springs (ﬁ g. no. 8) are to be lightly coated with grease

(Cat. No. 49-08-4220 type ‘J’) during their assembly

into the spindle gear.

Grease / Lubrication speciﬁ cation includes

coating internal bore of the spindle gear.

4 45-88-1140 Thrust Washers (2)

5 43-06-0160 Clutch Discs-Outer (3)

6 43-06-0150 Clutch Discs-Inner (5)

8 40-50-2150 Spring Discs (4)

32-75-3430 Spindle Gear (1)

Service note: the assembly torque for the Clutch Mechanism Retaining Nut,

No. 06-57-1050 (ﬁ g. no. 3), which insures the static torque required to slip

the clutch mechanism, as lubricated, should be 25-30 ft-lbs.

With the gear case separated from the diaphragm & motor housing of the

Clutch Dymo-Drill motor —

• insert & engage a retaining nut spanner with the notches 61-10-0660

in the 06-57-1050 clutch adjustment retaining nut.

• with a attached to a torque wrench, 1/2" hex socket bit driver

interlock the male hex with the female hex found in the threaded end

of the dymo-drill spindle.

• turn the torque wrench clockwise , observing the torque reading 3

and tighten the clutch adjustment retaining nut on the rear of the

spindle shaft until a value of is obtained.25-30 ft-lbs

Retaining Nut Spanner

Service Tool

No. 61-10-0660

1/2" Hex Bit Socket Driver,

Snap-On #psa16,

Pronto #5441½

or equivalent
