TORQUE LOCK™ PLIERS / CLAMPS Apr. 2014

54-49-3130

REVISED BULLETIN

SERVICE PARTS LIST

BULLETIN NO.

DATE

SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS

MILWAUKEE TOOL  www.milwaukeetool.com

13135 W. LISBON RD., BROOKFIELD, WI 53005

Drwg. 1

48-22-3405 5" Curved Jaw

48-22-3406 6" Long Nose

48-22-3407 7" Curved Jaw

48-22-3409 9" Long Nose

48-22-3410 10" Curved Jaw

48-22-3507 7" Straight Jaw

48-22-3510 10" Straight Jaw

48-22-3520 10" Curved Jaw

48-22-3522 6" Swivel C-Clamp

48-22-3521 11"Swivel C-Clamp

48-22-3531 11" C-Clamp

48-22-3532 6" C-Clamp

SWIVEL C-CLAMP

C-CLAMP

LONG NOSE

CURVED JAW

STRAIGHT JAW

48-22-3521

11"Swivel

C-Clamp

48-22-3522

6" Swivel

C-Clamp

48-22-3507 7" Straight Jaw

48-22-3510 10" Straight Jaw

48-22-3520 10" Curved Jaw

48-22-3405 5" Curved Jaw

48-22-3407 7" Curved Jaw

48-22-3410 10" Curved Jaw

48-22-3406 6" Long Nose

48-22-3409 9" Long Nose

48-22-3531

11" C-Clamp

48-22-3532

6" C-Clamp

(1)

Adjustment

Bolt

NOTE: As an aid to installing a

service replacement spring onto

a TORQUE LOCK™ clamping

device, draw back the Adjustment

Bolt (1) to allow for the end of the

middle pivot plate in the lower

handle assembly to be freed

through the round opening

in the upper handle.

Expand open the

lower handle

assembly

as shown.

Round

Opening

Middle Pivot

Plate

(2)

Spring

Hook the open end

of the replacement

spring through the

hole in the lower jaw.

Use a small flat blade

screwdriver or a similar

instrument to pull the

close coil end of the spring

over the hook on the inside

of the upper handle as shown.

Place the end of middle pivot

plate back through the round

opening and secure with adjustment bolt.

Upper

Handle

Hook

TOOL NO. TOOL DESCRIPTION SPRING KIT ADJ. BOLT KIT

48-22-3405 5" Curved Jaw 40-50-0935 06-14-0115

48-22-3406 6" Long Nose

40-50-0935 06-14-0115

48-22-3407 7" Curved Jaw 40-50-0940 06-14-0110

48-22-3409 9" Long Nose 40-50-0940 06-14-0110

48-22-3410 10" Curved Jaw 40-50-0945 06-14-0105

48-22-3507 7" Straight Jaw 40-50-0940 06-14-0110

48-22-3510 10" Straight Jaw 40-50-0945 06-14-0105

48-22-3520 10" Curved Jaw 40-50-0945 06-14-0105

48-22-3521

11" Swivel C-Clamp 40-50-0945 06-14-0105

48-22-3522

6" Swivel C-Clamp 40-50-0935 06-14-0115

48-22-3531

11" C-Clamp 40-50-0945 06-14-0105

48-22-3532

6" C-Clamp 40-50-0935 06-14-0115

Illustration above serves as an aid for the installation of a Spring

Kit in a hand tool without handle grips. See page 2 for the illustra-

tion showing spring installation into a hand tool with handle grips.

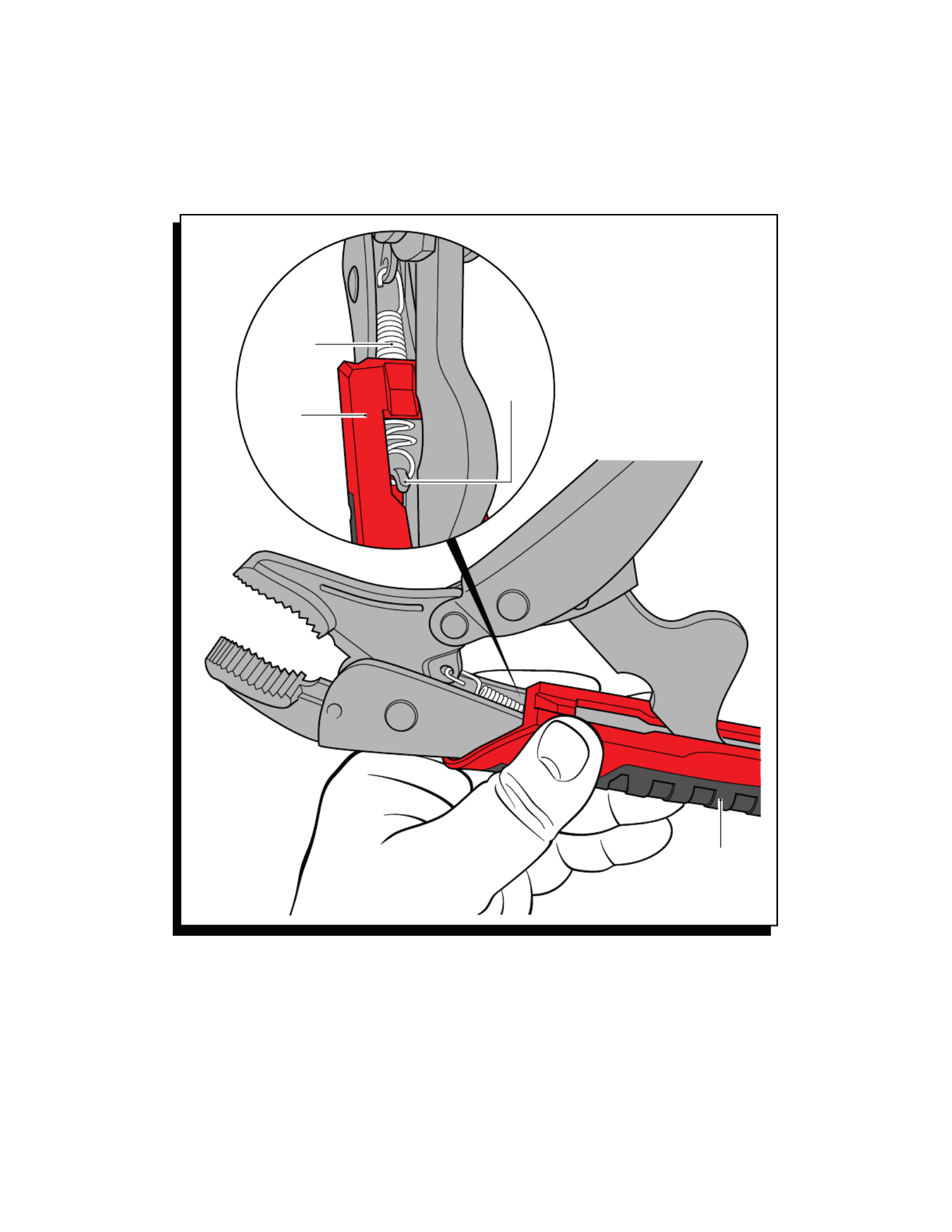

NOTE: As an aid to installing a service replacement

spring onto a TORQUE LOCK™ clamping device

(with handle grip), draw back the Adjustment

Bolt (#1 not shown) to create an opening

that will allow a clear view and easiest

access to the hook that is inside of

the upper handle. Feed the open end

of the replacement spring through

the hole in the lower jaw. Route the

spring into the upper handle cavity,

under the handle grip. Use a small

flat blade screwdriver or a similar

instrument to pull the close coil end

of the spring over the hook on inside

of upper handle as shown.

(2)

Spring

Upper

Handle

Hook

Handle

Grip

Handle

Grip
