Side 1/2
TORQUE LOCK™ PLIERS / CLAMPS Apr. 2014
54-49-3130
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
DATE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
MILWAUKEE TOOL www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 1
48-22-3405 5" Curved Jaw
48-22-3406 6" Long Nose
48-22-3407 7" Curved Jaw
48-22-3409 9" Long Nose
48-22-3410 10" Curved Jaw
48-22-3507 7" Straight Jaw
48-22-3510 10" Straight Jaw
48-22-3520 10" Curved Jaw
48-22-3522 6" Swivel C-Clamp
48-22-3521 11"Swivel C-Clamp
48-22-3531 11" C-Clamp
48-22-3532 6" C-Clamp
SWIVEL C-CLAMP
C-CLAMP
LONG NOSE
CURVED JAW
CURVED JAW
STRAIGHT JAW
48-22-3521
11"Swivel
C-Clamp
48-22-3522
6" Swivel
C-Clamp
48-22-3507 7" Straight Jaw
48-22-3510 10" Straight Jaw
48-22-3520 10" Curved Jaw
48-22-3405 5" Curved Jaw
48-22-3407 7" Curved Jaw
48-22-3410 10" Curved Jaw
48-22-3406 6" Long Nose
48-22-3409 9" Long Nose
48-22-3531
11" C-Clamp
48-22-3532
6" C-Clamp
(1)
Adjustment
Bolt
NOTE: As an aid to installing a
service replacement spring onto
a TORQUE LOCK™ clamping
device, draw back the Adjustment
Bolt (1) to allow for the end of the
middle pivot plate in the lower
handle assembly to be freed
through the round opening
in the upper handle.
Expand open the
lower handle
assembly
as shown.
Round
Opening
Middle Pivot
Plate
(2)
Spring
Hook the open end
of the replacement
spring through the
hole in the lower jaw.
Use a small flat blade
screwdriver or a similar
instrument to pull the
close coil end of the spring
over the hook on the inside
of the upper handle as shown.
Place the end of middle pivot
plate back through the round
opening and secure with adjustment bolt.
Upper
Handle
Hook
TOOL NO. TOOL DESCRIPTION SPRING KIT ADJ. BOLT KIT
48-22-3405 5" Curved Jaw 40-50-0935 06-14-0115
48-22-3406 6" Long Nose
40-50-0935 06-14-0115
48-22-3407 7" Curved Jaw 40-50-0940 06-14-0110
48-22-3409 9" Long Nose 40-50-0940 06-14-0110
48-22-3410 10" Curved Jaw 40-50-0945 06-14-0105
48-22-3507 7" Straight Jaw 40-50-0940 06-14-0110
48-22-3510 10" Straight Jaw 40-50-0945 06-14-0105
48-22-3520 10" Curved Jaw 40-50-0945 06-14-0105
48-22-3521
11" Swivel C-Clamp 40-50-0945 06-14-0105
48-22-3522
6" Swivel C-Clamp 40-50-0935 06-14-0115
48-22-3531
11" C-Clamp 40-50-0945 06-14-0105
48-22-3532
6" C-Clamp 40-50-0935 06-14-0115
Illustration above serves as an aid for the installation of a Spring
Kit in a hand tool without handle grips. See page 2 for the illustra-
tion showing spring installation into a hand tool with handle grips.

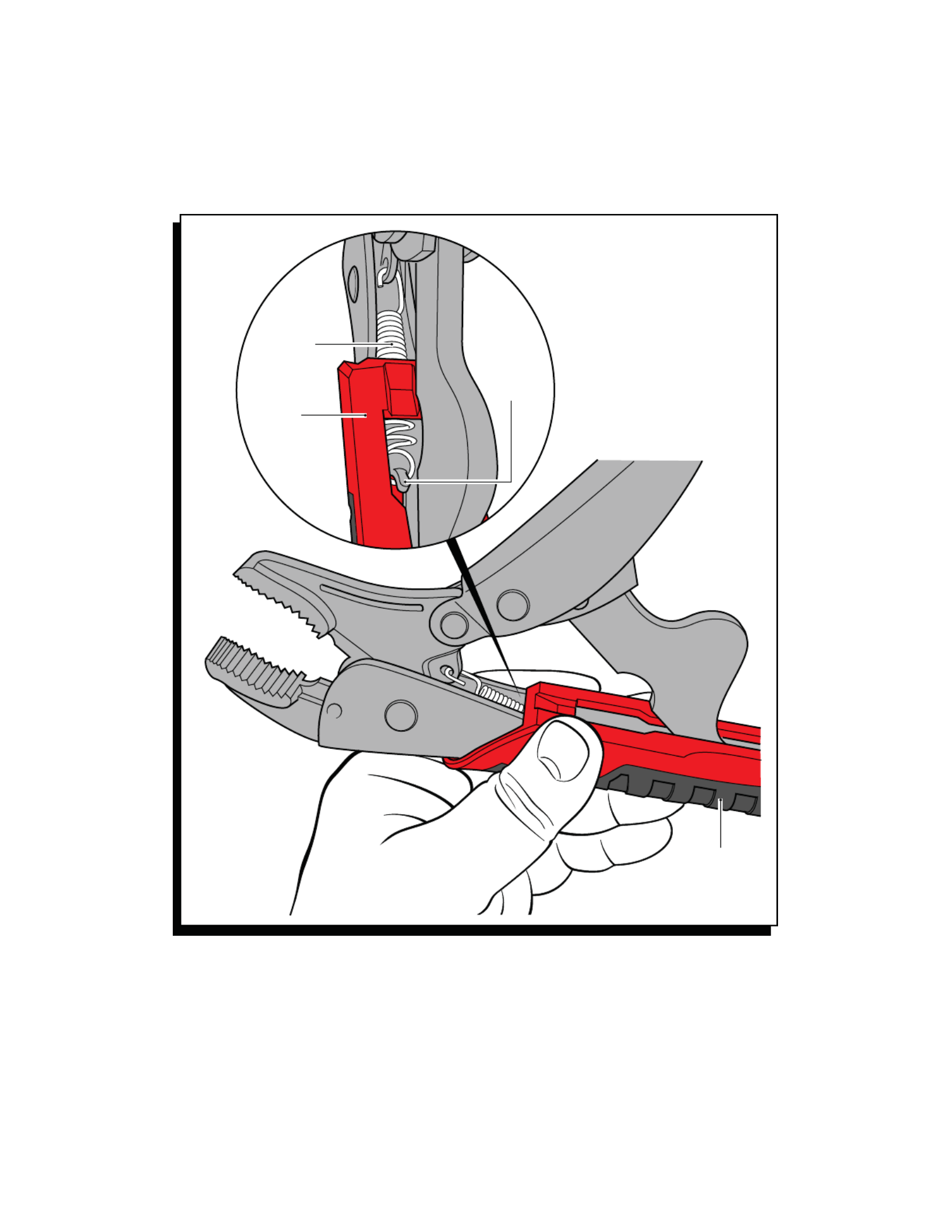

NOTE: As an aid to installing a service replacement
spring onto a TORQUE LOCK™ clamping device
(with handle grip), draw back the Adjustment
Bolt (#1 not shown) to create an opening
that will allow a clear view and easiest
access to the hook that is inside of
the upper handle. Feed the open end
of the replacement spring through
the hole in the lower jaw. Route the
spring into the upper handle cavity,
under the handle grip. Use a small
flat blade screwdriver or a similar
instrument to pull the close coil end
of the spring over the hook on inside
of upper handle as shown.
(2)
Spring
Upper
Handle
Hook
Handle
Grip
Handle
Grip
