1
4
3
6
5
8
7
2(2x)
8
6(2x)
4(2x)
9
2
1
10

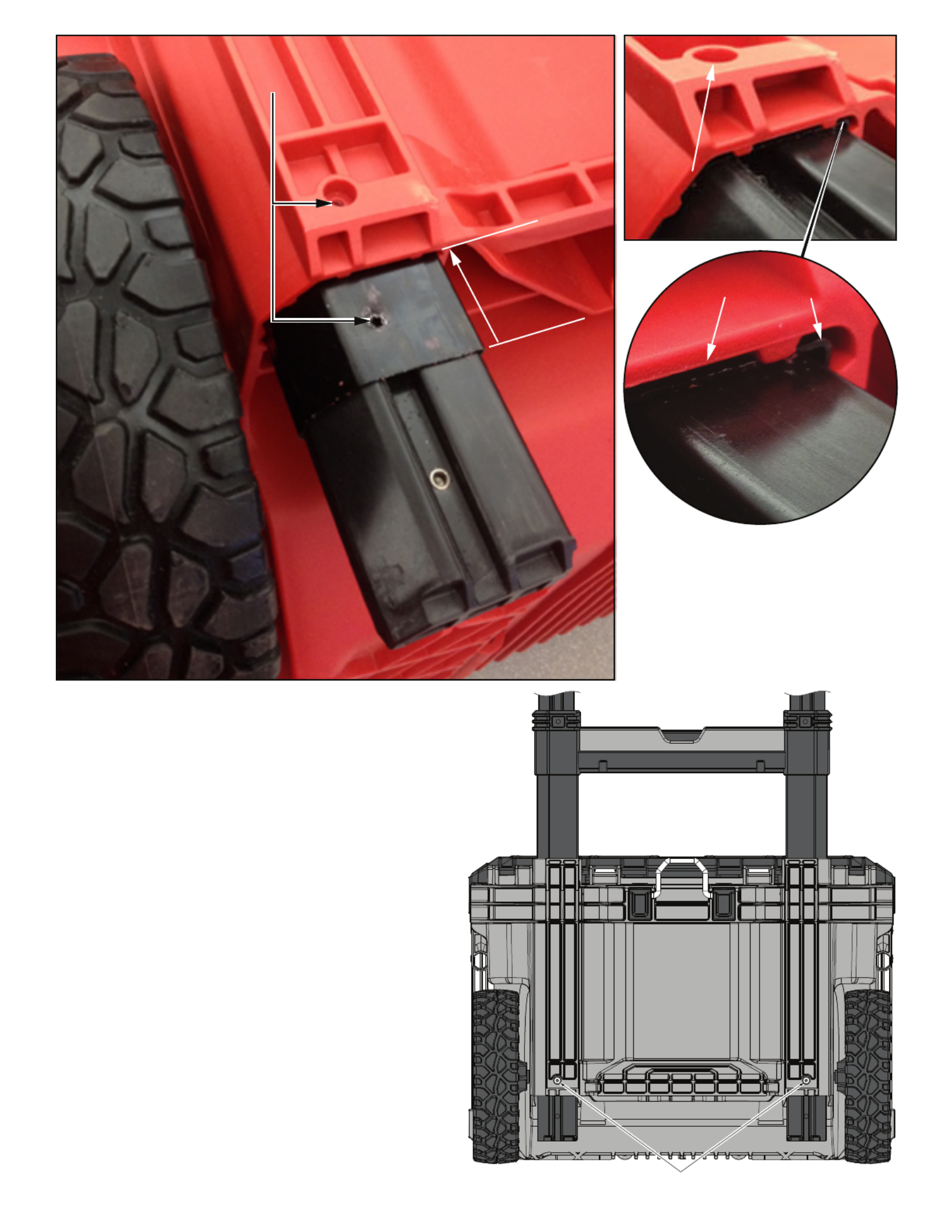

Place flat blade
screwdriver in
here and work
pin to the inside.
Grab exposed pin with needle
nose pliers and work out.
Locking Tabs
Latch Assembly
NOTE:
See page 2 for
installation
instructions
of Retactable
Handle (3) into
tool box body.
8
12
54-49-8400
SERVICE PARTS LIST
BULLETIN NO.
MILWAUKEE TOOL l www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 7
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
48-22-8426
PACKOUT™ Rolling Tool Box Assembly Oct. 2020
REVISED BULLETIN
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 43-62-8400T Retractable Handle Grip Service Kit (1)
2 --------------- Screw (2)
3 43-62-8400 Retractable Handle Service Assembly (1)
4 --------------- Screw (2)
5 43-62-8426
Side Handle Svc. Kit (Contains 2 Side Handles and 4 Pins)
(1)
6 --------------- Pin (4)
7 45-94-8426
Wheel Svc. Kit (Contains 2 Wheels and 2 Locking Hex Nuts)
(1)
8 --------------- Locking Hex Nut (2)
9 44-20-8400 Latch Service Assembly (Set of 2) (1)
10 31-01-8400 Storage Tray (1)
11 43-44-8400 Lid Gasket (Not Shown) (1)
12 42-12-8426
Axle Svc. Kit (Contains 1 Axle and 2 Locking Hex Nuts)
(1)
As an aid to removing a damaged Latch
Assembly (9), use two large at blade
screwdrivers. Push blades between parts
as shown. Twist both screwdrivers at same
time to force the blades into opening
and work the latch assembly over the
two locking tabs.
To install a new latch assembly,
position entire latch assembly over
locking tabs with the two top lugs
partially inserted in 'catch cavity' of
main housing. Engage latch bar
onto lid and gently press latch lever
to slide assembly over two locking
tabs and into place.
This removal and installation process will be the same
where other service latches are oered in this system.
48-22-8425 PACKOUT™ Large Tool Box Assembly Page 3
48-22-8424 PACKOUT™ Medium Tool Box Assembly Page 3
48-22-8430 PACKOUT™ Organizer Assembly Page 4
48-22-8435 PACKOUT™ Compact Organizer Assembly Page 4
48-22-8310 PACKOUT™ Small 10" Storage Tote Page 5
48-22-8315 PACKOUT™ Medium 15" Storage Tote Page 5
48-22-8320 PACKOUT™ Large 20" Storage Tote Page 5
48-22-8426 Includes:
48-22-8431 PACKOUT™ Page 6S-Organizer Assembly
48-22-8436 PACKOUT™ S-Organizer Compact Assy. Page 6
48-22-8450 PACKOUT™ Tool Box Assembly Page 7
48-22-8321 PACKOUT™ Medium 15" Tool Bag Page 8
48-22-8322 PACKOUT™ Large 20" Tool Bag Page 8
48-22-8300 PACKOUT™ Tech Bag Page 9
48-22-8301 PACKOUT™ Jobsite Backpack Page 9
48-22-8302 PACKOUT™ Jobsite Cooler Page 9
48-22-8410 PACKOUT™ Flat Dolly Page 10
48-22-8422 PACKOUT™ Compact Toolbox Page 11
48-22-8460 PACKOUT™ Compact Cooler Page 11
48-22-8488 PACKOUT™ Customizable Work Surface Page 12
48-22-8415 PACKOUT™ 2 Wheeled Dolly Page 13
*See page 6 thru 13 for Additional Storage Products:
