EXAMPLE:

Component Parts (Small #)

Are Included When Ordering

The Assembly (Large #).

REVISED BULLETIN DATE

CATALOG NO.

SERVICE PARTS LIST

MILWAUKEE TOOL CORPORATION 13135 W.

LISBON RD., BROOKFIELD, WI 53005

Drwg. 2

BULLETIN NO.

STARTING

SERIAL NO.

WIRING INSTRUCTION

SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS

18 GAUGE SHEAR HEAD ASSEMBLY

48-08-0500

Oct 19. 20

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

1 48-08-0500 Shear Head Assy. (Includes 2 thru 11) (1)

2 06-75-2115 10-24 x 1-1/4 Skt. Hd. Cap Screw (3)

3 43-76-0400 Shear Housing (1)

4 45-88-7310 Washer (1)

5 43-16-0100 Eccentric Assembly (1)

6 43-84-0460 Knurled Insert (3)

7 48-44-0170 Blade - Right Side (1)

8 42-40-0520 Bushing (2)

9 48-44-0150 Blade - Center (1)

10 48-44-0160 Blade - Left Side (1)

11 49-96-0070 5/32 Hex Allen Wrench (1)

FIG. LUBRICATION:

3,7,8 During assembly, use a dab of Type "E" Grease,

No. 49-08-4122 to lubricate flats, pivot hole and sides of

center blade (8), eccentric assembly (3) and bushing (7).

54-40-8220

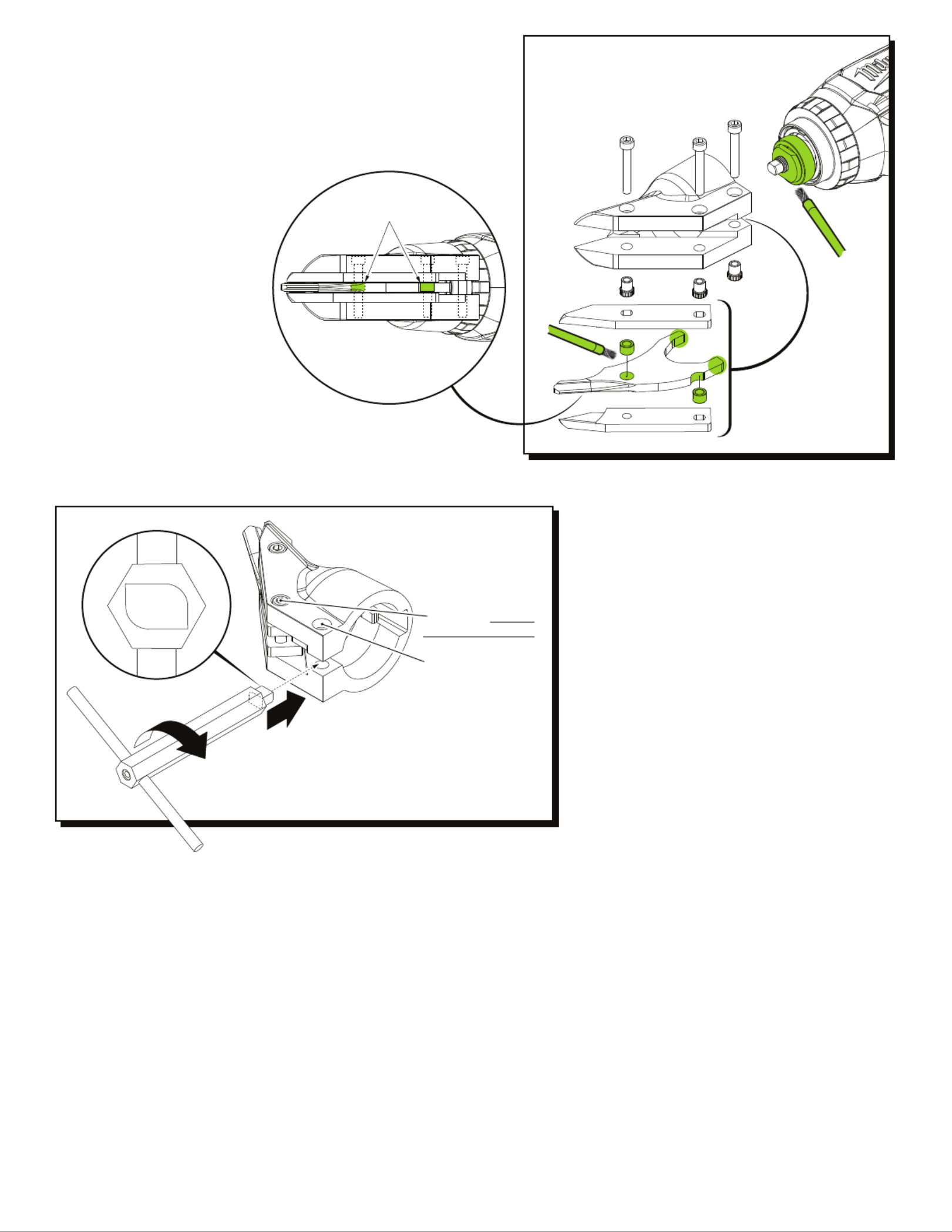

Bottom view of

Shear Head

Assembly

Bushings

When servicing Shear Head Assembly No. 48-08-0500 pay close attention to the

placement of the Bushings. One is to be placed in the hole of the Center Blade

and is to be held in place with the front most screw on the Shear Housing. The

other bushing is to be located below the small concave notch of the Center Blade

and is to be secured with the middle screw on the Shear Housing. Prior to assem-

bly, it is recommended to use Type 'E' Grease, No. 49-08-4122 on the following

areas: Place a dab of grease in the pivot (bushing) hole and on the bushing notch

oftheCenterBlade.PlaceadabofgreaseontherearatsoftheCenterBlade.

Coat both bushings completely with grease.

Place a liberal amount of grease on the

entire Eccentric Assembly.

Illustration shown without tool attached

for clarity of spreader wrench

placement on shear head

Prior to using the

spreader wrench,

this screw must be

loosened two turns.

Remove this screw.

Insert the end of the

spreader wrench into the bottom

rear opening of shear head assembly

as shown. Twist the wrench in a clockwise

direction (allowing the rounded cam to roll and

spread the back of the shear housing). Spreader wrench

will rotate approximately 1/4 turn and stop at next flat after cam.

To remove spreader tool, turn counter-clockwise.

Front View

REMOVING SHEAR HEAD ASSEMBLY FROM TOOL

SERVICE TOOLS:

Spreader Wrench No. 61-30-0300

for 14 Gauge Shear Head 48-08-0505

used on Shear No. 2636-20

for 18 Gauge Shear Head 48-08-0507

used on Shear 2637-20

Spreader Wrench No. 61-30-0310

for 18 Gauge Shear Head 48-08-0500

used on Shears 2635-20 and 6852-20
