WARNING
To reduce the risk of injury,
read and understand this in-
struction sheet, as well as the operators
manual packaged with your power tool, bat-
tery pack, and charger.
REPLACEMENT BLADES
LAMES DE RECHANGE
CUCHILLAS DE REEMPLAZO
IMPORTANT SAFETY
INSTRUCTIONS
READ AND SAVE THESE
INSTRUCTIONS.
Keep hands away from all cut-
ting edges and moving parts.
Laceration and amputation can
occur.
ASSEMBLY
WARNING
Always remove battery pack
before changing or removing
accessories. Only use accessories speci-
cally recommended for this tool. Others may
be hazardous.
Blades are sharp. Keep hands away from cut-
ting edge. Laceration can occur.
Changing the Blades
Replace the blades when they become chipped
or damaged. Always replace blades as a set. Use
only MILWAUKEE blades. Refer to Specications
for replacement blade numbers.
1. Pull the trigger to close the blades slightly. The
retaining rings must be exposed.
2. Remove the battery pack.
3. Use a wrench or pliers to remove the blade nut
and remove the blade bolt. Discard the blade nut.
4. Remove the retaining ring and pull out the pin
from one of the blades.
5. NOTE: Take notice of the blade orientation so
the new blades can be installed the same way.
The blades should be oriented so the at sides
contact and the bevels face away from each
other, like a pair of scissors.

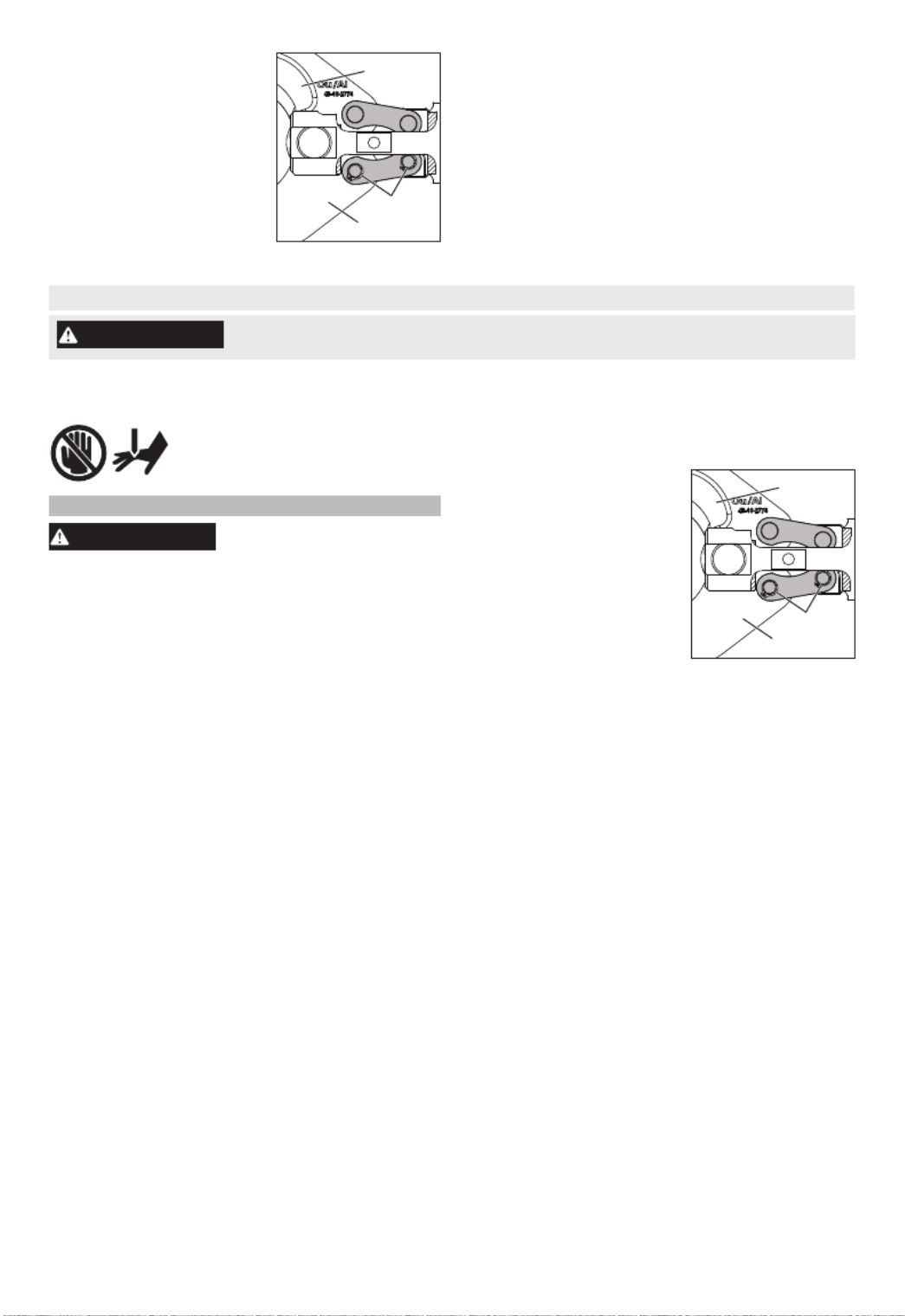

Flat side of blade
Retaining rings
Beveled side
of blade
6. Carefully remove the
blade.
7. Install the new blade in
the same orientation.
8. Slide the pin through the
blade and bracket. Re-
place the retaining ring.
NOTE: The pins must be
installed with the retain-
ing rings on the inside of
the blades, the pin heads facing outwards.
9. Repeat steps 4 to 8 for the other blade.
10. Insert the blade bolt.
11. Thread the new blade nut onto the blade bolt.
Tighten the nut to 150 in-lbs, then back it o󰀨
between 1/4 and 1/2 turn.
Cat. No. / No de cat.
49-16-2774
AVERTISSEMENT
Pour réduire le risque
de blessure, lisez et
comprenez ce manuel, ainsi que le manuel
fourni avec votre outil électrique, batterie et
chargeur.
CONSIGNES DE SÉCURITÉ
IMPORTANTES
LIRE ET CONSERVER CES
INSTRUCTIONS.
Garder les mains à l’écart des
rebords tranchants et des
pièces en mouvement. Une
lacération ou une amputation
peut se produire.
ASSEMBLÉE
AVERTISSEMENT
Il faut toujours retirer la
batterie et verrouiller la
détente de l’outil avant de changer ou d’enlever
les accessoires. L’emploi d’accessoires autres
que ceux qui sont expressément recomman-
dés pour cet outil peut comporter des risques.
Les lames sont tranchantes. Garder les mains
à l'écart du rebord tranchant. Une lacération
peut se produire.
Remplacement des lames
Remplacer les lames ébréchées ou endom-
magées. Les lames doivent toujours être rem-
placées en paires. Utiliser uniquement des lames
MILWAUKEE. Se référer aux spécications pour
les numéros de lame de remplacement.
1. Tirer la gâchette pour fermer légèrement les
lames. Les anneaux de retenue doivent être
exposés.
2. Retirer le bloc-piles.
3. Utiliser une clé ou une pince pour retirer les écrous
et les boulon des lame. Jetez l’écrou de lame.
4. Retirer l’anneau de retenue et tirer la goupille
de l’une des lames.
5. REMARQUE : Noter l’orientation des lames
pour installer les nouvelles lames de la même
façon. Les lames doivent être orientées de
façon que les côtés plats soient en contact et
les biseaux doivent faire face à l’opposé l’un
de l’autre, comme une paire de ciseaux.
6. Retirer la lame avec précaution.
NOTE: To ensure proper installation, perform a
test cut. If the blades bind when opening, loosen
the blade nut slightly until the blades no longer
bind.
