Installation

Instructions

BEFORE YOU BEGIN

Read these instructions carefully and completely.

• IMPORTANT — Save these instructions

for local inspector’s use.

• IMPORTANT — Observe all governing

codes and ordinances.

• Note to Installer – Be sure to leave these

instructions with the consumer.

• Note to Consumer – Keep these instructions for

future reference.

• Product failure due to improper installation is not

covered under the Warranty.

•

WARNING

This appliance must be properly

grounded.

• ATTENTION INSTALLER

ALL COOKTOPS MUST BE HARD WIRED

(DIRECT WIRED) INTO AN APPROVED

JUNCTION BOX. A “PLUG AND RECEPTACLE”

IS NOT PERMITTED ON THESE PRODUCTS.

• Proper installation is the responsibility of the

installer and product failure due to improper

installation is NOT covered under warranty.

30 and 36”

Electric Cooktop - Radiant

Excludes Down-Draft Models

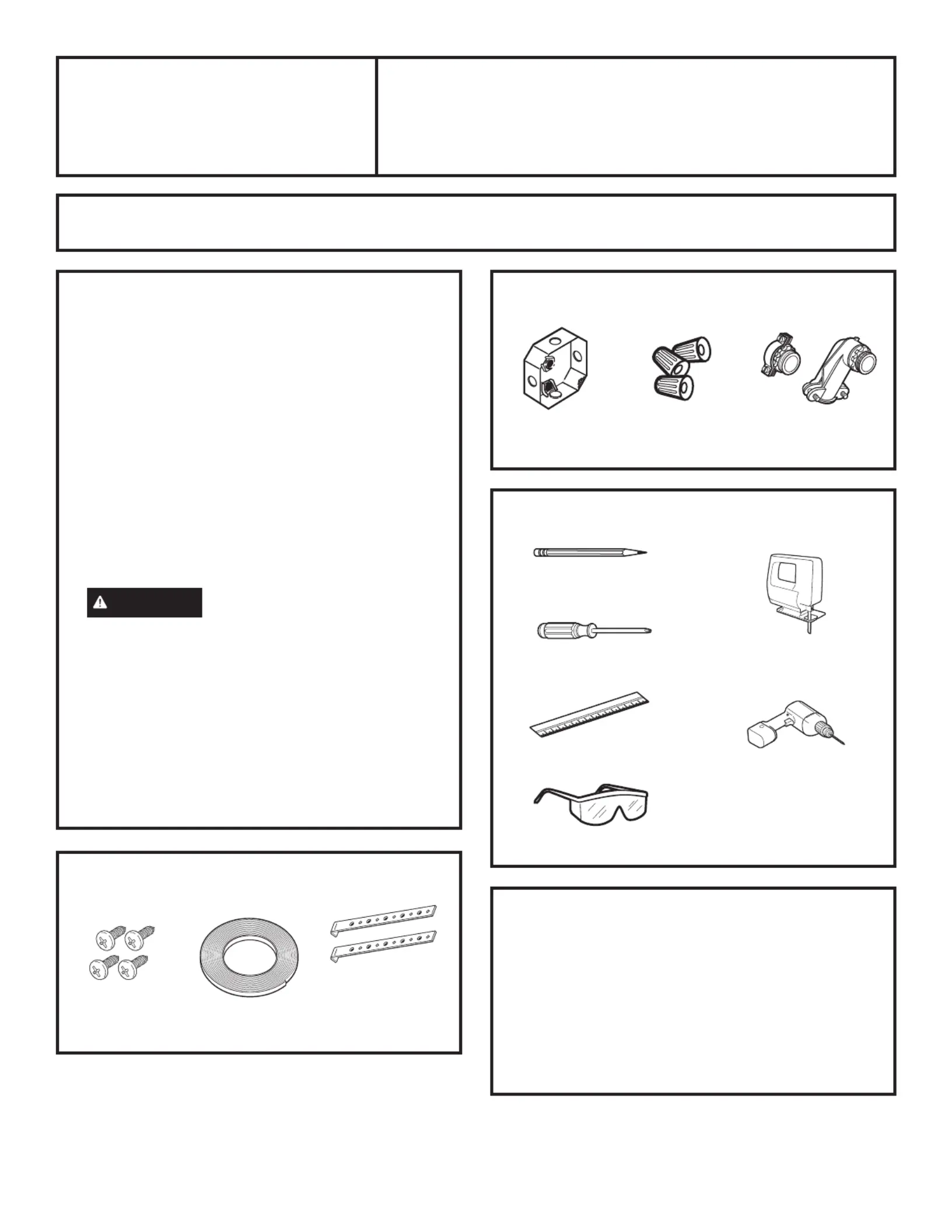

MATERIALS YOU WILL NEED

TOOLS NEEDED

CUTTING THE COUNTERTOP

If you are installing the cooktop in a solid surface

material such as granite, quartz or any other natural

or synthetic solid surface, we recommend that the

cutout be prepared by a professional cabinet or

countertop installer.

Cooktop cutouts in wood or wood-laminate

countertops may be able to be prepared using a

saber saw and electric drill.

PARTS INCLUDED

31-11072-4 01-19 GEA

Wire NutsJunction Box

Saber Saw

Pencil

Safety Glasses

1/8” Drill Bit & Electric or

Hand Drill

Ruler or Straightedge

Phillips Head

Screwdriver

2 Hold Down

Brackets

4 Screws

(WB01X1137)

Foam Tape

WB06K5042

90º or Straight

Squeeze Connector

for 1” Conduit

Questions? Call us at 1.800.432.2737 or visit GEAppliances.com.

In Canada, call 1.800.561.3344 or visit GEAppliances.ca.

231-11072-4

Installation Instructions

IMPORTANT SAFETY INSTRUCTIONS

FOR YOUR SAFETY

• For Personal Safety, remove house fuse or open

circuit breaker before beginning installation. Failure

to do so could result in serious injury or death.

• Be sure your cooktop is installed properly by a

qualified installer or service technician.

• To eliminate the risk of burns or fire due to reaching

over heated surface elements, cabinet storage

located above the surface units should be avoided.

If cabinet storage space is to be provided, the risk

can be reduced by installing a range hood that

projects horizontally a minimum of 5" beyond the

bottom of the cabinets. Cabinet installation above

the cooktop may be no deeper than 13".

• Make sure the cabinets and wall coverings around

the cooktop can withstand the temperatures (up to

200°F) generated by the cooktop.

• The cooktop should be easy to reach and lighted

with natural light during the day.

• Always disconnect the electrical service to the

cooktop before repairing or servicing the cooktop.

This can be done by disconnecting the fuse or

circuit breaker. Failure to do this could result in a

dangerous or fatal shock. Know where your main

disconnect switch is located. If you do not know,

have your electrician show you.

ELECTRICAL REQUIREMENTS

This appliance must be supplied with the proper

voltage and frequency, and connected to an individual,

properly grounded branch circuit, protected by a circuit

breaker or a time delay fuse as noted on name plate

and the chart below.

We recommend you have the electrical wiring and

hookup of your cooktop connected by a qualified

electrician. After installation, have the electrician show

you where your main cooktop disconnect is located.

Wiring must conform to National Electrical Code. You

can get a copy of the National Electrical Code, ANSI/

NFPA No. 70-Latest Edition, by writing to:

National Fire Protection Association

Batterymarch Park

Quincy, MA 02269

The cooktop conduit wiring is approved for copper

wire connection only, and if you have aluminum house

wiring, you must use special UL approved connectors

for joining copper to aluminum.

You must use a two-wire, three conductor 208/240

VAC, 60 Hertz electrical system. A white (neutral)

wire is not needed for this unit. The cooktop must be

installed in a circuit that does not exceed 125 VAC

nominal to ground.

Refer to the name plate on your cooktop for the KW

rating for your cooktop.

Use the chart below to determine the minimum

recommended dedicated circuit protection:

Name plate location

KW Rating 240v KW Rating 208V

Recommended

Circuit Size

(Dedicated)

.: .: 20 Amp

4.9 KW - 7.2 KW 4.2 KW - 6.2 KW 30 Amp

7.3 KW - 9.6 KW 6.3 KW - 8.3 KW 40 Amp

9.7 KW - 12.0 KW 8.4 KW - 10.4 KW 50 Amp
