ZGU36N4RHSS (Natural Gas)

ZGU36L4RHSS – GE Monogram 36" Professional Gas Cooktop with (Liquid Propane)

4 Burners and Grill

Speciﬁcation Revised 10/05

130444

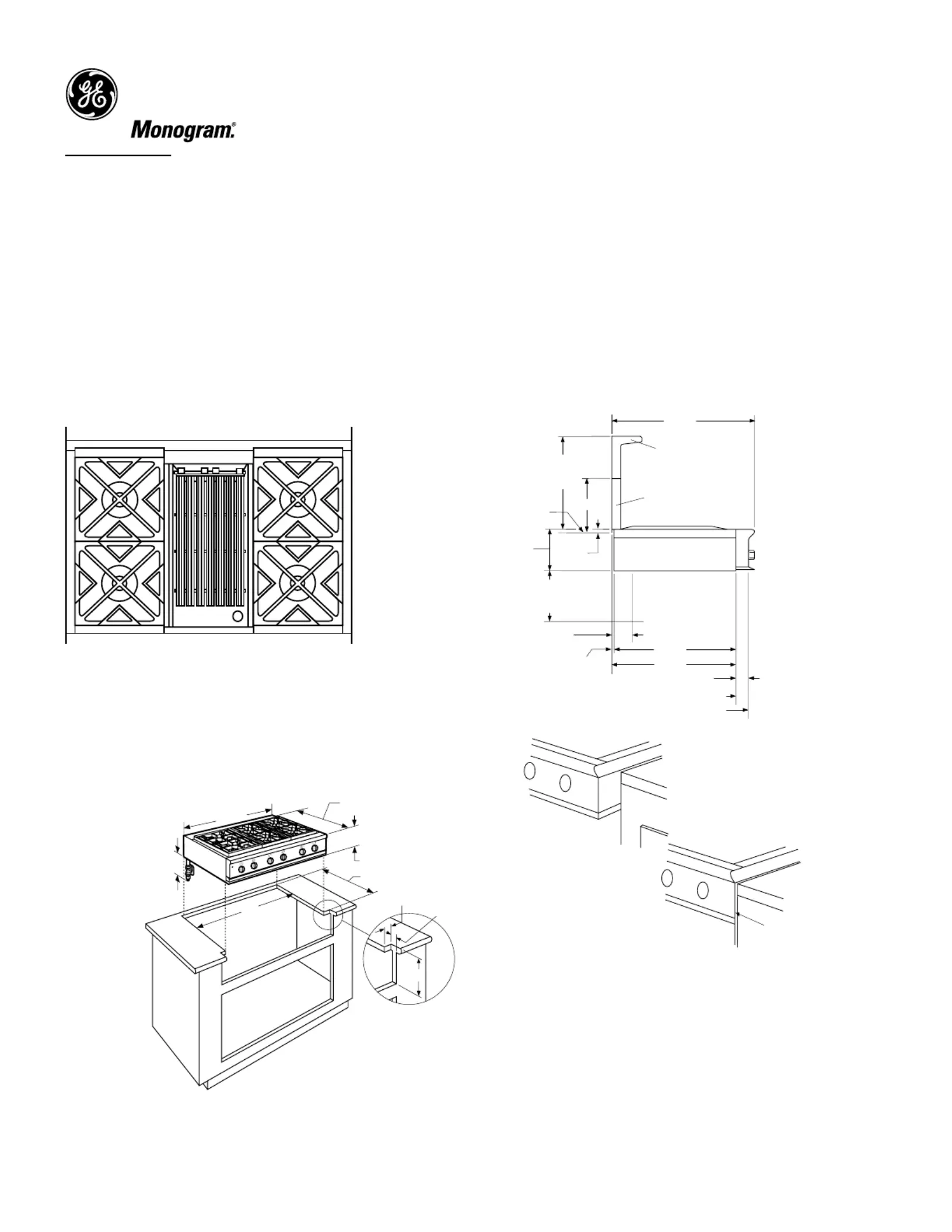

Dimensions and Speciﬁcations (in inches)

Professional cooktops offer a number of choices in size and

cooktop conﬁgurations.

For answers to your Monogram,

GE Proﬁle

™

appliance questions, visit our website at

GEAppliances.com or call GE Answer Center

service, 800.626.2000.

ZGU36N4RHSS

with 4 burners and grill (Order ZGU36L4RHSS for LP gas)

Product Dimensions and Clearance

A 36"- or 42"-wide professional vent hood with a minimum 600 CFM

is recommended for installation over this cooktop.

Install Options

• The cooktop stainless steel surface will be 1/2" higher than

adjacent countertops.

• In 24"-deep cabinets, the front of the cooktop will be

approximately 1-7/8" beyond the front of the countertop.

26-5/8"

12"

1/2"

8-7/16"

Countertop

Level

22-3/4"

23-1/4"

4" to Center Line

of Gas Inlet

on the Left

Allow Additional Clearance

Below the Burner Box for

Gas Connections

2-1/2"

Cabinet Face - Projecting Control Panel

Cabinet Face - Flush Control Panel

1/2"

12" High

Backsplash

22"

High

Back

22" High

Backsplash

with Shelf

2-1/2"

1/2"

35"

22-3/4"

og ra

NTR

26-5/8"

8-7/16"

35-7/8"

Allow Clearance

Below the Burner Box

for the Regulator and

Gas Connections

Clearances between cooktop and side

wall or combustible material must be

at least 12" on each side.

1/2" Above Adjacent

Countertops.

Front Projects Outward as Shown

From Standard Depth Cabinets.

Cooktop

NOTE: These cooktops require 8" free space below the countertop

to house the cooktop burner box. Allow additional clearances below

the burner box to install the regulator and make house gas supply

connections. Use a 90° elbow to route the gas connections and limit

interference with drawers or other cabinetry features.

1/2" Above Adjacent

Countertops.

Front Flush With Cabinets - a Minimum

of 25-3/4" Cabinet Depth Required

Flush With Cabinet Front

Cooktop

ZGU36N4RHSS (Natural Gas)

ZGU36L4RHSS – GE Monogram 36" Professional Gas Cooktop with (Liquid Propane)

4 Burners and Grill

For answers to your Monogram,

GE Proﬁle

™

appliance questions, visit our website at

GEAppliances.com or call GE Answer Center

service, 800.626.2000.

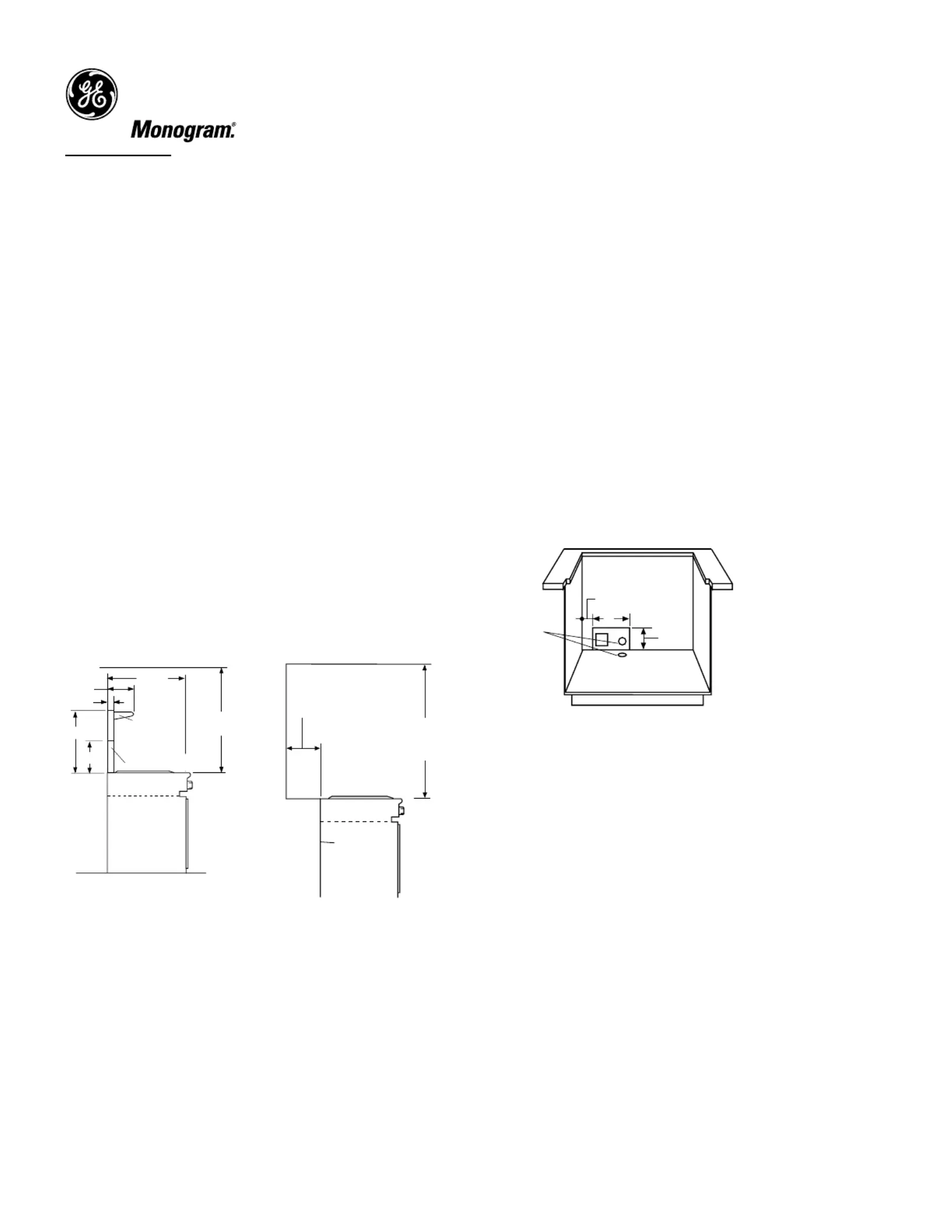

Backsplash Accessories

The cooktop requires a 12" minimum clearance to a vertical

combustible surface at the rear. A backsplash is required

for installations with less than 12" clearance. The following

backsplash accessories are available, or a custom,

non-combustible backsplash can be used.

ZX12B36HSS, 12" backsplash

ZX22B36HSS, 22" backsplash with warming shelf

Backsplash with Warming Shelf

All Monogram

Professional Hoods feature infrared warming lights.

The 22"-high backsplash accessory with warming shelf is a perfect

complement when installed with the tapered or straight-sided hoods.

• Restaurant-Style Professional Hoods are shipped with a stainless

steel backsplash and warming shelf.

Side View with a Backsplash

Advance Planning for 36"

Professional Cooktops

Professional cooktops offer a number of choices in size and cooktop

conﬁgurations.

• All Professional cooktops are factory set for natural or liquid

propane gas. The correct model should be ordered for the

installation situation.

Note: Conversion kits (WB49X10132, Nat. to LP and WB49X10133,

LP to Nat.) are available if the wrong gas type was ordered. High

Altitude kit, WB49X10130, is also available. The kits must be installed

by a qualiﬁed service technician at additional cost.

Electrical Requirements

Cooktops must be supplied with 120V, 60Hz, and connected to an

individual, properly grounded branch circuit protected by a 15 amp

circuit breaker or time-delay fuse.

Gas Supply

• Natural gas models are designed to operate at 5" water column

pressure. A regulator is required at the natural gas source to provide

maximum of 7" water pressure to the cooktop regulator.

• The liquid propane models are designed to operate at 10" water

column pressure. A regulator is required at the LP source to provide

maximum of 14" water pressure to the cooktop regulator.

Locate gas

inlet on

back wall

or on floor

2" from

back wall

16"

Speciﬁcation Revised 10/05

130444

22" High

Backsplash

with Shelf

26-5/8"

12"

36" Min.

to Combustibles

9-1/2"

3/4"

22"

12" High Backsplash

36" Min.

Combustibles

0" Clearance

12" Min. to Combustibles or

0" Min. to Combustibles

with 12" or 22" Backsplash
