31-1000410 Rev. 1 11-19 GEA

Installation

Instructions

Stainless Steel

Door Panel Kit

Before you begin - Read these instructions completely

and carefully.

Note to Installer: Be sure to leave these instructions with

the Consumer.

Note to Consumer: Keep these instructions with your

Installation Instructions for future reference.

This kit provides for the installation of the Stainless Steel Door Panel Assemblies

Tools and Materials Required:

T20 and T30 Torx driver / bits

Instructions for this kit are also included in the full installation instructions included with the unit.

WARNING

Tip Over Hazard.

These appliances are top heavy, especially with any

doors open, and must be secured to prevent tipping

forward which could result in death or serious injury.

Read and follow the entire installation instructions for

securing the appliance with the anti-tip system before

installing door panel kit.

WARNING

Door Trim Pinch Point

Hazard

Improper installation can lead to a finger pinch point

hazard between the side door trim and the cabinets

when operating the door, especially with children.

To minimize this risk you must follow the installation

instructions for cabinet dimensions, trim assembly, and

door stop angle.

ZK1SN189NLH LH 18” STAINLESS STEEL DOOR PANEL

ZK1SN184NRH RH 18” STAINLESS STEEL DOOR PANEL

ZK1SN249NLH LH 24” STAINLESS STEEL DOOR PANEL

ZK1SN244NRH RH 24” STAINLESS STEEL DOOR PANEL

ZK1SN309NLH LH 30” STAINLESS STEEL DOOR PANEL

ZK1SN304NRH RH 30” STAINLESS STEEL DOOR PANEL

ZKSP1H1CNSS MINIMALIST HANDLE FOR STAINLESS STEEL PANELS ONLY

ZKSP1H1PNSS STATEMENT HANDLE FOR STAINLESS STEEL PANELS ONLY

Installation Instructions

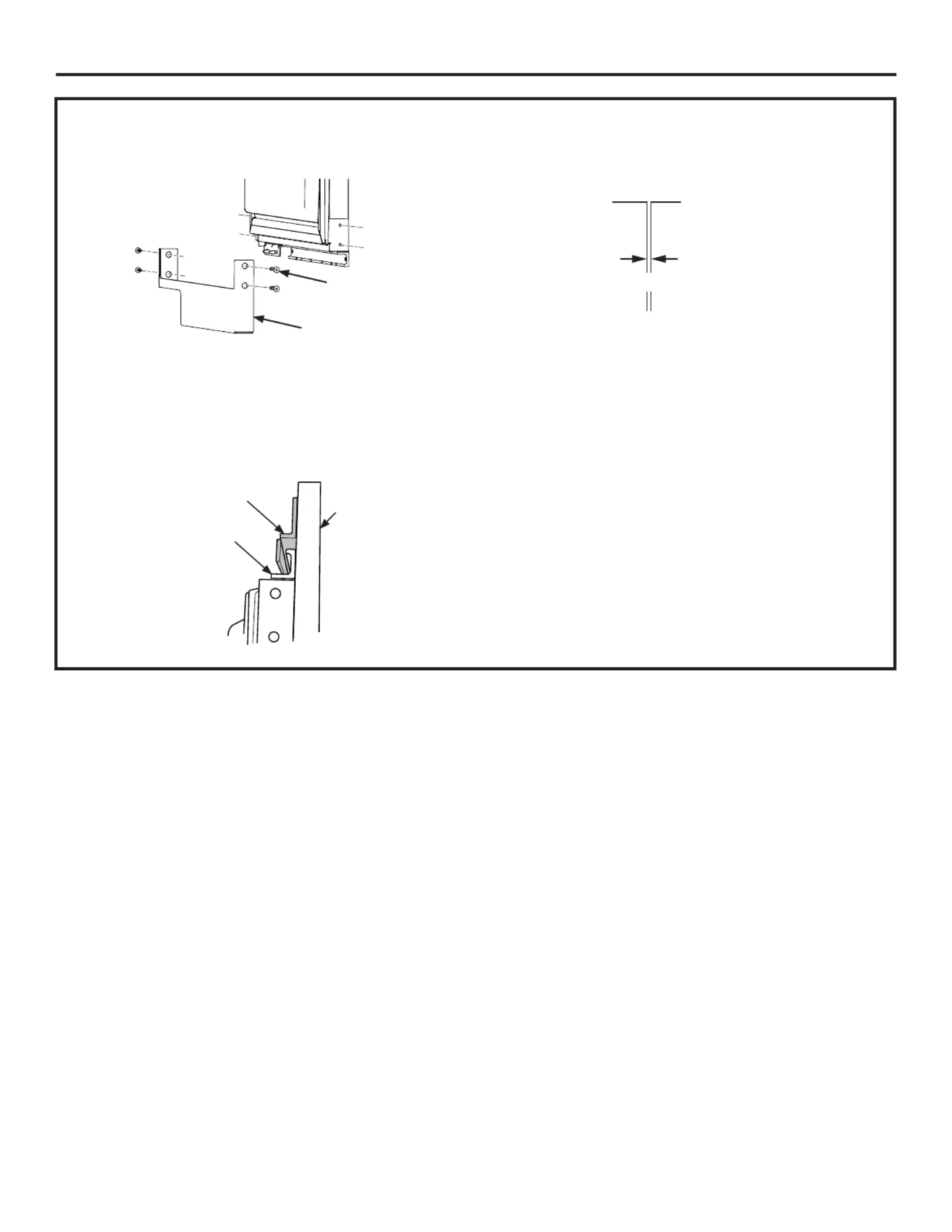

INSTALL STAINLESS PANEL

Ŷ Remove bottom hinge cover and retain the 4 T30 Torx

screws for later installation.

Ŷ Open door to 90°. Slide the panel onto the door with

the panel brackets interlocking on top and bottom with

the door brackets (make sure not to slide the panel into

the cabinetry surround). Center the panel on the door,

then slowly close the door while watching to make sure

the panel does not contact the surrounding cabinetry.

Ŷ With the door fully closed, carefully slide the panel

towards the cabinetry with the goal gap of 1/8”.

Bottom

hinge

cover

T30 Torx

screws

Door

Bracket

Panel

Bracket

Panel

1/8” gap

Cabintery

Surround

Overlay

Panel

FOLLOW THE REMAINDER OF THE STAINLESS DOOR

PANEL INSTALLATION INSTRUCTIONS IN THE UNIT

INSTALLATION INSTRUCTIONS TO ADJUST AND

SECURE THE DOOR PANEL.
