This kit provides for the installation of a unified grille panel

for a framed or overlay custom panel. The panel will span

the combined width of a side by side installation.

Completion Time: Allow approximately 2 hours to install

this kit.

IMPORTANT: 2 People are required to install this kit.

Disconnect power before you begin.

Installation

Instructions

ZKBSN720NSS - Stainless Steel

Unification Kit and

ZKBFN720NII Panel Unification Kit

CONTENTS:

DESIGN GUIDE

STANDARD INSTALLATION - Case Flush to Cabinet

with Proud Doors

The Installation Space ...................... 2

Dimensions and Clearances ................. 2

Grille Panel Dimensions .................... 3

DESIGN GUIDE

FLUSH INSTALLATION - Case Inset to Cabinet with

Flush Doors

The Installation Space ...................... 3

INSTALLATION INSTRUCTIONS

MATERIALS ................................ 4

GROUNDING THE REFRIGERATOR ............ 5

STEP 1. REMOVE PACKAGING ................ 6

STEP 2. INSTALL WATER LINES .............. 6

STEP 3. INSTALL NEW CENTER TRIM ......... 7

STEP 4. REMOVE BOTH GRILLE PANEL

FRAMES ........................... 7

STEP 5. INSTALL SIDE PANELS .............. 7

STEP 6. INSTALL ANTI-TIP BRACKET .......... 8

STEP 7. POSITION REFRIGERATOR AND

INSTALL TOP TRIM .................. 9

STEP 8. LEVEL REFRIGERATOR ............. 10

STEP 9. INSTALL ANTI-TIP BRACKET ......... 11

STEP 10. SECURE REFRIGERATOR

TO CABINETRY ................... 13

STEP 11A. INSTALL UNIFIED PANEL FRAME . . 14

STEP 11B. INSTALL STAINLESS STEEL

GRILLE PANEL .................. 15

STEP 12. INSTALL CENTER TRIM STRIP ...... 15

STEP 13. ADJUST DOOR SWING ............. 15

STEP 14. CHECK AND CORRECT DOOR

ALIGNMENT ...................... 16

STEP 15. INSTALL GRILLE BASE ............ 18

STEP 16. CONNECT WATER SUPPLY ......... 18

STEP 17. CONNECT POWER ................ 19

STEP 18A. INSTALL STAINLESS STEEL

TOEKICK ....................... 19

STEP 18B. INSTALL CUSTOM TOEKICK FOR

STANDARD INSTALLATION ........ 19

STEP 18C. INSTALL CUSTOM TOEKICK FOR

FLUSH INSET INSTALLATION ...... 19

To consult a French or Spanish version of this instruction manual, visit our Monogram.com website.

In Canada, visit Monogram.ca.

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT – Save these instructions for local inspector’s use. Observe all governing codes and ordinances.

• Note to Installer – Be sure to leave these instructions with the Consumer.

• Note to Consumer – Keep these instructions with your Owner’s Manual for future reference.

If you received a damaged unit, you should immediately contact your dealer or builder.

Skill Level – Installation of this unit requires basic mechanical, carpentry and plumbing skills. Proper installation

is the responsibility of the installer. Product failure due to improper installation is not covered under the Monogram

Warranty. See the Owner’s Manual for warranty information.

WARNING

Fire or Explosion Hazard. Keep flammable materials and vapors away from

appliance. Failure to do so can result in fire, explosion, or death.

WARNING

To reduce the risk associated with choking, do not allow children under 3 years of age to

have access to small parts during the installation of this product.

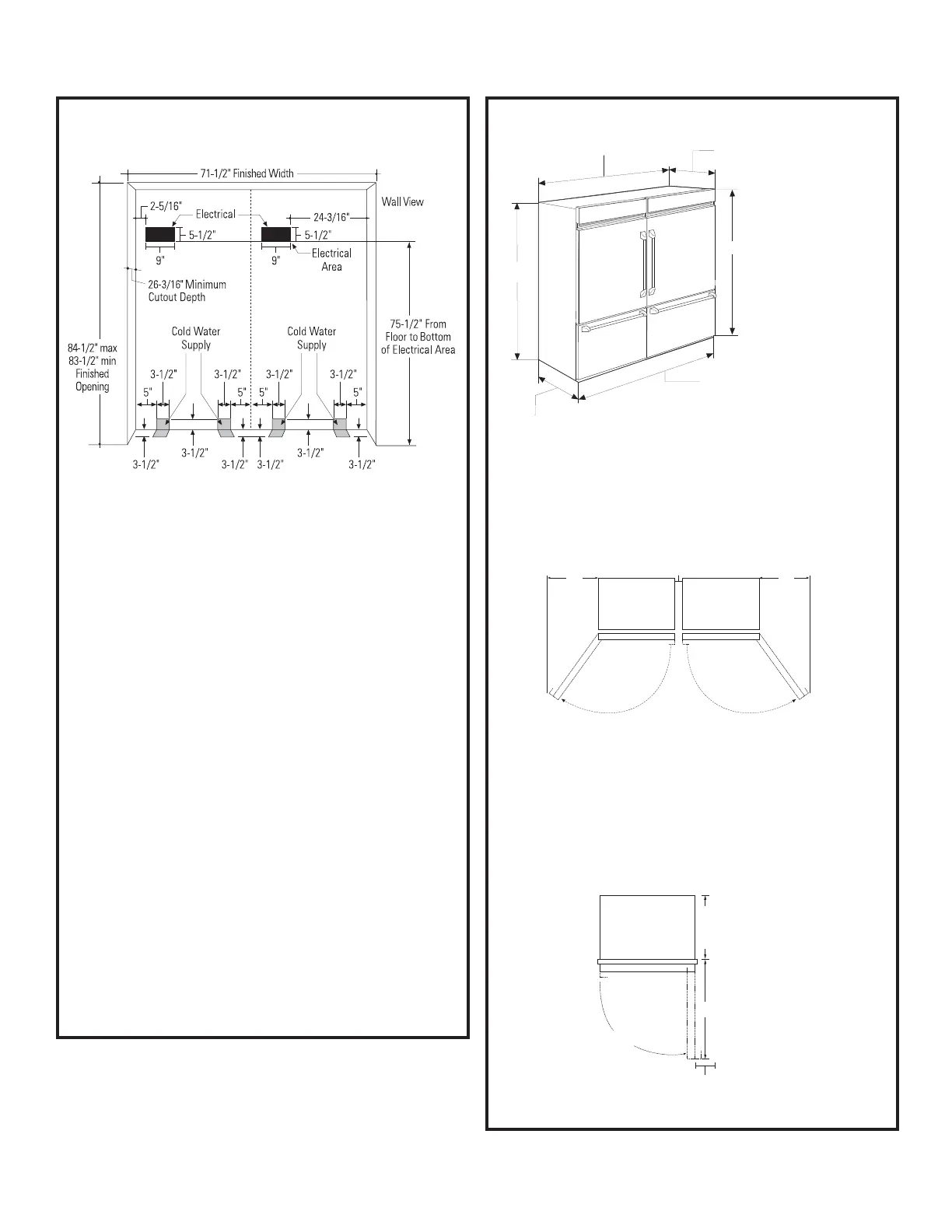

THE INSTALLATION SPACE

The installation space must be 71-1/2” wide.

Water and Electrical Locations

The water and electrical locations for each product must

be located as shown.

The cutout depth must be 24”

The refrigerator will project forward, slightly beyond

adjacent cabinetry, depending on your installation.

Cutout depth beneath a soffit:

When installed beneath a soffit, the soffit cannot exceed

the 24” installation depth shown. The top case trim

overlaps the bottom of the soffit.

Additional Specifications

ƒ A separate 115 volt, 60Hz, 15 or 20 amp power supply

is recommended for each product. An individual

properly grounded branch circuit or circuit breaker

is recommended. Install properly grounded 3-prong

electrical receptacles recessed into the back wall.

Electrical must be located on rear wall as shown.

NOTE: GFI (ground fault interrupter) is not

recommended.

ƒ Both water lines can enter the opening through the

floor or back wall. Route SmartConnect™ kit or 1/4”

O.D. copper tubing between the cold water line and

the water connection location. The tubing should be

long enough to extend t the front of the refrigerator.

Installation of an easily accessible shut-off valve in the

water line is required.

DIMENSIONS AND CLEARANCES

Product and Clearances

These refrigerators are equipped with a 3-position door

stop. The factory set 115° door swing can be adjusted

to 90° if clearance to adjacent cabinets or walls is

restricted.

Allow 25" minimum clearance for a full 130 door swing.

Allow 15" for pan removal.

5" minimum clearance is required when door swing is

adjusted to 90. If the 90 door stop position is used, pan

access is maintained, but pan removal is restricted.

See illustrations to determine door swing interaction with

adjacent cabinets or countertops.

DESIGN GUIDE - STANDARD INSTALLATION

25”

Min. to

Wall

25”

Min. to

Wall

1”

130° Door

Swing

130° Door

Swing

71-1/2"

Case Width

25-3/4"

Case Depth

28-1/2" Depth

Including Handles

72" Frame to

Frame Width

*Shipping height. The

refrigerators can be adjusted

to fit into a cutout that is

83-1/2" min. to 84-1/2" max.

Note that the top case trim

at the front is 1/2" higher and

will overlap upper cabinetry

or soffit. Use leveling legs

and wheels for a maximum

1" height adjustment.

*84"

83-1/2"

at Rear

23-7/8"

Behind

Frame

36-3/4"

4" Minimum

to Wall

90°

31-1000414 Rev. 1
