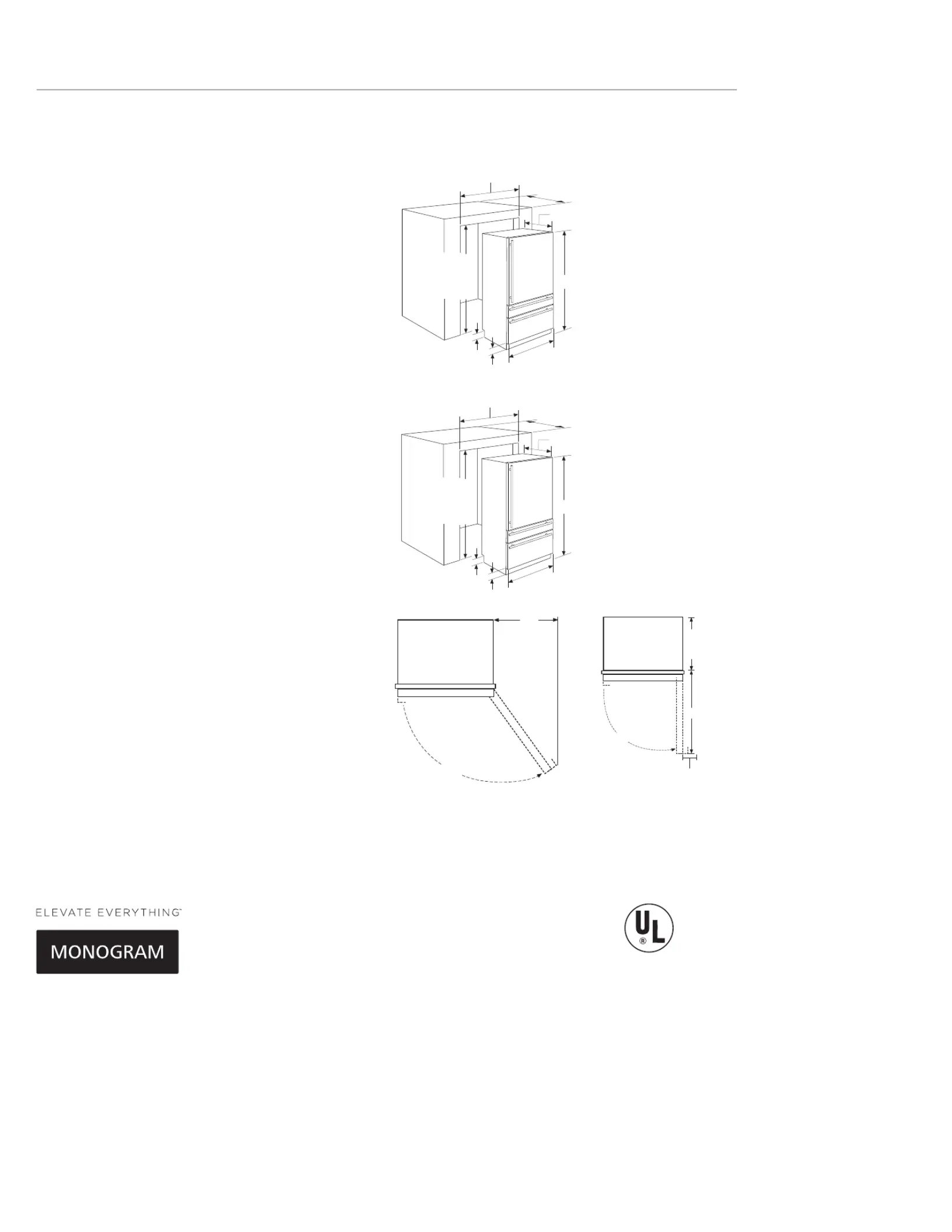

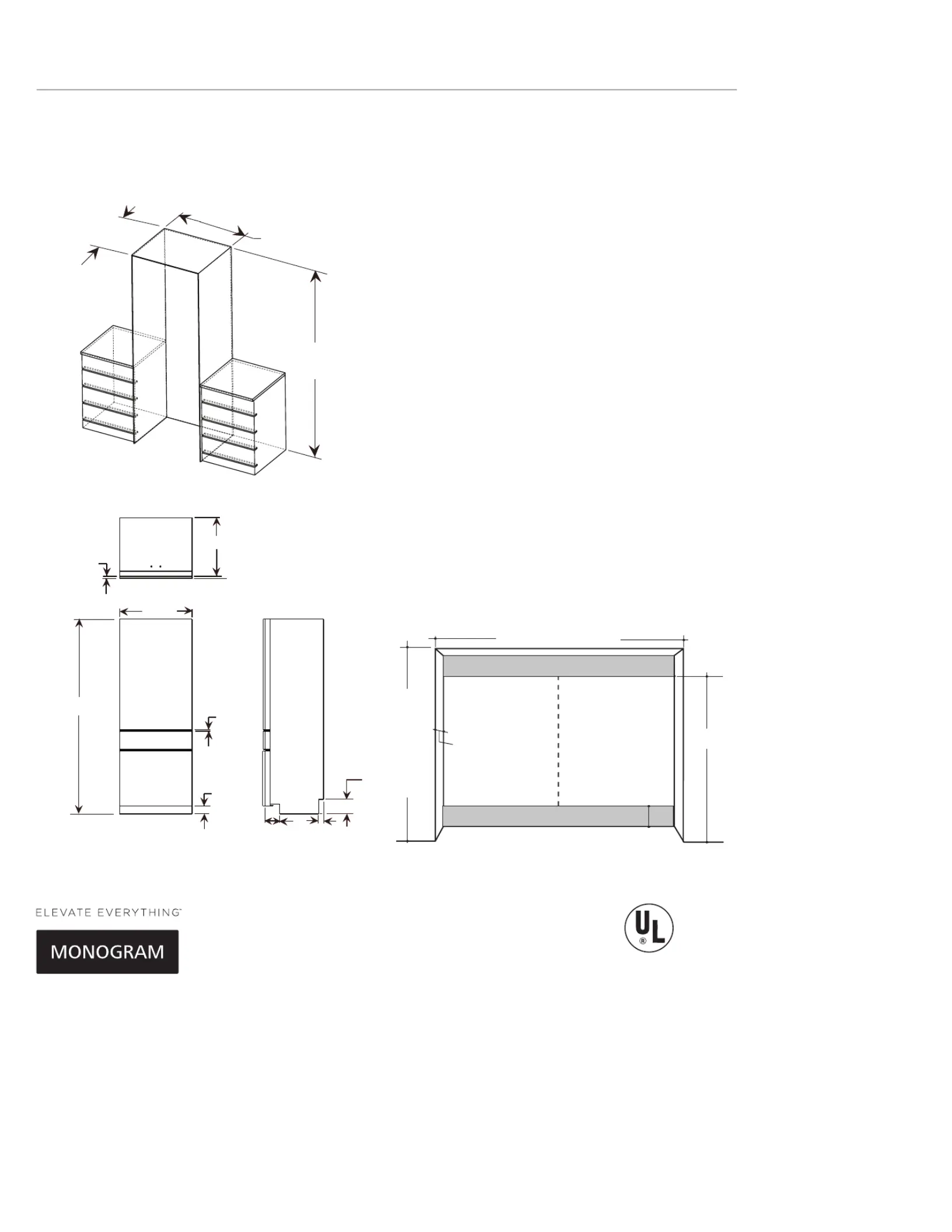

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

MONOGRAM 30" FULLY INTEGRATED CUSTOMIZABLE

REFRIGERATORS FOR DUAL INSTALLATION

ZIC30GNNII/

ZIK30GNNII

Product Speciﬁcation Revised 8/19

The Installation Space

The ﬁnished cutout width must be 30".

The cutout depth must be 25" for ﬂush installations.

- The front face of the refrigerator ﬁts ﬂush with 25"

depth adjacent cabinets.

Electrical

A 115V, 60Hz., 15 or 20 amp power supply is

required. An individual properly grounded branch

circuit or circuit breaker is recommended. Install a

properly grounded 3-prong electrical receptacle

recessed into the back wall. Electrical must be

located on rear wall as shown.

Note: GFI (ground fault interrupter) is not

recommended.

Water Line

- A cold water supply is required for automatic

icemaker operation. The water pressure must be

between 40 and 120 p.s.i.

- Route 1/4" OD copper or GE SmartConnect

™

plastic

tubing between the house cold water line and the

water connection location.

- Tubing should be long enough to extend to the

front of the refrigerator. Allow enough tubing to

accommodate a bend leading into the water line

connection.

- Water line can enter an opening through the floor or

back wall.

- Install a shut-off valve between the icemaker water

valve and cold water supply in the home.

Note: When two units are placed side

by side, order heater kit ZUG30.

60" ed Widthsh

Wall

View

84"

max

80"

min

Finished

Opening

25"min. Cutout

epth

77"

Anti-tip location do not obstruct

Water Tube & Electrical Outlet

Fini

3/4"

23-3/4"

29-3/4"

1/8"

1-1/4"

3-1/8"

Height adjustable

from 79-3/8" to 80-3/8" *

Height options

80" or * 84"

25" min. depth

30" Finished Width

Listed by

Underwriters

Laboratories

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

MONOGRAM 30" FULLY INTEGRATED CUSTOMIZABLE

REFRIGERATORS FOR DUAL INSTALLATION

ZIC30GNNII/

ZIK30GNNII

Product Speciﬁcation Revised 8/19

Customization Basics:

These refrigerators are factory set for a right hinged

door swing. The door swing is reversible. Choose

an RH model with hinge on the right side; the door

swings left to right. Choose an LH model with hinge

on the left side; the door will swing right to left.

Note:

For 84" panels, the top space behind the top panel

can be enclosed with wood and stained by the

cabinet maker to match adjacent cabinetry.

Door Handles

Custom handles of your choice, supplied by your

cabinetmaker, can be installed. If desired, you may

order the Monogram Contemporary or Pro stainless

steel handle kits for custom panels.

Optional Accessory Kits

ZUG30: For side-by-side installation

Minimalist Collection

Handle Kit: ZKGC3H3CNSS

Statement Collection

Handle Kit: ZKGC3H3PNSS

Door Swing Clearances

The installation must allow for clearances to adjacent

walls or cabinets. These refrigerators are equipped

with a 2-position door stop. The factory-set 115°

door swing can be adjusted to 90° if clearance to

adjacent cabinets or walls is restricted.

Product Dimensions

Allow 17" minimum clearances for a full 115° door swing.

- 4" minimum clearance is required when the door swing

is adjusted to 90°.

- See door swing illustrations to determine interaction

with adjacent cabinets or countertops.

17"

Min. to

Wall

115˚

115 Door Swing˚

23-7/8"

Behind

Frame

36-3/4"

90˚

90 Door Swing˚

4" Min. to Wall

30"

Finished Width

25"

Cutout Depth

29-3/4"

Case Width

* 80" High installation.

The refrigerator can

be adjusted to fit

into a cutout that

is 79-1/2" min. to

80-1/2" max. height.

Use leveling legs

and wheels for a

maximum 1" height

adjustment.

80-1/2" Max.*

79-1/2" Min.

Finished

Opening

80"*

24-3/4"

* 84" High installation.

The refrigerator can

be adjusted to fit

into a cutout that

is 83-1/2" min. to

84-1/2" max with

the appropriate door kit.

Use leveling legs

and wheels for a

maximum 1" height

adjustment.

30"

Finished Width

25"

Cutout Depth

29-3/4"

Case Width

84-1/2" Max.*

83-1/2" Min.

Finished

Opening

84"*

24-3/4"
