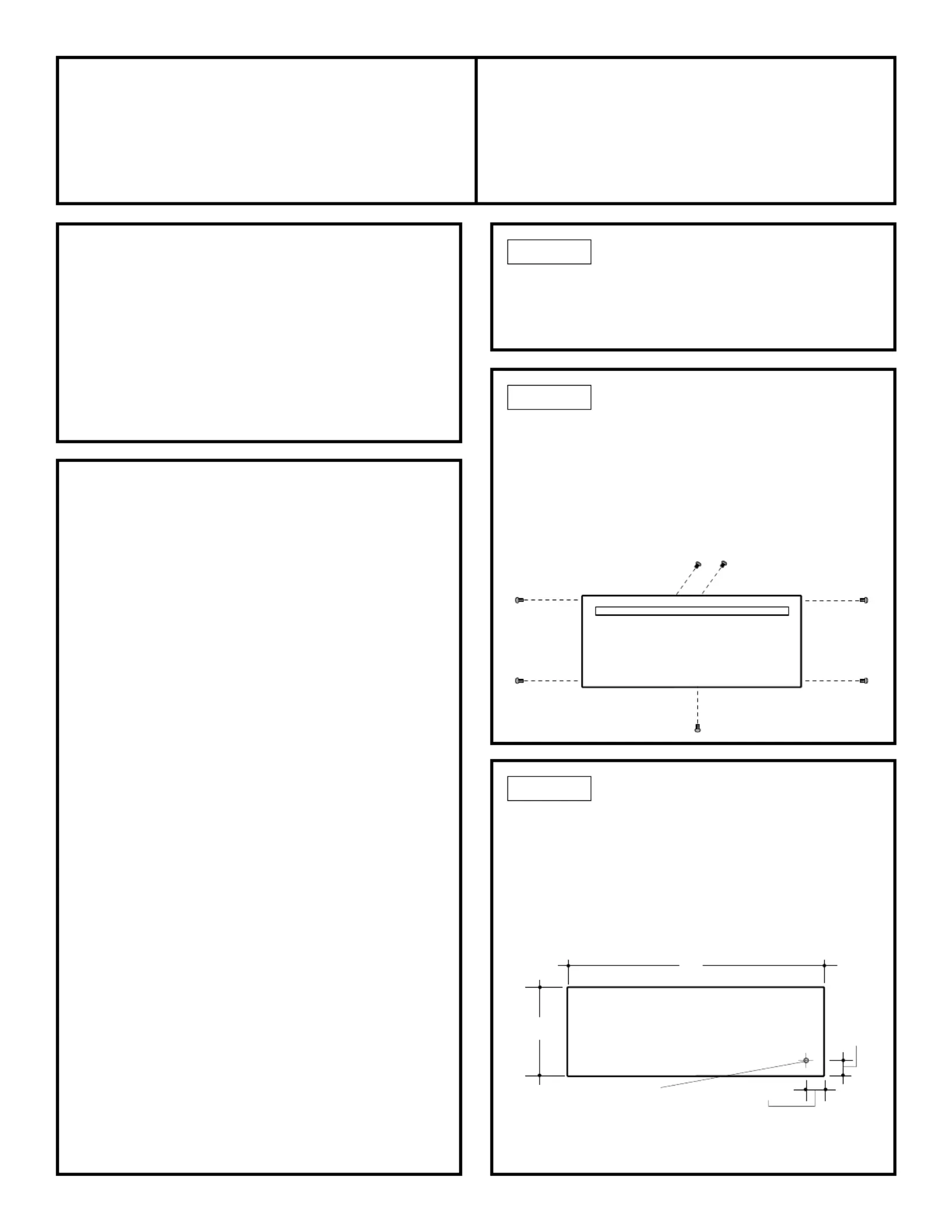

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT – Save these instructions

for local inspector’s use. Observe all governing

codes and ordinances.

• Note to Installer – Be sure to leave these

instructions with the Consumer.

• Note to Consumer – Keep these instructions with

your Owner’s Manual for future reference.

Installation

Instructions

WARMING DRAWER CUSTOM

PANEL ACCESSORY KIT

ZXD27B

ZXD30B

TOOL AND MATERIALS REQUIRED

• Phillips screwdriver

• Drill and appropriate bits

(Brad point recommended for drilling through

wood panels)

• Custom panel

• Custom handle (optional)

• Adhesive recommended for metal to wood

• Adhesive recommended for plastic to wood

PARTS SUPPLIED

• Lamp Jewel

• Metal mounting panel

This kit contains a mounting panel to support a

trimless custom drawer front up to 3/4” thick. The

tubular handle can be reinstalled onto the custom

panel with longer screws (not provided). Or, the

original handle can be replaced with a custom

handle of your choice. (Handle is not supplied.)

Choose a custom handle to match or complement

cabinetry hardware.

IMPORTANT: The warming drawer should be

installed according to the installation instructions

packed with the product. The original drawer front

will be removed and replaced with a custom panel.

• Cut edges of the drawer panel will be seen and

must be finished for best appearance.

• The custom drawer front panel, both raised and

flat design, should be constructed in the same

manner as typical cabinet doors.

• Order the custom drawer panel from the cabinet

manufacturer. Be sure to provide the exact

dimensions so that the panel is constructed

accurately.

• Order the optional custom handle to complement

or match surrounding cabinetry handles.

PREPARE DRAWER FOR

PANEL INSTALLATION

• Open the drawer fully.

• Turn the warming drawer off.

STEP 1

For installation of 27 and 30″ ″ wide

warming drawer custom panel and

custom handle.

REMOVE ORIGINAL

DRAWER FRONT

• Remove the two screws on each side and the

one screw at the bottom of the drawer edge.

• Remove the two screws on the inside of the

drawer at the top. Retain all screws.

– Support the drawer front as you remove

screws to prevent the possibility of falling.

STEP 2

PREPARE CUSTOM PANEL

• The custom panel must be sized to fit the

dimensions shown for your model.

• Drill a 5/16” diameter hole through the

appearance side of the panel. This hole will

allow the indicator “ON” light to be visible

through the custom panel. The cut edges will

be covered by the overlap of the lamp jewel.

– A Brad point drill bit is recommended.

STEP 3

10-1/2" 1-13/16"

1-3/4"

Drill 5/16" Dia.

Through Custom

Panel For Lamp Jewel

A = 26-3/4” for 27” Wide Models

A = 30” for 30” Wide Models

SECURE CUSTOM PANEL

TO METAL MOUNTING

PANEL

• Lay the custom panel, appearance side down,

on a clean surface.

• Place the flat side of the metal panel onto the

back side of the custom panel, with the

mounting flanges facing up.

• Align the lamp hole in the panel with the

mounting panel.

• Check top, bottom and side overlap dimensions

from the metal panel to wood panel edge as

shown.

STEP 4

3/16"

1/4"

7/32"

1/4" Top

Bottom

Align Holes

Handle

Attachment Holes

Pub. No. 49-8969-2

Dwg. No. 164D3333P196

977-0298-000 06-04 JR

NOTE: Product improvement is a continuing endeavor at

General Electric. Therefore, materials, appearance and

specifications are subject to change without notice.

FOR PANELS LESS THAN

3/4” THICK

• Separate the custom panel and metal panel.

• Apply a few horizontal beads of adhesive to the

metal panel. Avoid adhesive within 1” of lamp

hole area and outer edges.

FOR 3/4” (OR GREATER)

THICK PANELS

3/4” thick panels may be secured to the metal

panel with screws.

• Use the metal panel as a template. Position the

metal panel over the back side of the custom

panel and drill pilot holes. Drill pilot holes sized

to match screws being used (screws not

provided).

CAUTION: Select screw length

carefully to avoid penetration of the finished side.

STEP 5A

STEP 5

INSTALL LAMP JEWEL

Turn the assembly appearance side up.

• Use plastic to wood adhesive to secure the lamp

jewel to the front of the wood panel. On the side

with the bulge, (see illustration) apply a small

bead of adhesive around the outside edge.

Place the jewel into the drilled hole.

STEP 6

Insert

Jewel

Appearance

Side

This Side

Against

Wood

REINSTALL ORIGINAL

HANDLE OR OPTIONAL

CUSTOM HANDLE

A custom handle (not supplied) may be installed.

• Drill pilot holes through the front of the custom

panel and through the metal panel to match the

chosen handle.

NOTE: The handle screws should be installed

through the metal panel, the custom panel and

into the custom or original handle.

STEP 7

INSTALL ASSEMBLED

PANEL TO THE DRAWER

• Install the custom panel assembly to the exposed

drawer front using the original 7 screws.

STEP 8

Custom Handle

or Original Handle

Back side of Appearance Panel with Support Panel
