OnCell G3100 Series

Quick Installation Guide

Second Edition, September 2008

1. Overview

There are currently four models in the OnCell G3100 series of

IP-modems: the OnCell G3110, OnCell G3150, OnCell G3110-HSDPA,

and OnCell G3150-HSDPA. The main difference between the models is

the serial interface type. The OnCell G3100 industrial RS-232,

RS-232/422/485 GSM/GPRS/EDGE, or UMTS/HSDPA IP modems are

some of the most affordable, secure, and versatile products available in

the cellular networking market today. These modems also provide remote

access and TCP/IP support, and can be configured over a network.

2. Package Checklist

Before Installing the OnCell G3100 IP modem, verify that the package

contains the following items:

Standard Accessories

y Document & Software CD

y Omni 1 dBi rubber SMA antenna (OnCell G3100 model name:

ANT-CQB-O-1; OnCell G3100-HSDPA model name:

ANT-WCDMA-O-1.5 BK)

y Din-Rail Kit

y 5-pin terminal block (screw type)

y 10-pin terminal block (screw type)

y Product warranty statement

y Quick Installation Guide

Optional Accessories

y Power Adaptor: 1.2 A (or above) @ 12V

y DC power supply

y Power jack to terminal block cable

y Quad-band GSM/GPRS/EDGE antennas for OnCell G3110/G3150

series (impedance = 50 ohms):

ANT-CQB-O-0-3m: Omni 0dBi/10cm, magnetic SMA antenna, 3 m

ANT-CQB-O-3-3m: Omni 3dBi/25cm, magnetic SMA antenna, 3 m

ANT-CQB-O-5-3m: Omni 5dBi/37cm, magnetic SMA antenna, 3 m

Note: Please notify your sales representative if any of the above items are

missing or damaged.

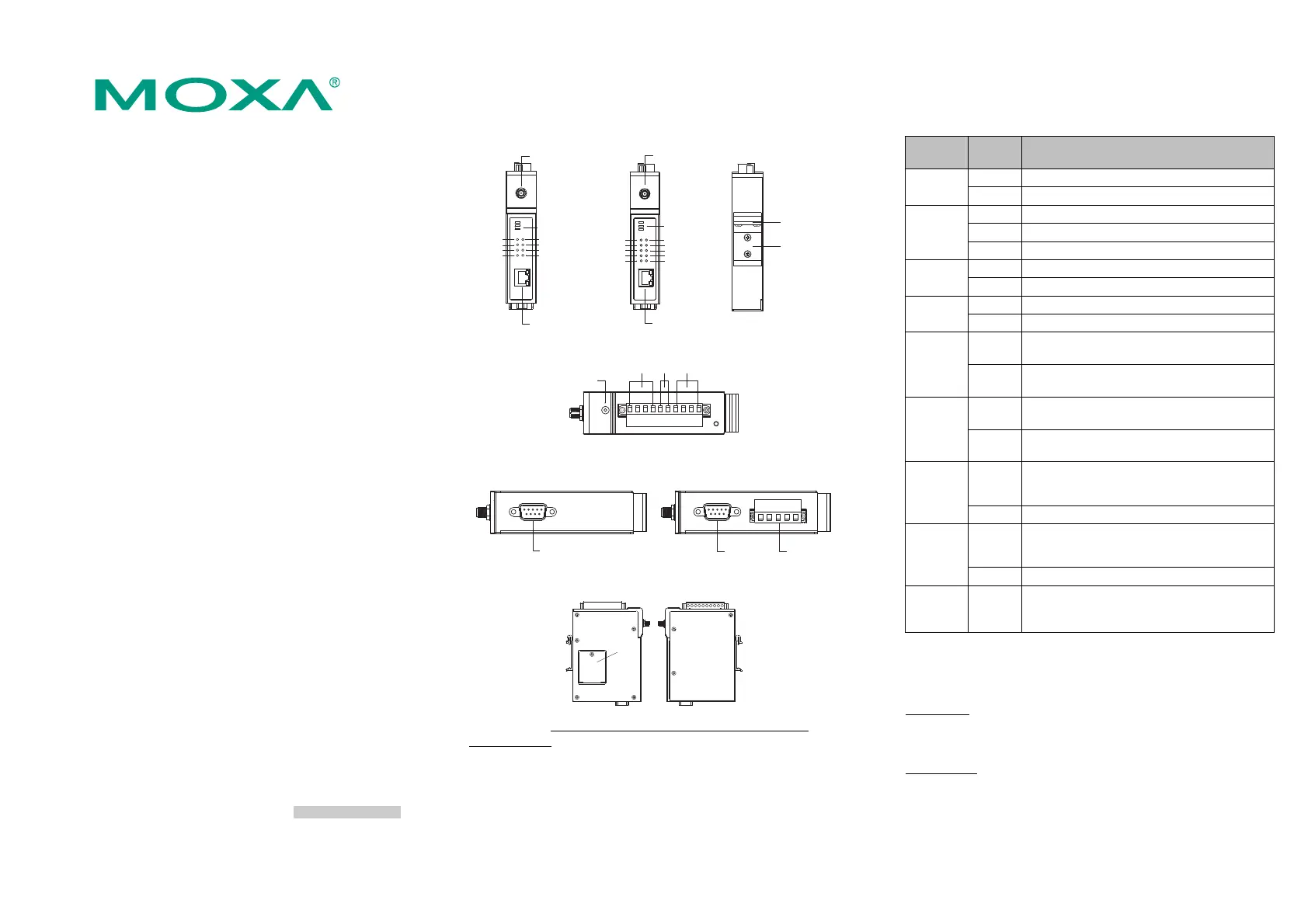

3. Hardware Introduction

Front View Rear View

OnCell G3110/G3150

OnCell G3110-HSDPA/

G3150-HSDPA

SIGNAL

PWR 2

FAULT

GPRS

PWR 1

READY

GSM

Ethernet

SMA Bulkhead Jack

SIGNAL

PWR 2

FAULT

GPRS

PWR 1

READY

GSM

UMTS

HSDPA

Ethernet

SMA Bulkhead Jack

DIN-rail Support

Matel Springs

Top View

PWR 2/PWR 1DI 2/DI 1 Relay

RESET

Bottom Views

OnCell G3110/G3110-HSDPA OnCell G3150/G3150-HSDPA

RS-232

RS-232 RS-422/485

Side Views

SIM card Cover

Left Side

Right Side

Reset Button—Press the Rest button continuously for 5 sec to load

factory defaults: Use a pointed object, such as a straightened paper clip or

toothpick, to press the reset button. This will cause the Ready LED to

blink on and off. The factory defaults will be loaded once the Ready LED

stops blinking (after about 5 seconds). At this point, you should release

the reset button (the default IP is 192.168.127.254).

LED Indicators

The LED indicators on the front panel of the OnCell G3100 are described

in the following table.

LED

Name

LED

Color

LED Function

Green DC Power is active

Power

Off Power is off, or power error condition exists.

Green Serial Tx

Amber Serial Rx

Data

Off Ethernet cable is disconnected.

Amber GSM is connected.

GSM

Off GSM is disconnected.

Amber GPRS is connected.

GRPS

Off GPRS is disconnected.

Amber

UMTS is connected.

(OnCell G3100-HSDPA only)

UMTS

Off

UMTS is disconnected.

(OnCell G3100-HSDPA only)

Amber

HSDPA is connected.

(OnCell G3100-HSDPA only)

HSDPA

off

HSDPA is disconnected.

(OnCell G3100-HSDPA only)

Green

Steady on: Software Ready.

Blinking slowly (1 sec): The OnCell has been

located by the OnCell Search Utility.

Ready

Off Power is off, or is booting up.

Red

Steady on: Booting up, or IP fault.

Blinking slowly (1 sec): Cannot get an IP address

from the DHCP server

Fault

Off Power is off, or there is no error condition.

Signal

(3 LEDs)

Green

Number of lit LEDs indicates signal level

(at least 2 LEDs must illuminated for data

transmission)

Digital Input and Output

Six terminals on the terminal block are reserved for the I/O ports, with 2

terminals used for each input, and 2 terminals used for each output.

Digital Input

—Digital ON and OFF determine which power input is used:

DIN OFF: 0 to 3.3 VDC

DIN ON: 10 to 48 VDC (DI COM to DI)

Digital Output

—The default for the relay output (DOUT) is open,

indicating a normal condition. If the relay output (DOUT) is shorted, it

indicates an exception.

P/N: 1802031000011

Produkt Specifikationer

Mærke:	Moxa
Kategori:	Ikke kategoriseret
Model:	OnCell G3110
Vægt:	440 g
Datanetværk:	EDGE, GPRS, GSM
Opbevaringstemperatur (T-T):	-40 - 75 °C
Relativ luftfugtighed ved drift (H-H):	5 - 95 %
Ethernet LAN-porte (RJ-45):	1
Driftstemperatur (T-T):	-30 - 55 °C
Ethernet LAN-datahastigheder:	10, 100 Mbit/s
Husmateriale:	Aluminium
Dimensioner (BxDxH):	28 x 93 x 126 mm
Certificering:	CE, FCC, EN
Portvideresendelse:	Ja
Understøttede netværksprotokoller:	SNMP MIB-II, SNMP Private MIB, SNMPv1/v2c/v3, DDNS, IP Report, Web/Telnet/Serial-Console/SSH
Firewall:	Ja
IP-adresse filtrering:	Ja
Indgangsspænding:	12 - 48 V
Kompatible operativsystemer:	Windows 95/98/ME/NT/2000\nWindows XP (32/64-bit)\nWindows 2003 (32/64-bit)\nWindows Vista (32/64-bit)\nWindows Server 2008 (32/64-bit)\nSCO Unix\nSCO OpenServer 5/6\nUnixWare 7\nSVR4.2\nQNX 4.25/6\nSolaris 10\nFreeBSD 5/6\nLinux 2.2.x, 2.4.x, 2.6.x
Enhedstype:	Cellulær netværks gateway
Montering:	DIN-skinne
Gennemsnitstid mellem fejl (MTBF):	339045 t
Isolering:	1.5 kV
Auto MDI/MDI-X:	Ja
Administrationsprotokoller:	SNMP MIB-II, SNMP Private MIB, SNMPv1/v2c/v3, DDNS, IP
Seriel grænsefladetype:	RS-232
Niveau for antennestyrke (maks.):	0 dBi
Antal serielle porte:	1
Baud hastighed:	0.05 Kbit/s
Data-bits:	5, 6,7, 8
RS-232 signaler:	CTS, DCD, DSR, DTR, GND, RTS, Rx, Tx
Sikkerhed:	UL60950-1
Overspændingsbeskyttelse:	2 kV
Antennestik type:	SMA
EDGE multislot klasse:	12
GPRS multislot klasse:	12
Understøttede GSM-bånd:	850,900,1800,1900 MHz
Netværk adresse-oversættelse (NAT):	Ja
Antal SIM kort:	1
Elektrostatisk afladning association (ESD):	15 kV
GPRS kodningssystemer:	CS1, CS2, CS3, CS4
SIM-grænseflade:	3 V
