Operating Manual
MUTEC GmbH · Fon 0049-(0)30-74 68 80-0 · contact@mutec-net.com · www.mutec-net.com
3
Content
Safety Instructions ..................................................................................................................................................................... 4
Warranty Regulations ................................................................................................................................................................ 5
Introduction
General Description ...................................................................................................................................................................... 6
MC-3+ Features ............................................................................................................................................................................ 6
MC-3+ Applications ...................................................................................................................................................................... 6
Peripheral MUTEC Products .......................................................................................................................................................... 7
Product Registration for Warranty and Support ............................................................................................................................ 7
Installation
Content of the Box ........................................................................................................................................................................ 8
Placing the Device ......................................................................................................................................................................... 8
Wiring the Interfaces ..................................................................................................................................................................... 8
General Recommendations for Interface Wirings & Cables ........................................................................................................... 9
Control Elements and Terminals
MC-3+ Front Panel ..................................................................................................................................................................... 10
MC-3+ Rear Panel ...................................................................................................................................................................... 11
Operation
General System Operation .......................................................................................................................................................... 12
Operation of the MC-3+ ............................................................................................................................................................. 12
Status Information ...................................................................................................................................................................... 16
Generic Functions ....................................................................................................................................................................... 17
Appendix
Pin Assignment of the Connectors .............................................................................................................................................. 18

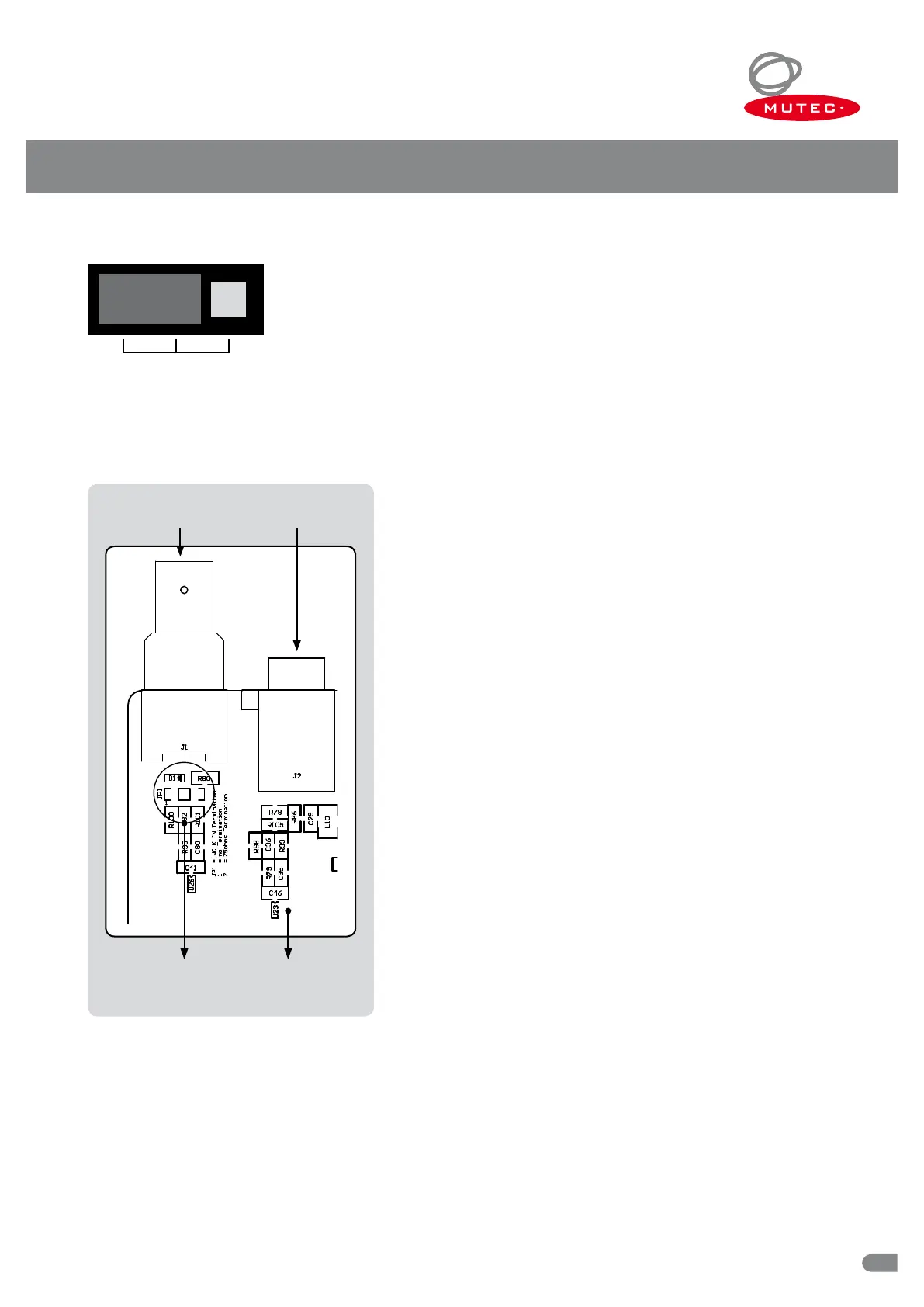

Switching off the Termination of the Word Clock Input ............................................................................................................... 18
Technical Data ............................................................................................................................................................................. 20
Generatable Word Clock (WCLK) Frequencies ............................................................................................................................. 21
Generatable AES11 & S/P-DIF blank frame Frequencies .............................................................................................................. 21
4
Safety Instructions
General Instructions
To reduce the risk of fire or electrical shock, do not expose this appliance to rain or moisture,
direct sunlight or excessive heat from sources such as radiators or spotlights. No user service-
able parts are inside. Repair and maintenance must be carried out by qualified personnel au-
thorized by MUTEC GmbH! The unit has been designed for operation in a standard domestic
environment. Do NOT expose the unit and its accessories to rain, moisture, direct sunlight or
excessive heat produced by such heat sources as radiators or spotlights! The free flow of air
inside and around the unit must always be ensured.
Initial Operation
Prior to the initial operation of the unit, the appliance, its accessories and packaging must
be inspected for any signs of physical damage that may have occurred during transit. If the
unit has been damaged mechanically or if liquids have been spilled inside the enclosure, the
appliance may not be connected to the mains or must be disconnected from the mains im-
mediately! If the unit is damaged, please do NOT return it to MUTEC GmbH, but notify your
dealer and the shipping company immediately, otherwise claims for damage or replacement
may not be granted.
If the device is left in a low-temperature environment for a long time and then is moved to
a room-temperature environment, condensation may occur on the inside and the exterior.
To avoid short-circuits and flashovers, be sure to wait one or two hours before putting the
device into operation.
Power Supply
The device contains a self-adapting wide-range power supply supporting the majority
of global standard line voltages within a range of 90…250 V, with no need for making
adjustments. Make sure that your line-voltage source provides a supply voltage within the
specified range. In addition, make sure that the device is properly grounded via the local
electric installation.
Please use the enclosed power cord (see packaging) to connect the unit to the mains. Switch
the unit off before you attempt to connect it to the mains. Connect the power cord to the
unit, then to a standard 3-pin mains outlet. To draw the power cord, never pull on the cable
but on the mains plug!
The unit must be grounded during operation!
For information on the power-inlet wiring, refer to the »Wiring of connectors« section in the
appendix. Disconnect the device from the mains when not using it for an extended period!
Trademarks
MUTEC GmbH assumes no liability for any incorrect information given in this manual. Please
note that all software/hardware product names are registered trademarks of their respective
owners. No part of this manual may be reproduced, copied or converted to a machine-reada-
ble form or electronical media without a written permission of MUTEC GmbH. We reserve the
right to change or improve our products without notice. © MUTEC GmbH 2013
This symbol, a flash of lightning inside a triangle,
alerts you to the presence of uninsulated dangerous
voltage inside the enclosure - voltage that may be
sufficient to constitute a risk of shock.
This symbol, an exclamation mark inside a triangle,
alerts you to important operating or safety instruc-
tions in this manual.
Declaration of Conformity
We herewith confirm that the product complies with the
European Commission’s standards on electromagnetic
compatibility.
Interference emission: EN 50081-1, 1992
Resistance to interference: EN 50082-1, 1992
Presupposed as operation condition is that all clock outputs are
connected with high-quality and good shielded BNC 75 ohms
cable.
!
RISK OF
ELECTRICAL SHOCK!
CAUTION
!
5
Warranty Regulations
§1 Warranty
MUTEC GmbH warrants the flawless performance of this product to the original buyer for a period of two (2) years from the date of purchase. If any failure
occurs within the specified warranty period that is caused by defects in material and/or workmanship, MUTEC GmbH shall either repair or replace the product
free of charge within 90 days. The purchaser is not entitled to claim an inspection of the device free of charge during the warranty period. If the warranty claim
proves to be justified, the product will be returned freight prepaid by MUTEC GmbH within Germany. Outside Germany, the product will be returned with the
additional international freight charges payable by the customer. Warranty claims other than those indicated above are expressly excluded.
§2 Warranty Transferability
This warranty is extended exclusively to the original buyer who bought the product from a MUTEC GmbH specialized dealer or distributor, and is not transfer-
able to anyone who may subsequently purchase this product. No other person (retail dealer, distributor, etc.) shall be entitled to give any warranty promise on
behalf of MUTEC GmbH.
§3 Waranty Regulations
The return of the completed registration card, or online registration on one of the websites specified below, is a condition of warranty. Failing to register the
device before returning it for repair will void the extended warranty.
The serial number on the returned device must match the one stated on the registration card or entered during online registration. Otherwise, the device
will be returned to the sender at the sender’s expense.
Any returned device must be accompanied by a detailed error description and a copy of the original sales receipt issued by a MUTEC dealer or distributor.
The device must be returned free of shipping expenses and in the original package, if possible; otherwise, the sender has to provide comparably protective
packaging.
The sender is fully responsible for any damage or loss of the product when shipping it to MUTEC GmbH.
§4 Limitation of Warranty
Damages caused by the following conditions are not covered by this warranty:
Damages caused by every kind of normal wear and tear (e.g. displays, LEDs, potentiometers, faders, switches, buttons, connecting elements, printed
labels, cover glasses, cover prints, and similar parts).
Functional failure of the product caused by improper installation (please observe CMOS components handling instructions!), neglect or misuse of
the product, e.g. failure to operate the unit in compliance with the instructions given in the user or service manuals.
Damage caused by any form of external mechanical impact or modification.
Damage caused by the user’s failure to connect and operate the unit in compliance with local safety regulations.
Damage caused by force majeure (fire, explosion, flood, lightning, war, vandalism, etc.).
Consequential damages or defects in products from other manufacturers as well as any costs resulting from a loss of production.
Repairs carried out by personnel which is not authorized from MUTEC GmH
§5 Repairs
To obtain warranty service, the buyer must call or write to MUTEC GmbH before returning the unit. All inquiries must be accompanied by a description of
the problem and the original buyer’s invoice. Devices shipped to MUTEC GmbH for repair without prior notice will be returned to the sender at the sender’s
expense. In case of a functional failure please contact:
MUTEC Gesellschaft fuer Systementwicklung und Komponentenvertrieb mbH
Siekeweg 6/8 • 12309 Berlin • Germany • Fon 030-746880-0 • Fax 030-746880-99 • tecsupport@mutec-net.com • www.mutec-net.com
6
Introduction
Thank you very much for buying the MC-3+ Smart Clock, a Synchronizable Digital Audio Master Clock Generator, from MUTEC!
General Description
The new MUTEC MC-3+ Smart Clock is especially designed to improve the acoustical quality of digital audio devices in two
ways: At first by clocking external devices with ultra-low jitter Word Clock signals and secondly by aggressively re-clocking
incoming digital audio signals. Therefore, we have developed a totally new clocking technology, which we are calling the
»MUTEC 1G-Clock«. That means in practice, we are running – for the first time in the audio industry – an audio clock synthesis
process with a basis clock rate in the gigahertz area! Together with new ultra-low noise power supplies and new PCB design
rules aligned to high-speed communication technologies, the MUTEC 1G-Clock brings jitter and electrical noise down to unique
low levels, which leads to unprecedented transparency in your audio recordings.
Also working as a clock distributor and unlike other products, the MC-3+ effectively regenerates incoming clock signals to
higher purity as the signal source. Thus, the MC-3+ enables to improve already existing clock systems and helps to raise the
standard of sound reproduction in every studio environment.
Additionally, the MC-3+ Smart Clock locks to so-called atomic clocks or GPS receivers to raise its timing accuracy to the
highest possible level. For use during live events or in mobile trucks, the MC-3+ features an anytime fail-safe clock generation
in every operation mode. Entering the hold-over mode and re-synchronization of returning clock references is carried out so
smoothly that live recordings surely will not affected.
The new MUTEC MC-3+ Smart Clock and its unique 1G-Clock Technology add with most aggressive jitter reduction a significant
improvement in sound to most studio set-ups, while ensuring flawless synchronization of connected devices at any time!
MC-3+ Features
Incorporates MUTEC’s unique 1G-Clock Technology for lowest jitter possible
Improves audiophile quality of any connected digital audio device
Re-clocks digital audio most aggressively
Offers unique externally-referenced audio re-clocking
Raises clearly audible the sound quality of most DA converters
Eliminates digital “Clicks and Pops”
Enhances existing master clocks
Digitally-compensated clock accuracy for highest precision of the generated clocks
Locks to 10.0 MHz clock references of so-called Atomic clocks or GPS receivers
Outputs clock signals fail-safe in any state of operation
Generates Word Clocks, Super Clocks, AES3 + S/P-DIF blanks simultaneously
Converts between AES3 and S/P-DIF as well as between AES11 and Word Clock
New-designed, simple user interface
Front panel lock-out for preventing misuse
Rack-space-saving 9.5“ housing
Built-in, international power supply
Available with aluminum- or black-colored front panel
MC-3+ Applications
Audiophile sound improvement of digital audio devices
Elimination of »clicks and pops« in audio recordings
Enhancing and stabilization of existing clock chains
Stellate, ultra-low jitter clock signal supply
Addition of redundancy to clock chains in use
10
Control Elements and Terminals

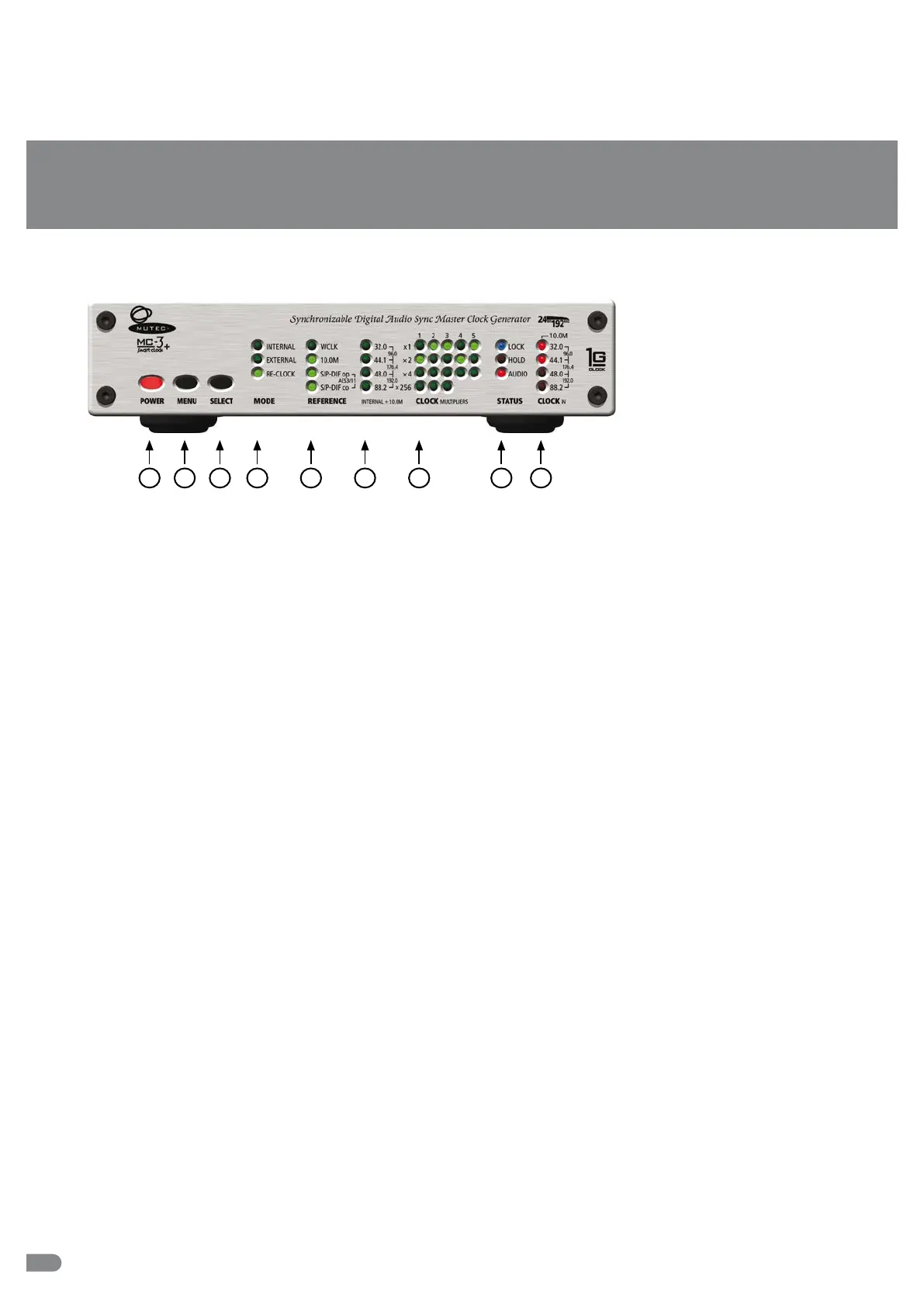

MC-3+ Front Panel
432 51 6 7
1 »POWER«
This red LED lights up when the unit is switched on with the rear panel power switch.
2 »MENU«
Use this key to access the different menus.
3 »SELECT«
Use this key to select a function within a specific menu.
4 »MODE«
This function menu allows to select the clock references for internal and external synchronization as well as the reference for
externally-referenced digital audio re-clocking. All three LED rows act in functional dependence.
5 »REFERENCE
INTERNAL + 10.0M«
This function menu allows to select the clock references for internal or external synchronization and the reference for synchro-
nous and asynchronous digital audio re-clocking.
6 »CLOCK
MULTIPLIERS«
This function menu lets you determine the factor by which the basis clock rate is multiplied additionally. Settings can be made
individually for every pair of Word Clock outputs (»1-3«) as well as for the AES3 (»5«) and S/P-DIF (»4«) outputs.
7 »STATUS«
This menu indicates various signal status of the incoming reference clock or digital audio signal.
8 »CLOCK
IN«
This menu indicates the clock rates of the incoming reference clock or digital audio signal.
7 7
11

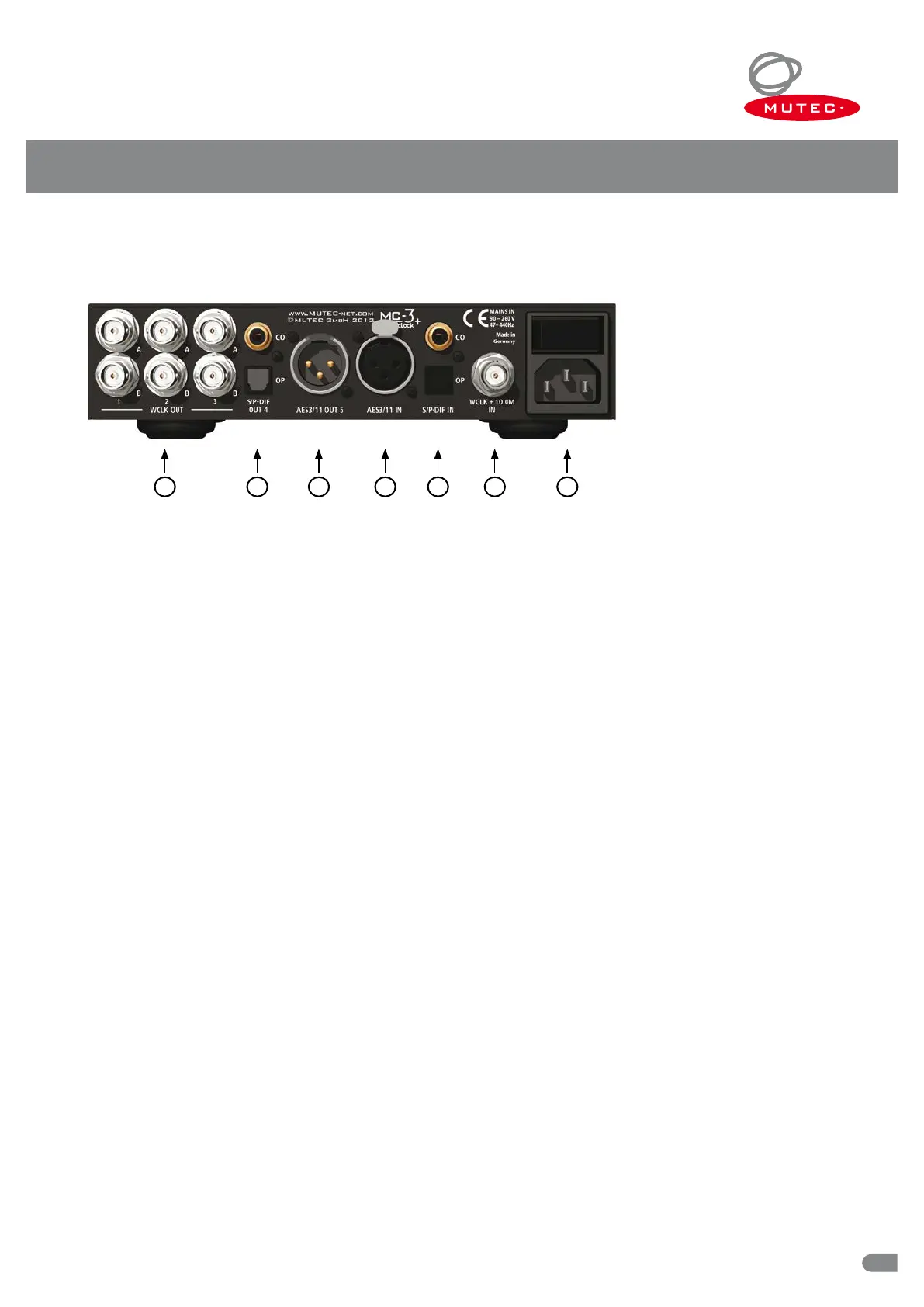

Control Elements and Terminals
432 51 6 7
1 »WCLK OUT 1
–
3«
These 3 pairs of Word Clock outputs transfer all standard Word Clock rates and Word Clock
×
256 for older digidesign Pro-
Tools™ systems. Their numbering is aligned to the apropriate menus on the front panel. The individual BNC connectors are
pairwise marked as »A« and »B«, which allows for, e.g. simple documentation of the connected devices. The impedances of all
connectors are 75 Ω (BNC connectors, female).
2 »S/P-DIF OUT 4«
These two S/P-DIF outputs, available as optical and coaxial interfaces, transmit an optical (»OP«) and unbalanced electrical
(»CO«) S/P-DIF digital audio or blank frame signal in compliance with the IEC 60958 standard. The coaxial interface impedance
is 75 Ω. (RCA connector), the optical interface offers a Toshiba Toslink
TM
connector, EIAJ standard. Its numbering is aligned to
the apropriate menu on the front panel.
3 »AES3/11 OUT 5«
This AES/EBU output transmits a transformer-balanced electrical digital audio or blank-frame signal in compliance with AES3-
1997 (revision of 1992) or AES11-2003 (revision of 1997). Its numbering is aligned to the apropriate menu on the front panel.
The output impedance is 110 Ω (XLR connector, male).
4 »AES3/11 IN«
This AES/EBU input receives a balanced electrical digital audio or blank-frame signal in compliance with AES3-1997 (revision of
1992) or AES11-2003 (revision of 1997). The input impedance is 110 Ω (XLR connector, female).
5 »S/P-DIF IN«
These two S/P-DIF inputs, available with optical (»OP«) and coaxial (»CO«) interfaces, receive an optical and an unbalanced
electrical S/P-DIF digital audio or blank frame signal in compliance with the IEC 60958 standard. The coaxial interface imped-
ance is 75 Ω. (RCA connector), the optical interface offers a Toshiba Toslink
TM
connector, EIAJ standard.
6 »WCLK
+
10.0M IN«
This input can receive a Word Clock, a Word Clock
×
256 as well as a 10.0 MHz reference clock signal. The impedance of the
connector is 75 Ω (BNC connector, female).
8 »MAINS IN«, Power Switch + Mains connector (IEC)
This is the main switch for switching the device on and off. Connect the supplied IEC power cable to the device‘s mains con-
nector. Make sure that the power switch is turned off before connecting the device to your power source finally. Line voltages
within the range of 90…260 V with a frequency of 50 or 60 Hz can be applied. The internal power supply will automatically
make all necessary adjustments.
Read the Safety Instructions at the beginning of this manual!
Attention
For detailed specifications of all interfaces, please refer to the »Pin Assignment of the Connectors« and »Technical Data«
sections in the Appendix chapter.
MC-3+ Rear Panel
17
Operation
»HOLD«
This red LED lights when the external reference clock signal is interrupted or lost. The frequency synthesizer of the MC-3+ kee-
ps generating all output signals continuously, based on the last incoming clock rate. Thus, your studio set-up receives non-in-
terrupted clock supply, regardless if a valid external referecne signal is present, unstable or lost. Re-synchronization is carried
out without affecting any of the outputs signals critically.
»AUDIO«
This red LED lights when a valid AES3/11 or S/P-DIF optical or coaxial digital audio reference signal is detected at the corre-
sponding input.

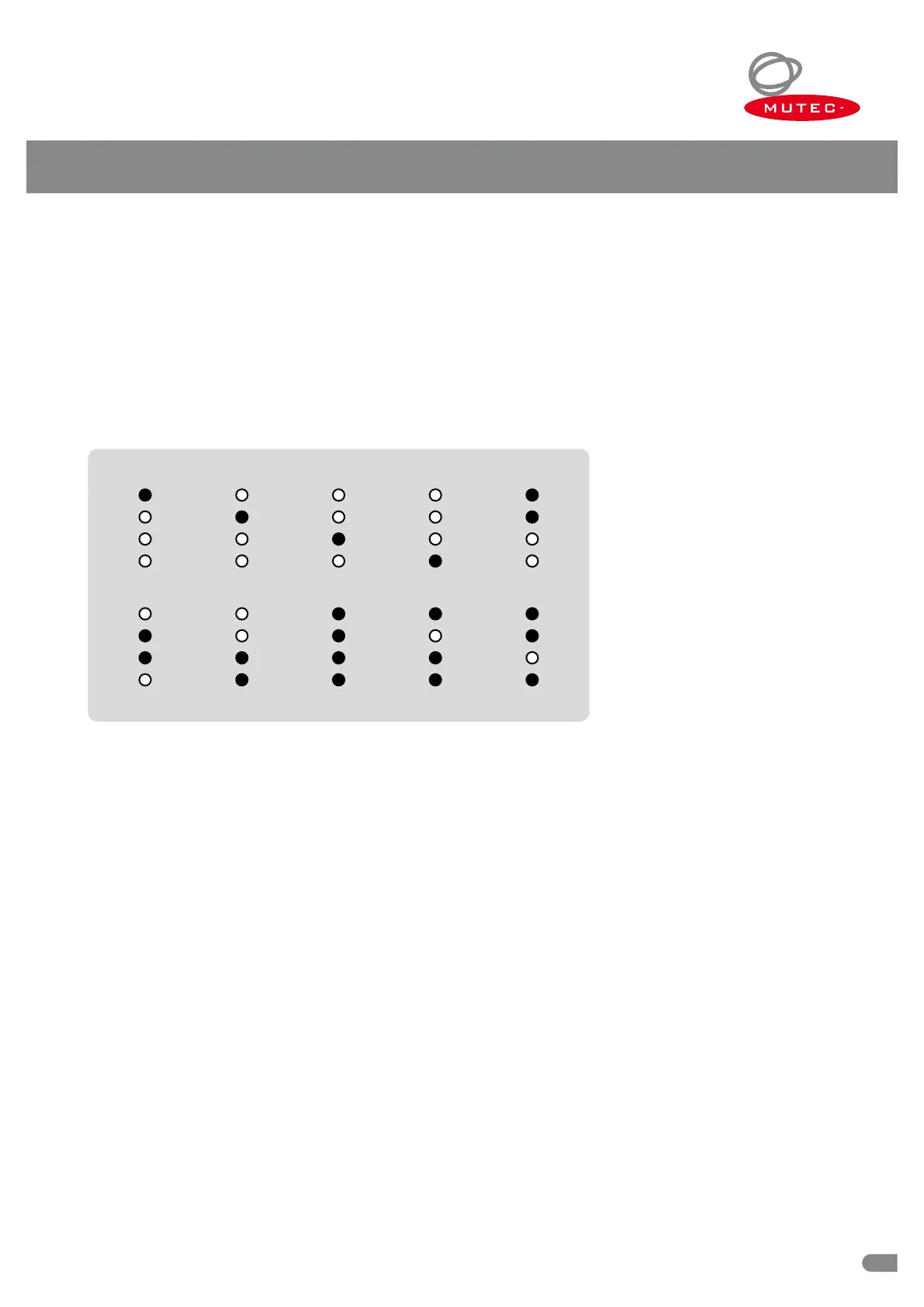

CLOCK IN
This area displays the clock rate of
the incoming clock or digital audio
reference signal. The following basis
reference clock rates are supported and
will be analyzed.
Generic Functions
There are two additional functions which influence the working of your whole MC-3+:
Front Panel lock out + LED shut down
When pressing both front panel keys together at one time, all LEDs will shut down except the »POWER« and »LOCK« LEDs.
Additionally, the functions of both keys are also blocked to prevent unauthorized operation, which is important during e.g. live
events.
During that state of operation, pressing only one of both keys let every appropriate LED light according the device‘s settings as
long as the key is pressed. Thus, you can check easily the device‘s settings without unlocking the device finally.
To reactivate the keys and the LEDs, please press both keys for apperox. four seconds until all LEDs light again.
Factory Reset
You can reset the operating system of your MC-3+ to the initial status by switching on the unit while pressing the »MENU«
key simultaneously.
32.0 kHz 44.1 kHz 48.0 kHz 88.2 kHz 96.0 kHz
176.4 kHz 192.0 kHz
Supported Input Clock Rates at the WCLK IN
12,288.0 MHz11,289.6 MHz10.0 MHz
19
Appendix
For additional information, please refer to page 11 under »Wiring the Interfaces – Word Clock«.
Inside View – Word Clock Termination
When the MC-3+ Smart Clock is shipped, the BNC-based Word Clock input connector is
terminated internally with 75 Ω. Therefore, one jumper is put on two pins - Position 2 - of
the 3-pin socket JP1.
JP1
1 2
Jumper Position 1
=
no Terminaltion
Word Clock
Input
Termination
3-pin socket
JP1
S/P-DIF
Inputs
MC-3+
Mainboard
PCB
MUTEC GmbH · Fon 0049-(0)30-74 68 80-0 · contact@mutec-net.com · www.mutec-net.com
Produkt Specifikationer
| Mærke: | Mutec |
| Kategori: | Ikke kategoriseret |
| Model: | MC-3+ |
Har du brug for hjælp?
Hvis du har brug for hjælp til Mutec MC-3+ stil et spørgsmål nedenfor, og andre brugere vil svare dig
Ikke kategoriseret Mutec Manualer
17 Juli 2025
7 Februar 2025
7 Februar 2025
3 September 2024
3 September 2024
21 April 2024
10 Marts 2024
23 November 2023
6 Oktober 2022
Ikke kategoriseret Manualer
- Approx
- WMD
- Parisot
- Triton
- BENNING
- Sanofi
- Zipper
- Tams Elektronik
- Silicon Power
- LTC
- Digitech
- Vortex
- Hauck
- Lecork
- Viking
Nyeste Ikke kategoriseret Manualer
26 Juli 2025
26 Juli 2025
26 Juli 2025
26 Juli 2025
26 Juli 2025
26 Juli 2025
26 Juli 2025
26 Juli 2025
26 Juli 2025
26 Juli 2025
