Intel SDM based

HDBaseT 4K/UHD Receiver

USER MANUAL

SDM- -R- HDBT UHD

USER MANUAL v.1.4

Overview

The SDM-HDBT-R- -UHD can be installed in any display that is equipped with Intel SDM S

or SDM- -L slot. The SDM HDBT-R-UHD uses HDBaseT™, it is compatible ntac with Apa

HDBT-1-E- UHD transmitters and can extend 1080P HDMI signal up to 100/150 meters

and 4K/UHD HDMI signals up to 70 meters.

Package Contents

§ 1 x SDM-HDBT-R- UHD

§ 1 x User manual

§ 1 x SDM S mounting bracket-

§ 1 x SDM-L mounting bracket

§ 1 x IR receiver

§ 1 x IR blaster

Features

n Supports 4K@60Hz (4:4:4 up to 100 meters with CAT6a) /CAT7 cables

n Supports 4K@60Hz (4:2:0) 1080P (12bit) and 3D up to 100 metersand

n Supports HDMI 2.0

n Supports HDCP 1.4 and 2.2

n Supports 3D pass- through

n Supports CEC pass ugh-thro

n Supports RS directional)- -232 (Bi

n Supports all frequency of IR control

n Supports HDBaseT Mode with Apantac H DBaseT Transmitter

n Supports all digital audio meter modes

n Supports P@60Hz / 8bitLong Reach Mode ( 0108 , up to 150 meters) with Apantac

HDBaseT Transmitter

Specifications

Function

SDM-HDBT-R- UHD

SDM Edge Connector

Intel SDM PCIex8(98pin) x1

HDBaseT Link In

RJ45x1

IR In

3.5ψ Stereo Jack x 1

IR Out

3.5ψ Stereo Jack x 1

St atus LEDs

4 in 1 LED

Max Resolution

4K@60Hz (4:4:4/4:2:0), 4K@30Hz, 1080P@60Hz

Cable distance

100 m for 4K@60Hz(4:4:4) with CAT6a/CAT7 cables,

1 0 00/150m for 1080P@6 Hz

Mounting Brackets

SDM- -L S, SDM

Weight

Board - - – - – 60g, SDM S 80g, SDM L 160g

Dimensions (LxWxH)

Board - -60x110x20, SDM S – -L – 80x124x25, SDM

195x124x25 mm

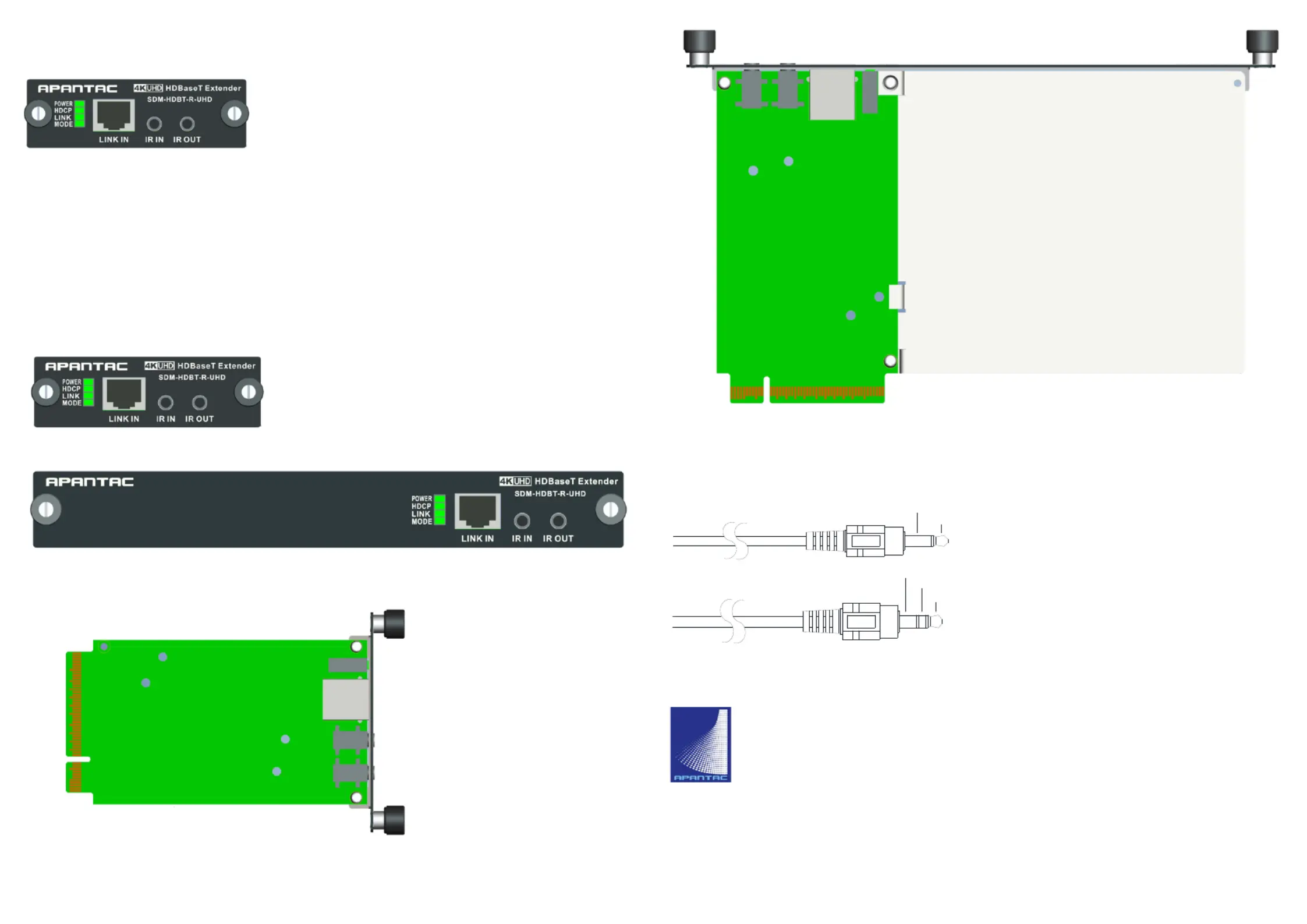

FRONT VIEW

1. S – tatus LED Power, HDCP, LINK, MODE

• Power Green – = On

• HDCP HDMI– Flashing = HDMI in, Off = no

• LINK – Green = HDBaseT in

• MODE – = Flashing Receiver working properly

2. LINKED In – 5 RJ4

3. or IR recever cable) IR In (f

4. IR Out (for IR blaster cable)

-SDM S Mounting Bracket

SDM-L B Mounting racket

Assembly

SDM-S

SDM-L

IR B r Cableslaste

10200 SW Allen Blvd, Suite C

Beaverton, OR 97 , USA 005

PHONE +1 503 968 3000, FAX +1 503 389 7921

The content of this document is provided in connection with Apantac LLC (“Apantac”) products.

Apantac makes no representation or warranties with respect to the accuracy or completeness of the

contents of this publication and reserves the right to make changes to specification and product descriptions

at any time without notice

1.Tip : Anode(+)

2.Sleeve : Cathode(-)

1.Tip : Signal

2.Ring : GND

3.Sleeve : Power
