Installation guide

Congratulations on your new Level control Expansion.

This short description will describe how to wire the Level

control Expansion, and also how to change the address of

the unit.

To turn e.g. the volume up and down you turn the knob.

By pressing the button you can mute and un-mute the sound.

There are 5 LED for clear level indication.

The lover left will ash, when muted.

How to change NEB address

To setup the address (Default: address = A) for the system

in the NEB network to be used in the project editor software,

you will have to do the following:

Press the center of the turn knob within 5 seconds after

connecting power to the unit (within the countdown shown in

Figure 1) and hold it until either LED 1 (Adr = A) or LED 2 (Adr

= B) starts to ash. (Figure 2 shows Adr = A).

Then let go of the press and turn the turn knob to the desired

address. (Turn either left or right). When the desired LED is

ashing, press the center button again and the address (A

or B) is stored.

Connections to the unit

On the back of the unit you will nd a 4 pin connector marked

PWR, NDA, NCL, GND. Those 4 pins you must connect to the

same 4 pins on the backside of the control system (Figure 3).

Please note that there can max be 3 units in a chain (including

the control system) and the max cable length is 20 cm

between any two units in the chain.

Level expansion

5 sec

GND

NCL

NDA

PWR

GND

NCL

NDA

PWR

Unit

SieRRa

or EcHo

This

Connecon

Max 20cm

GND

NCL

NDA

PWR

Unit

X

Max 20cm

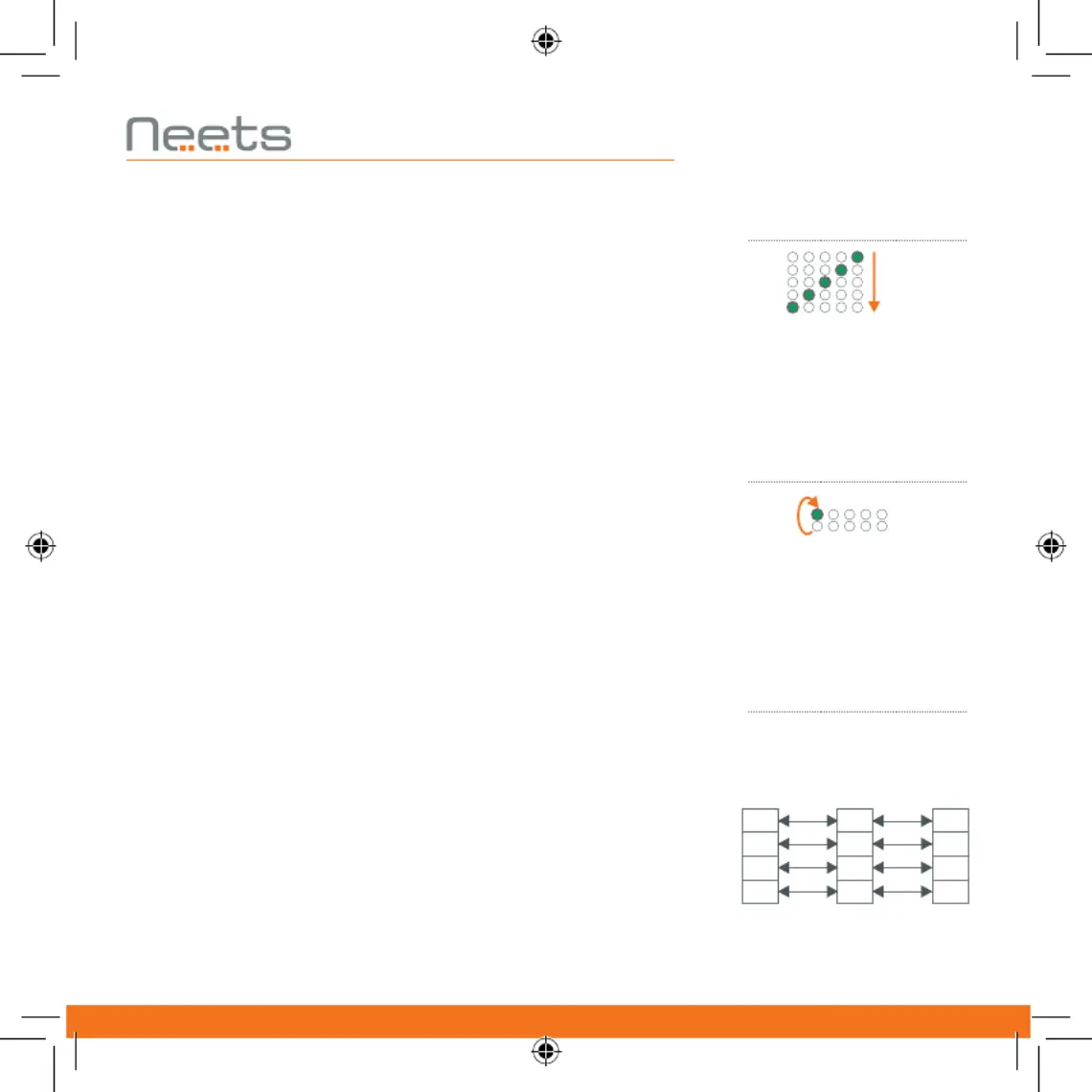

LED’s

LED’s

Figure 2, Address = A

Figure 1

Figure 3

Doc no#: 310-0X11-001-005 REV1
