The flash unit has 8 steps of power output control which indicated by 8

pieces of LED lamp for different level.

Press the MODE key to M Mode. In this mode ,you can set TT560 onto

your camera hotshoe or speedlite trigger hotshoe to trigger the flash unit.

When shooting,adjust the flash power and press the camera shutter,the

flash light will flash under the camera synchronous signal.

Press the MODE key to S1 Mode. The mode is applicable for slave flash

in order to create many lighting effects. It is respectively applicable for

manual flash environment.

Press the MODE key to S2 Mode. The mode is applicable for slave flash

in order to create many lighting effects.The flash unit won’t flash synchro-

nously with the first flash but the second flash from the master flash,

which is the second flash synchronization.

WARNING

Thank you for purchasing our company product.

Before use, please read this user manual carefully in order to ensure

your safety. Keep it properly for reference in future.

FOREWORD

Always keep this product from rain or damp in order to prevent

fire or electric shock.

The flash unit contains high voltage electric parts, do not try to

open or repair the flash unit. If you touch the high-voltage circuit

inside this product, electric shock may occur. Return it back to

the nominated repair service station.

If the unit is extruded,fallen,suffered from strong impact and thus its

inside is exposed, stop using immediately so as to prevent electric

shock leading from touching the inside electric components.

Do not fire the flash direct to the eye at short distance(especially baby’s

eye), or it may damage the eye.When taking flash picture toward baby,

it is recommended to keep the flash unit at least 1 meter(3.3feet) away

from the subject. Or use diffuser or bounce the light to soften its intensity.

Always keep the battery or anything easy to be gulped out of children's

reach. In case of gulping due to carelessness

please contact a doctor

immediately .

When there is caustic liquid leakage inside, it is necessary to wear

gloves to take out the batter.

Do not use the flash unit in the flammable gas, chemical or such liquids.

These materials may be ensitive to the flash from the unit in some circ-

umstance. It may cause fire or electromagnetic interference.

Please pay attention to the warning marks in the shooting surroundings.

Do not leave or store the flash unit in temperature over 40

C(such like

in the automobile), or it may damage the electronic components.

The flash unit isn’t water resistant.

Please keep it away from rain or humidity.

If the flash unit is idle for long, please take out all batteries and keep

the flash unit in dry area.

Open the battery cover

Slide the battery cover

along the arrow

direction and then open

it by thumb.

Insert batteries

Install the batteries

according to the direction

indicated by the sicker in

the battery holder and

make sure the + and –

battery contact are

correctly inserted at the

battery compartment.

Close the battery cover

Slide the battery cover

along the arrow direction

and slide it back in place.

The battery cover will be

locked when there is a

“click” sound.

Take out the battery when idle in case the battery leakage damages the

flash unit.

Attention:

Twist the lock ring anti-

clockwise to loosen it to the

highest point. Slide the

mounting foot of TT560

into the hotshoe of camera.

Twist the lock ring

clockwise to tighten it.

To remove the flash,

loosen the fixed knob and

slide it out of the hotshoe

of camera.

Mini Stand

Switch to the ON, the flash will start charging (the charging indicator is

dim).After several seconds, the charging indicator turns red and TT560

is ready to shoot.

For a test flash, press the test button. After use, press the ON/OFF to OFF to

power off.

If the red charging indicator lamp flickers in every 1s, it indicates low

battery. In such case, the power will turn off automatically and you

need to replace the batteries.

Note

：

The optic light sensor will stop functioning under M Mode.

The hotshoe’s trigger function will stop under S1 and S2 Mode.

Number of flashes that will activate

over-temperature protection:

1/1 1/2，

1/16 1/32，

1/64 1/128，

1/4 1/8，

160

Number

Power Level

1.Bounce Lighting

Bounce flash means to take photos by bouncing the light off wall or

ceiling to soften the light on the subject, and the shadow shade out,

to get more desired picture.

2.Use Reflection Board to Take Photos

Pull out the refection board and built-in wide panel from the flash head

at the same time and then push the built-in wide panel back.

In such case, if this product is being used to take photos, it will produce

a highlighted point on the eyes of the subject and thus make the eyes

charming (catch lights). This function can reach optimal effect when

the flash head is up 90°.

3.Use Wide-angle Diffuser

Pull out the built-in wide panel to enlarge flash lighting range, so as to

get more softened and natural lighting effect.

Systematic over-temperature protection

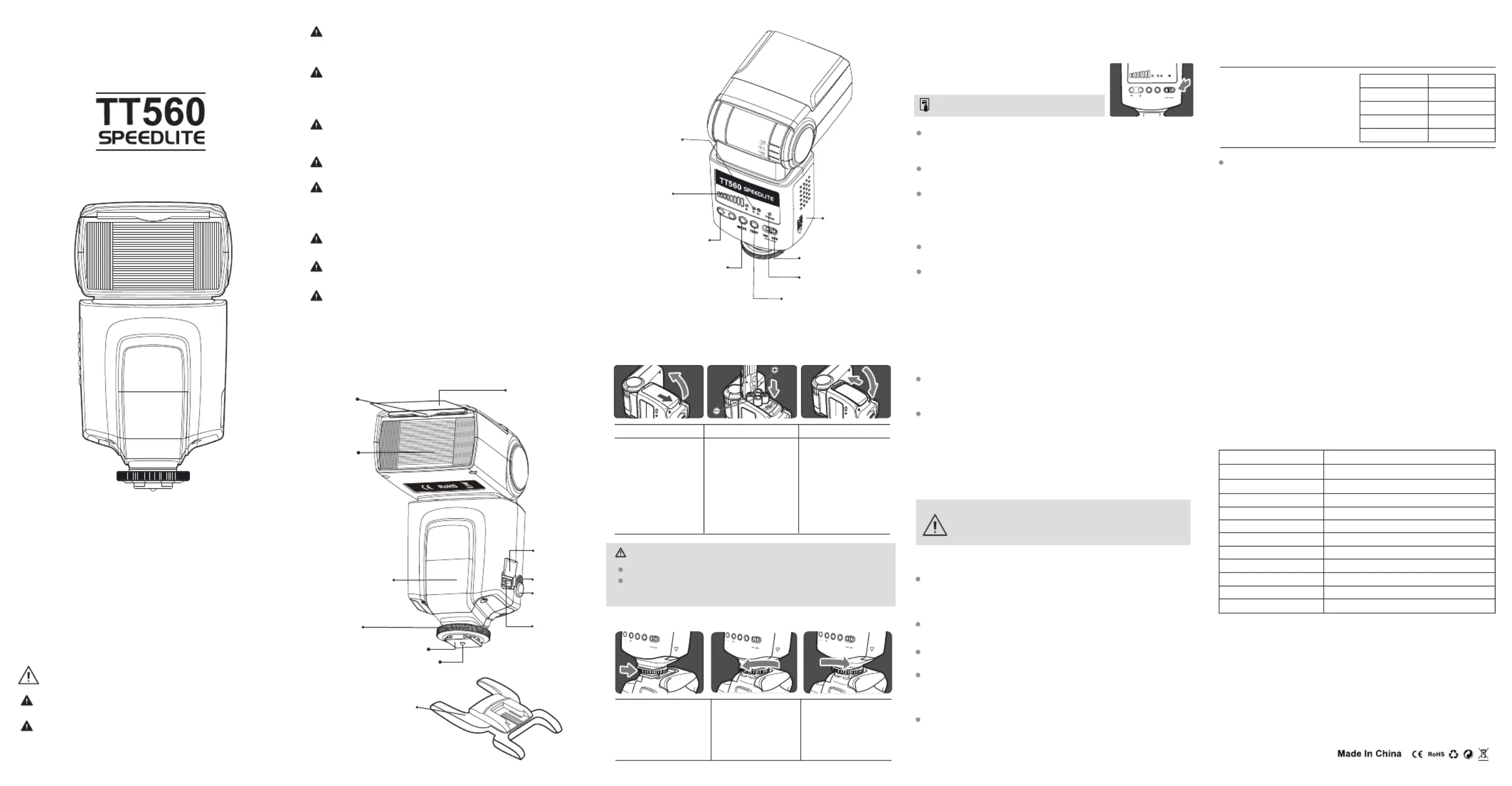

INSTRUCTION MANUAL

2.Mounting TT560 on the camera

MOOD

TEST

OFF

MOOD

TEST

OFF

MOOD

TEST

OFF

Ⅲ.

USING TT560

1. Power management

MODE

POWER

TEST

OFF

5.S2 Mode

2.Power Control

3.M Mode

4.S1 Mode

Ⅳ.

ADVANCED APPLICATION

Ⅴ.

SPECIFICATIONS

Ⅱ.

INSTALLATION

1. Battery Installation

Ⅰ.

NOMENCLATURE

After use, press the ON/OFF to OFF to power off.

38 ( m ISO 100 )

Recycle time

100-1500 times (AA alkaline batteries used)

4xAAsice batteries(Alkaline or Ni-MH are usable)

0~270 degrees

0~90 degrees

M,S1,S2

with 1/8-stop increment

5600K+200K

1/300s~1/20000s

190*75*55mm

286g

Lighting times

approx 0.1-5s(AA alkaline batteries used)

Light quantity output control

Color temperature

Flash duration

Dimensions

Net weight

Guide number

Flash mode

Vertical rotation angle

Horizontal rotation angle

Power

Press “+” to make power higher and they are 1/128

1/64

1/32

1/16,

1/8

1/4

1/2

1/1. Otherwise, press “-” to make power lower.

Accessories

：

Flash light ......

（）1

Protecting bag ......

（）1

Mini stand ......

（）1

User manual ........

（）1

。

Power Switch

Test Button

Flash Power Level Button

Output Level

Indicator

Mode Select Indicator

（、、）M S1 S2

Charging Indicator

Battery Cover

Mode Select Button

Take care of the hot battery when changing them after continuous flashes.

When the flash is S1 mode, it will fire synchronously when the master

flash fires, comparable with the effect by the use of radio trigger.

When the inner circuit is over-heating, which indicates over use of the

flash unit, the inner circuit will shut down power automatically. The flash

unit will turn to normal state after the inner circuit is cooled down.

Built-in Wide Panel Reflection Board

Optic Control Sensor

Flash Head

Hot Shoe Stand

Lock Ring

Dedicated Hot Shoe Contact

Socket Cover

Charging

Socket

Socket Cover

PC Sync Socket

To save battery power, the flash will enter stand-by state in about 30

minutes of idle use. Press any button to wake it up.

In S1/S2 mode, the flash will enter stand-by state in about 60 minutes

of idle use. Press any button to wake it up.

In power-saving mode, the charging indicator flickers in every 3 seconds.

Other indicators are turned off.

Protection in continuous flashes

7.Power-saving Function

8.Protection Function

To prevent the flash head from getting too hot and damage, please do

not flash over 20 times when in power level 1/2

1/1. Please cool down

the flash unit for at least 10 minutes. The over-temperature protection

function will be activated if you continue to flash after 20 times. In this

state the charging time will turn to 10-25s. Please cool down the flash

unit around 10 minutes and it will turn to normal state.

The speedlite and camera will trigger synchronously by using a PC sync

cord to connect the sync terminals of the camera and the speedlite together.

6.Sync Trigger Function

Produkt Specifikationer

Mærke:	Neewer
Kategori:	Blitz
Model:	TT560
Produktfarve:	Sort
Batteritype:	AA
Antal understøttede batterier:	4
Farvetemperatur:	5600 K
Kapabilitet:	SLR Digital SLR Film SLR Cameras and Digital Cameras with single-contact Hot Shoe
Kameramærker kompatibilitet:	Canon, Fujifilm, Konica Minolta, Leica, Nikon, Olympus, Panasonic, Pentax, Sigma, Sony
Flash ledetal:	38 m
Ca. antal blink:	100 - 1500
Lysvinkel (vandret):	270 °
Lysvinkel (lodret):	90 °
