Side 1/10

Safety instructions

 The washing machine is heavy - take care when lifting.

 Caution: frozen hoses can crack/burst. Do not install the washing machine outdoors or in

areas exposed to frost.

 The washing machine could be damaged. Do not lift the appliance by protruding

components (e.g. the washing machine door).

 In addition to the instructions provided in this document, special regulations from the

relevant water and electric utility companies may apply.

 If in doubt, have a technician connect the appliance.

 The worktop must have no openings in the area around the washing machine.

 Route hoses and cables in such a way that there is no risk of tripping.

Environmentally-friendly disposal

  Dispose of packaging in an environmentally friendly manner.

 This appliance is labelled in accordance with European Directive 2002/96/EC on Waste

Electrical and Electronic Equipment - WEEE.

The directive provides an EU-wide framework for the return and recycling of used

appliances.

Installation surface

 The machine must be stable so that it does not move around.

 The surface on which it is installed must be firm and level.

 Soft floors/floor coverings are not suitable.

Installation using slider sheets

Slide sheets make it easier to slide the

washing machine into the installation recess.

Order using spare part no. 66 1827

Before sliding in the machine, dampen the slide sheets with a

mixture of water and detergent. Do not use any fat and/or oil.

Installation under a high-level worktop -> Appliance dimensions, Page 3

 Adjustment strips: order no. WZ 20470, WMZ 20470, Z 7090X0

 Height adjustment kit: order no. WZ 20440, WMZ 20440, Z 7060X0

Installation on a pedestal

The front feet of the washing machine be secured with holding brackets.must

Order no. WMZ 2200, WX 975600, CZ 110600, Z 7080X0

Installation on a wood joist floor

 If possible, place the washing machine in a corner.

 Screw a water-resistant wooden plate (min. 30 mm thick) to the floor.

In doing so, take into account the height of the kitchen worktop.

 The feet of the washing machine be secured with holding brackets.must

* Order no. WMZ 2200, WX 975600, CZ 110600, Z 7080X0

Scope of delivery depending on model

Parts for assembly -> Page 8 - 13

Spanner

(depending on model)

Mains cable

Water inlet

Water outlet

Elbow

for securing the

water outlet hose

Covers

Aqua Stop Aqua Secure Standardä ä

Hose clamp

for securing the water drain

hose -> Page 5

Moisture inside the drum

is due to final testing.

Appliance dimensions depending on model

Hose and cable lengths depending on model

Left-hand connection or Right-hand connection

Note: Using hose clips limits the possible hose lengths.

Available from specialist retailers/the after-sales service:

 Extension for Aqua Stop and cold water inlet hose (approx. 2.50 m).ä

Order no. WMZ2380, WZ10130, CZ11350, Z7070X0

Useful tools

 Spirit level for levelling

 Screwdriver

 Drill

59.8 cm 54.4 cm

82 cm

5.5 cm

15 cm

1.5 cm

81.8 cm

approx. 75 kg

87 cm

5 cm

87 cm

max. 100 cm

~90 cm

~130 cm

~140 cm

~130 cm

~100 cm

min. * cm

* Standard and Aqua Secure models min. 60 cm - max. 100 cmä

Aqua-Stop model 0 -max. 100 cm

Removing the transport safety devices

 Before using the appliance for the first time, the 4 transport safety

devices must be completely removed and kept safe.

 If you need to transport the appliance at a later date, always refit the

transport safety devices to prevent damage to the machine.

> Page 6.

 Keep the screws and sleeves in a safe place.

1. Take the hoses (depending on model) out of the holders and the elbow.

Remove the elbow.

2. Unscrew and remove the bolts from all 4 transport safety devices.

3. Take the mains cable out of the holder. Remove the sleeves.

4. Insert the covers.

Water connection depending on model

 Risk of electric shock. Do not immerse the Aqua-Stop safety device in water

(contains an electric valve).

 To prevent leaks or water damage, observe the instructions in this section.

 : only operate the washing machine using cold drinking water.Caution

 Do not connect to the mixer tap of an unpressurised hot-water boiler.

 Do not use a used inlet hose. Only use the inlet hose supplied or one which was

purchased from an authorised specialist retailer.

 If in doubt, have a technician connect the appliance.

Water inlet

Water inlet hose:

Caution: do not kink, squash, modify or cut through

(otherwise its strength is no longer guaranteed).

Optimum water pressure in the supply network: 100-1000 kPa (1-10 bar)

 Water flows at a rate of at least 8 l/min when the tap is turned on.

 If the water pressure is higher than this, a pressure reducing valve must be installed.

Model: Aqua Stopä

Aqua Secureä

Standard

1. Connect the water inlet hose to the tap.

Only tighten the screw connections by hand.

2. Open the water tap carefully, checking the leak

tightness of the connection points.

Caution: the screw connection is under mains water

pressure.

Water outlet

Water outlet hose:

Caution: do not kink or pull lengthways.

Height difference between the installation surface and the drain:

 for AquaäSecure and Standard models: min. 60 cm - max. 100 cm

 for AquaäStop model: 0 - max. 100 cm

Drainage into a siphon:

Caution: the connection point must be secured with the hose clamp

provided, Ø 24-40 mm.

Levelling

Intense noise, vibrations and wandering may be the result of incorrect levelling.

All four appliance feet must be firmly on the ground.

The washing machine must not wobble.

Check the levelness of the washing machine with a spirit level and adjust if necessary.

The washing machine must not rest against the side panels of the installation recess.

The lock nuts of the front appliance feet must be screwed tightly against the housing.

max.

90°

max.

90°

min.

10 mm

min.

10 mm

3/4

Electrical connection

ʑThe washing machine must only be connected to an alternating current via a properly

installed earthed socket.

ʑThe mains voltage must correspond to the voltage specifications on the washing machine.

-> ; Technical data.Page 7

ʑConnected load and required fuse -> Technical data.Page 7;

ʑMake sure that:

 the mains plug fits the socket,

 the cable cross-section is adequate,

 the earthing system is properly installed.

ʑThe mains cable may only be replaced by a qualified electrician (if required).

Replacement mains cables are available from customer services.

ʑDo not use multiple plugs/couplings and/or extension leads.

ʑIf a residual current circuit breaker is used, only use a type which displays this symbol: .

Only this symbol guarantees compliance with the currently applicable regulations.

ʑMains plug:

 do not plug in to/pull out of the socket with damp hands.

 when removing the plug from the socket, pull the plug body only, not the cable.

 never pull the plug out during operation.

Transportation, e.g. when moving house

Before transporting the washing machine:

1. Turn off the tap.

2. Reduce the water pressure in the inlet hose filter in water inlet.a Instruction manual;

3. Drain residual water



> Instruction manual; drain pump.

4. Disconnect the washing machine from the power supply.

5. Disconnect the hoses.

Install the transport safety devices:

1. Remove the covers.

2. Insert all 4 sleeves.

Clamp the mains cable to the holders.

Insert and tighten the screws.

After transportation, the transport safety devices be removed. must



> Page 4.

To prevent unused detergent from flowing straight into the drain during the next wash:

Pour 1 litre of water into compartment II and start the programme.Empty

9304/9000853214

*853214*

Technical data

Manufacturer (see instruction manual)

Weight 75 - 84 kg depending on model

Mains connection Nominal voltage 220-240 V, 50 Hz

Nominal current 10 A

Nominal power 2,300 W

Water pressure 100-1000 kPa (1-10 bar)

Test programme in accordance with the currently valid European

Standard 60456

After-sales service

ʑIf you cannot rectify a fault yourself Instruction manual: , a What do to if ... Page 12/13,

please contact our after-sales service. We can always find a suitable remedy, so that a

technician is not called out unnecessarily.

ʑThe contact details for your nearest after-sales service can be found here or in the After-sales

service directory (depending on the model).

ʑPlease give the after-sales service the product number (E no.) and the production number

(FD) of the appliance.

Product number Production number

This information can be found:

on the inside* of the washing

machine door and on the back

panel of the appliance

ʑYou can rely on the competence of the manufacturer. Please contact us.

This way, you can ensure the repair is carried out by trained service technicians who are

equipped with genuine spare parts.

Aqua-Stop warranty only for appliances with Aqua-Stop

In addition to warranty claims against the vendor from the purchase agreement

and in addition to our appliance warranty, we will pay damages under the following

conditions:

1. If a fault in our Aqua-Stop system causes water damage, we will reimburse

damages caused to private customers.

2. The liability warranty is valid for the service life of the appliance.

3. A warranty claim is only valid on condition that the appliance fitted with Aqua Stop ä

has been correctly installed and connected according to our instructions. This

condition includes the correct fitting of an Aqua Stop extension (genuine ä

accessory).

Our warranty goes not cover defective power cables or fittings between the

Aqua-Stop connection and the tap.

4. Appliances with Aqua-Stop do not need to be supervised during operation, nor

secured afterwards by turning off the tap.

The tap only needs to be turned off if you are away from home for a long period,

e.g. for several weeks' holiday.

max.

90°

min.10 mm

max.

90°

60cm

58cm

5mm

1 mm

max.

12 mm

min. 25x

max.150x

min. 25x

max.150x

Ø35mm

12 mm

Ø2mm

12 mm

2.1cm

2.6cm

0.2cm

27.6cm

53.4cm

59.4...59.8cm

Installation and

assembly instructions

Washing machine

Read these instructions before switching on the washing machine.

Also observe the separate Instruction manual.

Keep all the documents in a safe place for future reference, or to pass on to

the next owner.

Contents Page

ʋSafety instructions .............................................................................. 1

ʋEnvironmentally-friendly disposal ................................................... 1

ʋInstallation surface ............................................................................ 1

ʋScope of delivery................................................................................ 2

ʋAppliance dimensions ....................................................................... 3

ʋHose and cable lengths.................................................................... 3

ʋUseful tools.......................................................................................... 3

ʋRemoving the transport safety devices ........................................ 4

ʋWater connection .............................................................................. 5

ʋLevelling .............................................................................................. 5

ʋElectrical connection ........................................................................ 6

ʋTransportation, e.g. when moving house ...................................... 6

ʋTechnical data ................................................................................... 7

ʋAfter-sales service ............................................................................. 7

ʋAqua-Stop warranty... ....................................................................... 7

ʋAssembly instructions ................................................................ 8-13

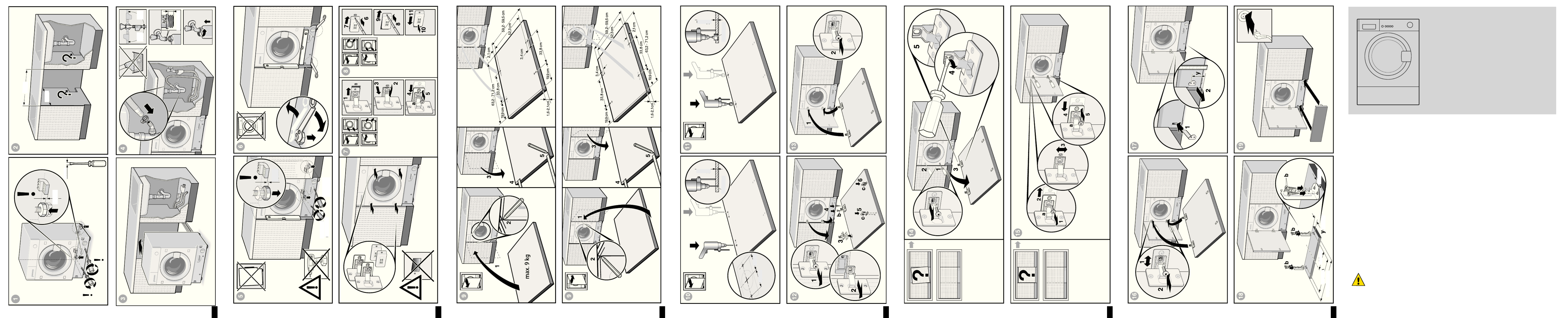

Image sequence 1-19

Produkt Specifikationer

Mærke:	Neff
Kategori:	Vaskemaskine
Model:	W5420X1EU
Vekselstrømsindgangsspænding:	220 - 240 V
Vekselstrømsindgangsfrekvens:	50 Hz
Bredde:	600 mm
Dybde:	570 mm
Højde:	818 mm
Vægt:	75000 g
Produktfarve:	Hvid
Kontroltype:	Buttons,Rotary
Indbygget skærm:	Ingen
Strøm:	10 A
Pakkevægt:	76000 g
Energieffektivitetsklasse (gammel):	A+
Placering af apparat:	Indbygget
Dørhængsel:	Venstre
Inverter-teknologi:	Ingen
Installationsrum højde:	820 mm
Tilsluttet belastning:	2300 W
Ilægningstype:	Front-læsning
Direct drive teknologi:	Ingen
Tromlekapacitet:	7 kg
Maksimal centrifugeringshastighed:	1200 rpm
Støjniveau (centrifugering):	63 dB
Støjniveau (vask):	46 dB
Vaskeprogrammer:	Hygiene/anti-allergy,Black,Mix
Justerbare fødder:	Ja
Justering af fødder:	12 mm
Energiforbrug ved vask:	0.95 kWh
Årligt energiforbrug vask:	220 kWh
Tromlemateriale:	Rustfrit stål
Tromle volumen:	55 L
Dør farve:	Hvid
Balje materiale:	Plast
Spin-tørre klasse:	C
Cyklustid (maks.):	165 min.
Skum kontrol system:	Ja
Restfugtighed:	59 %
Vaskeklasse:	A
Årligt vandforbrug vask:	11000 L
Vandforbrug pr. cyklus:	- L
Halv belastning:	Ja
AquaStop funktion:	Ja
Brugerdefineret panel klar:	Ja
Dørpanel inkluderet:	Ingen
Justerbar centrifugeringshastighed:	Ja
