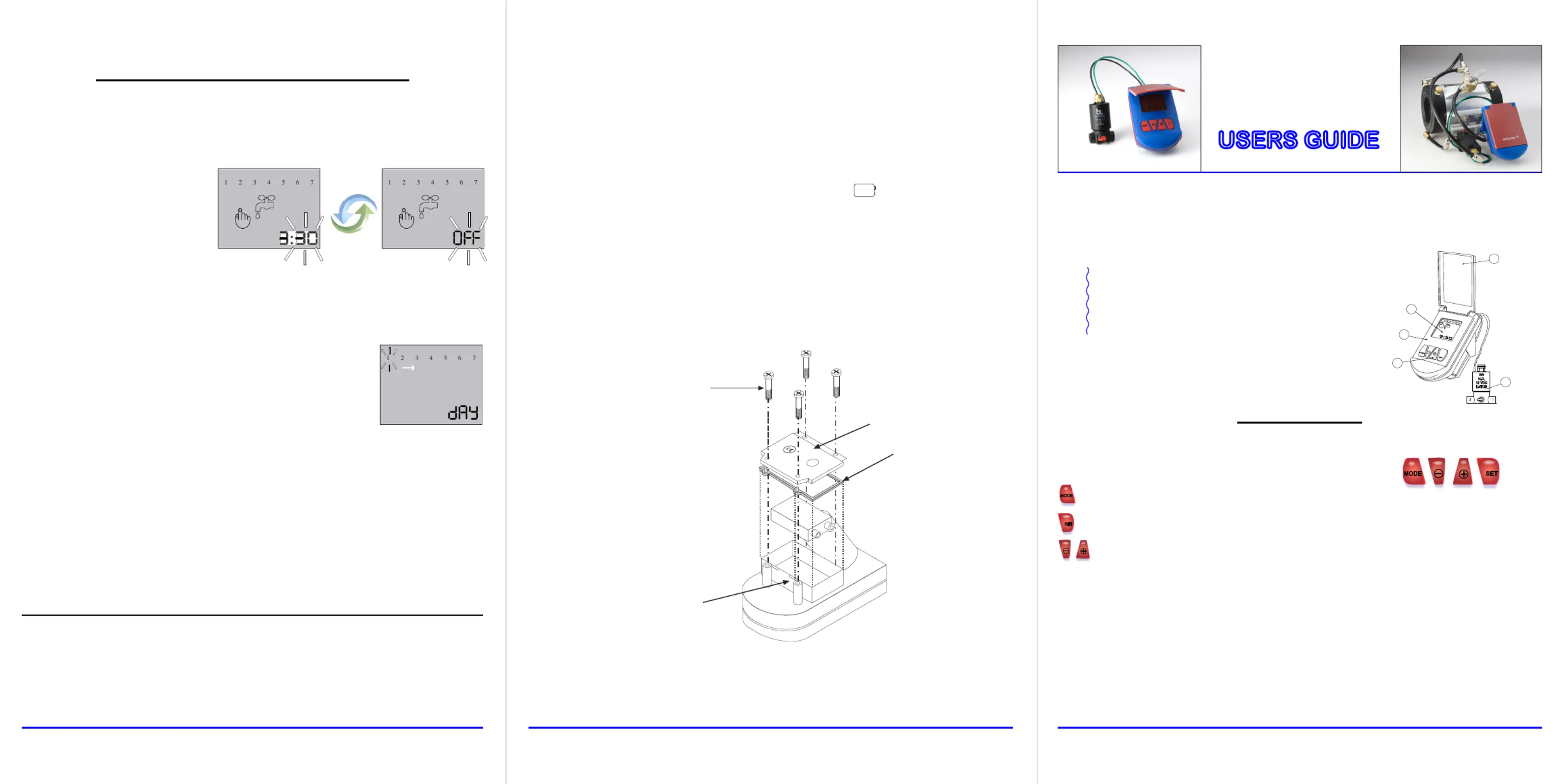

WINDOW+

Controller

USERS GUIDE

Features

This battery operated controller irrigates in cycles that will repeat during a window of time

according to a program setup by the user. The wet and off cycles can be very frequent

(over 100 per day) if wanted. It is very useful for evaporative cooling of fruit and dust

suppression when irrigated for short wet/dry interval times. Cycle irrigation is also useful for

normal sequential rotation of irrigation ow between eld zones.

Operates in cycles during programmed window

Battery powered; no need for electrical hookup

Easy installation

Waterproof and weather resistant

Easy programming

Parts Identication

1. Top Cover 2. Controller Display

3. Controller 4. Program keys 5. Solenoid

Getting Started

Basic Controller Functions

This section gives a brief description of the Controller program key buttons. This gure

shows the layout and the function is described below.

Quick presses of the button turn the controller off, or on. Longer presses of MODE

the button put the controller in programming mode. MODE

Press the button to set a function and proceed. SET

Use these buttons to increase and decrease schedule functions.

Installation

The controller and solenoid will normally be installed on the valve at the factory.

Occasionally the latching solenoid valve opens in transit. To ensure that the valve is closed

before you turn on water pressure, rst make sure that the controller is not set to OFF (If

it is set to OFF, press briey on the MODE SET button to turn it on.) Then press + and

simultaneously to open, and press - and simultaneously to close. You are now ready SET

to program the Window+ controller. Caution note: Unique to latch solenoids is the potential

to fail in either OFF or ON! Before installation make certain that the irrigation system has the

proper pressure relief and some protection against damage if solenoid failure occurs.

N.O.

12 VDC

LATCH

MOD E

SET

Fig. 1

Fig. 1a

MO DE

SE T

Controller on 2” 800 Series valve

Programming the Window (continued)

Setting the OFF Time (Interval)

The following screen shown in Fig 8 will appear:

On this screen the numbers refer to the interval between irrigations within the cycle

(measured in minutes and hours). ‘OFF’ ashes on the screen, alternating with the

numbers.

1. Use the + - buttons to adjust the minutesor

2. Press SET to continue

3. Use the + - buttons to adjust the hours.or

4. Press SET to continue.

Setting the Days

The following screen shown in Fig 9 will appear:

You must select the days you wish the irrigation ‘WINDOW’ to

operate. Each day selected will operate with the irrigation

schedule you setup in Figures 6-8.

1. Press SET to reach the day you wish to irrigate. The number

(corresponding to the day of the week) will ash.

2. Press + to select that day (the square which appears indicates day is selected).

3. Press - to deselect a day (the square will disappear).

4. Press SET until all days are programed as desired. Current day continues ashing.

5. Press SET to complete programming.

Example summary: The program has been set for a 10 hour Window (8:00 to 18:00)

having ‘On’ time duration of 1 hour 30 minutes 9 seconds and ‘OFF’ time interval of 3

hours 30 minutes. This cycle will repeat twice during the 10 hour Window each day

that is selected.

Note: The Window End time takes control over the schedule and turns off the valve even if the

cycle is not complete.

Warranty and Disclaimer: Nelson Window+ controllers are warranted for one year from date of original sale to be free of

defective materials and workmanship when used within the working specications for which the product was designed

and under normal use and service. The manufacturer assumes no responsibility for installation, removal or unauthorized

repair. The manufacturer’s liability under this warranty is limited solely to replacement or repair of defective parts, and

the manufacturer will not be liable for any crop or other consequential damages resulting from any defects in design or

breach of warranty. This warranty is expressly in lieu of all other warranties, express or implied, including the warranties

of merchantability and tness for particular purposes and of all other obligations or liabilities of manufacturer. No agent,

employee, or representative of the manufacturer has authority to waive, alter or add to the provisions of this warranty,

nor to make representations or warranty not contained herein

Fig. 8

Fig. 9

Window+Controller Guide.indd May08

Battery Installation

Replace the battery at the start of each irrigation

season and when the low battery symbol appears.

1. Using a Phillips screwdriver, remove the

four battery cover screws.

2. Remove the battery cover and seal.

3. Replace the battery.

4. After reattaching the seal, put the cover back,

and secure with the four screws.

Maintenance and

Troubleshooting

Seal

Battery cover

Screws

When replacing

seal, push seal tabs

into slots.

Fig. 10

Manual Operation

To manually open the valve, make sure that the Controller is not set to OFF (If it is set

to OFF, press briey on the MODE SET button), then press + and simultaneously. The

irrigation will continue until the interval dened in the program has passed. If the irrigation

duration has been set to zero, the valve will close after one minute.

To stop irrigating, press - and simultaneously.SET

Programming the Controller

Meaning of Controller Icons

NOTE: MODE Quick presses of the button turns the

Controller off, or on. Longer presses of the MODE

button put the Controller in programming mode.

1. Irrigating days of the week

2. Cycle start (shows that the time is

within the window cycle has started)

3. Irrigation (valve has been opened)

4. Timing or clock

5. Low battery

6. Time adjustment

NOTE: You cannot program the Controller if it is set to manual operation or if it is set to OFF . To

release from manual operation press - and SET simultaneously. To release from OFF press briey on

the button.MODE

MODE

SE T

Current

Time

Clock

Days of

the week

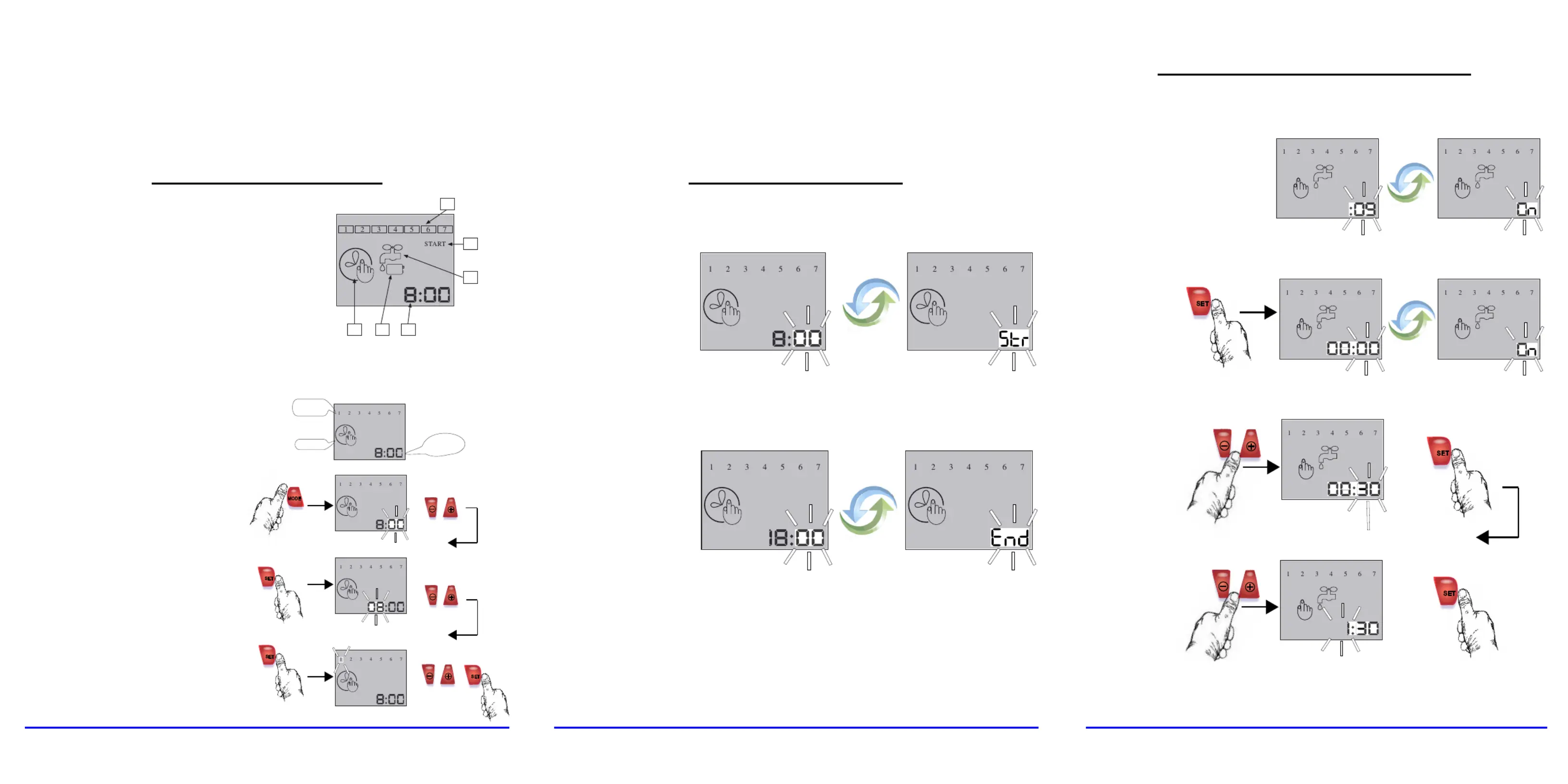

Setting the Clock

If the screen is blank, press MODE to activate.

To set the program you must be in operating mode.

Before programming the Controller

you must set the clock.

1. Press MODE until the adjustment icon

appears (the minutes will be ashing).

2. Use the + - to adjust the minutesor

3. Press SET

4. Use the + - to adjust the hoursor

5. Press SET

6. Use the + or - to select the current day

7. Press SET to return to operating mode.

Fig. 3

Fig. 2

Understanding the ‘WINDOW’

The Window is the time between the Start and End of irrigation. The cycle consist of the

‘On’ time (actual irrigation time), and the ‘OFF’ time (interval between irrigation shut off and

the time until the next irrigation begins). The cycle repeatedly recurs during the Window.

NOTE: During programming, the screen will revert to operating mode if left inactive for 30

seconds.

Programming the Window

Setting Window Start Time

1. Press the MODE button until the clock settings screen appears, then press MODE again

until this screen appears (the minutes will be ashing.) On this screen, the clock numbers

refer to the time you wish the Window to begin. ‘Str’ ashes on the screen, alternating with

the numbers.

2. Use the buttons + -or

to adjust the minutes

3. Press SET to continue.

4. Use the buttons + -or

to adjust the hours.

5. Press SET to continue.

Setting the Window End Time

1. The screen in Fig. 5 will appear. On this screen, the clock numbers refer to the time

you wish the irrigation Window to end. ‘End’ ashes on the screen, alternating with the

numbers.

2. Use the buttons+ -or

to adjust the minutes.

3. Press SET to continue.

4. Use the buttons+ -or

to adjust the hours.

5. Press SET to continue.

Example above shows a window Start time of 8:00 and End of 18:00 (a 10 hour Window).

Fig. 4

Fig. 5

Programming the Window (continued)

Setting the ON Time (duration)

The following screen shown in Fig. 6 will appear: First the seconds are set then the

hour and minute screen shown in Fig. 7 appears.

On Fig. 6 screen the numbers

refer to the amount of time

(in seconds) the irrigation will

be on each time it activates

within the cycle. The seconds

number ashes and ‘On’

alternately ashes on the screen.

1. Use the buttons to adjust the seconds.+ -or

2. Press SET to continue.

3. For this screen

the ‘On’ time numbers

are measured in hours and minutes.

Use the buttons to adjust the minutes .+ -or

4. Press SET to continue.

5. Use the buttons to adjust the hours.+ -or

6. Press SET to continue.

Fig. 7 example

shows watering duration for each cycle set to 1 hour 30 minutes and 09 seconds.

SET

Fig. 6

Fig. 7
