ACV200

Installation Instructions

ACV200TAU-10/15

848 Airport Road, Walla Walla, Washington 99362 U.S.A. / Tel: +1 509.525.7660 / Fax: +1 509.525.7907 /ne

Nelson Irrigation Corporation / 848 Airport Road, Walla Walla, Washington 99362 U.S.A.

Tel: +1 509.525.7660 / Fax: +1 509.525.7907 / info@nelsonirrigation.com / nelsonirrigation.com

ALWAYS FLUSH THE SYSTEM BEFORE INSTALLING THE ACV200!

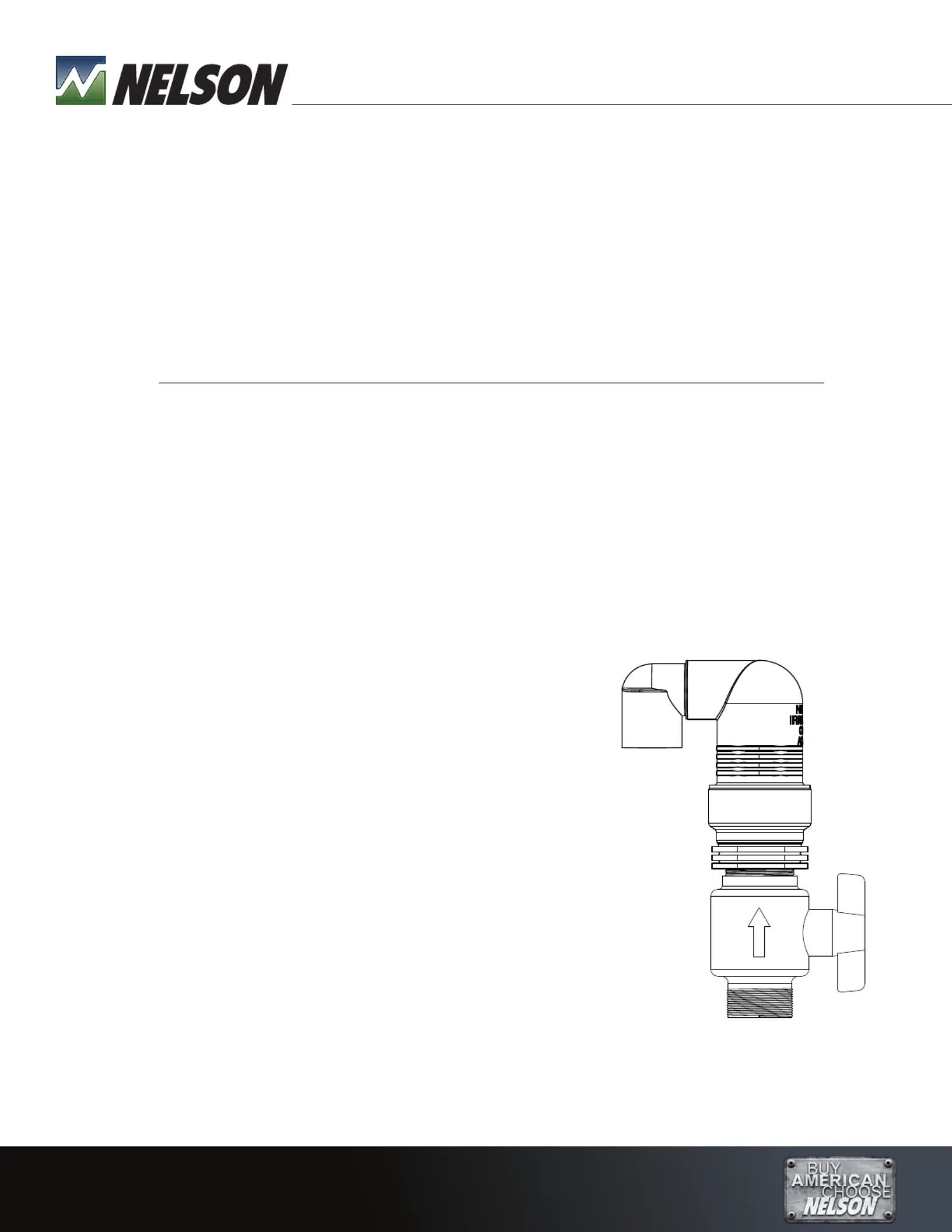

Special note for MAINLINE INSTALLATION, always install a manual shutoff valve beneath the

ACV200! See the illustration. The reason for this recommendation is to avoid having to shut off

the mainline and drain off the pressure before the ACV200 can be unplugged and reinstalled.

Make special note to all people that service the ACV200 that the manual valve must be left in

the open position during operation in order for the ACV200 to function.

CAUTION! Pipeline debris will tend to migrate to the ACV200 Air Control Valve on start of a

new system. Occasionally debris will get caught at the seal and cause it to leak.

RECOMMENDATIONS:

· Use Teon tape on the connection thread. Do not use

pipe dope.

· Provide draining for the ACV200 in freezing weather.

· The Seal was redesigned in November 2015 to resist

pump lubricants. Seal upgrade kit #10630 is available for

units manufactured before this date.

· *The ACV200 has a built in turbulence suppression feature

to help stabilize the oat. For best performance locate the

ACV200 in the pipeline where the air is separated from

the water and the air can freely vent out.

· Be sure to mount the ACV200 in the upright position

because the oat must be free to pull the seal downward

to release air.

· Refer to the Nelson “ACV200 AIR CONTROL VALVES

Technical Application Guide” document for detailed

information about the best practices and use of the

ACV200 in irrigation systems.

*For valves having plastic base manufactured prior to 2007 there is a base service kit available so that the turbulence

suppression feature can be installed. The service kit numbers are 11144-001 for NPT and 11144-002 for BSP thread.

The turbulence suppression feature is not available for the brass base version of the ACV200B.

THANK YOU FOR SELECTING THE NELSON ACV200 VALVE.

The Nelson ACV200 Air Control Valve is outstanding for controlling air in irrigation systems.

The ACV200 provides all three types of air control in one valve:

· Air Relief

· Vacuum Air Relief

· Continious Air Release Under Pressure

The unique design of the ACV 200 automatically does all functions.

ACV200

Cleaning & Assembly Instructions

ACV200TAU-10/15

848 Airport Road, Walla Walla, Washington 99362 U.S.A. / Tel: +1 509.525.7660 / Fax: +1 509.525.7907 /ne

Nelson Irrigation Corporation / 848 Airport Road, Walla Walla, Washington 99362 U.S.A.

Tel: +1 509.525.7660 / Fax: +1 509.525.7907 / info@nelsonirrigation.com / nelsonirrigation.com

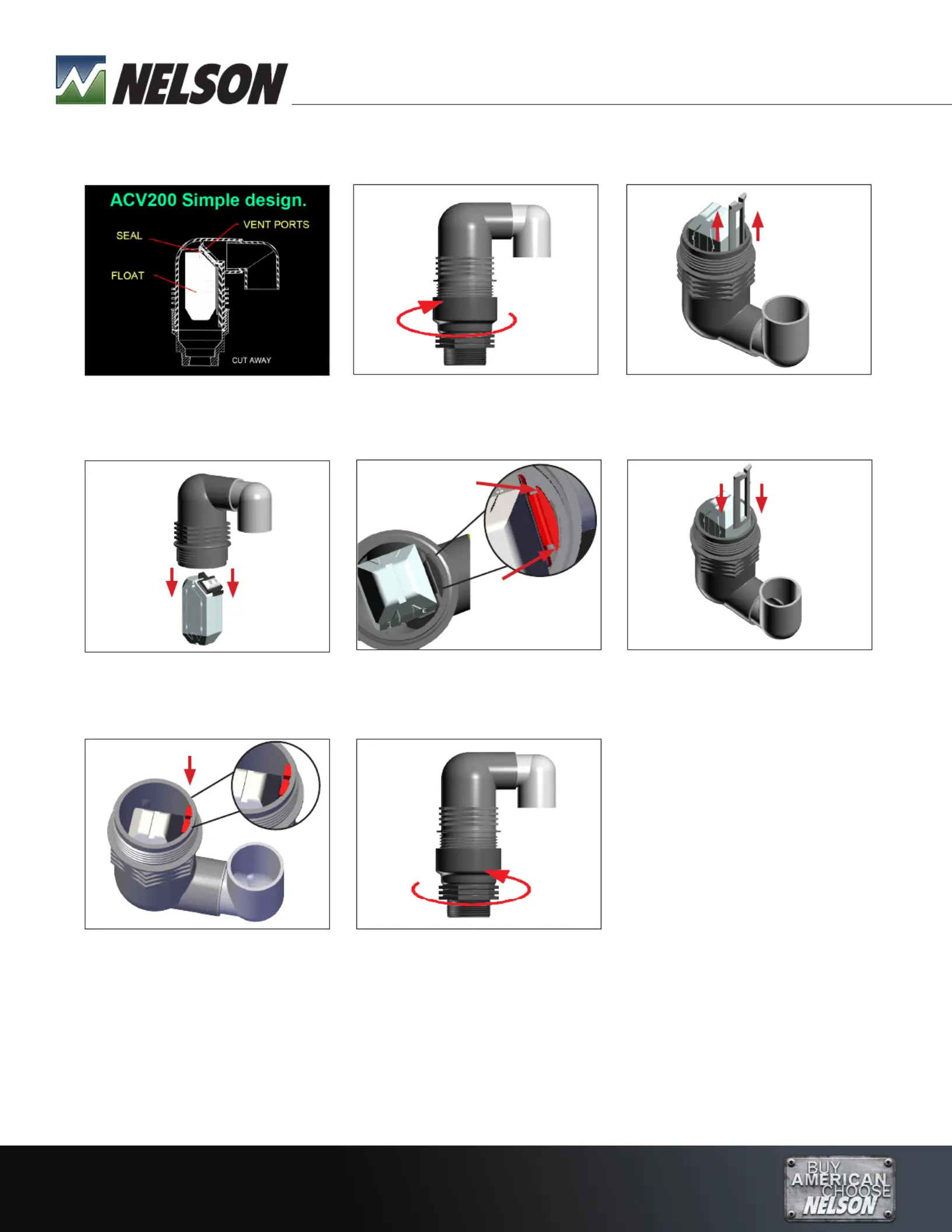

Cross-section showing parts. 2. Use screwdriver to pry seal

retainer out. Pay attention to the

correct orientation of the retainer

in order to simplify reassembly

3. Pull oat and seal from hous-

ing. Clean debris from housing

and thoroughly ush before

reassembly.

5. Slide in new retainer.

6. Be sure to press the retainer

down all the way so that it is

even with the housing edge.

7. Screw housing and base back

together. The normal torque is

40 ft-lbs.

1. To begin, unscrew ACV200

housing from base.

Housing

Base

Make sure seal ears

are positioned into

both retaining slots.

4. Carefully guide seal into slots.

Use athead screwdriver to

guide the seal in place.

Housing

Base

Warranty and Disclaimer Nelson Irrigation Products and Accessories are warranted for one year from date of original sale to be free of defective

materials and workmanship when used within the working specications for which the products were designed and under normal use and

service. The manufacturer assumes no responsibility for installation, removal or unauthorized repair of defective parts. The manufacturer’s

liability under this warranty is limited solely to replacement or repair of defective parts and the manufacturer will not be liable for any crop

or other consequential damages resulting from defects or breach of warranty. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSES

AND OF ALL OTHER OBLIGATIONS OR LIABILITIES OF MANUFACTURER. No agent, employee or representative of the manufacturer

has authority to waive, alter or add to the provisions of this warranty, nor to make any representations or warranty not contained herein.
