FOR YOUR SAFETY

WARNING: BE SURE THE ELECTRICITY TO THE WIRES

YOU ARE WORKING ON IS SHUT OFF; EITHER THE FUSE IS

REMOVED OR THE CIRCUIT BREAKER IS SHUT OFF.

GENERAL

You don’t need special tools to install this xture. Be sure to follow

the steps in the order given. Under no circumstances should

a xture be hung on house electrical wires, nor should a swag

type xture be installed on a ceiling which contains a radiant type

heating system. Read instructions carefully. If you are unclear as to

how to proceed, consult a qualied electrician.

NOTE: Proper wiring is essential for the safe operation of this

xture.

FIXTURE ASSEMBLY

Carefully remove the xture from the carton and check that all

parts are included as shown in gure. Be careful not to misplace

any of the screws or parts, which are needed to install this xture.

INSTALLATION

IMPORTANT: Do not attach xture directly to outlet box.

STEP 1: Thread the nipple through the mounting bracket, attach

to the outlet box using the two outlet box screws (included).

STEP 2: Unscrew the screws and remove cage and glass shade.

STEP 3: Connect wires separately. Cap all connections with wire

connectors (included).

GROUNDING INSTRUCTIONS

STEP 1: Insert the green grounding screw into the hole with two

raised dimples on the mounting bar. Wrap the ground wire from

the xture (if supplied) around the green grounding screw, then

connect it to ground wire from the outlet box (if not xed on the

outlet box) using a wire connector (not supplied). If ground wire

from the xture is not supplied, wrap the ground wire (if not xed

on the outlet box) from the outlet box around the green grounding

screw and tighten it.

NEVER CONNECT GROUND WIRE TO BLACK OR WHITE

POWER SUPPLY WIRES.

STEP 2: Take note of the color of the wire(s) on your xture.

Identify which group your xture wire(s) falls into and connect the

wires according to the directions below:

GROUP A:

Connect to Black House Wire

GROUP B:

Connect to White House Wire

BLACK WHITE

* PARALLEL WIRE (round & smooth) * PARALLEL WIRE (square & ridged)

WHITE OR GREY WITH TRACER WHITE OR GREY WITHOUT TRACER

BROWN, GOLD OR BLACK

WITHOUT TRACER

BROWN, GOLD OR BLACK

WITH TRACER

NOTE: When parallel wire (SPT-I & SPT-2) is used, the tracer wire

is square shaped or ridged and the less tracer wire is round in

shape or smooth (seen best when viewed from wire end.)

STEP 3: Take your xture wire(s) from group A and place evenly

against the black wire from the outlet box. Do NOT twist wires

together before using wire connectors.

STEP 4: Fit a wire connector over the wires and screw the

connector clockwise until you feel rmness.

STEP 5: Try gently to pull the connector off the wires. If you can

pull the connector off, carefully re-do steps 3 and 4 as above, and

check again for a rm connection.

STEP 6: Connect the xture wire from group B to the white wire

from the outlet box in the same manner. Make sure no bare wires

can be seen outside wire connectors.

FINAL ASSEMBLY

STEP 1: After wires are connected, tuck them carefully inside

outlet box. Attach the canopy by threading up through the nipple

and securing it with the lock nut.

STEP 2: Reattach the glass shade and cage to canopy with

screws. Tighten screws to the xture. Installation is complete.

NOTE: For wet location usage, use silicon to form a

protective seal around xture.

CLEANING

To clean, wipe xture with a soft cloth. Clean glass with a mild

soap. Do not use abrasive materials such as scouring pads or

powders, steel wool or abrasive paper.

ORDERING PARTS

Keep this sheet for future reference, and in case you need to order

replacement parts. Be sure to use exact wording from illustration

when ordering parts.

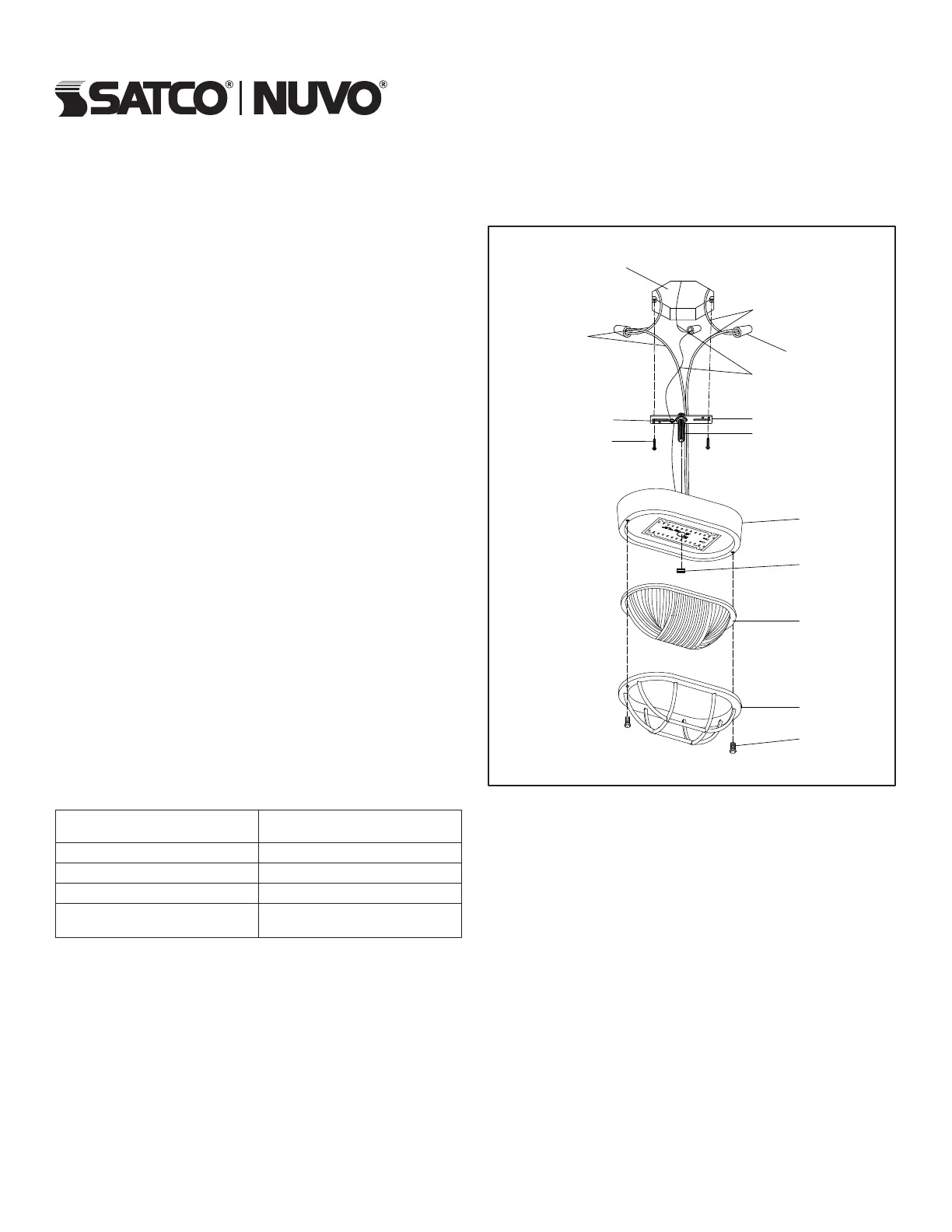

FIGURE

Line art shown may not exactly match the xture enclosed. However, the installations

do apply to this xture.

La ilustración puede no concordar exactamente con la pieza enviada. Sin embargo,

las instalaciones sí aplican para esta pieza.

Les images peuvent ne pas correspondre exactement au luminaire de la boîte.

Par contre, les directives d’installation s’appliquent au luminaire.

INSTALLATION AND SAFETY INSTRUCTIONS

ITEM NO: 62-1388, 62-1389

ARTÍCULO Nº: 62-1388, 62-1389

ARTICLE N°: 62-1388, 62-1389

Outlet Box

Black (Hot)

Ground Screw

Outlet Box Screws

White (Neutral)

Wire Connector

Ground Wire

Mounting Bracket

Canopy

Lock Nut

Glass Shade

Cage

Screws

Nipple
