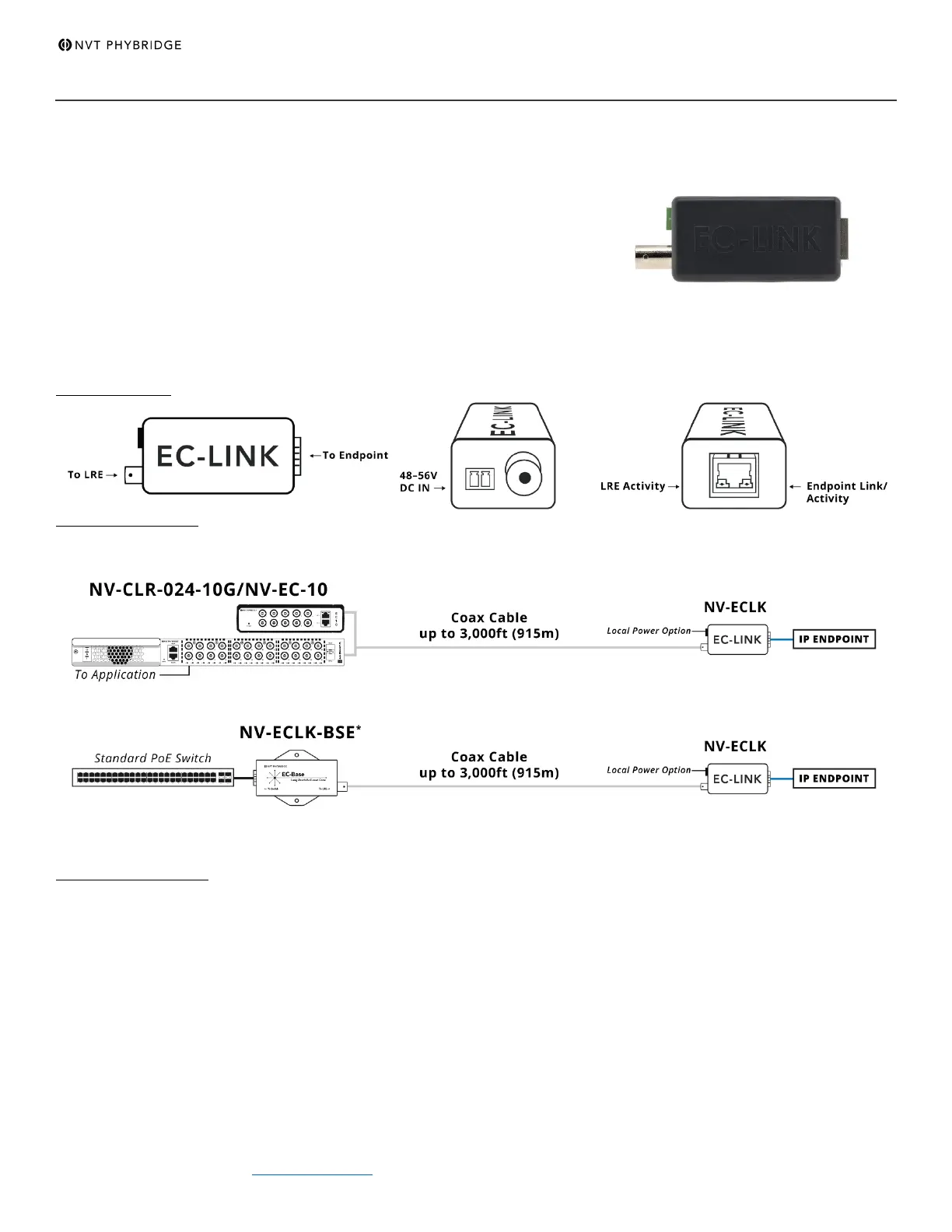

Quick Install Guide: EC-Link

888.901.3633 | +44 (0) 208 977 6614 | www.nvtphybridge.com Copyright 2024 NVT Phybridge | 445-0021-C| Page | 1

The EC-

Link Adapter enables extended Ethernet and PoE reach beyond

traditional distances using Coax infrastructure. When paired with the CLEER24-

10G Switch, EC10 Switch or EC-Base Extender, the Adapter delivers 100 Mbps,

symmetrical full duplex. The EC offering is designed specifically to enable easy

deployment over Coax for reaches beyond that of standard Ethernet

eliminating the costs and disruption associated with IDF closet requirements.

EC-Link (NV-ECLK)

• Paired with CLEER24-10G, EC10 or EC-Base

• Up to 30W PoE

• Local power option

•

802.1x port-based authentication

EC-Link Adapter

EC-Link Adapter

Hardware Topology

100 Mbps (full duplex, symmetrical) & PoE+ over Coax with up to 3,000ft (915m) reach.

*Base Extender can be powered locally for use with non-PoE switches

Installation Overview

1. Remove the EC-Link from its packaging.

2. Must ensure cable is properly terminated before connecting any EC product.

3. Remove all legacy equipment from the Coax cable infrastructure. NOTE: In order to avoid damage to endpoints, it is

important that non-IP devices are not connected when you connect the EC-Link.

4. Connect the Network Infrastructure cable from the CLEER24-10G switch, EC10 switch, or EC-Base to the EC-Link (LRE side).

NOTE: Adapter will establish a connection with the head end switch after an IP end point is connected.

5. Using CAT5 or higher category cable, connect the endpoint to EC-Link (Endpoint side). Endpoint device must be IEEE 802.3

af/at compliant.
