Side 1/99
1English
Table of Contents ...................................................................................1
Usage Notice ..........................................................................................2
Safety Information .........................................................................................2
Precautions....................................................................................................3
Eye Safety Warnings .....................................................................................5
Product Features ...........................................................................................5
Introduction............................................................................................. 6
Package Overview.........................................................................................6
Product Overview ..........................................................................................7
Main Unit ................................................................................................................ 7
Control Panel ......................................................................................................... 8
Input / Output Connections .................................................................................... 9
Remote Control .................................................................................................... 11
Installation ............................................................................................12
Connecting the Projector .............................................................................12
Connect to Computer/Notebook .......................................................................... 12
Connect to Video Sources ................................................................................... 13
Powering On/Off the Projector .....................................................................15
Powering On the Projector ................................................................................... 15
Powering Off the projector ................................................................................... 16

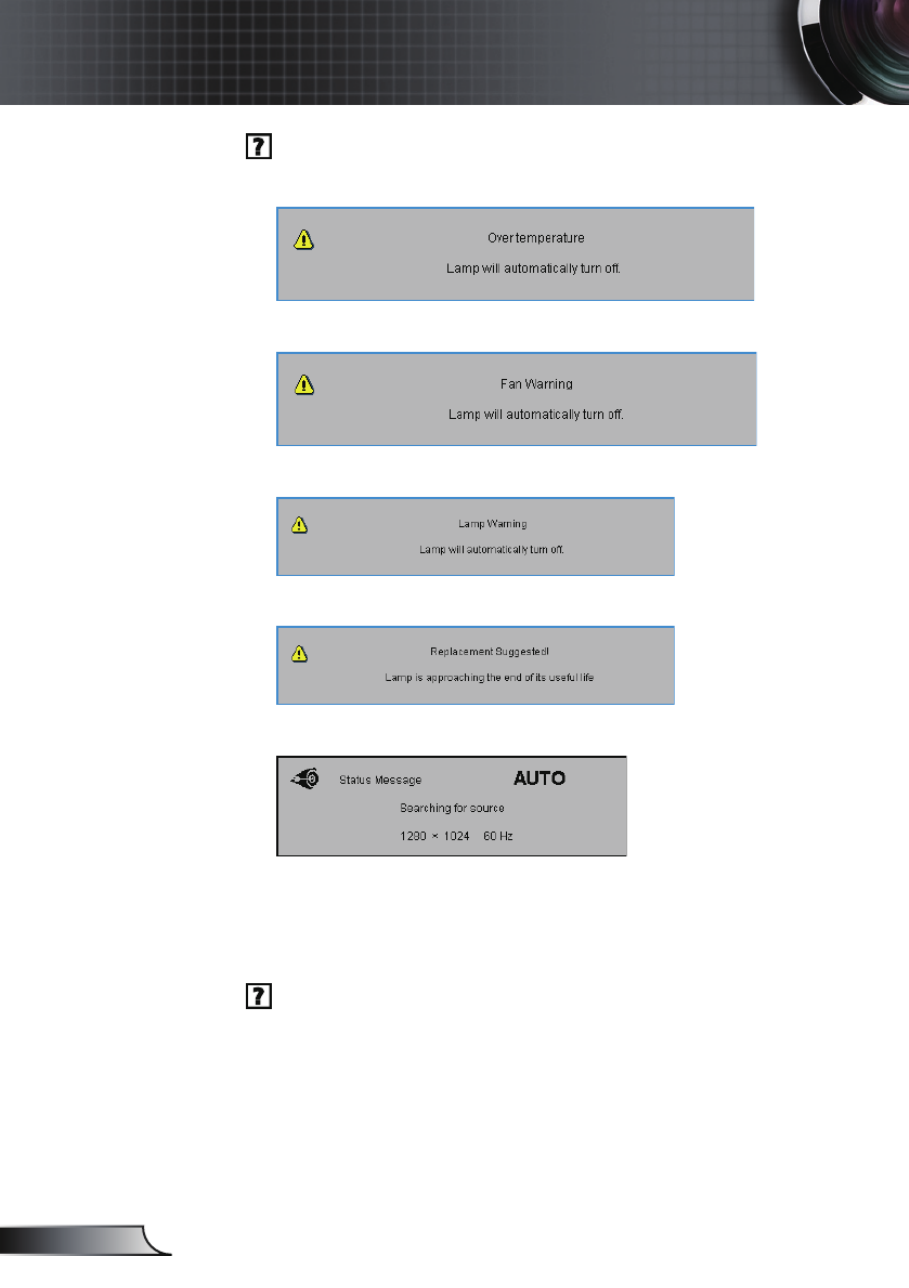

Warning Indicator ................................................................................................. 16
Adjusting the Projected Image.....................................................................17
Adjusting the Projector’s Height ........................................................................... 17
Adjusting the Projector’s Zoom / Focus ............................................................... 18
Adjusting Projected Image Size ........................................................................... 18
Adjusting Projected Image Position Using PureShift ........................................... 19
User Controls ....................................................................................... 21
Control Panel & Remote Control .................................................................21
Control Panel ....................................................................................................... 21
Remote Control .................................................................................................... 22
Using the USB Remote Mouse Control ............................................................... 24

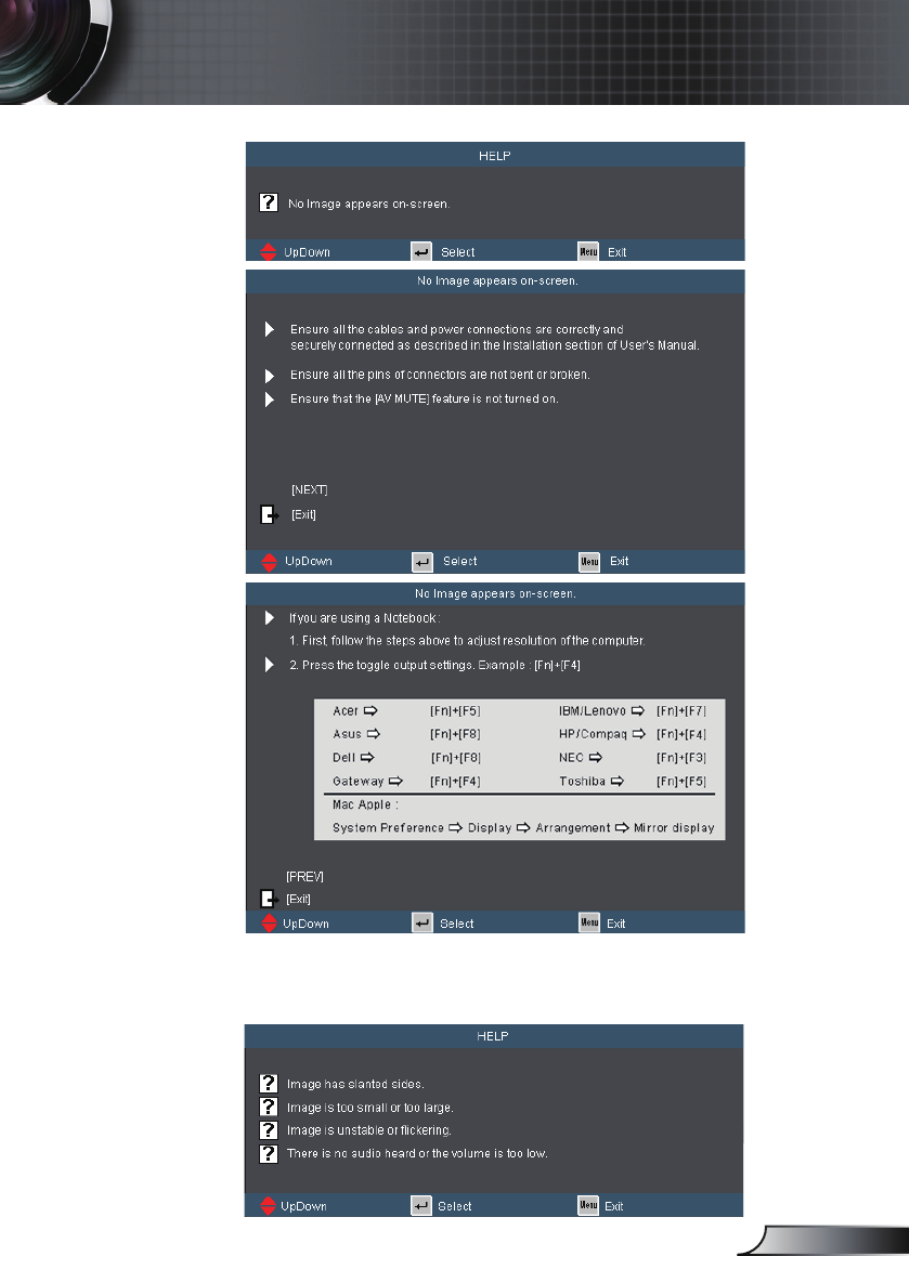

Using the ENTER / HELP button ......................................................................... 24
On-screen Display Menus ...........................................................................27
How to operate .................................................................................................... 27
Menu Tree ............................................................................................................ 28
Image ................................................................................................................... 29
Display ................................................................................................................. 32
Setup .................................................................................................................... 37
Options ................................................................................................................. 49
Appendices...........................................................................................52
Troubleshooting ...........................................................................................52
Image Problems .................................................................................................. 52
Other Problems ................................................................................................... 55
Projector Status Indication .................................................................................. 55
Remote Control Problems ................................................................................... 56
Replacing the Lamp.....................................................................................57
Compatibility Modes ....................................................................................59
RS232 Commands ......................................................................................60
Ceiling Mount Installation ............................................................................63
Optoma Global Ofces ................................................................................64
Regulation & Safety notices ........................................................................66

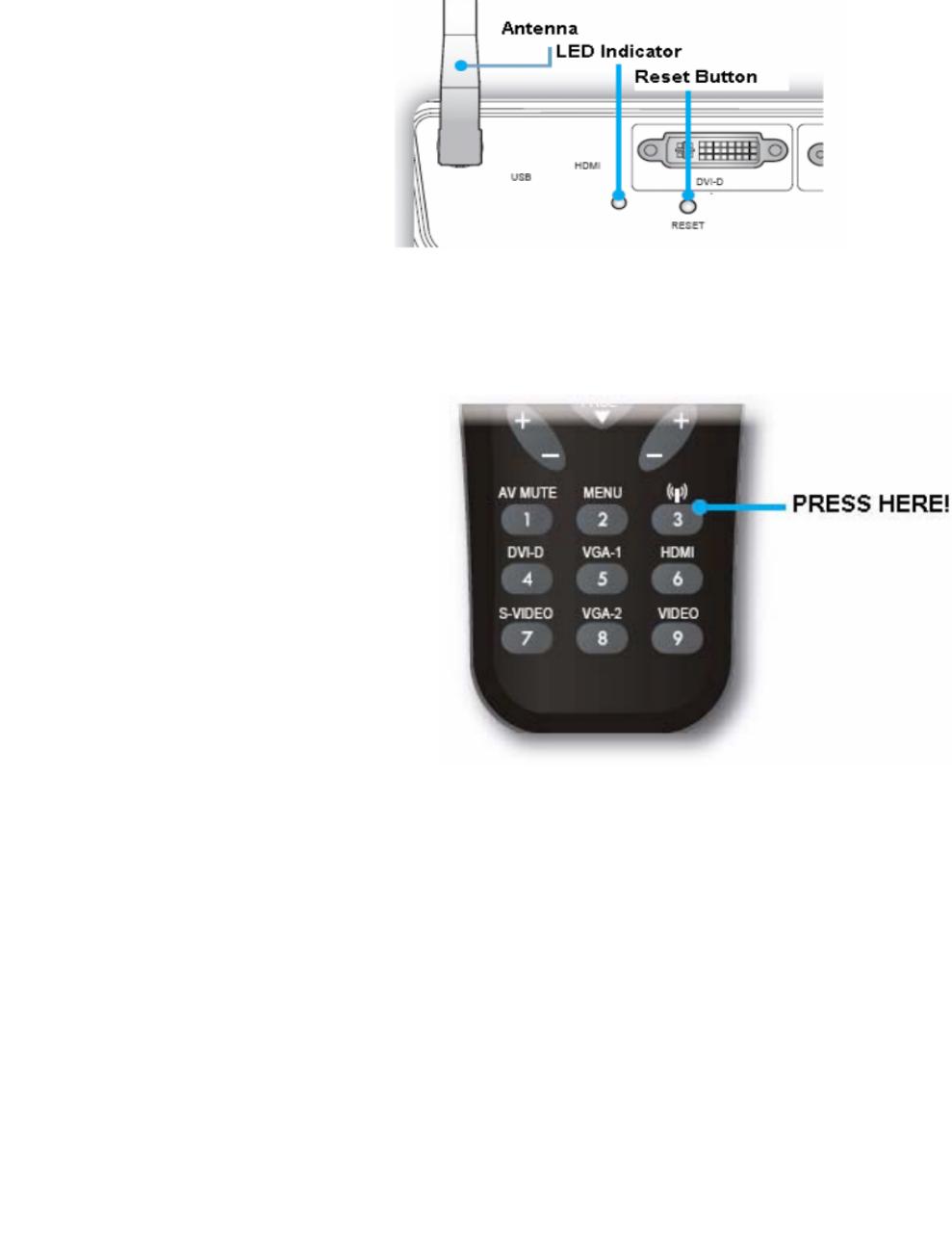

Wireless .......................................................................................................... 68
Table of Contents
2
English
Usage Notice
Safety Information
The lightning ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of suf cient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH
VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE
CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
Class B emissions limits
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Important Safety Instruction
1. Do not block any ventilation openings. To ensure reliable operation of
the projector and to protect from over heating, it is recommended to
install the projector in a location that does not block ventilation. As an
example, do not place the projector on a crowded coffee table, sofa,
bed, etc. Do not put the projector in an enclosure such as a book case
or a cabinet that restricts air ow.
2. Do not use the projector near water or moisture. To reduce the risk
of re and/or electric shock, do not expose the projector to rain or
moisture.
3. Do not install near heat sources such as radiators, heaters, stoves or
any other apparatus such as ampli ers that emits heat.
4. Clean only with dry cloth.
5. Only use attachments/accessories speci ed by the manufacturer.
6. Do not use the unit if it has been physically damaged or abused.
Physical damage/abuse would be (but not limited to):
Unit has been dropped.
Power supply cord or plug has been damaged.
Liquid has been spilled on to the projector.
Projector has been exposed to rain or moisture.
Something has fallen in the projector or something is loose inside.
Do not attempt to service the unit yourself. Opening or removing covers
may expose you to dangerous voltages or other hazards. Please call
Optoma before you send the unit for repair.
7. Do not let objects or liquids enter the projector. They may touch
dangerous voltage points and short out parts that could result in re or
electric shock.
8. See projector enclosure for safety related markings.
9. The unit should only be repaired by appropriate service personnel.
3English
Usage Notice
When the lamp
reaches the end
of its life, the
projector will
not turn back on
until the lamp
module has
been replaced.
To replace the
lamp, follow
the procedures
listed under
“Replacing the
Lamp” section
on pages 57-58.
Precautions
Please follow all warnings, precautions and
maintenance as recommended in this user’s
guide.
▀■ Warning- Do not look into the projector’s lens when the lamp is
on. The bright light may hurt your eyes.
▀■ Warning- To reduce the risk of re or electric shock, do not
expose this projector to rain or moisture.
▀■ Warning- Please do not open or disassemble the projector as
this may cause electric shock.
▀■ Warning- When replacing the lamp, please allow the unit to
cool down. Follow instructions as described on pages
57-58.
▀■ Warning- This projector will detect the life of the lamp itself.
Please be sure to change the lamp when it shows
warning messages.
▀■ Warning- Reset the “Lamp Reset” function from the on-screen
display “Options | Lamp Settings” menu after replac-
ing the lamp module (refer to page 51).
▀■ Warning- When switching the projector off, please ensure
the cooling cycle has been completed before
disconnecting power. Allow 90 seconds for the
projector to cool down.
▀■ Warning- Do not use lens cap when projector is in operation.
▀■ Warning- When the lamp is approaching the end of its lifetime,
the message “Replacement suggested” will show
on the screen. Please contact your local reseller
or service center to change the lamp as soon as
possible.
▀■ Warning- To reduce the risk of injury to the eyes, do not look
directly into the laser beam on the remote control and
do not point the laser beam into anyone’s eyes. This
remote control is equipped with a Class II laser that
emits radiation.
4
English
Usage Notice
Do:
Turn off and unplug the power plug from the AC outlet before
cleaning the product.
Use a soft dry cloth with mild detergent to clean the display
housing.
Disconnect the power plug from AC outlet if the product is
not being used for a long period of time.
Do not:
Block the slots and openings on the unit provided for
ventilation.
Use abrasive cleaners, waxes or solvents to clean the unit.
Use under the following conditions:
- In extremely hot, cold or humid environments.
Ensure that the ambient room temperature is within
5 - 35°C.
Relative Humidity is 5 - 35°C, 80% (Max.),
non-condensing.
- In areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic eld.
- In direct sunlight.
5English
Usage Notice

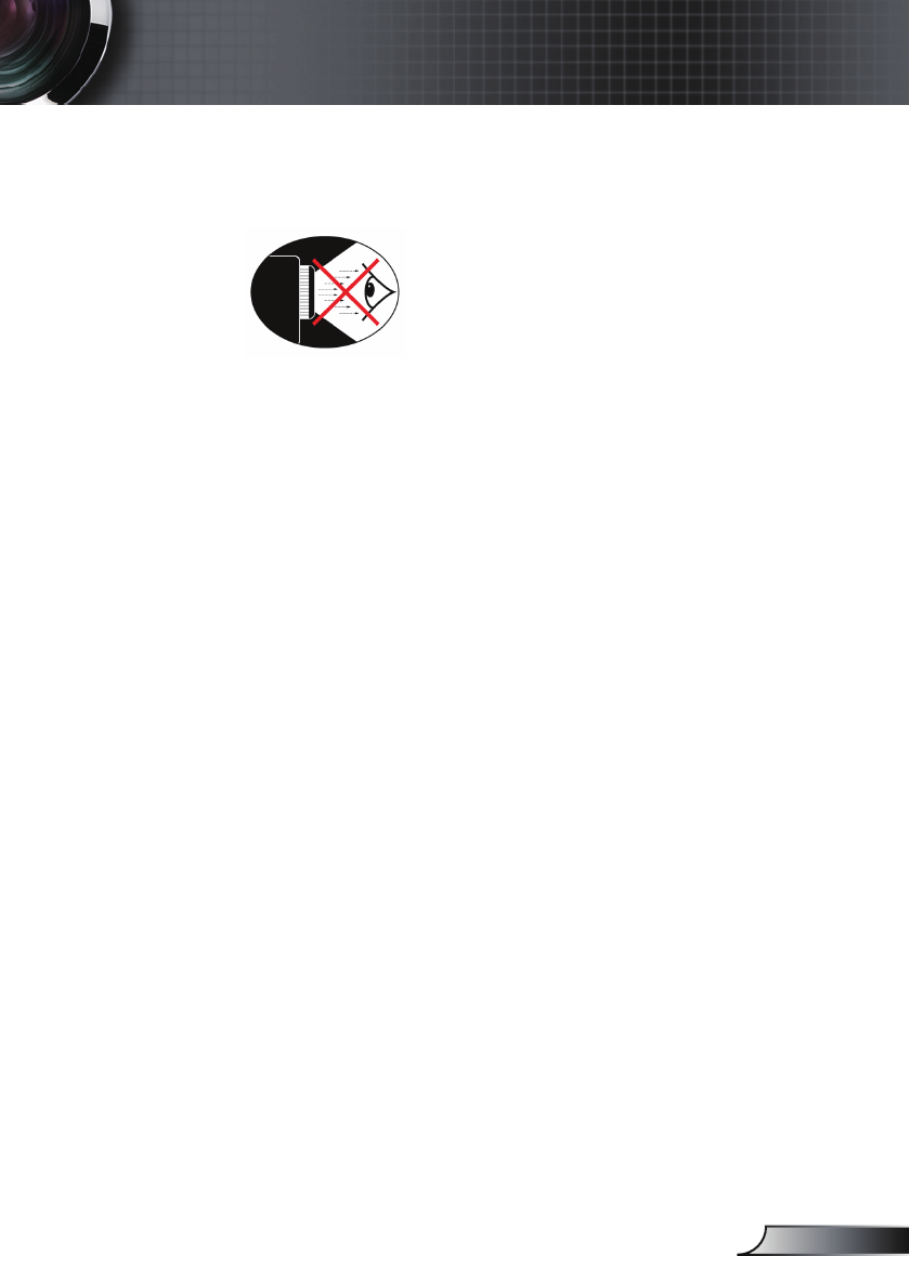

Eye Safety Warnings
▀■ Avoid staring/facing directly into the projector beam at all
times. Keep your back to the beam as much as possible.
▀■ When projector is used in a classroom, adequately supervise
students when they are asked to point out something on the
screen.
▀■ In order to minimize the lamp power, use room blinds to re-
duce ambient light levels.
Product Features
▀■ XGA (1024x768) / WXGA (1280x800) Native resolution
▀■ Large Zoom range
▀■ Manual lens shift operation
▀■ (for wireless model only) Wireless LAN
6
English
Introduction
Power Cord m 3.0
IR Remote Control

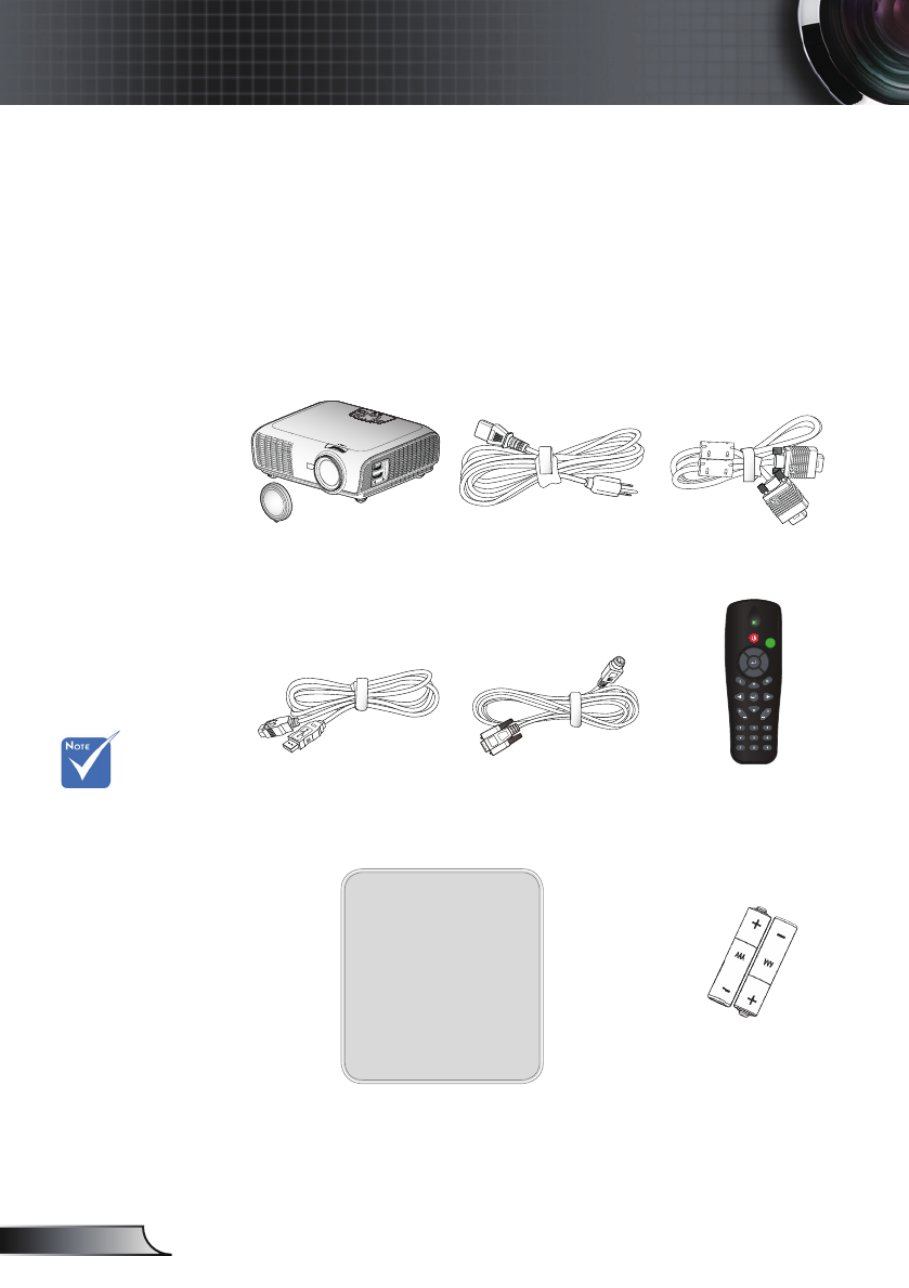

Package Overview
Unpack and inspect the box contents to ensure
all parts listed below are in the box. If something
is missing, please contact your nearest customer
service center.
Documentation :
User’s Manual
Warranty Card
Quick Start Card
WEEE Card
(for EMEA only)
Due to different
applications in
each country,
some regions
may have
different
accessories.
2 × AAA Batteries
Projector with lens cap
SO
U
RCE
R
E-SY
NC
?
/
LAMP
TEM
P
MENU
PO
WER S
TANDBY
E
NTER H ELP
/
/
VGA Cable 1.8m
USB Cable 1.8m
RE-SYNCSOURCE
KEYSTONE VOLUME
POWER
LASER
L
E
F
T
R
I
G
H
T
U
P
D
O
W
N
PAGE+
PAGE-
AV MUTE MENU
DVI-D
S-VIDEO
VGA-1
VIDEO
VGA-2
HDMI
?
ZOOM
RS232 Cable 1.8m
7English
Introduction
1. Control Panel
2. Zoom Ring
3. Focus Ring
4. Zoom Lens
5. IR Receivers
Main Unit
Product Overview
6. Tilt-Adjustment Feet
7. Lens Shift Adjustment
8. Input / Output
Connections
9. Power Socket
SO UR CE
RE-SY NC
?
/
LAM
P
TEM
P
MENU
PO WE R S
TANDB
Y
EN
TE R H ELP
/
/
AUDIO1 AUDIO2 AUDIO3
AUDIO-OUT
+12V
RJ-
45
RS-232
S- VIDEO VIDEO
VGA-OUT
VGA2-IN
VGA1-IN/SCART
DVI-D
HDMI
USB
LR
SO UR CE
RE -S
YN C
?
/
LA MP TEM
P
MENU
P
O
W
E
R S
TAN
DB
Y
EN TER H ELP
/
/
2
3
4
56
1
7
6
1
8
9
2
5
8
English
Introduction
SOURCE
RE- SYNC
?
/
LAMP TEMP
MENU
POW ER STANDBY
ENTER HELP
/
/
Control Panel
1. Power/Standby and Power LED
2. Enter/Help
3. Re-Sync
4. Keystone Correction
5. Source
6. Menu
7. Four Directional Select Keys
8. Lamp Fail LED
9. Temp LED
10. IR Receiver
62
1
3
5 4
98710
9English
Introduction
Input / Output Connections
1. USB Connector (Connect to PC for Remote Mouse function)
2. HDMI Connector
3. DVI-D Connector (PC Digital (HDCP))
4. VGA1-In/SCART Connector
(PC Analog Signal/Component Video Input/HDTV/SCART)
5. VGA2-In Connector
(PC Analog Signal/Component Video Input/HDTV)
6. VGA-Out Connector (Monitor Loop-through Output)
7. S-Video Input Connector
8. Composite Video Input Connector
9. RS-232 Connector (3-pin)
10. RJ45 Networking Connector
11. Power Socket
12. KensingtonTM Lock Port
13. Audio Input 1 (3.5mm Mini Jack) (default for DVI-D)
14. Audio Input 2 (3.5mm Mini Jack) (default for VGA)
15. Audio Output Connector (3.5mm Mini Jack)
16. Audio Input 3 (L/R RCA) (default for S-video & Composite)
17. 12V Trigger Relay Connector
AUDIO1 AUDIO2 AUDIO3
AUDIO - OUT
+12V
RJ - 45
RS- 232
S - VIDEO VIDE O
VGA-OUTVGA2-INVGA1-IN/SCARTDVI-D
HDMI
USB
L R
6 8 9 107543
1714 151311 12
1 2
16
12
English
Installation
Connecting the Projector
Due to the
difference in
applications
for each
country, some
regions may
have different
accessories.
(*) Optional
accessory
Connect to Computer/Notebook
1....................................................................................................Power Cord
2.....................................................................................................USB Cable
3.....................................................................................................VGA Cable
4.....................................................................................................*DVI Cable
5................................................................................................. RS232 Cable
6.........................................................................................*Audio Input Cable
7..............................................................................................*Network Cable
8........................................................................................*VGA Output Cable
9......................................................................................*Audio Output Cable
AUDIO 1 AUDI O2 AUDIO 3
AUDIO - OUT
+ 12V
RJ-45
RS -232
S-V IDE O VIDE O
VGA -OUTVGA 2-INVGA 1-IN/SCA RTDVI-D
HDMI
USB
L R
mol ex
MOLEX
E62405SP
R
1
342
5
6
7
+12V Output
8
9
13 English
Installation
AUDIO 1 AUDIO 2 AUDIO 3
AUDIO - OUT
12V- RELAY
RJ -45RS -232S-V IDE O VIDE O
VGA -OUT
VGA 2-IN
VGA 1-IN/SCA RT
DVI-D
HDMI
USB
L R
E62405SP
R
Connect to Video/VGA1-IN/SCART/HDMI
S-Video Output
DVD Player, Set-top Box,
HDTV receiver
1....................................................................................................Power Cord
2.....................................................................................................VGA Cable
3................................................................................... *SCART/VGA Adaptor
4.................................................................................*Audio Cable Jack/RCA
5.............................................................................................. *S-Video Cable
6..................................................................................................*HDMI Cable
+12V Output
Due to the
difference in
applications
for each
country, some
regions may
have different
accessories.
(*) Optional
accessory
2
4
DVD Player, Set-top Box,
HDTV receiver
1
3
4
5
6
14
English
Installation
Composite Video Output
1....................................................................................................Power Cord
2.............................................................................*3 RCA Component Cable
3................................................*15-Pin to 3 RCA Component/HDTV Adaptor
4.................................................................................*Audio Cable Jack/RCA
5................................................................................*Composite Video Cable
6........................................................................................ DVI to HDMI Cable
AUDIO 1 AUDIO 2 AUDIO 3
AUDIO - OUT
12V- RELAY
RJ -45
RS -232
S-V IDE O VIDE O
VGA -OUTVGA 2-INVGA 1-IN/SCA RTDVI-D
HDMI
USB
L R
E62405SP
R
Connect to Video/VGA1-IN/SCART/HDMI
DVD Player, Set-top Box,
HDTV receiver
+12V Output
24
DVD Player, Set-top Box,
HDTV receiver
1
3
4
5
4
6
Due to the
difference in
applications
for each
country, some
regions may
have different
accessories.
(*) Optional
accessory
15 English
Installation
Powering On the Projector
1. Remove the lens cap.
2. Securely connect the power cord and signal cable. When
connected, the Power LED will turn red.
3. Turn on the lamp by pressing “ ” button either on the top of
the projector or on the remote. The Power LED will now ash
Blue.
The startup screen will display in approximately 10 seconds.
The rst time you use the projector, you can select your
preferred language from quick menu after the startup screen
displays.
4. Turn on and connect the source that you want to display
on the screen (computer, notebook, video player, etc). The
projector will detect the source automatically. If not, push
menu button and go to “OPTIONS”.
Make sure that the “Source Lock” has been set to “Off”.
If you connect multiple sources at the same time, press the
“SOURCE” button on the control panel or direct source keys
on the remote control to switch between inputs.
Powering On/Off the Projector
Turn on the
projector rst and
then select the
signal sources.
SO
U
R
C
E
RE -SY NC
?
/
LA MP TE MP
MENU
P
O
WE R S
TAN
DB
Y
EN
TER H
E
LP
/
/
POWER STANDBY
ENTE R HELP
/
/
Lens Cap
1
Power/Standby
Power LED
2
16
English
Installation
Warning Indicator
When the “LAMP” indicator lights red, the projector will
automatically shut down. Please contact your nearest
service center for assistance.
When the “TEMP” indicator lights red, it indicates the
projector has overheated. The projector will shut down
automatically.
Under normal conditions, the projector can be switched on
again after it has cooled down.
When the “TEMP” indicator ashes red, it indicates the fan
has failed.
Powering Off the Projector
1. Press the “ ” button to turn off the projector lamp. The
following message will be displayed on the screen.
Press the “ ” button again to conrm the shut down. If
the button is not pressed, the message will disappear in 5
seconds.
2. The cooling fans continue to operate for about 10 seconds
for cooling cycle. When the Power LED turns Red, the
projector has entered standby mode.
If you wish to turn the projector back on, you must wait
until the projector has completed the cooling cycle and
has entered standby mode. Once in standby mode, simply
press “ ” button to restart the projector.
3. Disconnect the power cord from the electrical outlet and
the projector.
4. Do not turn on the projector immediately following a power
off procedure.
Contact the
nearest service
center if the
projector displays
these symptoms.
See pages
64-65 for more
information.
17 English
Installation
Adjusting the Projected Image
Adjusting the Projector’s Height
Tilt-Adjustment Feet
Tilt-Adjustment Ring
The projector is equipped with elevator feet for
adjusting the image height.
1. Locate the adjustable foot you wish to modify on the
underside of the projector.
2. Rotate the adjustable ring counter clockwise to raise
the projector or clockwise to lower it. Repeat with the
remaining feet as needed.
18
English
Installation
Adjusting the Projector’s Zoom / Focus
Adjusting Projection Image Size
Focus Ring
Zoom Ring
You may turn the zoom ring to zoom in or out. To focus
the image, rotate the focus ring until the image is clear.
The projector will focus at distances from 3.28 to 32.81 feet
(1.0 to 10.0 meters).
This table is for user’s reference only.
Diagonal
length (inch) size
of 16:10 Screen
Screen Size W × H (16:10) Projection distance (D) Offset
(Hd)
(m) (feet) (m) (feet)
Width Height Width Height Wide Tele Wide Tele (m) (feet)
30 0.65 0.40 2.12 1.32 0.97 1.47 3.17 4.83 0.10 0.33
40 0.86 0.54 2.83 2.77 1.29 1.96 4.22 6.44 0.13 0.44
50 1.08 0.67 3.53 2.21 1.61 2.54 5.28 8.05 0.17 0.55
60 1.29 0.81 4.24 2.65 1.93 2.95 6.33 9.66 0.20 0.66
70 1.51 1.94 4.95 3.09 2.25 3.44 7.39 11.27 0.24 0.77
80 1.72 1.08 5.65 3.53 2.57 3.93 8.45 12.88 0.27 0.88
90 1.94 1.21 6.36 3.97 2.90 4.42 9.50 14.49 0.30 0.99
100 2.15 1.35 7.07 4.42 3.22 4.91 10.56 16.10 0.34 1.10
110 2.37 1.48 7.77 4.86 3.54 5.40 11.61 17.72 0.37 1.21
130 2.80 1.75 9.19 5.74 4.18 6.38 13.72 20.94 0.44 1.44
150 3.23 2.02 10.60 6.62 4.83 7.36 15.84 24.16 0.50 1.66
180 3.88 2.42 12.72 7.95 5.79 8.84 19.00 28.99 0.61 1.99
200 4.31 2.69 14.13 8.83 6.44 9.82 21.12 32.21 0.67 2.21
250 5.38 3.37 17.67 11.04 8.04 12.27 26.39 40.26 0.84 2.76
300 6.46 4.04 20.20 13.25 9.65 - 31.67 - 1.01 3.31
WXGA model
XGA model
Diagonal
length (inch) size
of 4:3 Screen
Screen Size W × H (4:3) Projection distance (D) Offset
(Hd)
(m) (feet) (m) (feet)
Width Height Width Height Wide Tele Wide Tele (m) (feet)
30 0.65 0.4 2.13 1.31 1.0 1.6 3.28 5.25 0.12 0.39
40 0.86 0.54 2.82 1.77 1.3 2.1 4.27 6.89 0.16 0.53
50 1.08 0.67 3.54 2.20 1.6 2.7 5.25 8.86 0.20 0.66
60 1.29 0.81 4.23 2.66 2.0 3.2 6.56 10.50 0.24 0.80
70 1.51 0.94 4.95 3.08 2.3 3.8 7.55 12.47 0.28 0.93
80 1.72 1.08 5.64 3.54 2.6 4.3 8.53 14.11 0.32 1.06
90 1.94 1.21 6.36 3.97 3.0 4.8 9.84 15.75 0.36 1.19
100 2.15 1.35 7.05 4.43 3.3 5.4 10.83 17.72 0.41 1.33
120 2.58 1.62 8.46 5.31 4.0 6.4 13.12 21.00 0.49 1.59
150 3.23 2.02 10.60 6.63 4.9 8.0 16.08 26.25 0.61 1.99
180 3.88 2.42 12.73 7.94 5.9 9.7 19.36 31.82 0.73 2.38
200 4.31 2.69 14.14 8.83 6.6 10.7 21.65 35.10 0.81 2.65
250 5.38 3.37 17.65 11.06 8.2 13.4 26.90 43.96 1.01 3.32
300 6.46 4.04 21.19 13.25 9.9 - 32.48 - 1.21 3.98
19 English
Installation
Adjusting Projected Image Position Using
PureShift
Horizontal Lens
Shift Lever
Vertical Lens
Shift Lever
The PureShift feature provides a lens shift function that can
be used to adjust the position of the projected image either
horizontally or vertically within the range detailed below.
PureShift is a unique system that provides lens shift while
maintaining a much higher ANSI contrast ratio than traditional
lens shift systems.
Adjusting the image position
The image can be set up to a maximum of 30% of its width
either left or right of center, providing a 60% adjustment range.
The vertical offset can be set between 105% - 130% of the
screen height, providing 25% adjustment Range.
The range of
Vertical and
Horizontal
adjustment is
limited as shown
in the PureShift
Range diagram.
130%(V), 0%(H)
-30%(H) 30%(H)
105%(V)
130%(V), 5%(H)130%(V), -5%(H)
21 English
User Controls
Control Panel
Control Panel & Remote Control
There are two ways for you to control the functions:
Control Panel and Remote Control.
Using the Control Panel
POWER /
STANDBY
Power LED
Refer to the “Power On/Off the Projector” section on
pages 15-16.
Indicate the projector’s status.
/ ?
ENTER / HELP
Con rm your item selection.
Help Menu (refer to page 24).
MENU Press “MENU” to launch the on-screen display
(OSD) menu. To exit OSD, Press “MENU” again.
RE-SYNC Automatically synchronize the projector to the input
source.
SOURCE Press “SOURCE” to select an input signal.
Four Directional
Select Keys Use to select items or make adjustments
to your selection.
Keystone Use to adjust image distortion caused
by tilting the projector. (±16 degrees)
Lamp LED Indicate the projector’s lamp status.
Temp LED Indicate the projector’s temperature status.
SOURCE
RE-SYNC
?
/
LAMP TEMP
MENU
POWER STANDBY
ENTER HELP
/
/
22
English
User Controls
RE-SYNCSOURCE
KEYSTONE VOLUME
POWER
LASER
L
E
F
T
R
I
G
H
T
U
P
D
O
W
N
PAGE+
PAGE-
AV MUTE MENU
DVI-D
S-VIDEO
VGA-1
VIDEOVGA-2
HDMI
?
ZOOM
Remote Control
Using the Remote Control
POWER Refer to the “Power On/Off the Projector”
section on pages 15-16.
LASER
Aim the remote at the viewing screen, press
and hold this button to activate the laser
pointer.
PC/Mouse control
The PC/Mouse control can be used to
control mouse movement. The mouse
function is enabled using the USB cable to
connect your computer and the projector.
L Button Mouse left click.
R Button Mouse right click.
PAGE + Use this button to page up.
PAGE - Use this button to page down.
/ ?
Enter/Help
Con rm your item selection./
Help Menu (refer to page 24).
SOURCE Press “SOURCE” to select an input signal.
RE-SYNC Automatically synchronizes the projector to
the input source.
Four Directional
Select Keys Use to select items or make
adjustments to your selection.
KEYSTONE +/- Adjust image distortion caused by tilting the
projector.
VOLUME +/- Adjust to increase / decrease the volume.
BRIGHTNESS Adjust the brightness of the image.
24
English
User Controls
UU SS BB
USB cable to USB port
to USB port
Using the USB Remote Mouse Control
The remote control can be used as remote mouse
control by connecting the projector to the computer via
USB cable.
S
O
UR CE
R
E
-S
Y
N
C
?
/
LA
MP
TE M
P
M
E
NU
PO WE
R S
TA
NDBY
ENT
E
R H
ELP
/
/
?
/
ENTER HELP
/
Enter / Help
1
Using the ENTER / HELP button
Press the “ ” button on the control panel or on the
remote control to open the Help Menu.
25 English
User Controls
If no input source is detected and help button is pressed:
If input source is detected and help button is pressed, the
following pages will appear to help diagnose any problems.
27 English
User Controls
The Projector has multilingual On-screen Display menus that
allow you to make image adjustments and change a variety of
settings. The projector will automatically detect the source.
How to operate
1. To open the OSD menu, press “MENU” on the Remote Control or
Projector Keypad.
2 When OSD is displayed, use keys to select any item in the
main menu. While making a selection on a particular page, press
or “Enter” key to enter sub menu.
3. Use keys to select the desired item and adjust the settings
using keys.
4. Select the next item to be adjusted in the sub menu and adjust as
described above.
5. Press “Enter” to con rm, and the screen will return to the main
menu.
6. To exit, press “MENU” again. The OSD menu will close and the
projector will automatically save the new settings.
On-screen Display Menus
Main Menu
Sub Menu
Settings
30
English
User Controls
Hue
Adjust the color balance of red and green.
Press the to increase the amount of green in the image.
Press the to increase the amount of red in the image.
Saturation
Adjust a video image from black and white to fully saturated color.
Press the to decrease the amount of saturation in the image.
Press the to increase the amount of saturation in the image.
Gain
Use or to adjust Red, Green, Blue, Cyan, Magenta and
Yellow colors for brightness (Gain).
Color
Use these settings for advanced adjustment of the individual Red,
Green, Blue, Cyan, Magenta and Yellow Colors.
Reset
Choose “Yes” to return the factory default settings for color
adjustments.
IMAGE | Color
31 English
User Controls
IMAGE | Advanced
Degamma
This allows you to choose a degamma table that has been
ne-tuned to bring out the best image quality for the input.
Film: for home theater.
Video: for video or TV source.
Graphics: for image source.
PC: for PC or computer source.
BrilliantColor™
This adjustable item utilizes a new color-processing algorithm and
system level enhancements to enable higher brightness while
providing true, more vibrant colors in picture. The range is from
“0” to “10”. If you prefer a stronger enhanced image, adjust toward
the maximum setting. For a smoother, more natural image, adjust
toward the minimum setting.
Color Temp
If set to cold temperature, the image looks more blue. (cold image)
If set to warm temperature, the image looks more red.
(warm image)
Color Space
Select an appropriate color matrix type from AUTO, RGB or YUV.
32
English
User Controls
DISPLAY
Format
Use this function to choose your desired aspect ratio.
Auto: Automatically selects the appropriate display format.
4:3: This format is for 4×3 input sources.
16:9: This format is for 16×9 input sources.
16:10: This format is for 16×10 input sources.
16:9-I: This format is for 16×9 input sources, like HDTV and
DVD enhanced for Wide screen TV. (576i/p)
16:9-II: This format is for 16×9 input sources, like HDTV and
DVD enhanced for Wide screen TV. (480i/p)
Letter Box: This format is for non-16×9, letterbox source and for
users who use external 16×9 lens to display 2.35:1 aspect ratio
using full resolution.
Native: This format displays the original image without any
scaling.
“16:9” and “LBX”
are only functional
with WXGA model.
“16:9-I” and “16:9-II”
are only functional
with XGA model.
WXGA model: Two
Display Types are
supported 16:9 &
16:10.
At 16:9, available
formats are Auto,
4:3, 16:9, LBX &
Native.
At 16:10, available
formats are Auto,
4:3, 16:10, Letter
Box & Native.
(See page 36)
33 English
User Controls
LBX format
16 : 9 format
or
16 : 10 format
or
4 : 3 format
Input Signal
Display area
Picture area
Display on Screen
Detail information about LBX mode :
1) Some Letter-Box DVDs are not enhanced for 16x9 TVs. In this
situation, the image will not look right when displayed in 16:9
mode.
In this situation, please try to using the 4:3 mode to view the DVD.
If the content is not 4:3, there will be black bars around the image
in 16:9 display. For this type of content, you can use LBX mode to
ll the image on the 16:9 display.
2) If you use an external anamorphic lens, this LBX mode allows you
to watch 2.35:1 content without black bars at the top and bottom
of the screen. By doing so, lamp power & resolution are fully
utilized.
34
English
User Controls
WXGA model:
If this format is select, display type will auto become 16:10 (1280×800)
Display Type: 16×10 (Re-size to 1280 × 800 center)
Source 480i/p 576i/p 720p 1080i/p PC
4:3 Re-size to 1066 × 800 center
16:10 Re-size to 1280 × 800 center
LBX Re-size to 1280 × 800 center
Native 1:1 mapping center
Display Type: 16×9 (1280 × 720)
Source 480i/p 576i/p 720p 1080i/p PC
4:3 Re-size to 960 × 720 center
16:9 Re-size to 1280 × 720 center
LBX Re-size to 1280 × 720 center
Native 1:1 mapping center
XGA model: (1024 × 768)
Source 480i/p 576i/p 720p 1080i PC
4:3 Re-size to 1024 × 768 center
16:9-l Re-size to 1024 × 576 center
16:9-ll Re-size to 854 × 480 center
Native 1:1 mapping center
36
English
User Controls
Display Type
Choose the Display type as 16:10 (1280 x 800) or
16:9 (1280 x 720).
16:10 screen
Source 480i/p 576i/p 720p 1080i/p PC
Auto If this format is select, screen type will auto become 16:10 (1280 × 800).
4:3 Scale to 1066 × 800
16:10 Scale to 1280 × 800
LBX Scale to 1280 × 960,
then get the central 1280 × 800 image to display.
Native
1:1 mapping
centered
1280 × 720
centered
1:1 mapping
centered display
1280 × 800
1:1
mapping
centered
16:9 screen
Source 480i/p 576i/p 720p 1080i/p PC
Auto If this format is select, screen type will auto become 16:10 (1280 × 800).
4:3 Scale to 960 × 720
16:9 Scale to 1280 × 720
LBX Scale to 1280 × 960,
then get the central 1280 × 720 image to display.
Native
1:1 mapping
centered
1280 × 720
centered
1:1 mapping
centered display
1280 × 720
1:1
mapping
centered
When “Display
Type” is set to 16:9
the default format
will become “4:3,
16:9, LBX, Native,
AUTO” replacing
original format “4:3,
16:10, LBX, Native,
AUTO”.
(See page 32)
DISPLAY
“Display Type” is
only functional with
WXGA model.
38
English
User Controls

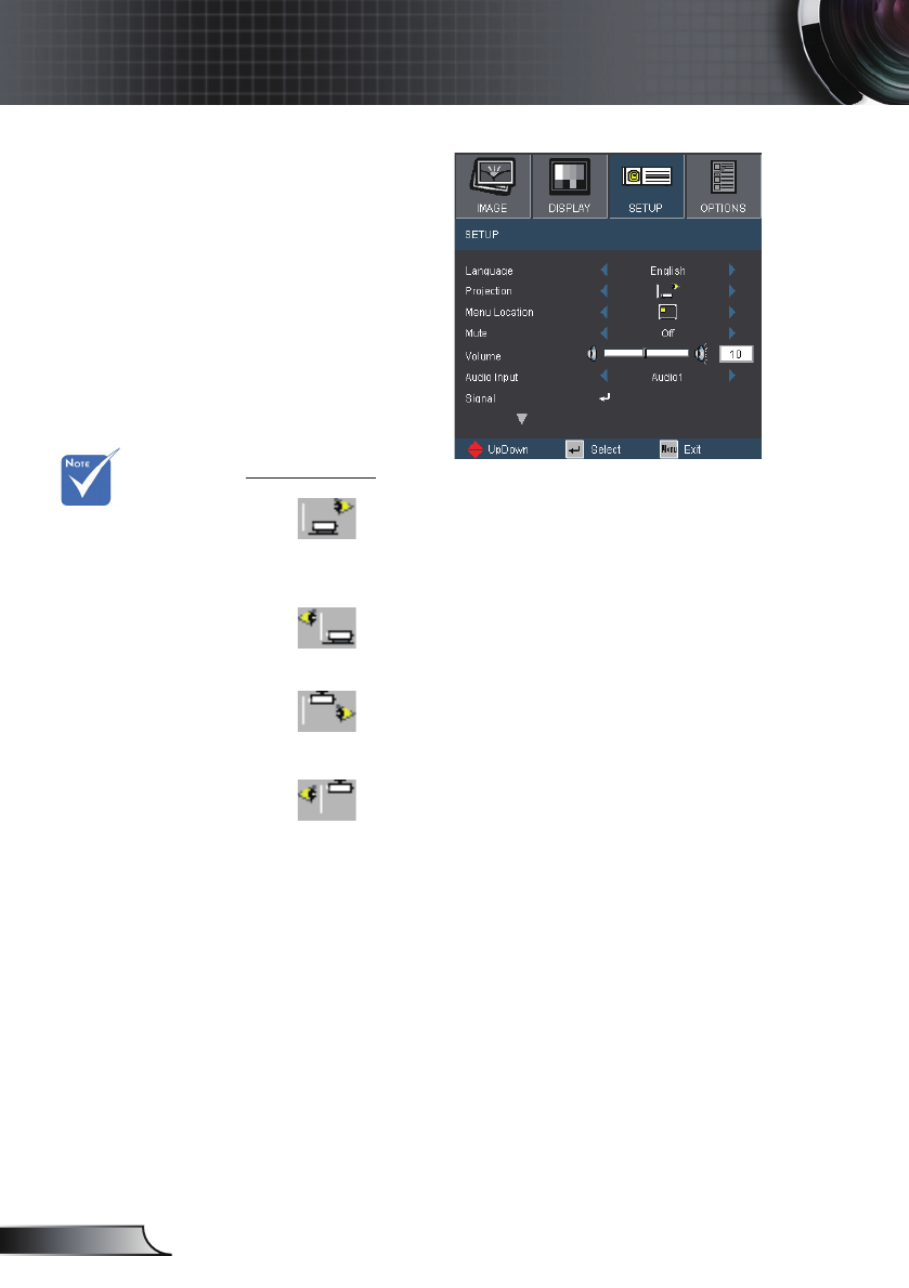

SETUP
Projection
Front-Desktop
This is the default selection. The image is projected straight on
the screen.
Rear-Desktop
When selected, the image will appear reversed.
Front-Ceiling
When selected, the image will turn upside down.
Rear-Ceiling
When selected, the image will appear reversed in upside down
position.
Rear-Desktop and
Rear-Ceiling are
to be used with a
translucent screen.
40
English
User Controls
SETUP | Signal
Phase
Synchronize the signal timing of the display with the graphic card.
If the image appears to be unstable or ickers, use this function to
correct it.
Frequency
Change the display data frequency to match the frequency of
your computer’s graphic card. Use this function only if the image
appears to icker vertically.
H. Position
Press the to move the image left.
Press the to move the image right.
V. Position
Press the to move the image down.
Press the to move the image up.
“Signal” is only
supported in Analog
VGA (RGB) signal.
41 English
User Controls

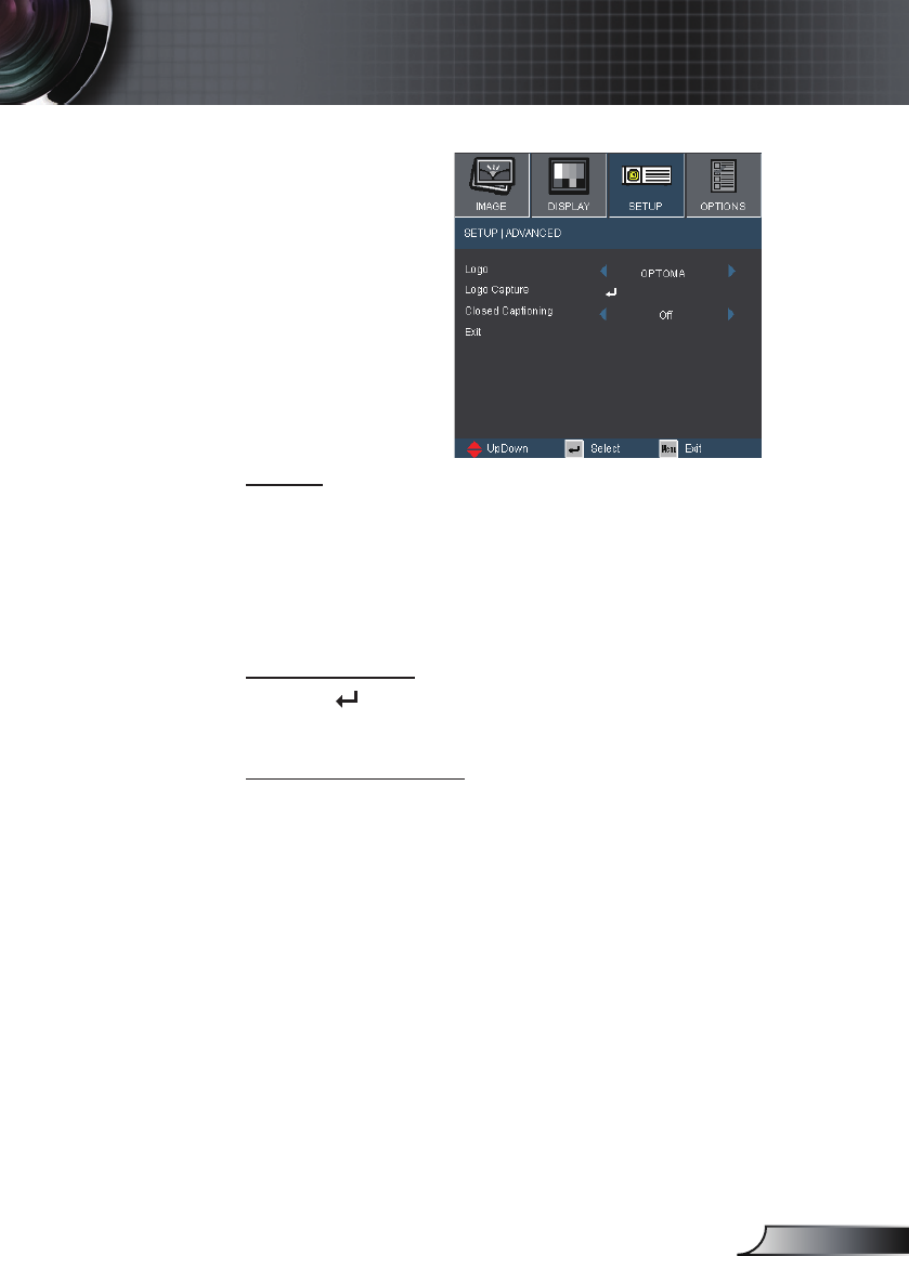

SETUP | Advanced
Logo
Use this function to set the desired startup screen. If changes are
made they will take effect the next time the projector is powered
on.
Optoma: The default startup screen.
User: Uses the saved picture from the “Logo Capture” function.
Logo Capture
Press “ ” to immediately capture an image of the picture
currently displayed on screen.
Closed Captioning
Off: select “off” to turn off the captioning feature.
CC1: CC1 language: American English.
CC2: CC2 language (depending on the TV channel of the user):
Spanish, French, Portuguese, German, Danish.
43 English
User Controls

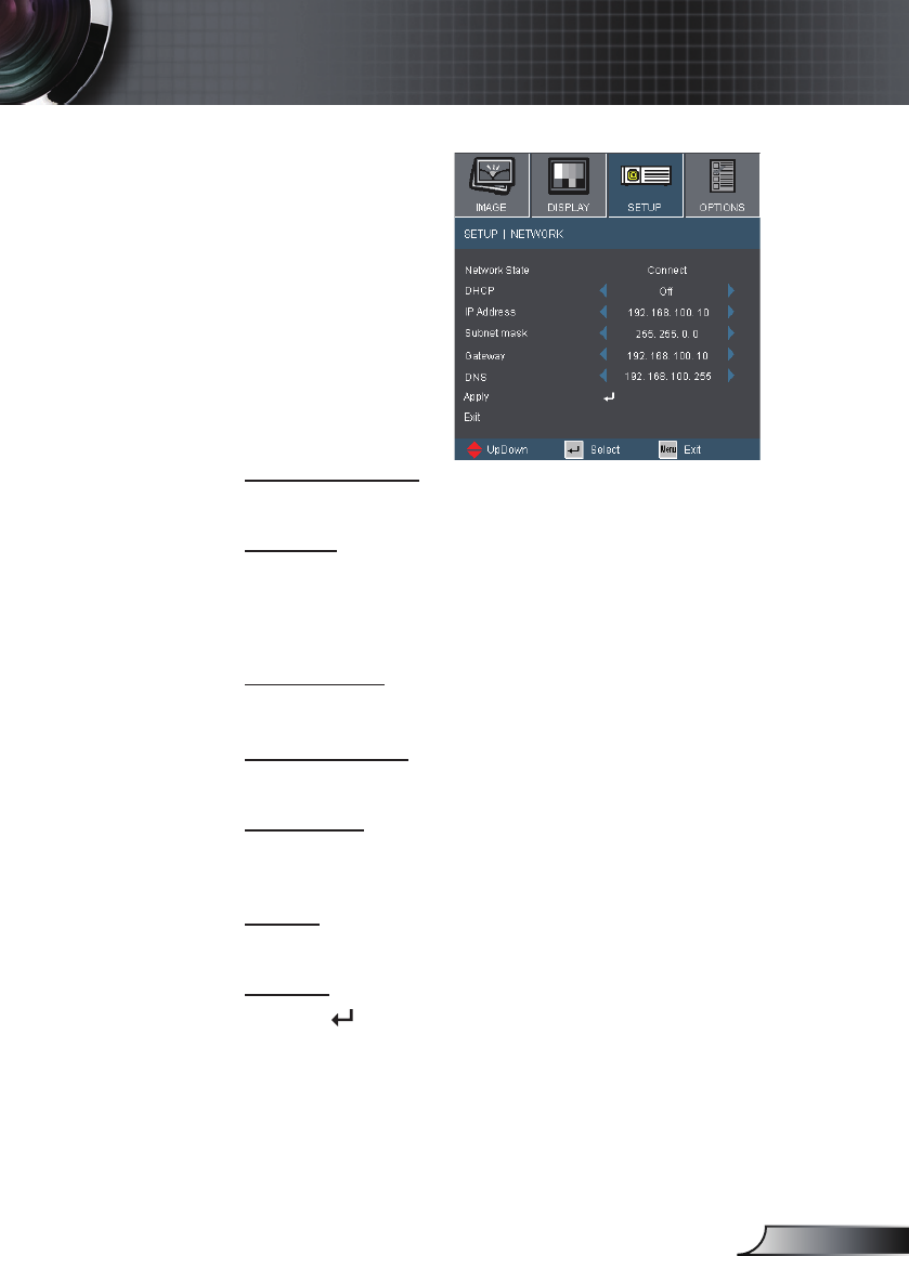

SETUP | Network
Network State
Displays network information.
DHCP
On: Assign an IP address to the projector from an external
DHCP server automatically.
Off: Assign an IP address manually.
IP Address
Select an IP address.
Subnet Mask
Select subnet mask number.
Gateway
Select the default gateway of the network connected to the
projector.
DNS
Select DNS number.
Apply
Press “ ” and then choose “Yes” to apply the selection.
44
English
User Controls
To control the projector via web browser, the projector must have an
IP address and must be connected to local network.(*)
DHCP ON:
1) If you have an existing DHCP server on your network, connect
the projector to your router, hub or a switch with a straight
through cable via RJ45 connection.(**)
2) Bring up the MENU of the projector and go to SETUP |
NETWORK to see the assigned IP address. Below is an
example as to how the OSD will look.
It is assumed that your computer is connected and already
precon gured to work on your network. Go to page 45 to see
Accessing Projector with web browser.
3) Push “MENU” to close the OSD
DHCP OFF:
1) Connect the projector and your computer to a hub or a switch
with a straight through cable via RJ45 connection.
2) Push MENU button and go to SETUP | NETWORK to assign
an IP address, Subnet Mask, Gateway and DNS in the dialogue
box.
3) Select Apply and press “Enter” button to apply the changes and
push MENU to close the OSD.(***)
How to use web browser to control your projector
(*) It is HIGHLY
recommended to
contact a network
administrator
before installing
the projector on
your network.
(***) The ip address,
subnet mask,
gateway & dns
values used are
examples. The IP
subnet will have
to be within the
range of your
network.
(**) There is no
need to connect
the computer
to the router,
hub or switch
if it is already
con gured
to work on
the network
wirelessly.
45 English
User Controls
(eg. Microsoft TM Internet Explorer)

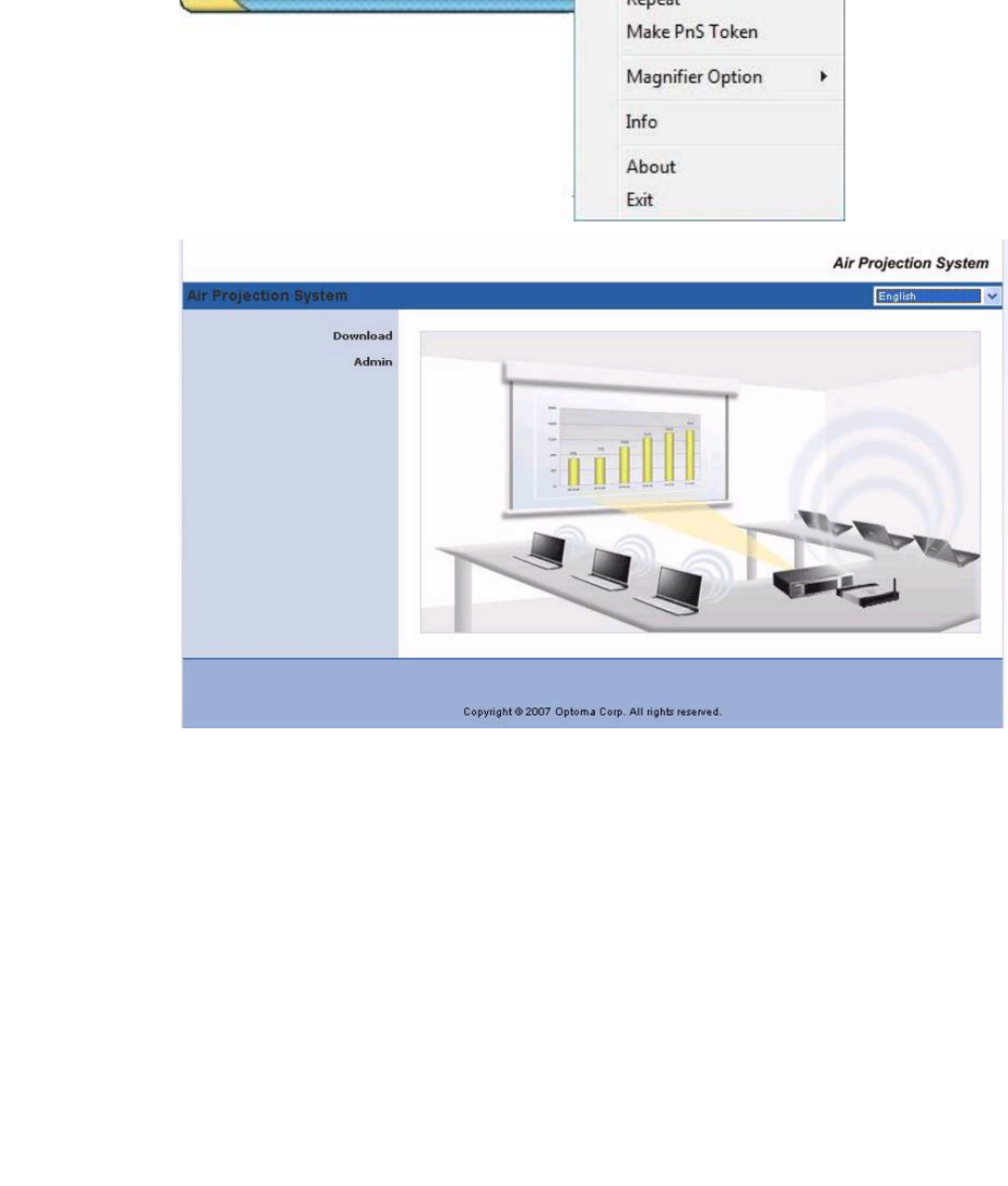

1) Make sure your PC connects to the Wireless Projector
successfully.
2) Open your browser, it will load the Wireless Projector home page
automatically.
3) If not, enter the projector’s IP address in the browser. This can be
found on the projectors wireless start-up screen or in the OSD.
(The default IP is 192.168.100.10)
4) Click [Admin] and then enter password.
NB. The password default value is “admin”.
5) Click on [Projector control Panel] to access the projector controls.
Advanced Wireless Features
For instructions on how to use these features, please refer to the
“Wireless / Networking User manual” (On User Manual CD).

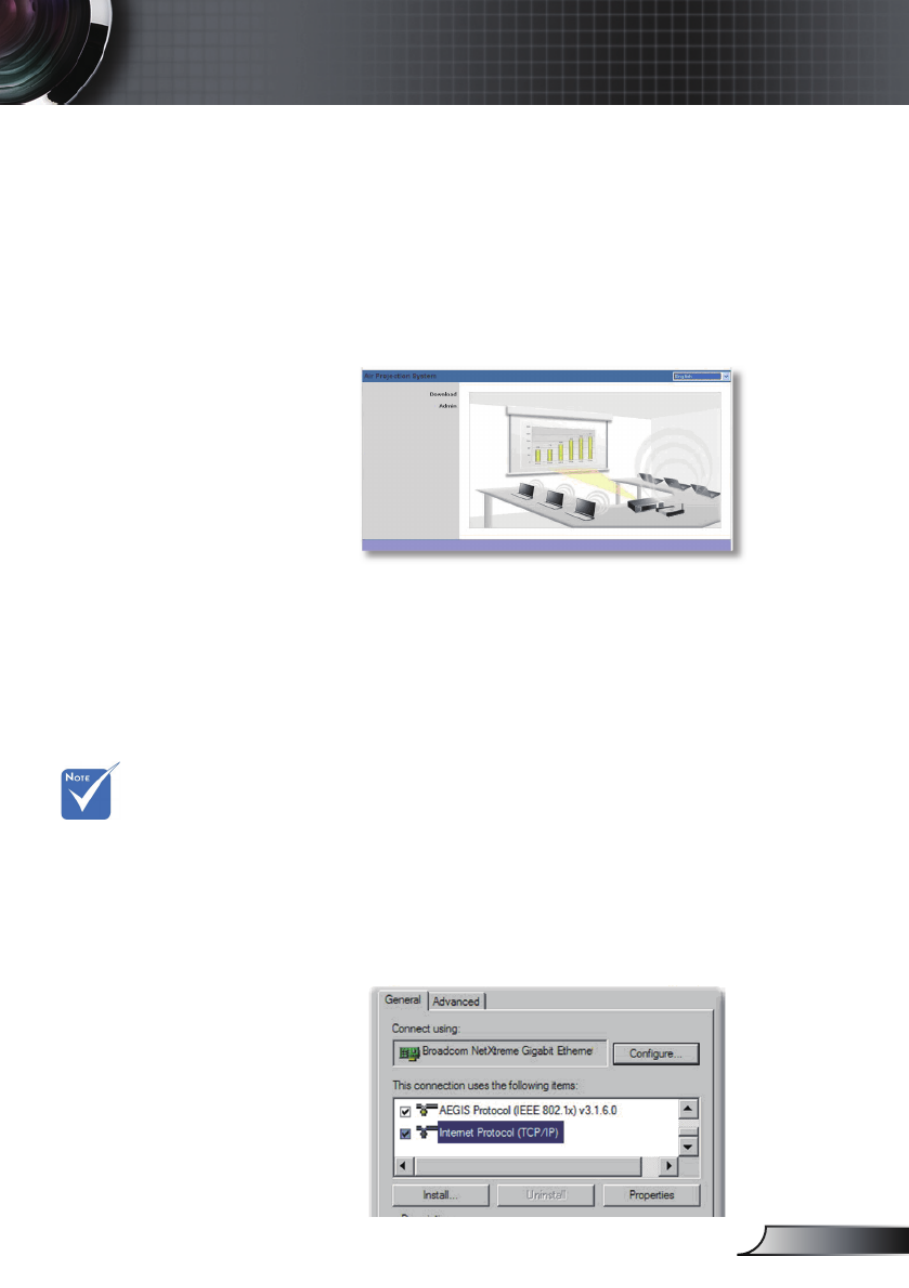

Accessing Projector with web browser
(*) It is advised to
write down the
values currently
set on your
computer before
making any
changes.
1) Follow steps 1 ~ 3 for DHCP OFF as shown on Page 44.(*)
2) On your computer, click Start, click Control Panel, click Network
and Internet Connections, click Network Connections, click the
network connection you want to con gure (this would be your
network card), click Properties, click Internet Protocol and click on
Properties.
If you have a problems accessing projector controls
via the Network connection.
47 English
User Controls

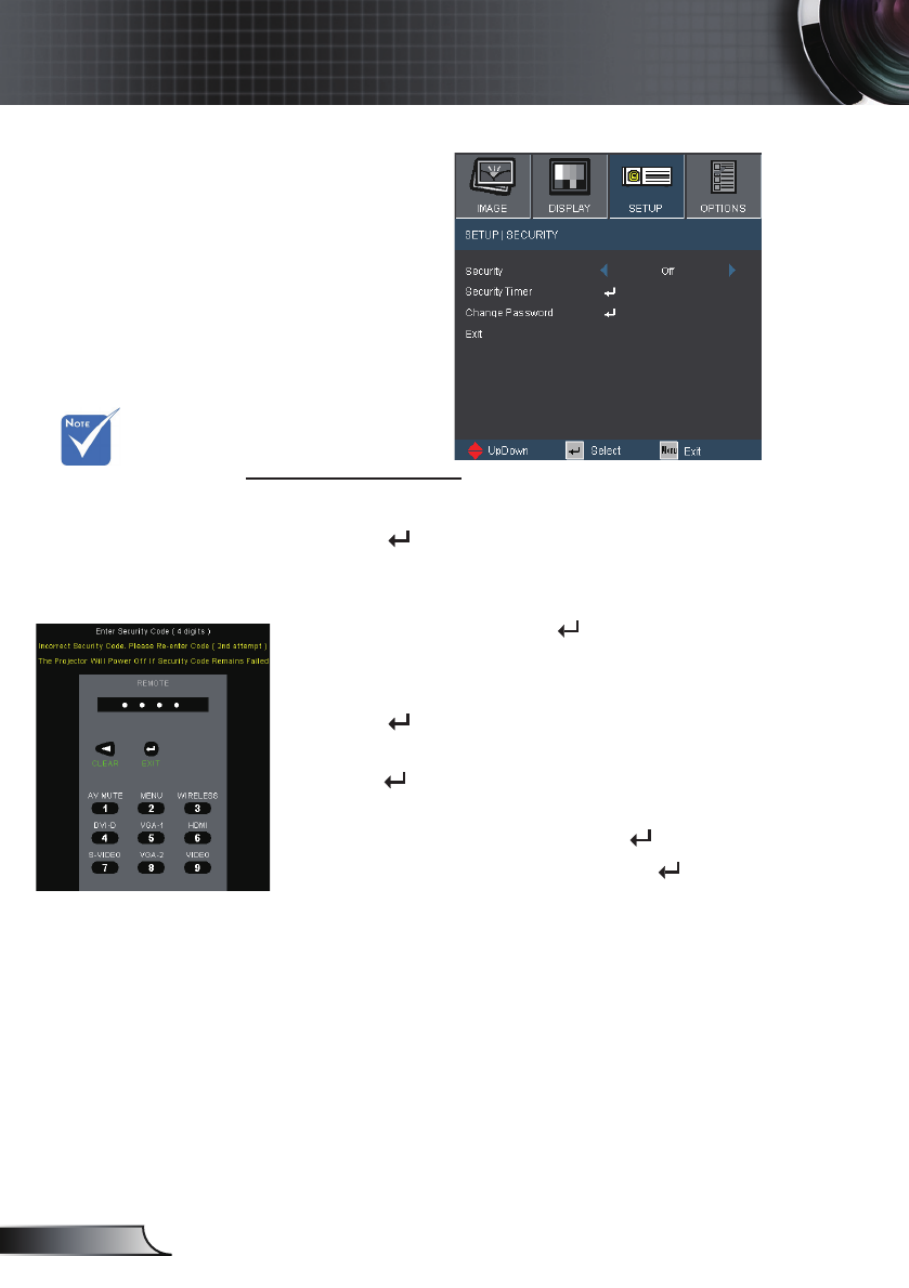

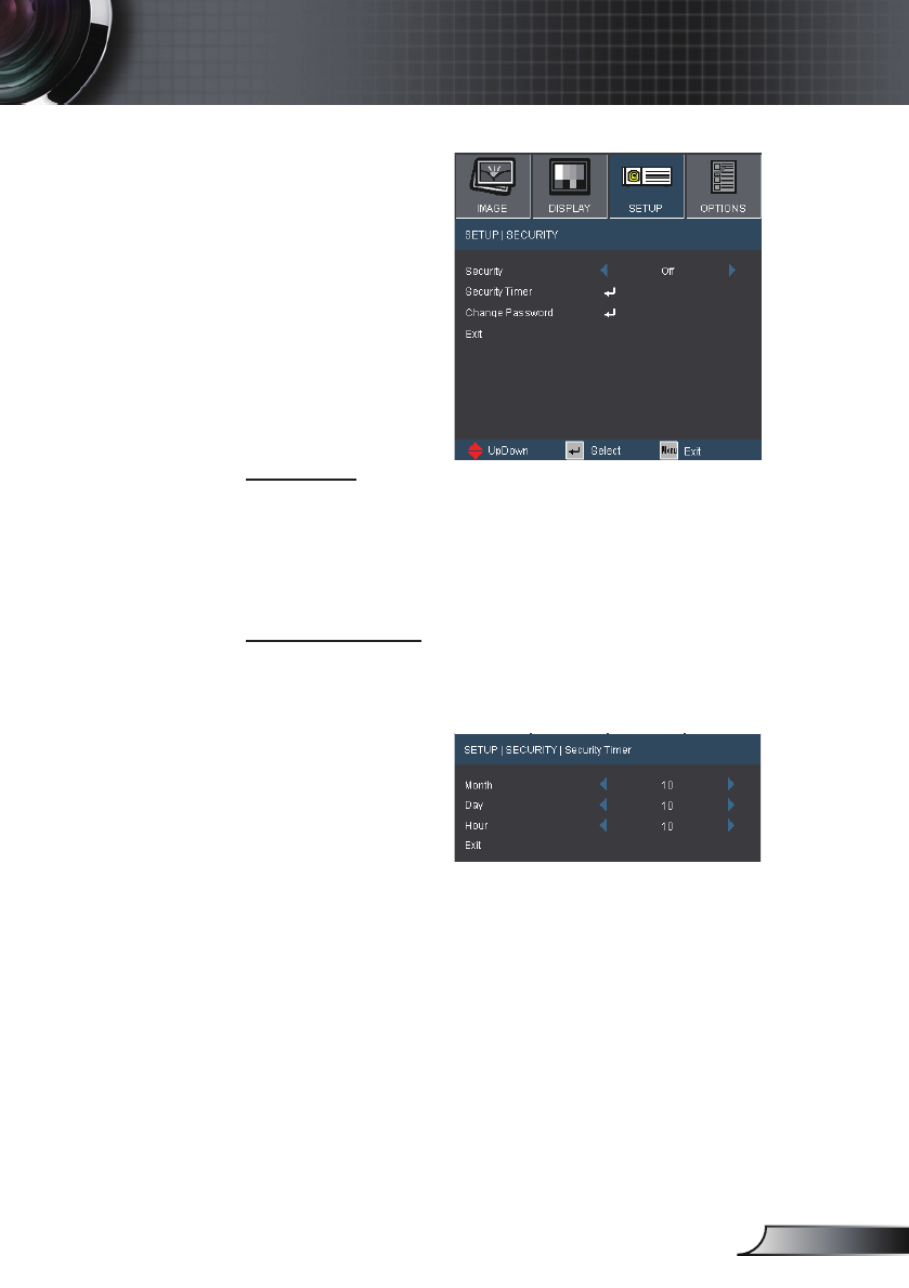

SETUP | Security
Security
On: Choose “On” to enable security verication when turning on
the projector.
Off: Choose “Off” to be able to switch on the projector without
password verication.
Security Timer
This function is used to select the number of hours the projector
can be used (Month/Day/Hour). When you have reached the limit,
you will be asked to enter the password again.
48
English
User Controls
SETUP | Security
Pass-code default
value is “1234”
(rst time).
Change Password
First time:
1. Press “ ” to set the password.
2. The password has to be 4 digits.
3. Use number button on the remote to enter your new
password and then press “ ” key to conrm your
password.
Change Password:
1. Press “ ” to input old password.
2. Use number button to enter current password and then
press “ ” to conrm.
3. Enter new password (4 digits in length) using the number
buttons on the remote, then press “ ” to conrm.
4. Enter new password again and press “ ” to conrm.
If the incorrect password is entered 3 times, the projector will
automatically shut down.
If you have forgotten your password, please contact your local
ofce for support.
52
English
Appendices
Image Problems
No image appears on-screen
Ensure all the cables and power connections are correctly and
securely connected as described in the “Installation” section.
Ensure all the pins of connectors are not bent or broken.
Check if the projection lamp has been securely installed. Please
refer to the “Replacing the lamp” section.
Make sure you have removed the lens cap and the projector is
switched on.
Ensure that the “AV MUTE” feature is not turned on.
Partial, scrolling or incorrectly displayed image
Press “RE-SYNC” on the remote.
If you are using a PC:
For Windows 95, 98, 2000, XP:
1. Open the “My Computer” icon, the “Control Panel” folder, and
then double click on the “Display” icon.
2. Select the “Settings” tab.
3. Verify that your display resolution setting is lower than or equal
to UXGA (1600 × 1200).
4. Click on the “Advanced Properties” button.
If the projector is still not projecting the whole image, you will also
need to change the monitor display you are using. Refer to the
following steps.
5. Verify the resolution setting is lower than or equal to UXGA
(1600 × 1200).
6. Select the “Change” button under the “Monitor” tab.
Troubleshooting
If you experience a problem with your projector,
please refer to the following information. If a
problem persists, please contact your local
reseller or service center.
53 English
Appendices
7. Click on “Show all devices”. Next, select “Standard monitor
types” under the SP box; choose the resolution mode you need
under the “Models” box.
8. Verify that the resolution setting of the monitor display is lower
than or equal to UXGA (1600 × 1200).
If you are using a Notebook:
1. First, follow the steps above to adjust resolution of the
computer.
2. Press the appropriate keys listed below for your notebook
manufacturer to send signal out from notebook to projector.
Example: [Fn]+[F4]
If you experience difculty changing resolutions or your monitor
freezes, restart all equipment including the projector.
The screen of the Notebook or PowerBook computer is not
displaying your presentation
If you are using a Notebook PC
Some Notebook PCs may deactivate their own screens when a
second display device is in use. Each has a different way to be
reactivated. Refer to your computer’s manual for detailed
information.
Image is unstable or ickering
Use “Phase” to correct it. See page 40 for more information.
Change the monitor color setting on your computer.
Image has vertical ickering bar
Use “Frequency” to make an adjustment. See page 40 for more
information.
Check and recongure the display mode of your graphic card to
make it compatible with the projector.
Acer [Fn]+[F5]
Asus [Fn]+[F8]
Dell [Fn]+[F8]
Gateway [Fn]+[F4]
Mac Apple:
System Preference Display Arrangement Mirror
display
IBM/Lenovo [Fn]+[F7]
HP/Compaq [Fn]+[F4]
NEC [Fn]+[F3]
Toshiba [Fn]+[F5]
54
English
Appendices
Image is out of focus
Make sure the lens cap is removed.
Adjust the Focus Ring on the projector lens.
Make sure the projection screen is between the required distance
3.28 to 32.81 feet (1.0 to 10.0 meters) from the projector.
See page 18.
The image is stretched when displaying 16:9 DVD title
When you play anamorphic DVD or 16:9 DVD, the projector will
show the best image when the projector display mode is set to
16:9 in the OSD.
If you play the LBX format DVD title, please change the format as
LBX in projector OSD
If you play 4:3 format DVD titles, please change the format to 4:3
in the projector OSD.
If the image is still stretched, you will also need to adjust the
aspect ratio by referring to the following:
Please setup the display format as 16:9 (wide) aspect ratio type
on your DVD player.
Image is too small or too large
Adjust the Zoom Ring on the top of the projector.
Move the projector closer to or further from the screen.
Press “MENU” button on the remote control or projector panel, go
to “Display Format” and try the different settings.
Image has slanted sides
If possible, reposition the projector so that it is horizontally
centered on the screen and below the bottom of the screen.
Press “KEYSTONE +/-” button on the remote control or press “
/ ” on the projector panel, until the sides are vertical.
Image is reversed
Select “SETUP Projection” from the OSD and adjust the
projection direction.
Use of Keystone is
not recommended.
55 English
Appendices
Other Problems
The projector stops responding to all controls
If possible, turn off the projector, then unplug the power cord and
wait at least 60 seconds before reconnecting power.
Check that “Keypad Lock” is not activated by trying to control the
projector with the remote control.
Lamp burns out or makes a popping sound
When the lamp reaches its end of life, it will burn out and may
make a loud popping sound. If this happens, the projector will not
turn on until the lamp module has been replaced. To replace the
lamp, follow the procedures in the “Replacing the Lamp” section on
pages 57-58.
Projector Status Indication
LED lighting message
Message Power LED Temp-LED Lamp-LED
(Blue/Red) (Red) (Red)
Standby State
(Input power cord) Red
Power on (Warming) Flashing
Blue
Lamp lighting Blue
Power off (Cooling) Flashing
Red
Error (Over Temp.)
Error (Fan fail) Flashing
(0.5s on, 0.5s off)
Error (Lamp fail)
Steady light
No light
＊ ON/STANDBY LED be ON when OSD appears, be OFF when OSD disappears.
56
English
Appendices
On Screen Messages
Temperature warning:
Fan failed:
Lamp warming:
Replacing the lamp:
Status Message:
Remote Control Problems
If the remote control does not work
Check the operating angle of the remote control is within ±15°
both horizontally and vertically of one of the IR receivers on the
projector.
Make sure there are not any obstructions between the remote
control and the projector. Move to within 7 m (±0°) of the projector.
Make sure the batteries are inserted correctly.
Replace batteries if they are exhausted.
58
English
Appendices
Lamp Replacement Procedure:
1. Switch off the power to the projector by pressing the “ ” button.
2. Allow the projector to cool down for at least 30 minutes.
3. Disconnect the power cord.
4. Lift up and remove the cover. 1
5. Unscrew the three screws on the lamp module. 2
6. Lift up the lamp handle and remove the lamp module slowly and carefully. 3
To replace the lamp module, reverse the previous steps.
7. Turn on the projector and use “Lamp Reset” after the lamp module is
replaced.
Lamp Reset: (i) Press “MENU” (ii) Select “OPTIONS” (iii) Select
“Lamp Settings” (iv) Select “Lamp Reset” (v) Select “Yes”.
1
2
3
The screws on the
lamp cover and the
lamp cannot be
removed.
The projector
cannot be turned
on if the lamp
cover has not been
placed back on the
projector.
Do not touch the
glass area of the
lamp. Hand oil can
cause the lamp to
shatter. Use a dry
cloth to clean the
lamp module if it
was accidentally
touched.
60
English
Appendices
RS232 Commands
RS232 Pin Assignments
Pin no. Spec.
1N/A
2 RXD
3 TXD
4N/A
5 GND
6N/A
7N/A
8N/A
9N/A
12345
6789
Pin no. Name I/O (From
Projector Side)
1 TXD OUT
2 RXD IN
3 GND GND
1
2
3
61 English
Appendices
RS232 Protocol Function List
RS232 Commands
Baud Rate : 9600
Data Bits: 8
Parity: None
Stop Bits: 1
Flow Control : None
UART16550 FIFO: Disable
Projector Return (Pass): P
Projector Return (Fail): F
XX=00-99, projector's ID,
XX=00 is for all projectors
SEND to projector
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
232 ASCII Code HEX Code
Function Description
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX00 1 7E 30 30 30 30 20 31 0D Power ON
~XX00 0 7E 30 30 30 30 20 30 0D Power OFF
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX01 1 7E 30 30 30 31 20 31 0D Resync
~XX02 1 7E 30 30 30 32 20 31 0D AV Mute On
~XX02 0 7E 30 30 30 32 20 30 0D Off
~XX03 1 7E 30 30 30 33 20 31 0D Mute On
~XX03 0 7E 30 30 30 33 20 30 0D Off
~XX04 1 7E 30 30 30 34 20 31 0D Freeze
~XX04 0 7E 30 30 30 34 20 30 0D Unfreeze
~XX05 1 7E 30 30 30 35 20 31 0D Zoom Plus
~XX06 1 7E 30 30 30 36 20 31 0D Zoom Minus
~XX07 1 7E 30 30 30 37 20 31 0D Up (Pan under zoom)
~XX08 1 7E 30 30 30 38 20 31 0D Down (Pan under zoom)
~XX09 1 7E 30 30 30 39 20 31 0D Left (Pan under zoom)
~XX10 1 7E 30 30 31 30 20 31 0D Right (Pan under zoom)
~XX12 1 7E 30 30 31 32 20 31 0D Direct Source Commands HDMI
~XX12 2 7E 30 30 31 32 20 32 0D DVI-D
~XX12 5 7E 30 30 31 32 20 35 0D VGA 1
~XX12 6 7E 30 30 31 32 20 36 0D VGA 2
~XX12 7 7E 30 30 31 32 20 37 0D VGA 1 SCART
~XX12 8 7E 30 30 31 32 20 38 0D VGA 1 Component
~XX12 9 7E 30 30 31 32 20 39 0D S-Video
~XX12 10 7E 30 30 31 32 20 31 30 0D Video
~XX12 11 7E 30 30 31 32 20 31 31 0D Wireless * For EX765W / EW766W only
~XX12 13 7E 30 30 31 32 20 31 33 0D VGA 2 Component
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX20 1 7E 30 30 32 30 20 31 0D Display Mode Presentation
~XX20 2 7E 30 30 32 30 20 32 0D Bright
~XX20 3 7E 30 30 32 30 20 33 0D Movie
~XX20 4 7E 30 30 32 30 20 34 0D sRGB
~XX20 5 7E 30 30 32 30 20 35 0D User1
~XX20 6 7E 30 30 32 30 20 36 0D User2
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX21 n 7E 30 30 32 31 20 a 0D Brightness n = 0 (a=30) ~ 100 (a=31 30 30)
~XX22 n 7E 30 30 32 32 20 a 0D Contrast n = 0 (a=30) ~ 100 (a=31 30 30)
~XX23 n 7E 30 30 32 33 20 a 0D Sharpness n = 0 (a=30) ~ 31 (a=33 31)
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX170 n 7E 30 30 31 37 30 20 a 0D Color Red Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX171 n 7E 30 30 31 37 31 20 a 0D Red Saturation n = 0 (a=30) ~ 100 (a=31 30 30)
~XX27 n 7E 30 30 32 37 20 a 0D Red Gain n = 0 (a=30) ~ 100 (a=31 30 30)
~XX172 n 7E 30 30 31 37 32 20 a 0D Green Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX173 n 7E 30 30 31 37 33 20 a 0D Green Saturation n = 0 (a=30) ~ 100 (a=31 30 30)
~XX28 n 7E 30 30 32 38 20 a 0D Green Gain n = 0 (a=30) ~ 100 (a=31 30 30)
~XX174 n 7E 30 30 31 37 34 20 a 0D Blue Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX175 n 7E 30 30 31 37 35 20 a 0D Blue Saturation n = 0 (a=30) ~ 100 (a=31 30 30)
~XX29 n 7E 30 30 32 39 20 a 0D Blue Gain n = 0 (a=30) ~ 100 (a=31 30 30)
~XX176 n 7E 30 30 31 37 36 20 a 0D Cyan Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX177 n 7E 30 30 31 37 37 20 a 0D Cyan Saturation n = 0 (a=30) ~ 100 (a=31 30 30)
~XX30 n 7E 30 30 33 30 20 a 0D Cyan Gain n = 0 (a=30) ~ 100 (a=31 30 30)
~XX178 n 7E 30 30 31 37 38 20 a 0D Yellow Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX179 n 7E 30 30 31 37 39 20 a 0D Yellow Saturation n = 0 (a=30) ~ 100 (a=31 30 30)
~XX31 n 7E 30 30 33 31 20 a 0D Yellow Gain n = 0 (a=30) ~ 100 (a=31 30 30)
~XX180 n 7E 30 30 31 38 30 20 a 0D Magenta Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX181 n 7E 30 30 31 38 31 20 a 0D Magenta Saturation n = 0 (a=30) ~ 100 (a=31 30 30)
~XX32 n 7E 30 30 33 32 20 a 0D Magenta Gain n = 0 (a=30) ~ 100 (a=31 30 30)
~XX33 1 7E 30 30 33 33 20 31 0D Reset
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX34 n 7E 30 30 33 34 20 a 0D BrilliantColor
TM
n = 0 (a=30) ~ 10 (a=31 30)
~XX35 1 7E 30 30 33 35 20 31 0D Degamma Film
~XX35 2 7E 30 30 33 35 20 32 0D Video
~XX35 3 7E 30 30 33 35 20 33 0D Graphics
~XX35 4 7E 30 30 33 35 20 34 0D PC
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX36 1 7E 30 30 33 36 20 31 0D Color Temp. Warm
~XX36 2 7E 30 30 33 36 20 32 0D Medium
~XX36 3 7E 30 30 33 36 20 33 0D Cold
~XX37 1 7E 30 30 33 37 20 31 0D Color Space Auto
~XX37 2 7E 30 30 33 37 20 32 0D RGB
~XX37 3 7E 30 30 33 37 20 33 0D YUV
~XX44 n 7E 30 30 34 34 20 a 0D Saturation n = 0 (a=30) ~ 100 (a=31 30 30)
~XX45 n 7E 30 30 34 35 20 a 0D Tint n = 0 (a=30) ~ 100 (a=31 30 30)
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX60 1 7E 30 30 36 30 20 31 0D Format 4:3
~XX60 2 7E 30 30 36 30 20 32 0D 16:9-l
~XX60 3 7E 30 30 36 30 20 33 0D 16:9-ll/ 16 :10 (WXGA)
~XX60 5 7E 30 30 36 30 20 35 0D LBX (WXGA projector only)
~XX60 6 7E 30 30 36 30 20 36 0D Native
~XX60 7 7E 30 30 36 30 20 37 0D Auto
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX61 n 7E 30 30 36 31 20 a 0D Overscan n = 0 (a=30) ~ 3 (a=33)
~XX62 n 7E 30 30 36 32 20 a 0D Zoom n = -7 (a=2D 37) ~ 25 (a=32 35)
~XX64 n 7E 30 30 36 34 20 a 0D V Image Shift n = 0 (a=30) ~ 100 (a=31 30 30)
~XX66 n 7E 30 30 36 36 20 a 0D V Keystone n = -40 (a=2D 34 30) ~ 40 (a=34 30)
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX70 1 7E 30 30 37 30 20 31 0D Language English
~XX70 2 7E 30 30 37 30 20 32 0D German
~XX70 3 7E 30 30 37 30 20 33 0D French
~XX70 4 7E 30 30 37 30 20 34 0D Italian
~XX70 5 7E 30 30 37 30 20 35 0D Spanish
~XX70 6 7E 30 30 37 30 20 36 0D Portuguese
~XX70 7 7E 30 30 37 30 20 37 0D Polish
~XX70 8 7E 30 30 37 30 20 38 0D Dutch
~XX70 9 7E 30 30 37 30 20 39 0D Swedish
~XX70 10 7E 30 30 37 30 20 31 30 0D Norwegian/Danish
~XX70 11 7E 30 30 37 30 20 31 31 0D Finnish
~XX70 12 7E 30 30 37 30 20 31 32 0D Greek
~XX70 13 7E 30 30 37 30 20 31 33 0D Traditional Chinese
~XX70 14 7E 30 30 37 30 20 31 34 0D Simplified Chinese
~XX70 15 7E 30 30 37 30 20 31 35 0D Japanese
~XX70 16 7E 30 30 37 30 20 31 36 0D Korean
~XX70 17 7E 30 30 37 30 20 31 37 0D Russian
~XX70 18 7E 30 30 37 30 20 31 38 0D Hungarian
~XX70 19 7E 30 30 37 30 20 31 39 0D Czechoslovak
~XX70 20 7E 30 30 37 30 20 32 30 0D Arabic
~XX70 21 7E 30 30 37 30 20 32 31 0D Thai
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX71 1 7E 30 30 37 31 20 31 0D Projection Front-Desktop
~XX71 2 7E 30 30 37 31 20 32 0D Rear-Desktop
~XX71 3 7E 30 30 37 31 20 33 0D Front-Ceiling
~XX71 4 7E 30 30 37 31 20 34 0D Rear-Ceiling
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1. There is a <CR> after
all ASCII commands.
2. 0D is the HEX code
for <CR> in ASCII
code.
62
English
Appendices
SEND to projector
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
232 ASCII Code HEX Code
Function Description
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX72 1 7E 30 30 37 32 20 31 0D Menu Location Top Left
~XX72 2 7E 30 30 37 32 20 32 0D Top Right
~XX72 3 7E 30 30 37 32 20 33 0D Centre
~XX72 4 7E 30 30 37 32 20 34 0D Bottom Left
~XX72 5 7E 30 30 37 32 20 35 0D Bottom Right
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX73 n 7E 30 30 37 33 20 a 0D Signal Frequency n = -100 (a=2D 31 30 30) ~ 100 (a=31 30 30)
~XX74 n 7E 30 30 37 34 20 a 0D Phase n = 0 (a=30) ~ 63 (a=36 33)
~XX75 n 7E 30 30 37 35 20 a 0D H. Position n = -100 (a=2D 31 30 30) ~ 100 (a=31 30 30)
~XX76 n 7E 30 30 37 36 20 a 0D V. Position n = -100 (a=2D 31 30 30) ~ 100 (a=31 30 30)
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX77 n 7E 30 30 37 37 20 aabbcc 0D Security Security Timer Month/Day/Hour n = mm/dd/hh
mm = 00 (aa=30 30) ~ 99 (aa=39 39)
dd = 00 (bb=30 30) ~ 29 (bb=32 39)
hh = 00 (cc=30 30) ~ 23 (cc=32 33)
~XX78 1 7E 30 30 37 38 20 31 0D Security Settings Enable
~XX78 2 7E 30 30 37 38 20 32 0D Disable
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX79 n 7E 30 30 37 39 20 a 0D Projector ID n = 00 (a=30 30) ~ 99 (a=39 39)
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX80 1 7E 30 30 38 30 20 31 0D Mute On
~XX80 0 7E 30 30 38 30 20 30 0D Off
~XX81 n 7E 30 30 38 31 20 a 0D Volume n = 0 (a=30) ~ 20 (a=32 30)
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX82 1 7E 30 30 38 32 20 31 0D Logo Optoma
~XX82 2 7E 30 30 38 32 20 32 0D User
~XX83 1 7E 30 30 38 33 20 31 0D Logo Capture
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX86 1 7E 30 30 38 36 20 31 0D RS232 Port RS232
~XX86 2 7E 30 30 38 36 20 32 0D Network
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX88 0 7E 30 30 38 38 20 30 0D Closed Captioning Off
~XX88 1 7E 30 30 38 38 20 31 0D Closed Captioning CC1
~XX88 2 7E 30 30 38 38 20 32 0D Closed Captioning CC2
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX89 1 7E 30 30 38 39 20 31 0D Audio Input Default
~XX89 2 7E 30 30 38 39 20 32 0D AUDIO1
~XX89 3 7E 30 30 38 39 20 33 0D AUDIO2
~XX89 4 7E 30 30 38 39 20 34 0D AUDIO3
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX100 1 7E 30 30 31 30 30 20 31 0D Source Lock On
~XX100 0 7E 30 30 31 30 30 20 30 0D Off
~XX100 3 7E 30 30 31 30 30 20 33 0D Next Source
~XX101 1 7E 30 30 31 30 31 20 31 0D High Altitude On
~XX101 0 7E 30 30 31 30 31 20 30 0D Off
~XX102 1 7E 30 30 31 30 32 20 31 0D Information Hide On
~XX102 0 7E 30 30 31 30 32 20 30 0D Off
~XX103 1 7E 30 30 31 30 33 20 31 0D Keypad Lock On
~XX103 0 7E 30 30 31 30 33 20 30 0D Off
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX104 1 7E 30 30 31 30 34 20 31 0D Background Color Blue
~XX104 2 7E 30 30 31 30 34 20 32 0D Black
~XX104 3 7E 30 30 31 30 34 20 33 0D Red
~XX104 4 7E 30 30 31 30 34 20 34 0D Green
~XX104 5 7E 30 30 31 30 34 20 35 0D White
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX105 1 7E 30 30 31 30 35 20 31 0D Advanced Direct Power On On
~XX105 0 7E 30 30 31 30 35 20 30 0D Off
~XX113 1 7E 30 30 31 31 33 20 31 0D Signal Power On On
~XX113 0 7E 30 30 31 31 33 20 30 0D Off
~XX106 n 7E 30 30 31 30 36 20 a 0D Auto Power Off (min) n = 0 (a=30) ~ 180 (a=31 39 39)
~XX107 n 7E 30 30 31 30 37 20 a 0D Sleep Timer (min) n = 0 (a=30) ~ 995 (a=39 39 39) , step +/-5
~XX114 1 7E 30 30 31 31 34 20 31 0D Eco. Standby(1W) On
~XX114 0 7E 30 30 31 31 34 20 30 0D Off
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX108 1 7E 30 30 31 30 38 20 31 0D Lamp Setting Lamp Hours
~XX109 1 7E 30 30 31 30 39 20 31 0D Lamp Reminder On
~XX109 0 7E 30 30 31 30 39 20 30 0D Off
~XX110 1 7E 30 30 31 31 30 20 31 0D Brightness Mode Bright
~XX110 0 7E 30 30 31 31 30 20 30 0D STD
~XX111 1 7E 30 30 31 31 31 20 31 0D Lamp Reset Yes
~XX111 0 7E 30 30 31 31 31 20 30 0D No
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX112 1 7E 30 30 31 31 32 20 31 0D Reset Yes
~XX112 0 7E 30 30 31 31 32 20 30 0D No
~XX210 n 7E 30 30 32 31 30 20 a 0D Message n : characters (max length is 30)
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
SEND to Remote
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX140 1 7E 30 30 31 34 30 20 31 0D Power
~XX140 2 7E 30 30 31 34 30 20 32 0D Re-sync
~XX140 3 7E 30 30 31 34 30 20 33 0D Keystone +
~XX140 4 7E 30 30 31 34 30 20 33 0D Keystone -
~XX140 5 7E 30 30 31 34 30 20 34 0D AV Mute
~XX140 7 7E 30 30 31 34 30 20 37 0D Zoom * EX765 / EW766 Only
~XX140 9 7E 30 30 31 34 30 20 39 0D Volume +
~XX140 10 7E 30 30 31 34 30 20 31 30 0D Volume -
~XX140 11 7E 30 30 31 34 30 20 31 31 0D Enter
~XX140 12 7E 30 30 31 34 30 20 31 32 0D Menu
~XX140 13 7E 30 30 31 34 30 20 31 33 0D Left
~XX140 14 7E 30 30 31 34 30 20 31 34 0D Up
~XX140 15 7E 30 30 31 34 30 20 31 35 0D Right
~XX140 16 7E 30 30 31 34 30 20 31 36 0D Down
~XX140 18 7E 30 30 31 34 30 20 31 38 0D 1 * Security Code
~XX140 19 7E 30 30 31 34 30 20 31 39 0D 2
~XX140 20 7E 30 30 31 34 30 20 32 30 0D 3
~XX140 21 7E 30 30 31 34 30 20 32 31 0D 4
~XX140 22 7E 30 30 31 34 30 20 32 32 0D 5
~XX140 23 7E 30 30 31 34 30 20 32 33 0D 6
~XX140 24 7E 30 30 31 34 30 20 32 34 0D 7
~XX140 25 7E 30 30 31 34 30 20 32 35 0D 8
~XX140 26 7E 30 30 31 34 30 20 32 36 0D 9
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
SEND from projector automatically
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
232 ASCII Code HEX Code
Function Projector Return Description
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
when standby/warming/cooling/out of range INFOn n : 0/1/2/3/4/6/7/8 = Standby/Warming/Cooling/Out of Range/
Lamp fail/Fan Lock/Over Temperature/Lamp Hours Running Out
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
READ from projector
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
232 ASCII Code HEX Code
Function Projector Return Description
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX121 1 7E 30 30 31 32 31 20 31 0D Input Source Commands OKn n : 0/1/2/3/4/5/6/7 =
None/DVI/VGA1/VGA2/S-Video/Video/HDMI/Wireless
~XX122 1 7E 30 30 31 32 32 20 31 0D Sofware Version OKdd
~XX123 1 7E 30 30 31 32 33 20 31 0D Display Mode OKn n : 0/1/2/3/4/5 = Presentation/Bright/Movie/sRGB/User1/User2
~XX124 1 7E 30 30 31 32 34 20 31 0D Power State OKn n : 0/1 = Off/On
~XX125 1 7E 30 30 31 32 35 20 31 0D Brightness OKn
~XX126 1 7E 30 30 31 32 36 20 31 0D Contrast OKn
~XX127 1 7E 30 30 31 32 37 20 31 0D Aspect Ratio OKn n : 0/1/2/3 = 4:3/16:9-l/16:9-ll/Window
~XX128 1 7E 30 30 31 32 38 20 31 0D Color Temperature OKn n : 0/1/2 = Warm/Medium/Cold
~XX129 1 7E 30 30 31 32 39 20 31 0D Projection Mode OKn n : 0/1/2/3 = Front-Desktop/ Rear-Desktop/ Front-Ceiling/ Rear-Ceiling
~XX150 1 7E 30 30 31 35 30 20 31 0D Information OKabbbbccdddde
a : 0/1 = Off/On
bbbb: LampHour
cc: source 00/01/02/03/04/05/06/07 =
None/DVI/VGA1/VGA2/S-Video/Video/HDMI/Wireless
dddd: FW version
e : Display mode 0/1/2/3/4/5/6
None/Presentation/Bright/Movie/sRGB/User1/User2
~XX151 1 7E 30 30 31 35 31 20 31 0D Model name OKn n :1/2 = EX765/EW766
65 English
Appendices
Korea
WOOMI TECH.CO.,LTD.
4F,Minu Bldg.33-14, Kangnam-Ku, Tel : +82+2+34430004
seoul,135-815, KOREA Fax: +82+2+34430005
Japan
東京都足立区綾瀬3-25-18
株式会社オーエスエム E-mail : info@osscreen.com
サポートセンター: 0120-46-5040 www.os-worldwide.com
Taiwan
5F., No. 108, Minchiuan Rd. Tel : +886-2-2218-2360
Shindian City, Fax: +886-2-2218-2313
Taipei Taiwan 231, R.O.C. Service : services@optoma.com.tw
www.optoma.com.tw asia.optoma.com
Hong Kong
Unit A, 27/F Dragon Centre,
79 Wing Hong Street, Tel : +852-2396-8968
Cheung Sha Wan, Fax: +852-2370-1222
Kowloon, Hong Kong www.optoma.com.hk
China
5F, No. 1205, Kaixuan Rd., Tel : +86-21-62947376
Changning District Fax: +86-21-62947375
Shanghai, 200052, China www.optoma.com.cn
66
English
Appendices
Regulation & Safety notices
This appendix lists the general notices of your projector.
FCC notice
This device has been tested and found to comply with the
limits for a Class B digital device pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This device generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this device does cause
harmful interference to radio or television reception, which can
be determined by turning the device off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television
technician for help.
Notice: Shielded cables
All connections to other computing devices must be
made using shielded cables to maintain compliance with
FCC regulations.
Caution
Changes or modications not expressly approved by the
manufacturer could void the user’s authority, which is
granted by the Federal Communications Commission, to
operate this projector.
67 English
Appendices
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received,
including interference that may cause undesired
operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian
ICES-003.
Remarque à l’intention des utilisateurs
canadiens
Cet appareil numerique de la classe B est conforme a la
norme NMB-003 du Canada.
Declaration of Conformity for EU
countries
• EMC Directive 2004/108/EC (including amendments)
• Low Voltage Directive 2006/95/EC
• R & TTE Directive 1999/5/EC (if product has RF function)
Disposal instructions
Do not throw this electronic device into the
trash when discarding. To minimize pollution
and ensure utmost protection of the global
environment, please recycle it.
2
comparison from four PCs to increase meeting productivity!
Magnifier feature
Wireless projector supports Magnifier feature for a codec-free v
watching experience. By resizing the video into the magnifier c
you will be able to watch any video on the big screen.
Macintosh wireless Projection
Wireless Projector supports Mac client connections projecting w
launching the Mac client software, which is stored on the User
wireless projector provides the same experience for Mac users
Wireless presentation features. Support Macintosh version 10.
Features
■ Supports Windows Vista, XP & 2000.
■ 4-to-1 split screen projection! Turn one projector into four
meeting productivity instantly.
■ Provides session security login, wireless WEP key and G
function to protect presentation contents and maintain effec
within office networks.
■ Provides magnifier feature to enlarge small region for ful
playback.
■ Provides a media playback feature, supporting both mus
streaming.
3
2) Press Wireless button on remote control, or select from On-
Display (OSD) in Projector menu
3) When Projector shows the default screen, as below, it indica
Wireless function is ready.
5

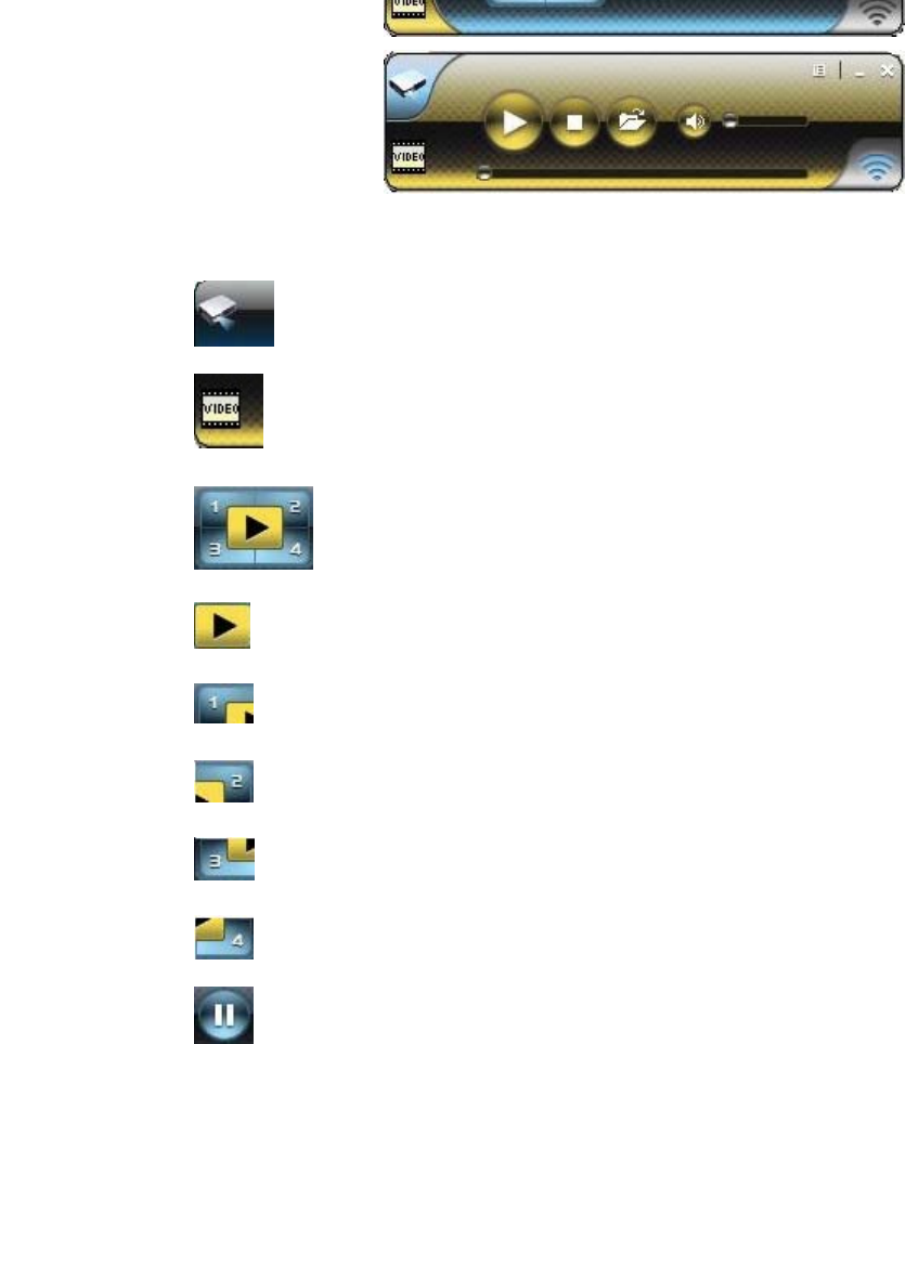

2) Use following buttons to operate Wireless Projector Applica
Presentation Mode
Video Mode
4-1 split-screen controls
Full Screen projection
Project to Split #1
Project to Split #2
Project to Split #3
Project to Split #4
Pause projecting
6
Stop Playing Video
Open Video File
Mute Audio
Audio volume bar
Video transport bar
While playing video, this icon will blink
Function menu
Minimize the program
Exit the program
3.2 Start/Stop Presentation
Click to project desktop (Full screen or split screen)
Click to stop presentation.
Click to pause presentation, which will hide any intermed
of your PC screen.
7

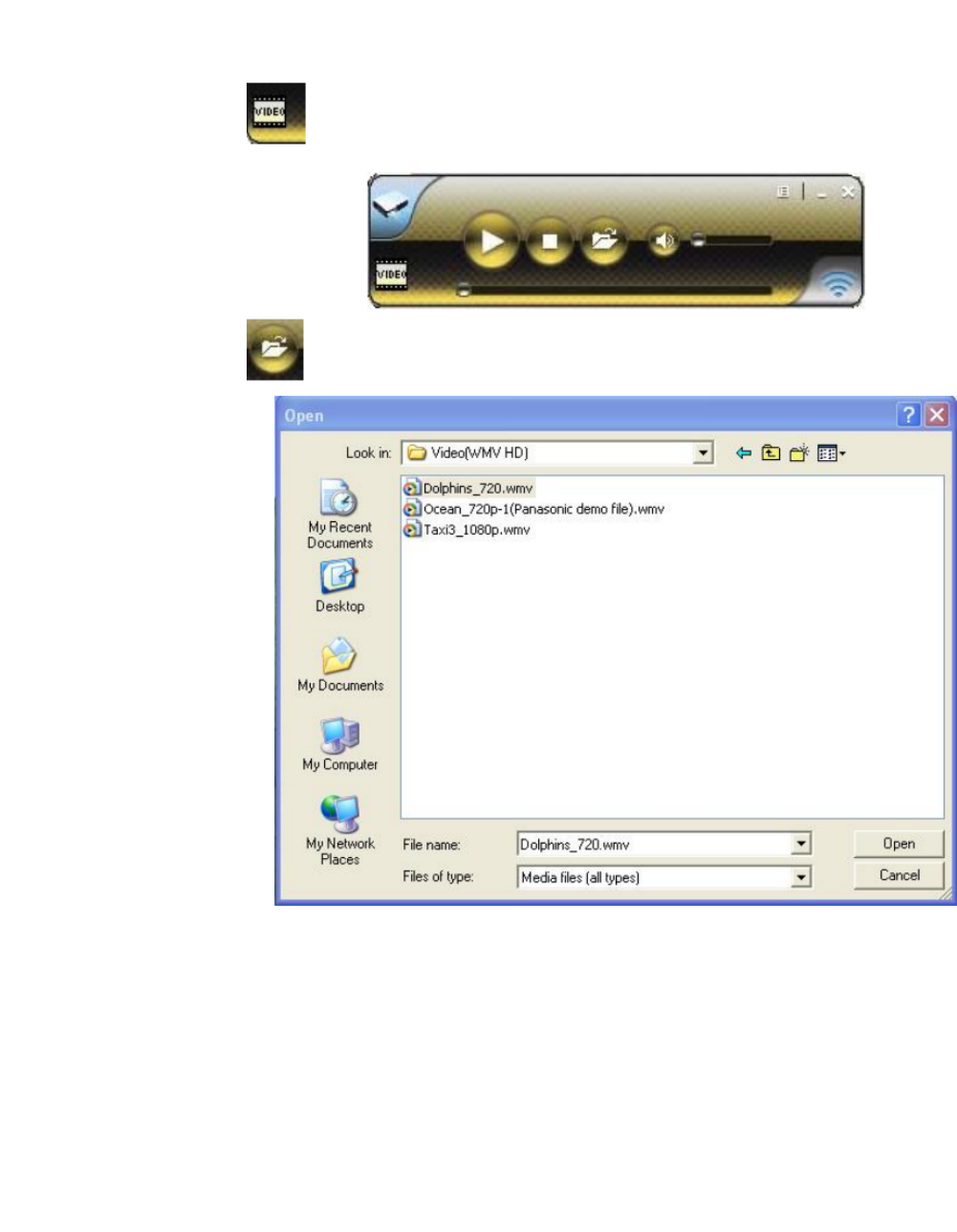

3.3 Start / Stop Playing Video/Music
Click to switch to Video Mode.
Click to browse for a video file to playback.
Supported Video Format: MPG, MPEG, DAT, VOB, WMV
WAV.
8
Produkt Specifikationer
| Mærke: | Optoma |
| Kategori: | videoprojektorer |
| Model: | TX765W |
Har du brug for hjælp?
Hvis du har brug for hjælp til Optoma TX765W stil et spørgsmål nedenfor, og andre brugere vil svare dig
videoprojektorer Optoma Manualer
9 August 2025
9 August 2025
9 August 2025
8 August 2025
8 August 2025
8 August 2025
8 August 2025
8 August 2025
17 Juli 2025
17 Juli 2025
videoprojektorer Manualer
- Steren
- Hitachi
- Lenco
- Sharp
- Renkforce
- Sanyo
- Epson
- Mirabella Genio
- AOpen
- Technaxx
- AWOL Vision
- Kodak
- InFocus
- Smart
- Toshiba
Nyeste videoprojektorer Manualer
10 August 2025
9 August 2025
8 August 2025
8 August 2025
8 August 2025
8 August 2025
8 August 2025
8 August 2025
8 August 2025
8 August 2025
