Warnings and Safety Information
When installing the wiring kit and junction module, take extra care to ensure
cables are not crushed or crimped by any moving part of the vehicle.
Specications:
Housing Material: Aluminum
LED: OSRAM LED
Compatible Voltage: 9-24v)
Lumen: 456Lm (RGB)
Connector Type: Sealed (0.36a @ 13.2v each)
Light Ingress Rating: IP69K
Junction Ingress Rating: IP66
Operating temperature: -40°C~145°C
RGB Rock Light Set Up Guide
For the full product user guide, please scan QR code
or visit www.oricom.com.au
Pack contents
• RGB LED Rock Lights (4 or 6)
• Connectors and wiring kit
including junction module and
switch (4 or 6)
• Rubber pads with
stainless screws and
bolts (4 or 6)
Please read below before operating your Oricom Rock Lights
Need help? Contact Oricom Support
If you need assistance setting up or using your Oricom product now or in
the future, call Oricom Support.
Australia (02) 4574 8888
www.oricom.com.au
Mon-Fri 8am – 6pm AEST
New Zealand 0800 67 42 66
Mon-Fri 10am – 8pm NZST
2

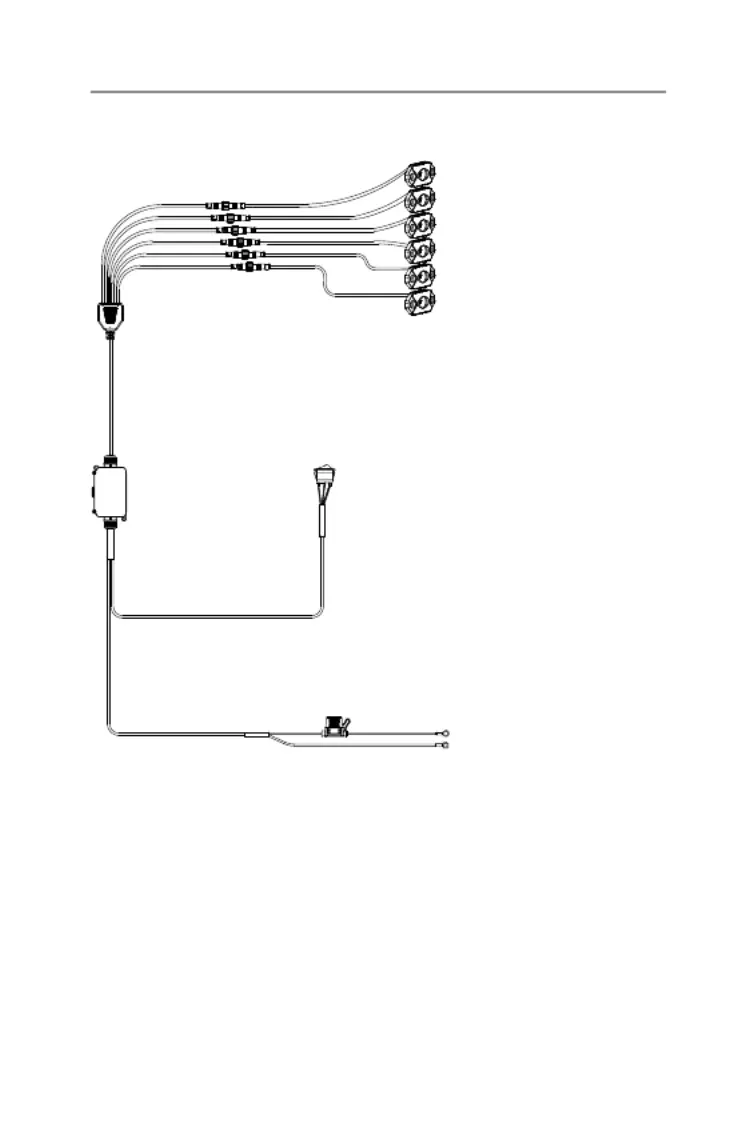

Wiring Instructions
Connector
Harness
On/Off Switch
Junction
Module
5Amp Fuse
Terminals
1. Harness Fitment
Lay your wiring harness out. Once you have decided on the installation location of the junction
module and wiring, proceed to x in place. It is recommended to use cable ties to secure the
cables.
Note: Keep in mind you will be connecting the rock lights to the wiring harness.
2. On/Off switch
Install supplied on/off switch inside the vehicle in your preferred mounting position.
3. Mounting The Rock lights
Once you’ve established where the RGB Rock Lights are to be mounted, install them using the
supplied bolts or screws, and then connect the plugs to the harness.
Wiring Instructions
NOTE: RGB 6 Pack shown
(RKLBT6RGB)
