R10 CEILING SUBWOOFER INSTALL GUIDE
BLACK R10 INSTALL GUIDE
NCR10 Bracket Installation - New Construction
NCR10 Construction Bracket Recommended:
NCR10 Bracket Installation - Retrot

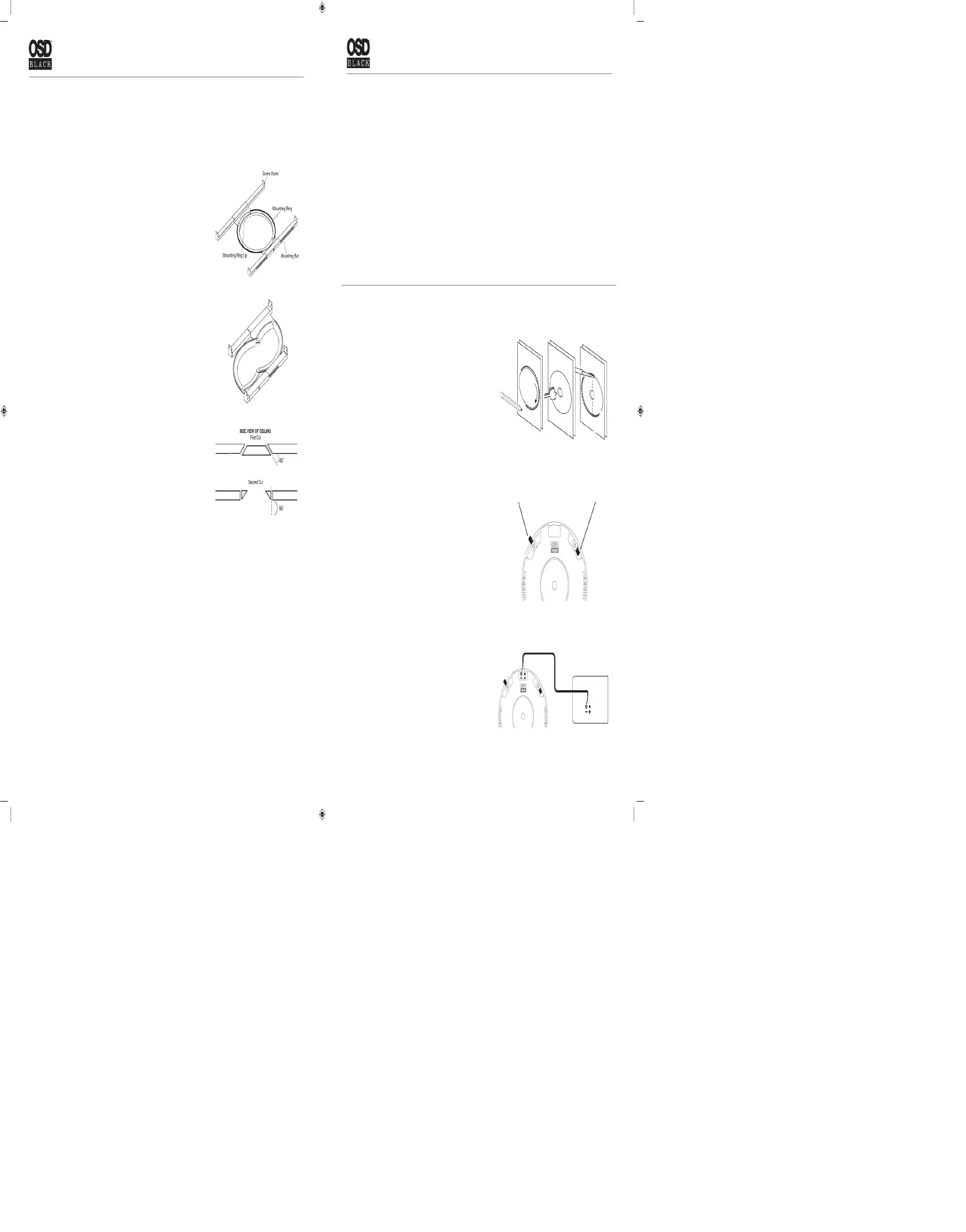

Diagram 1:
Diagram 2:
Diagram 3:
The NCR10 is designed for new construction or retrot applications with it’s unique folding design. The NCR10 may be installed prior to
drywall or after across joists (from 16 - 24 on-center) where a speaker will be mounted.""
1. Find the joist nearest the desired speaker mounting location. If you
need to align the speaker to some other object or molding in the room,
be sure to consider the size of the bafe ange which extends beyond
the mounting hole.
2. Line up the bottom of one of the mounting bars with the bottom of
the joist. This will place the screw holes in an “L” position, ush with
the side of the joist, and the mounting ring “lip” will be facing down-
ward. Attach the mounting bar to the joist using appropriate wood
screws.
3. Make sure that the mounting ring is in a perfectly circular shape
( ) by opening the bracket until the arms come in con-see Diagram 1.
tact with the stoppers. Then, lineup the bottom of the other mounting
bar with the bottom of the same joist. Attach the mounting bar to the
joist using appropriate wood screws.
4. Extend both mounting bars to reach the opposite joist, then line up
the bottoms of each mounting bar with the bottom of the joist. Attach
the mounting bar to the joist using appropriate wood screws.
5. Adjust the position of the mounting ring between the joists, grab
both sides of the mounting ring, where it connects to the mounting bar,
then move the mounting ring to the desired position.
6. The protruding lip of the mounting ring will force the drywall install-
ers to hang the drywall with an appropriate hole cut out around the
mounting ring lip. After the drywall is hung and nished, the speakers
are then easily installed.
1. Find the joist nearest the desired speaker mounting location.
If you need to align the speaker to some other object or molding
in the room, be sure to consider the size of the bafe ange
which extends beyond the mounting hole.
2. Mark the hole using the speakers cut out template. Position
the template in the desired and pencil an outline on the ceiling.
3. Cut the hole. If you are not certain whether any CAUTION:
obstructions exist behind the mounting area, you should start by
cutting a small hole in the center of the penciled template outline
with a drywall saw, cutting at a 45° angle towards the inside of
the hole. ( ) Cutting a small hole at this angle will see Diagram 3.
make drywall repair easier if needed. If there are no obstructions
cut the nished hole at a 90° angle to the ceiling surface.
4. Collapse the mounting ring and the mounting bars to com-
press the bracket to it’s smallest shape (see Diagram 2.)
5. With the mounting lip facing downward, insert the bracket into
the ceiling cavity through the speaker cutout hole previously cut
in the drywall.
6. Make sure that the mounting ring is in a perfectly circular
shape by opening the bracket until the arms come in contact
with the stoppers, then set it into the ceiling hole. Push one of
the mounting bars L-shaped edges until it is ush with the joist,
and the bottom of the mounting bar lines up with the bottom of
the joist. Attach the mounting bar to the joist using appropriate
wood screws.
7. Push the other mounting bar L-shaped edge until it is ush
with the same joist, and the bottom of the mounting bar lines up
with the bottom of the joist. Attach the mounting bar to the joist
using appropriate wood screws.
8. Extend both mounting bars to reach the opposite joist, then
line up the bottoms for each mounting bar with the bottom of the
joist. Attach the mounting bar to the joist using appropriate wood
screws.
