Specications

Main unit

Power supply

AC 200V-240V, 8.5A, 50/60Hz

The light output will decrease to approximately 1/2 when using the projector with

AC 100V to AC 120V [9.8A].

Power consumption

1,650 W (1,690 VA [AC200V]) (0.3 W with Standby Mode set to Eco*

4 W with Standby Mode set to Normal)

1,140W (Normal Mode), 1,380 W (Eco Mode)

Operating Temperature: 25 °C (77 °F), Altitude: 700m (2,297ft),

IEC627087: 2008 Broadcast contents, Picture mode: Standard, Dynamic contrast [2]

BTU value

Max 5,364 BTU

DLP™ chip Panel size 22.9 mm (0.9 inches) diagonal (16:10 aspect ratio)

Display method DLP™ chip × 3, DLP™ projection system

Pixels 4,096,000 (2560 ×1600) ×3, total of 12,288,000 pixels

49,152,000 (12,288,000 x 4) pixels when Quad Pixel Drive set to ON

Refresh rate 240 Hz*

Lens Optional (no lens included with this model)

Light source Laser Diode (Laser class: Class 1)*Class 3R for North America/China.

Illumination life of set Varies depending on operation mode setting.

20,000 hours at half luminance (Normal) 24,000 hours at half luminance (Eco)

* IEC62087: 2008 Broadcast contents, Dynamic contrast [3]

(NORMAL/ECO Temperature: 30°C (86°F), Altitude 700m (2,297 ft),Dynamic

Contrast [3] Under conditions of 0.15 mg/m

of particulate matter

Screen size (diagonal) 1.78–25.4 m (70–1,000 in) with 16:10 aspect ratio

1.78–15.24 m (70–600 in) with the ET-D75LE8/ET-D3LET80, 16:10 aspect ratio

3.05–15.24 m (120–600 in) with the ET-D75LE95, 16:10 aspect ratio

Brightness*

21,000 lm (Center)*

/ 20,000 lm

Center-to-corner uniformity

90 %

Contrast*

20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)

Resolution 5120 ×3200 pixels when Quad Pixel Drive set to ON

Scanning frequency SDI signal input SD-SDI signal

HD-SDI signal

3G-SDI signal

DIGITAL LINK signal input

• Moving image signal resolution: 480/60i*

, 576/50i*

to 4096 x 2160

Still image signal resolution: 640 x 400 to 3840 x 2400 (non-interlace)

• Dot clock frequency: 25 MHz to 297 MHz

HDMI signal input

This is supported when the optional Interface Board for HDMI 2 input (Model No.: ET-MDNHM10) is installed in the slot.

• Moving image signal resolution: 480/60i*

, 576/50i*

to 4096 x 2160

Still image signal resolution: 640 x 400 to 3840 x 2400 (non-interlace)

• Dot clock frequency: 25 MHz to 594 MHz

DVI-D signal input

This is supported when the optional Interface Board for DVI-D 2 input (Model No.: ET-MDNDV10) is installed in the slot.

• Moving image signal resolution: 480/60i*

, 576/50i*

to 2048 x 1080

Still image signal resolution: 640 x 400 to 1920 x 1200 (non-interlace)

• Dot clock frequency: 25 MHz to 162 MHz

Lens shift Vertical (from center of screen) ±59 % (±56 % with ET-D75LE6/ET-D3LEW60, +69 % – +84 %

with ET-D75LE95) (powered)

Horizontal (from center of screen)

±29 % (±19 % with ET-D75LE6/ET-D3LEW60, ±21 %

with ET-D75LE95) (powered)

NOTE: Optical axis shift function cannot be operated when used with the ET-D3LEW50.

PT-RQ22K

3-Chip DLP™ Projector

As of July 2018 1/30

RQ22KG_SYK_01_27/07/2018

Installation Ceiling/floor, front /rear, free 360-degree installation

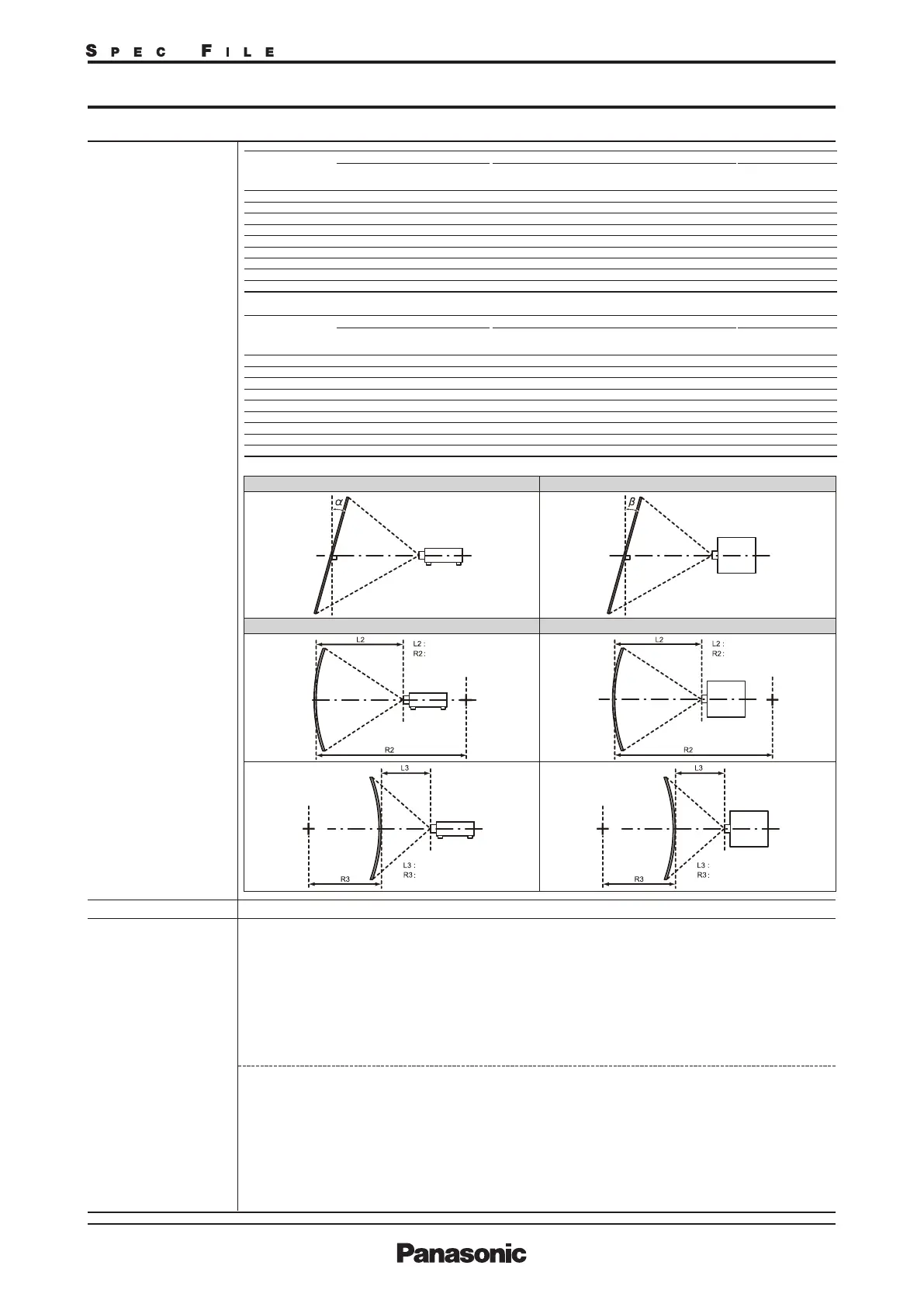

[VERTICAL KEYSTONE] (viewed from the side) [HORIZONTAL KEYSTONE] (viewed from above)

Screen

Vertical arc correction (viewed from the side) Horizontal arc correction (viewed from above)

Screen

Projection distance

Arc radius

Screen

Projection distance

Arc radius

Arc center

Screen

Projection distance

Arc radius

Arc center

Screen

Projection distance

Arc radius

SDI IN 1 BNC × 1

SD-SDI signal SMPTE ST 259 compliant

HD-SDI signal SMPTE ST 292 compliant

3G-SDI signal SMPTE ST 424, 425-2 compliant

Dual link HD-SDI (Link A) signal SMPTE ST 372 compliant

Dual link 3G-SDI (Link 1) signal SMPTE ST 425-3 compliant

Quad-link HD-SDI (Link 1) signal

Quad-link 3G-SDI (Link 1) signal SMPTE ST 425-5 compliant

SDI IN 2 BNC × 1

SD-SDI signal SMPTE ST 259 compliant

HD-SDI signal SMPTE ST 292 compliant

3G-SDI signal SMPTE ST 424, 425-2 compliant

Dual link HD-SDI (Link B) signal SMPTE ST 372 compliant

Dual link 3G-SDI (Link 2) signal SMPTE ST 425-3 compliant

Quad-link HD-SDI (Link 2) signal

Quad-link 3G-SDI (Link 2) signal SMPTE ST 425-5 compliant

Terminals

Keystone correction range

When using the optional Upgrade Kit (Model No.: ET-UK20)

Only [KEYSTONE] used*

[KEYSTONE] and [CURVED] used together Only [CURVED] used

ET-D75LE6/ET-D3LEW60

ET-D75LE8/ET-D3LET80

ET-D3LEW10

ET-D75LE10

ET-D75LE20/ET-D3LES20

ET-D75LE30

ET-D75LE40

ET-D3LEW50

ET-D75LE95*

± 28

± 45

± 40

± 45

± 22

+5 / -0

± 15

± 40

± 15

± 10

± 20

± 8

± 10

± 15

± 8

1.2

0.2

0.9

0.7

0.5

0.3

1.5

3.0

0.3

2.0

1.3

0.9

0.5

3.7

0.7

0.1

0.5

0.4

0.3

0.2

0.9

1.7

0.2

1.1

0.7

0.5

0.3

2.2

Projection

lens Model

No.

Vertical keystone

correction angle

α (°)

Horizontal keystone

correction angle

β (°)

Vertical keystone

correction angle

α (°)

Horizontal keystone

correction angle

β (°)

Min. value of

R2/L2

Min. value of

3/L3

Min. value of

R2/L2

Min. value of

R3/L3

Only [KEYSTONE] used [KEYSTONE] and [CURVED] used together Only [CURVED] used

ET-D75LE6/ET-D3LEW60

ET-D75LE8/ET-D3LET80

ET-D3LEW10

ET-D75LE10

ET-D75LE20/ET-D3LES20

ET-D75LE30

ET-D75LE40

ET-D3LEW50

ET-D75LE95*

± 28

± 40

± 22

+5 / -0

± 15

± 10

± 20

± 8

± 10

± 15

± 8

1.6

0.2

1.1

0.9

0.6

0.4

2.0

3.9

0.4

2.6

1.7

1.2

0.7

4.9

0.9

0.2

0.6

0.5

0.4

0.2

1.2

2.3

0.3

1.5

1.0

0.7

0.4

2.9

Projection

lens Model

No.

Vertical keystone

correction angle

α (°)

Horizontal keystone

correction angle

β (°)

Vertical keystone

correction angle

α (°)

Horizontal keystone

correction angle

β (°)

Min. value of

R2/L2

Min. value of

3/L3

Min. value of

R2/L2

Min. value of

R3/L3

PT-RQ22K

3-Chip DLP™ Projector

As of July 2018 2/30

RQ22KG_SYK_01_27/07/2018

Produkt Specifikationer

Mærke:	Panasonic
Kategori:	Beamer
Model:	PT-RQ22K
Vekselstrømsindgangsspænding:	100 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	598 mm
Dybde:	725 mm
Højde:	270 mm
Vægt:	55000 g
Antal pr. pakke:	1 stk
Produktfarve:	Sort
Produkttype:	Projektor til stort spillested
Naturligt aspektforhold:	16:10
Relativ luftfugtighed ved drift (H-H):	10 - 80 %
HDCP:	Ja
Ethernet LAN-porte (RJ-45):	1
Antal USB 2.0-porte:	2
Ethernet LAN:	Ja
Strømforbrug (standby):	0.3 W
Strømforbrug (typisk):	1650 W
Driftstemperatur (T-T):	0 - 45 °C
Husmateriale:	Plast
Understøttede billedformater:	16:10
Støjniveau:	46 dB
Strømkilde:	Vekselstrøm
Placering:	Desktop
Full HD:	Ja
Kontrastforhold (typisk):	2000:1
Projektor lysstyrke:	21000 ANSI lumens
Projektionsteknologi:	DLP
Projektor indbygget opløsning:	4K+ (5120x3200)
Skærmstørrelse kompatibilitet:	70 - 1000 "
Ensartethed:	90 %
Trapezkorrektion, vertikal:	-40 - 40 °
Matrix størrelse:	0.9 "
Levetid for lyskilde:	20000 t
Lyskilde type:	Laser
Seriel grænsefladetype:	RS-232C
Trapezkorrektion, horisontal:	-15 - 15 °
Horisontalt område for optisk linseforskydning:	-29 - 29 %
Vandret område for optisk linseforskydning:	-55 - 55 %
BNC-indgangsporte:	6
Smart projektor:	Ja
