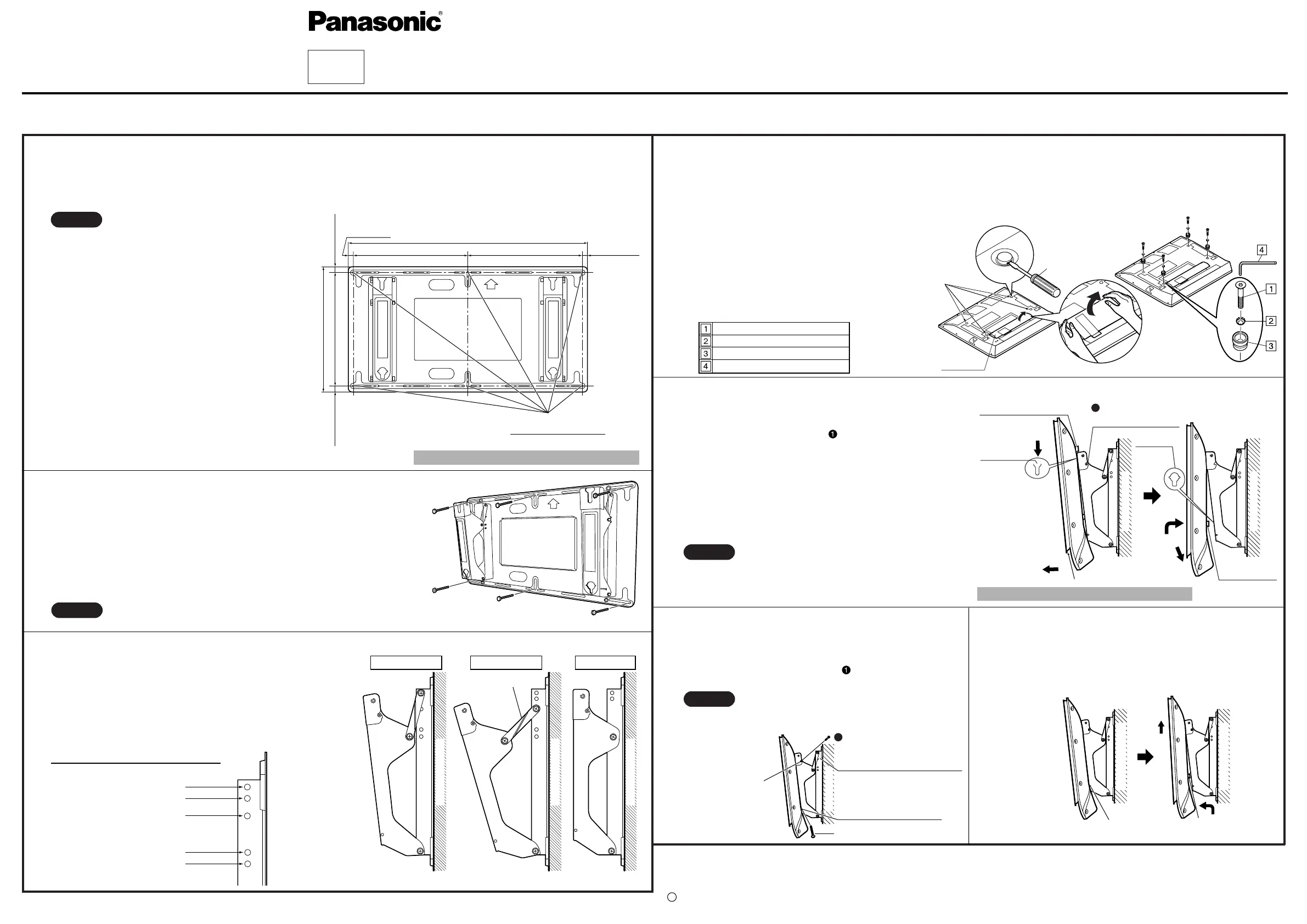

Before commencing work, carefully read these Instructions and the Manual for the wide plasma display to ensure

that fitting is performed correctly.

(

Please save these instructions. You may need them when maintaining or moving the bracket.

)

Fitting Instructions

WK42PR2U Wall hanging bracket

(

Adjustable angle type

)

Fitting procedure

1. Confirm the strength of the proposed fitting location

The weight of the wall hanging bracket is approximately 10 kg

(

22 lb.

)

. The plasma TV unit attached to the wall

hanging bracket weighs approximately 30 to 56 kg

(

66 to 123 lb.

)

Check the wall strength at the 6 attachment locations by referring to the dimension drawing of the wall hanging

bracket

(

given at right

)

, and provide adequate reinforcement if strength is not sufficient.

2. Fit wall hanging bracket to wall

• Fit so that the arrow marks on the wall hanging bracket point upward.

•

If the wall consists of a material such as concrete and bolts or nuts must be

embedded beforehand, determine the hole positions by aligning using the actu-

al wall hanging bracket, or calculate hole positions based on the dimension

drawing, and then embed "M6" bolts or nuts. When embedding bolts, locate so

that the bolts protrude from the wall by 10 to 15 mm

(

25/64 to 19/32 inches

)

(

)

Fasten the screw at the top center hole first.

(

)

Using a level, correct any bracket inclination, and then fasten screws at

the remaining 5 locations.

• There are 14 holes in the wall hanging

bracket.

If the wall material is wood, and ade-

quate attachment strength cannot be

ensured by fastening at the 6 points at

right, use as many spare holes as

necessary. However, exercise care

because some wall materials may

crack if screws are located too close

together.

TQZH489

Note

• Use commercially available M6 screws suited to the wall surface material

(

wood, steel frame, concrete etc.

)

for fitting the bracket to the wall.

Note

490

(

19 19/64

)

450

(

17 23/32

)

(

25/32

)

(

25/32

)

450

(

17 23/32

)

450

(

17 23/32

)

(

19/32

)

(

19/32

)

930

(

36 5/8

)

Wall attachment

holes (at 6 points)

Attaching the plasma TV to the wall-hang-

ing bracket and connecting the wiring

(

)

Remove the red screws for open/close fastening

(

one

each on the left and right

)

(

)

Hook the insulation spacers on the top of the plasma

TV over the notches on the bracket, and allow the TV

to hang from the bracket.

(

)

Pull the plasma TV body forward, as shown in the diagram

at right, and connect the wiring.

(

)

After wiring is finished, slightly raise the plasma TV

and insert the insulation spacers at the lower back into

the holes at the base of the wall hanging bracket.

(

)

Lower the plasma TV into place.

6. Fastening the plasma TV

(

)

Fit the included fastening screws in the indicated holes at

the sides of the wall-hanging bracket

(

left and right

)

(

)

Securely refit the red screws for open/close fastening

(

one each on the left and right

)

in the indicated holes

on the sides of the wall-hanging bracket.

Unit: mm

(

inches

)

Insulation

spacer

Screw for plasma

TV unit fastening

(

)

(

)

(

)

Wall surface

③

②

○

４

○

５

Wall surface

Model No.

Be sure to fit screws and tighten securely

3. Angle adjustment of wall-hanging bracket

The angle of the wall-hanging bracket can be adjusted from

"no incline" to "20° incline" in 5 settings at intervals of 5°

(

The TH-50PX20 has 4 settings, ranging up to "15° incline."

)

The bracket is set to 5° before shipment from the factory.

To change the angle, move the attachment position of the

strap.

* The strap is not needed for the "no incline" setting.

Matsushita Electric Industrial Co., Ltd.

Web Site : http://www.panasonic.co.jp/global/

Allen head countersunk screw

Dished toothed washer

Insulation spacer

Allen wrench

Wall surface

Angle adjustment hole positions

5° incline

10° incline

15° incline

20° incline

No incline

* For detailed dimensions for attaching

the plasma TV, refer to the separate

External Dimension Drawing.

Strap

4. Prepare the plasma TV

Fit the insulation spacers to the plasma TV.

Place the plasma TV unit face down on a blanket or other soft cloth that is clean and free of debris, and follow the procedure below.

(

)

Remove the terminal cover on the plasma TV

(

PX20 series only

)

(

)

Using a flathead screwdriver, remove the four caps from the plasma TV.

Carefully retain the removed terminal cover

and caps in a safe place.

(

They will be needed

again later should it be required to use the

special-purpose stand or standalone stand.

)

(

)

Using the included Allen wrench, fit the

included Allen head countersunk screws,

dished tooth washers and insulation spacers

(

4 sets

)

into the holes from where the caps

were removed.

(

See the diagram at right.

)

Caps

Flathead screwdriver

Terminal

cover

• If the plasma TV is raised too far, there is a

risk it may become unhooked from the top

of the bracket.

• Do not hold the front panel of a PX20 Series

plasma TV at the bottom.

Notes

Top insulation spacer

Top notch

Red screw for open /

close fastening

Lower insu-

lation spacer

Lower hole

* Do not hold the bottom of the front panel.

7. Removal of plasma TV unit

(

)

Remove the screws for unit fastening

(

1 each on the left

and right

)

that are fitted to the wall hanging bracket sides.

(

)

While lifting the bottom of the plasma TV unit, pull it towards

yourself.

(

)

When the lower insulation spacers are freed, keep lifting

upward.

Wall surface

Hole for red

screw for open /

close fastening

• Be sure to fit the fastening screws on the left

and right to keep the plasma TV from falling

off the wall-hanging bracket.

Note

Red screw for

open/close fastening

Fastening screw

fitting position

Plasma TV fastening screw

Wall-hanging bracket

At 5° incline

At 15° incline

No incline

Matsushita Electric Industrial Co., Ltd. 2003
