Operating Instructions
Air-to-Water Hydromodule + Tank
Manufactured by:
Panasonic Appliances Air-Conditioning Malaysia Sdn. Bhd.
Lot 2, Persiaran Tengku Ampuan, Section 21,
Shah Alam Industrial Site, 40300 Shah Alam,
Selangor Darul Ehsan, Malaysia.
Operating Instructions
Air-to-Water Hydromodule + Tank
Installation Instructions attached.
Serial number and production year please
refer to name plate.
2
Thank you for purchasing Panasonic product.
Before operating the system, read these operating
instructions thoroughly and keep them for future reference.
Table of contents
Safety precautions ………………………………………… 3-5
To adjust initial settings …………………………………… 6-7
How to use ……………………………………………… 8-11
Cleaning instructions ……………………………………… 12
Troubleshooting ………………………………………… 13-14
Information ………………………………………………… 15
The illustrations in this manual are for explanation purposes
only and may differ from the actual unit.
They are subject to change without notice for future
improvement.
Before use, make sure the system
has been installed correctly by an
authorised dealer according to the
given instructions.
• is a split system, consisting Panasonic Air-to-Water
of two units: indoor and outdoor units. The indoor unit
consist of the hydromodule and 200L sanitary water
tank.
• These operating instructions describe how to operate
the system using the indoor and outdoor units.
• As for the operation of other products such as radiator,
external thermo controller, and underfloor units, refer to
the operating instructions of each product.
• System could be locked to operate in HEAT mode and
disable COOL mode.
• Some functions described in this manual may not be
applicable to your system.
• Consult your nearest authorised dealer for further
information.
*1 The system is locked to operate without COOL mode.
It can be unlocked only by authorised installers or our
authorised service partners.
*2 Only displayed when COOL mode is unlocked
(Means when COOL mode is available).
Operating conditions
HEATING
(TANK) HEATING
(CIRCUIT) COOLING
(CIRCUIT)
Water outlet temperature (°C)
(Min. / Max.) - / 65* 25 / 55 5 / 20
Outdoor ambient temperature (°C)
(Min. / Max.) -20 / 35 16 / 43
* Above 55 °C, only possible with backup heater operation.
When the outdoor temperature is out
of the range in the table, the heating
capacity will drop significantly and the
outdoor unit may stop operating for its
protection.
The unit will restart automatically after
the outdoor temperature returns to the
specified range.
Fan Coil Unit

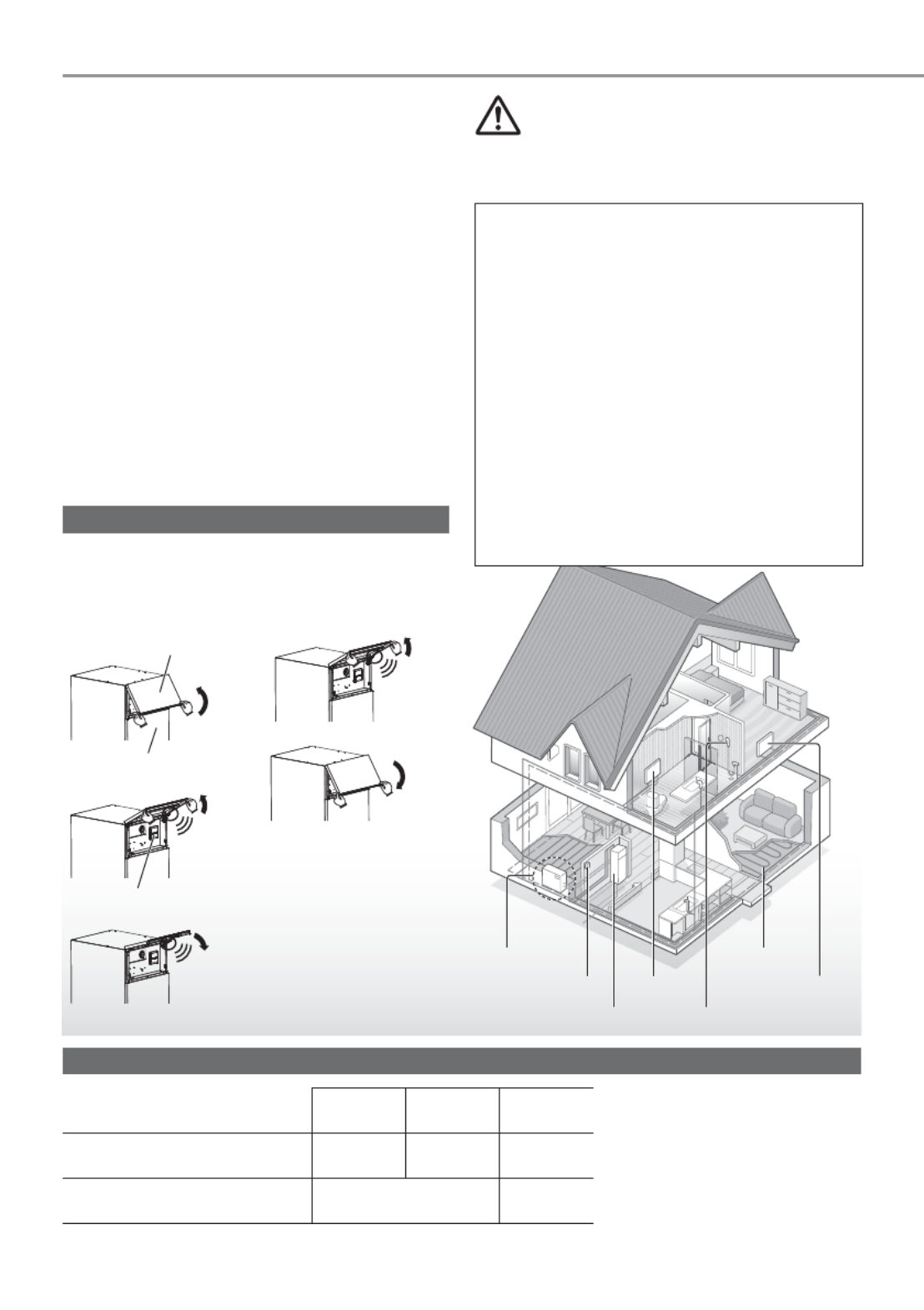

System overview
Open and Close Top Front Plate
Do not open or close the Top Front Plate by excessive
force.
To Open: To Close:
open
Top Front Plate
Bottom Front Plate
“click”
Hold in position
Control panel
“click”
“click”
close
Note:
Not recommended to open
the Bottom Front Plate.
(For authorised dealer/
specialist use only) Indoor Unit
Power Supply Radiator
Shower
Floor HeatingOutdoor Unit
